SsangYong Rexton. Manual - part 170

SSANGYONG  REXTON XDi(RHD)

3-44  WIRING DIAGRAM FOR POWER SUPPLIES

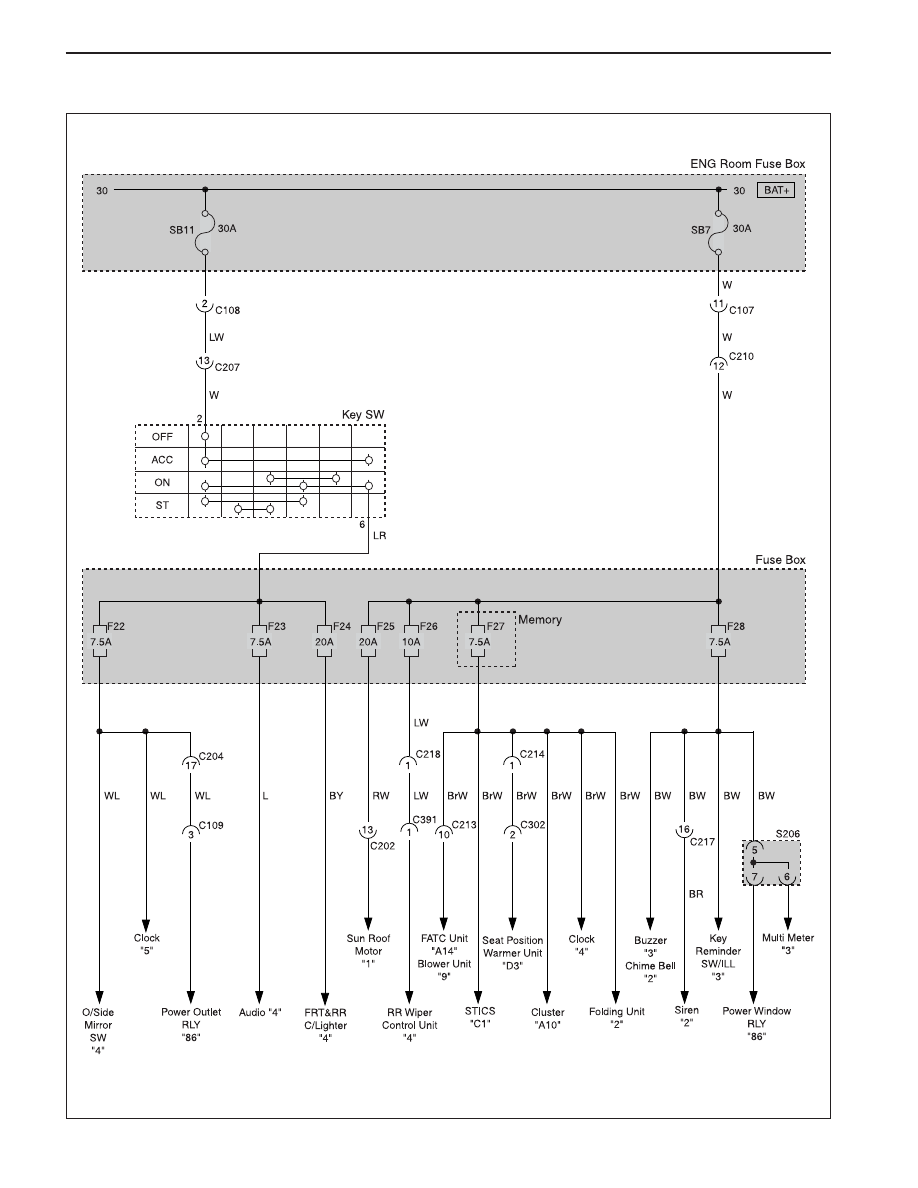

(4) F22 ~ F28

WIRING DIAGRAM FOR POWER SUPPLIES  3-45

SSANGYONG  REXTON XDi(RHD)

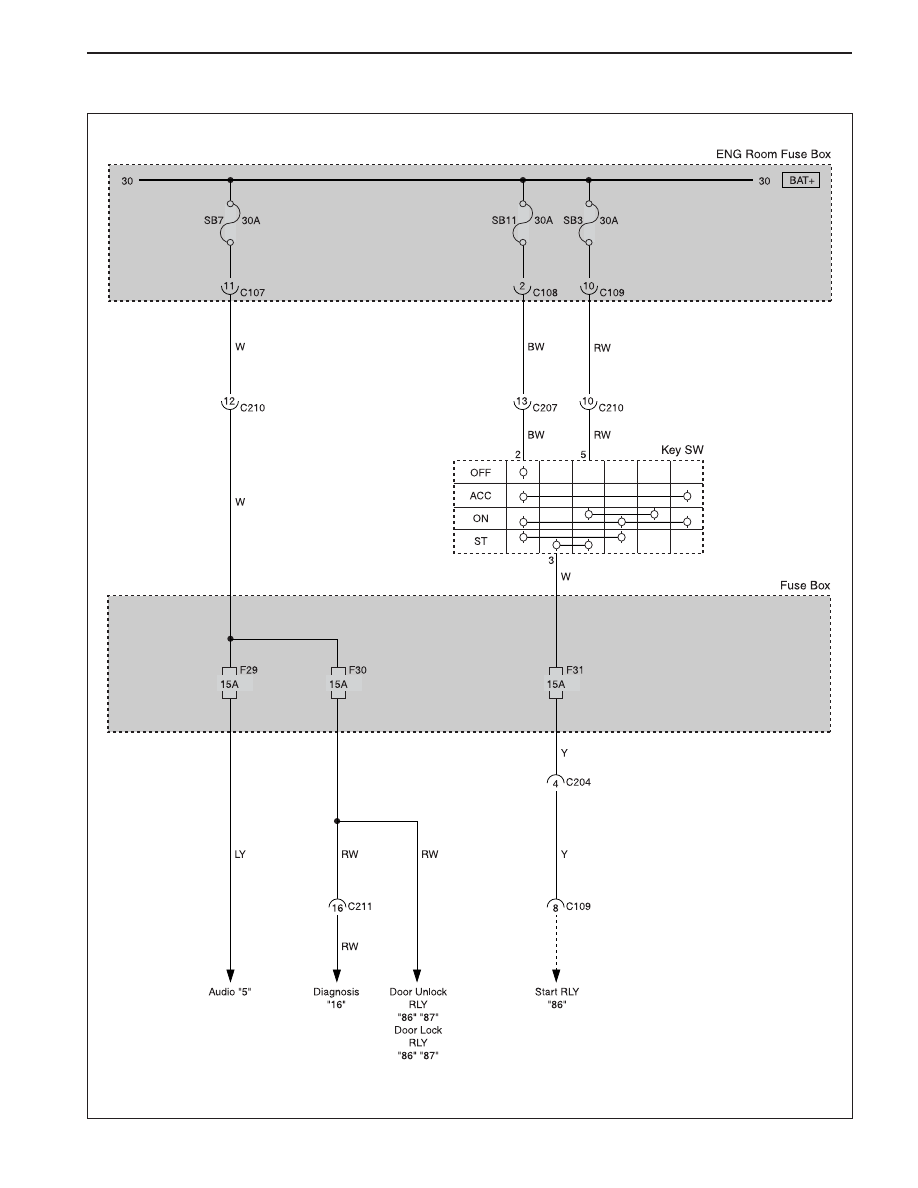

(5) F29 ~ F31

SECTION 4

USAGE AND CAPACITY OF

FUSES IN FUSE BLOCK

TABLE OF CONTENTS

1. ENGINE ROOM FUSE & REALY BLOCK ................................................................ 4-2

2. I.P FUSE & RELAY BOX .......................................................................................... 4-10

SSANGYONG  REXTON XDi(RHD)

4-2  USAGE AND CAPACITY OF FUSES IN FUSE BLOCK

1. ENGINE ROOM FUSE & REALY BLOCK

1)  ~ 2002 MODEL

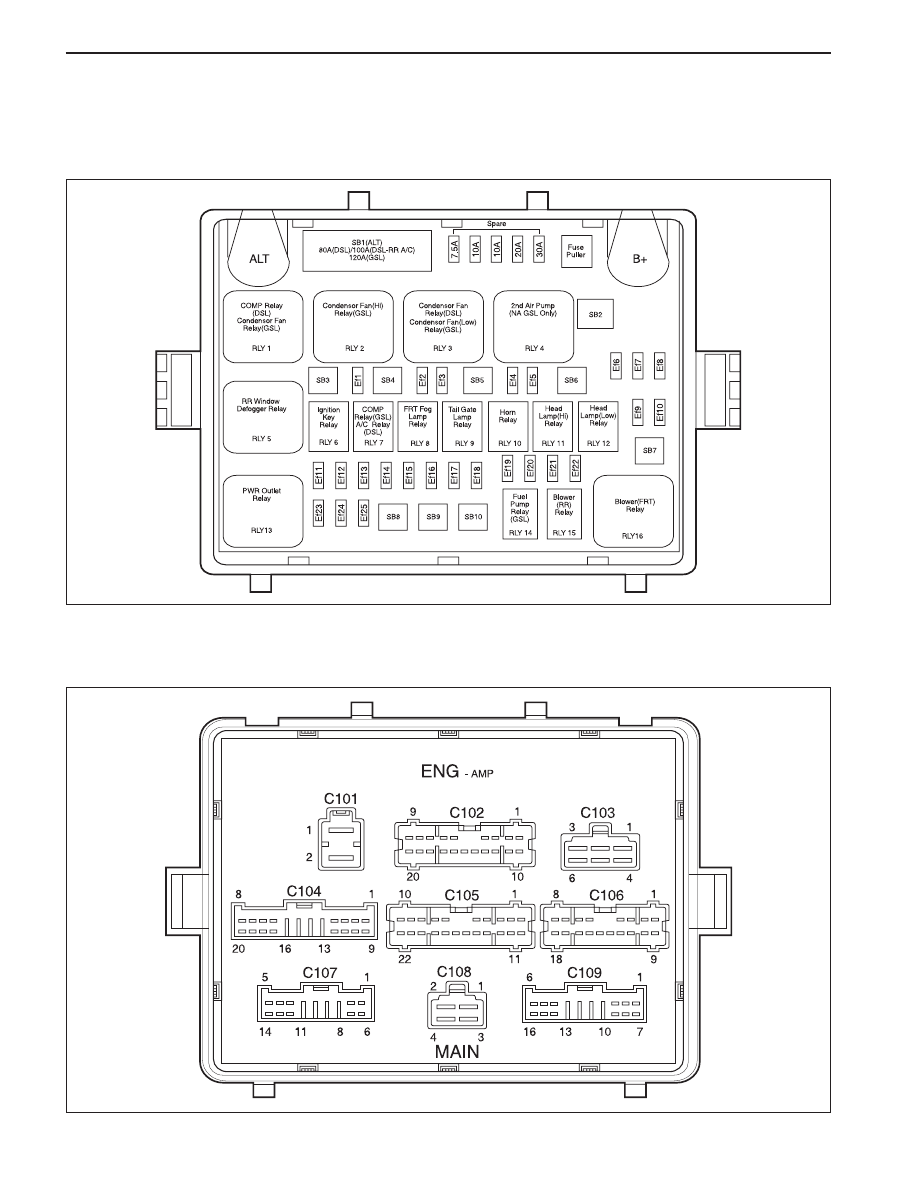

(1) FRONT

(2) REAR
