USAGE AND CAPACITY OF FUSES IN FUSE BLOCK  4-3

SSANGYONG  REXTON XDi(RHD)

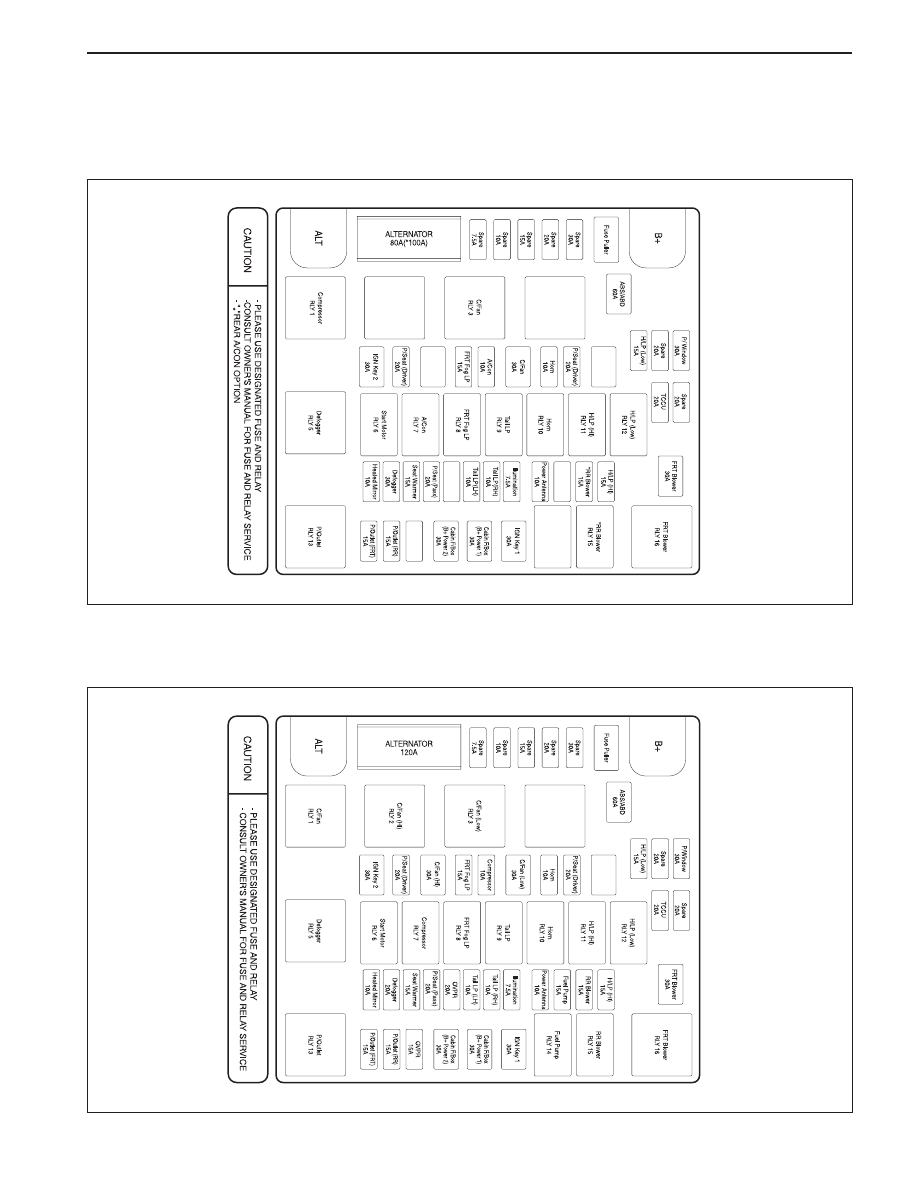

(3) FRONT(DSL)

(4) FRONT(GSL)

SSANGYONG  REXTON XDi(RHD)

4-4  USAGE AND CAPACITY OF FUSES IN FUSE BLOCK

Fuse NO.

Power Seat(Driver)

FRT Fog Lamp

A/C Comp.(GSL)

Horn

Power Seat(Driver)

Head Lamp(Low)

Spare

Power Window

TCCU/TOD(GSL)

Spare

Heated Mirror

Defogger

Seat Warmer

Power Seat(Passenger)

OVPR(GSL)

Tail Lamp(LH)

Tail Lamp(RH)

Illumination

Ef1

Ef2

Ef3

Ef4

Ef5

Ef6

Ef7

Ef8

Ef9

Ef10

Ef11

Ef12

Ef13

Ef14

Ef15

Ef16

Ef17

Ef18

Usage

(5) USAGE OF FUSE IN ENGINE ROOM FUSE BOX

Capacity

20A

15A

10A

10A

20A

15A

20A

30A

20A

20A

10A

30A

15A

20A

20A

10A

10A

7.5A

Fuse NO.

Power Antenna.

Fuel Pump(GSL)

RR Blower

Head Lamp(HI)

Power Outlet(FRT)

Power Outlet(RR)

OVPR(GSL)

Alternator

ABS/ABD

IGN Key “2”

C/Fan(HI) - GSL

C/Fan(DSL), C/Fan(LOW) - DSL

2nd Air Pump

FRT Blower

Cabin F/Box “B+” - 2

Cabin F/Box “B+” - 1

IGN Key “1”

Ef19

Ef20

Ef21

Ef22

Ef23

Ef24

Ef25

SB1

SB2

SB3

SB4

SB5

SB6

SB7

SB8

SB9

SB10

Usage

Capacity

10A

15A

15A

15A

15A

15A

15A

80A/100A/120A

60A

30A

30A

30A

50A

30A

30A

30A

30A

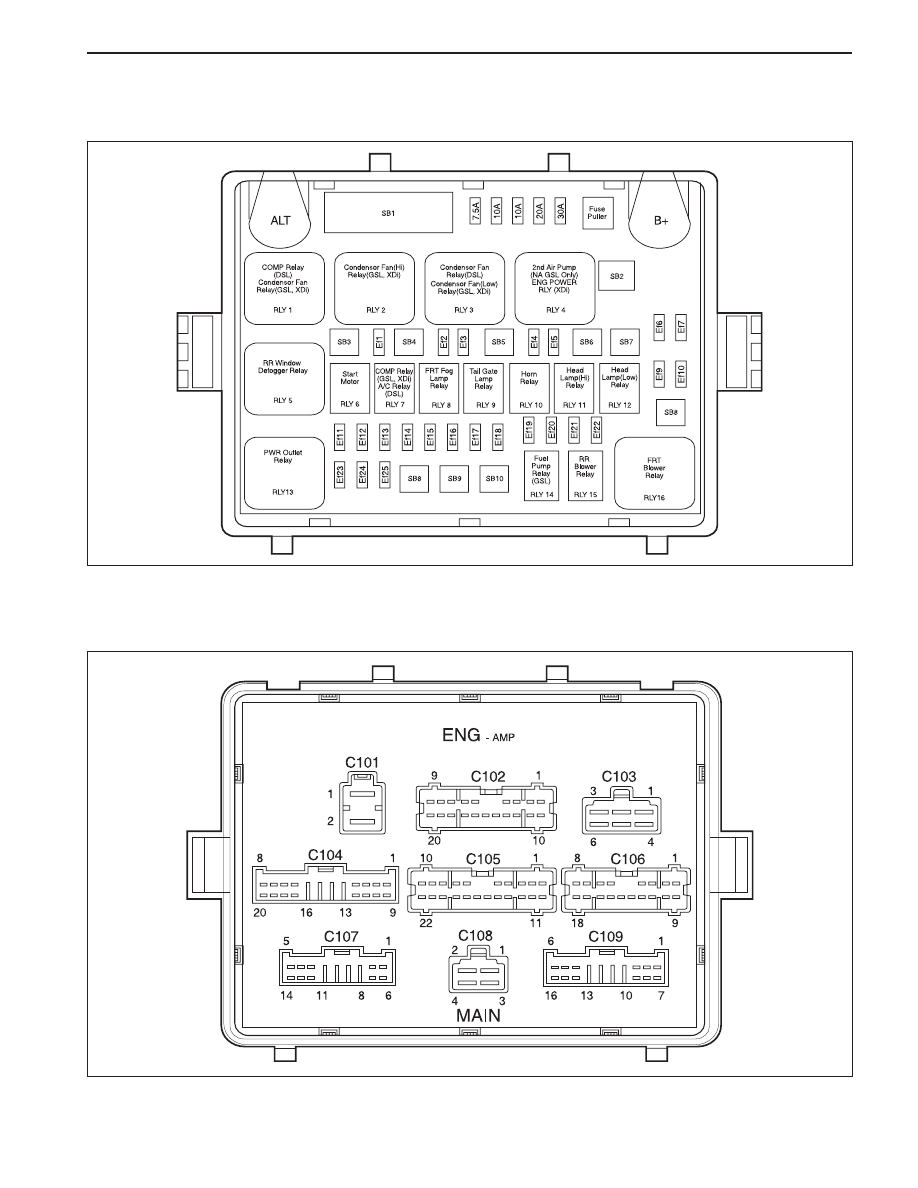

(6) CONNECTOR

Position

C101

C102

C103

C104

C105

C106

C107

C108

C109

A

B

C

D

E

F

J

K

M

Connector NO.

2

20

6

20

22

18

14

4

16

Black

White

Colorless

White

White

White

White

Colorless

White

Connector Color

Pin NO.

USAGE AND CAPACITY OF FUSES IN FUSE BLOCK  4-5

SSANGYONG  REXTON XDi(RHD)

2) 2003 MODEL(W/ XDi) ~

(1) FRONT

(2) REAR

SSANGYONG  REXTON XDi(RHD)

4-6  USAGE AND CAPACITY OF FUSES IN FUSE BLOCK

3) 2003 MODEL

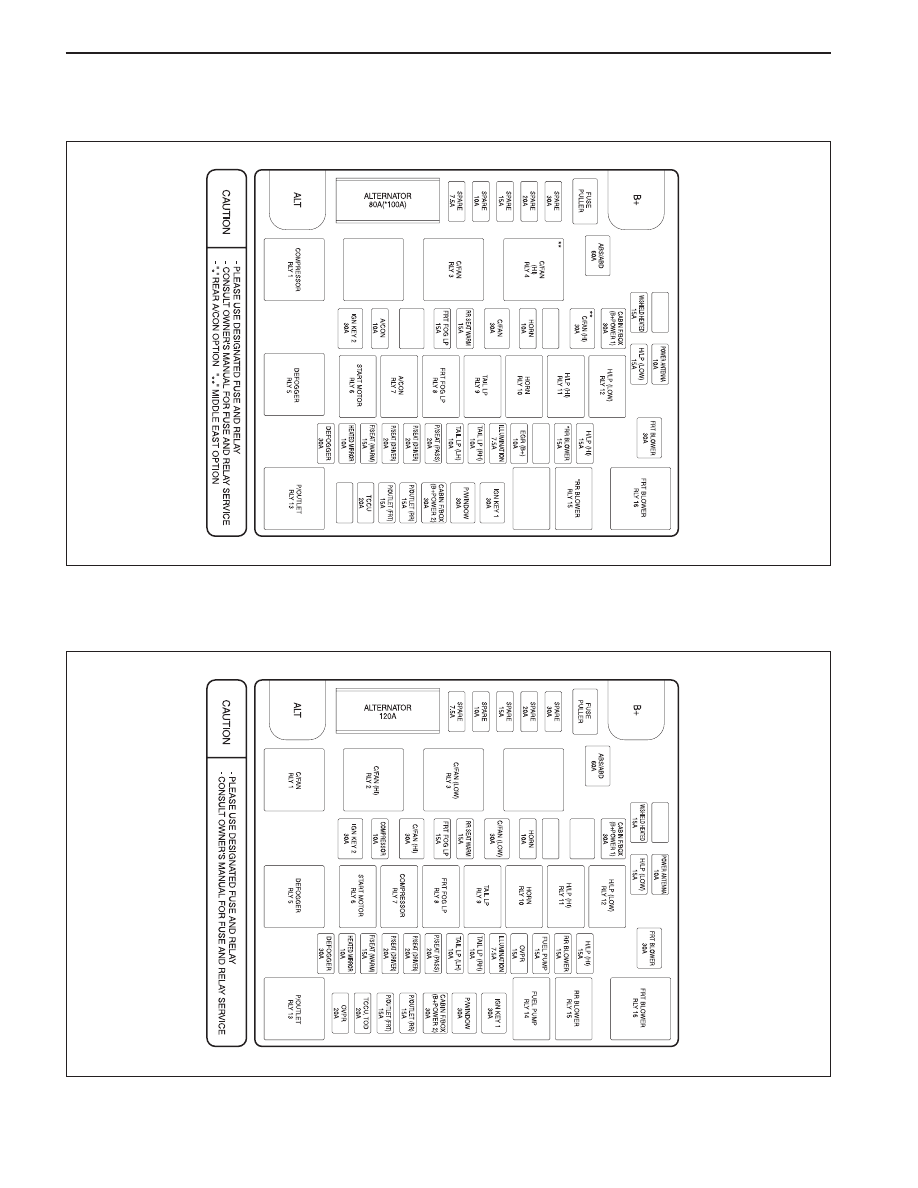

(1) FRONT(DSL)

(2) FRONT(GSL)
