SsangYong Rexton. Manual - part 169

SSANGYONG  REXTON XDi(RHD)

3-40  WIRING DIAGRAM FOR POWER SUPPLIES

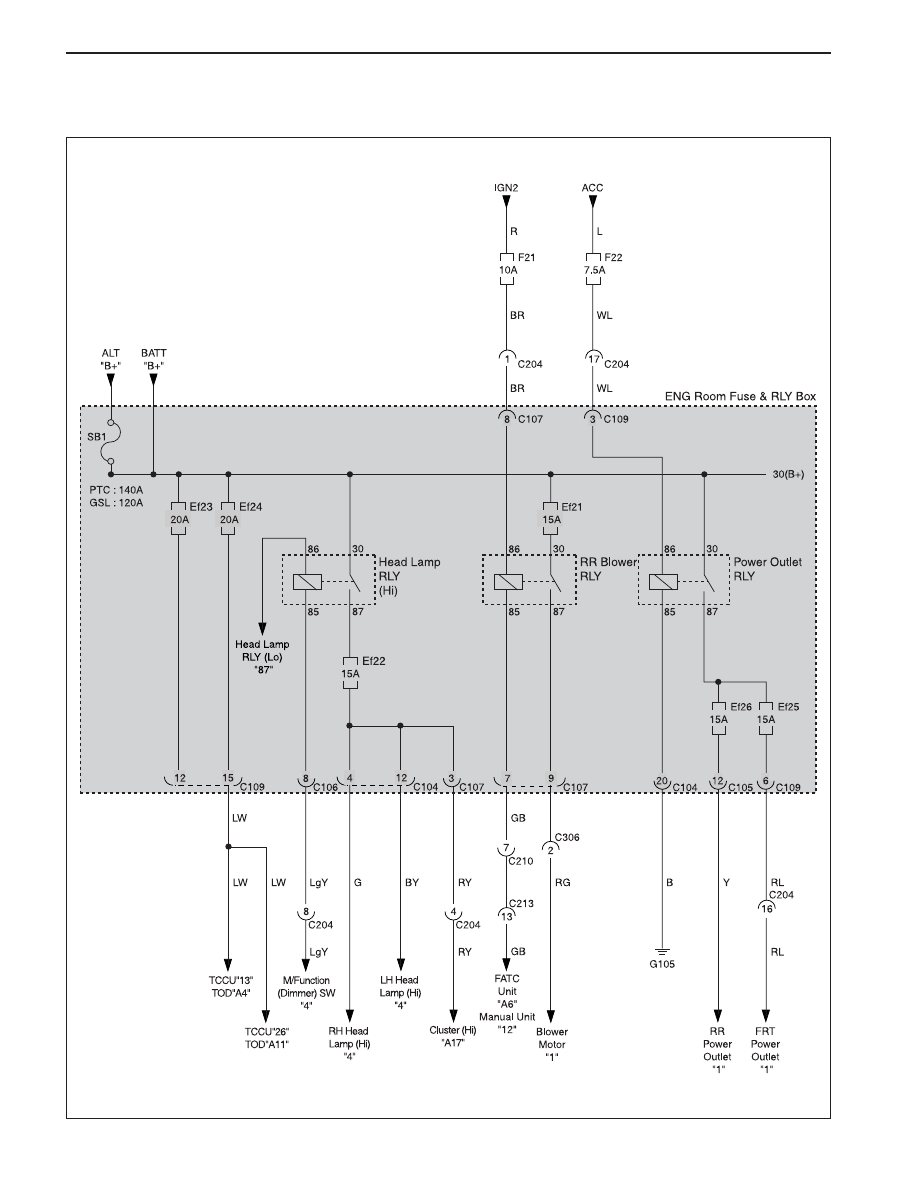

(7) Ef21 ~ Ef26

WIRING DIAGRAM FOR POWER SUPPLIES  3-41

SSANGYONG  REXTON XDi(RHD)

2) FUSE BOX

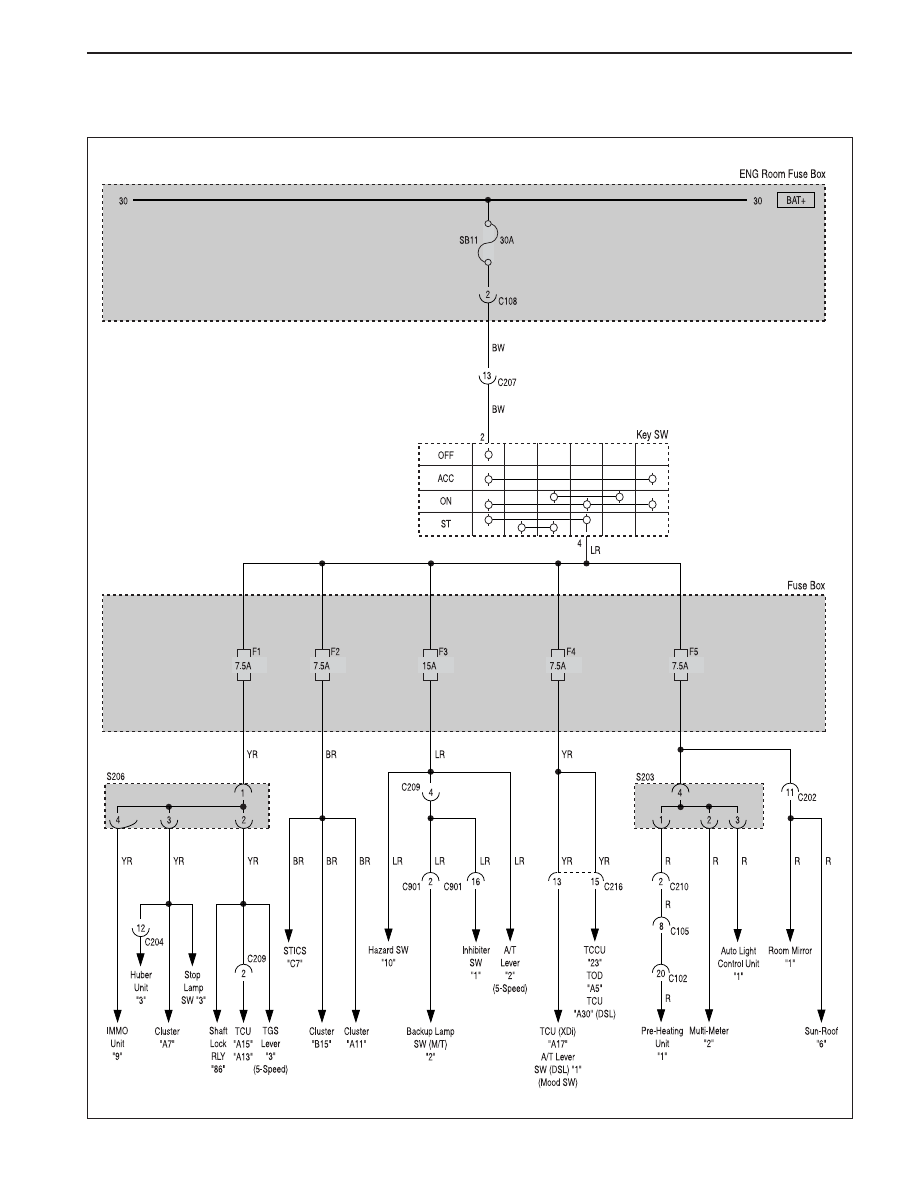

(1) F1 ~ F5

SSANGYONG  REXTON XDi(RHD)

3-42  WIRING DIAGRAM FOR POWER SUPPLIES

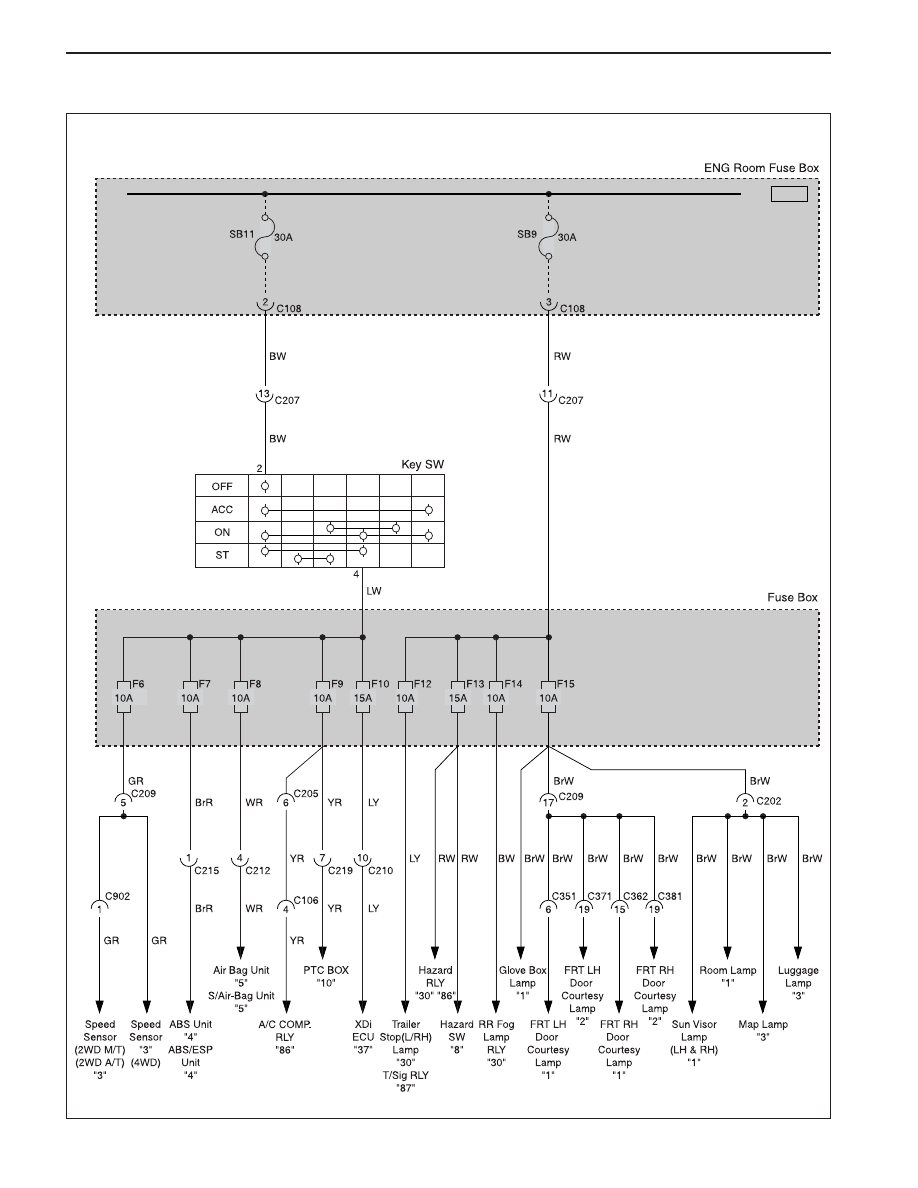

(2) F6 ~ F15

30

BAT+

30

WIRING DIAGRAM FOR POWER SUPPLIES  3-43

SSANGYONG  REXTON XDi(RHD)

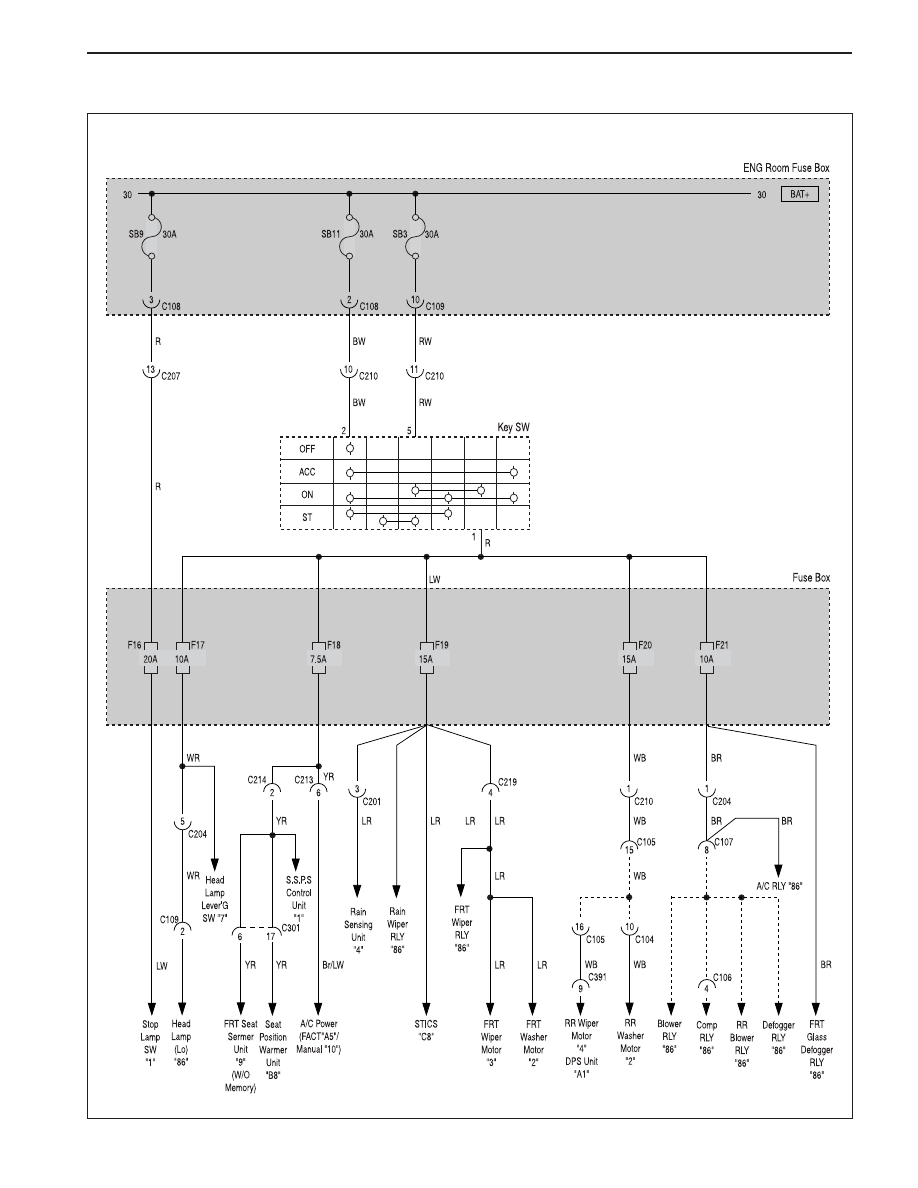

(3) F16 ~ F21
