SSANGYONG  REXTON XDi(RHD)

3-36  WIRING DIAGRAM FOR POWER SUPPLIES

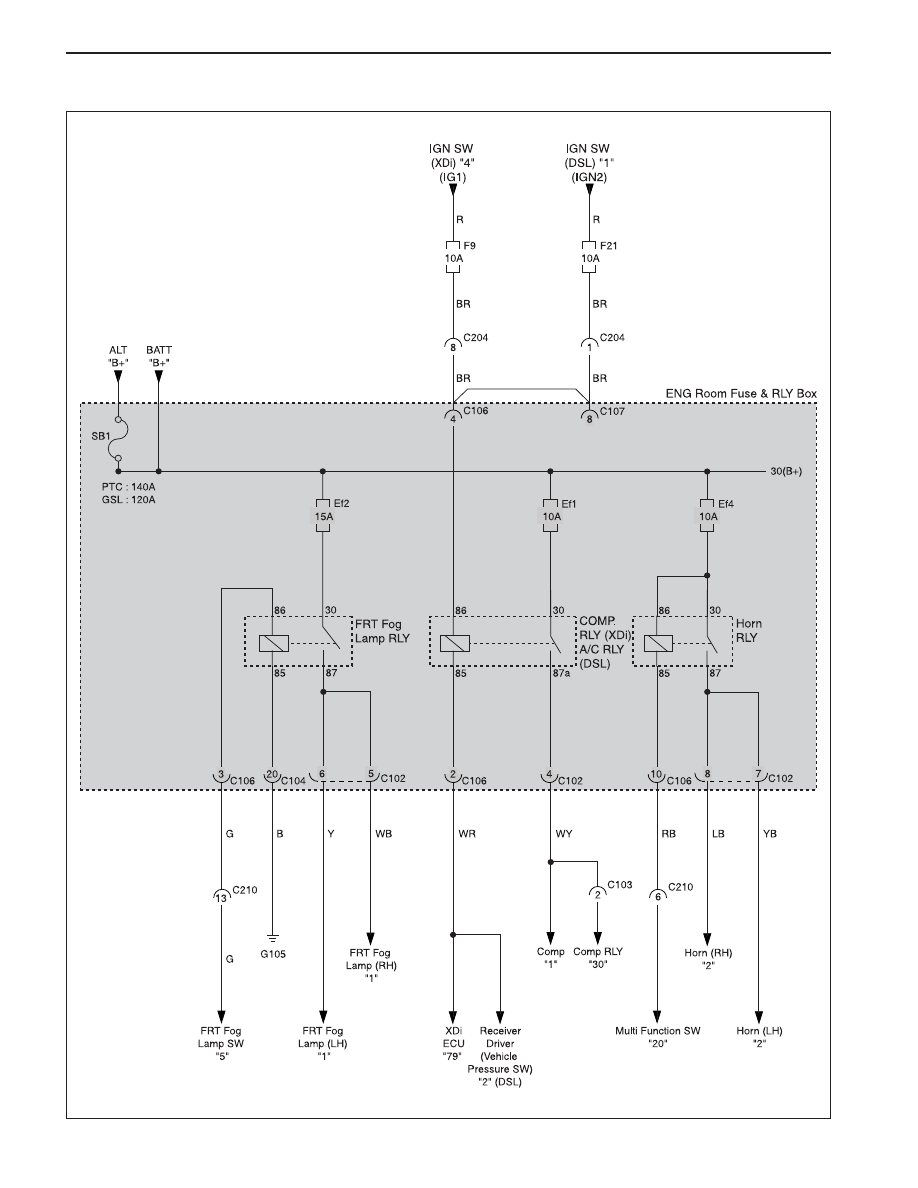

(3) Ef1 ~ Ef4

WIRING DIAGRAM FOR POWER SUPPLIES  3-37

SSANGYONG  REXTON XDi(RHD)

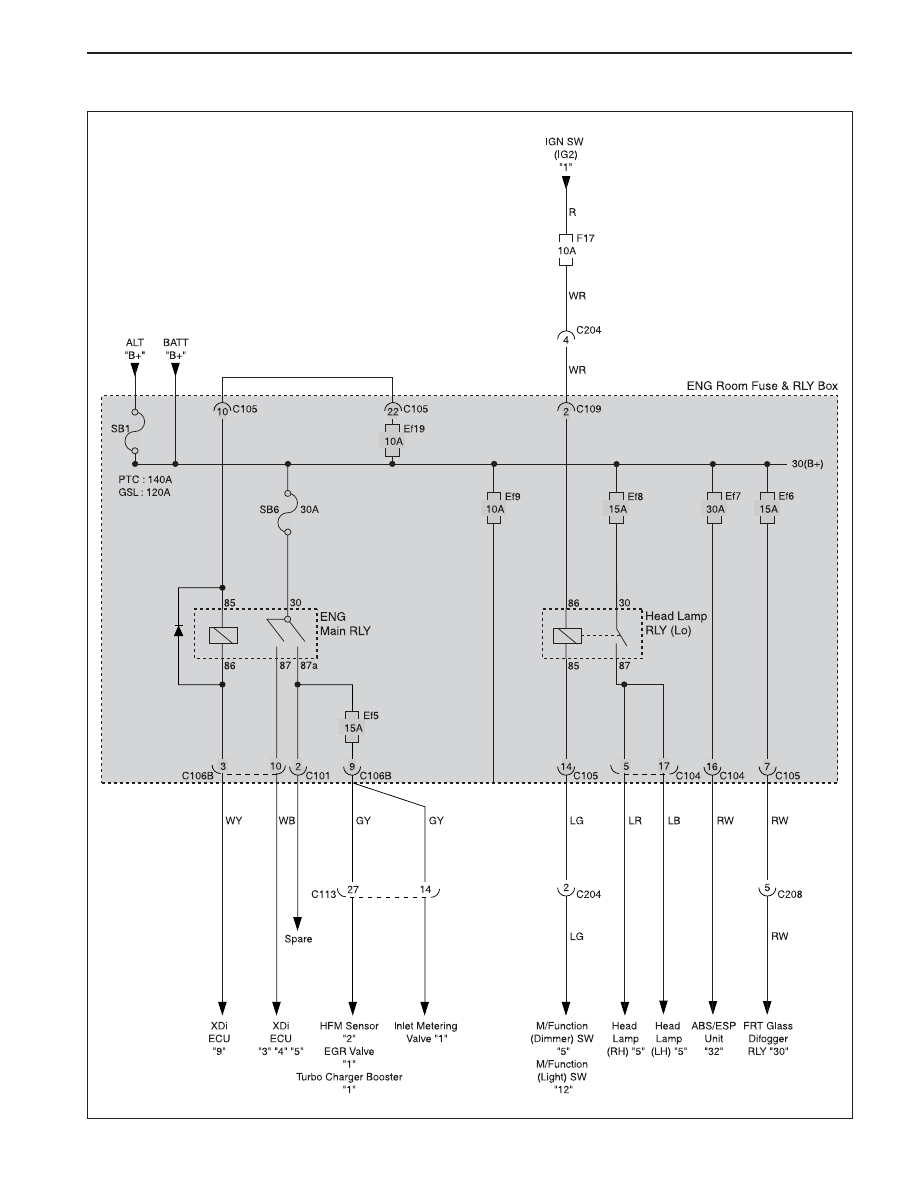

(4) Ef5 ~ Ef9

SSANGYONG  REXTON XDi(RHD)

3-38  WIRING DIAGRAM FOR POWER SUPPLIES

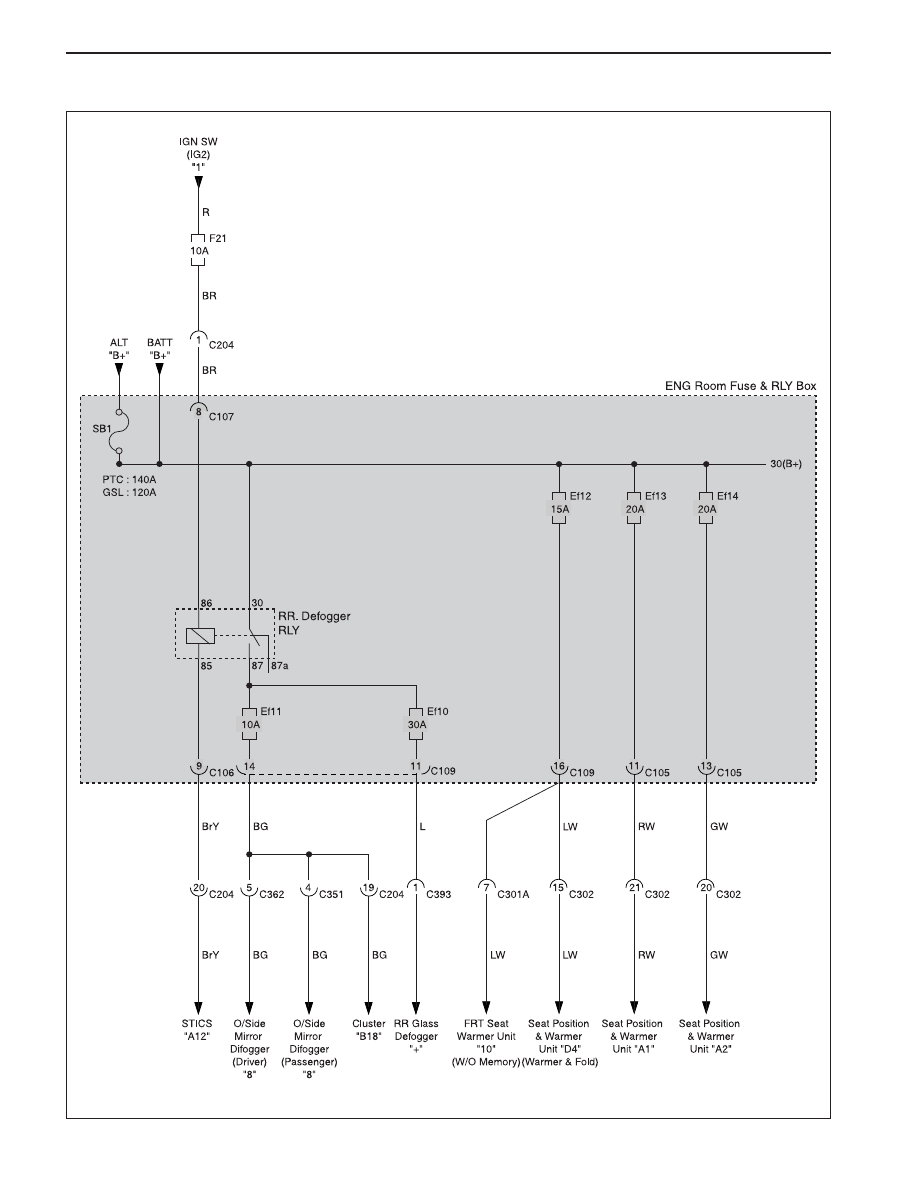

(5) Ef10 ~ Ef14

WIRING DIAGRAM FOR POWER SUPPLIES  3-39

SSANGYONG  REXTON XDi(RHD)

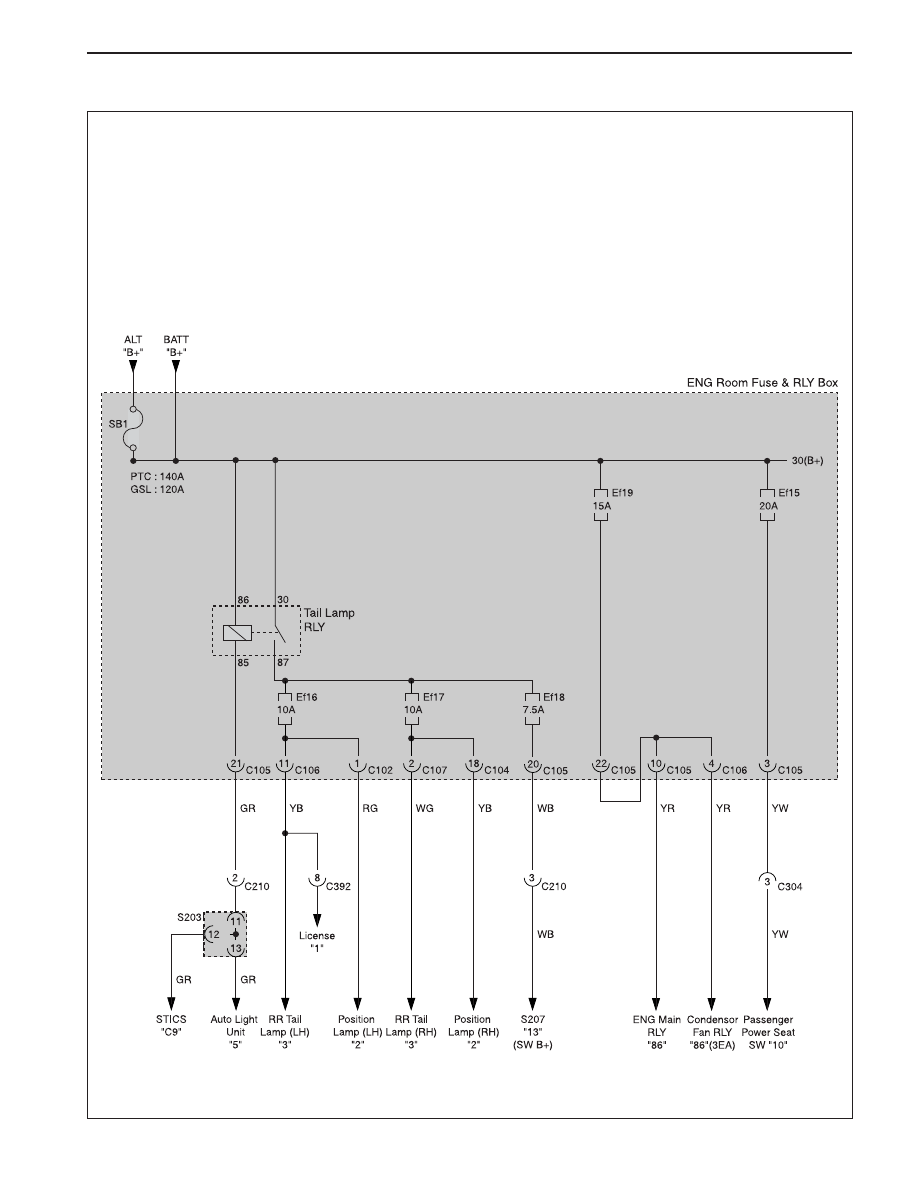

(6) Ef15 ~ Ef20
