SsangYong Rexton. Manual - part 167

SSANGYONG  REXTON XDi(RHD)

3-32  WIRING DIAGRAM FOR POWER SUPPLIES

WIRING DIAGRAM FOR POWER SUPPLIES  3-33

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

3-34  WIRING DIAGRAM FOR POWER SUPPLIES

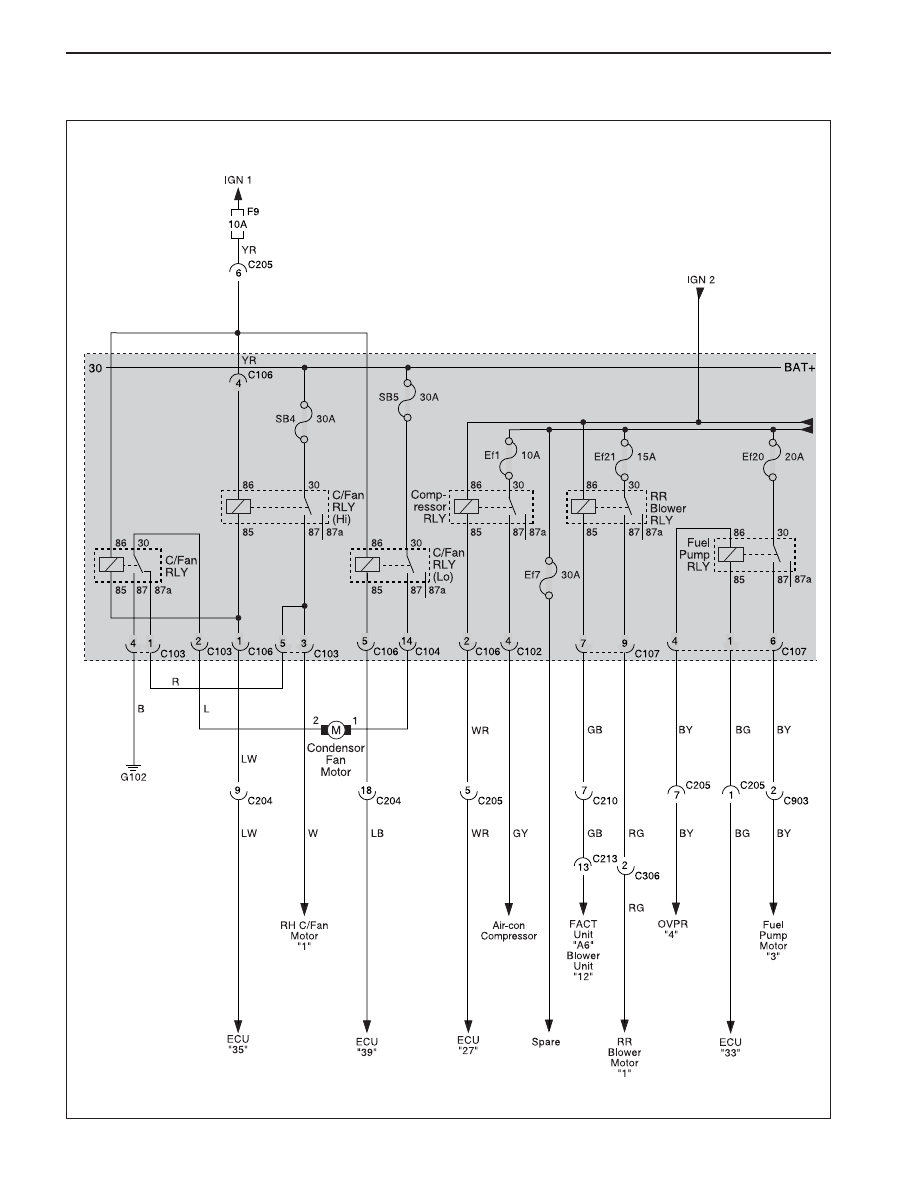

3. POWER WIRING DIAGRAM(XDi, 2004 MODEL(E32) ~ )

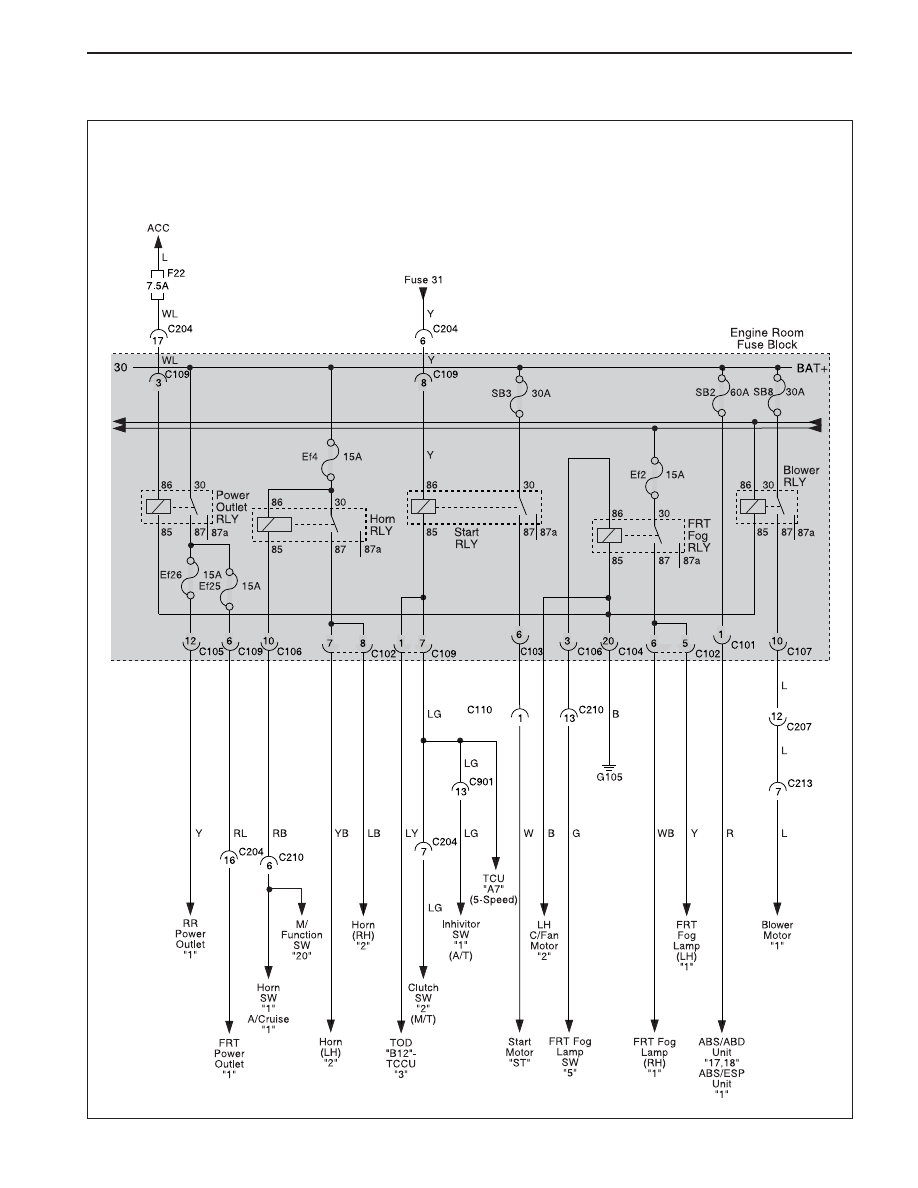

1) ENG ROOM & FUSE BOX

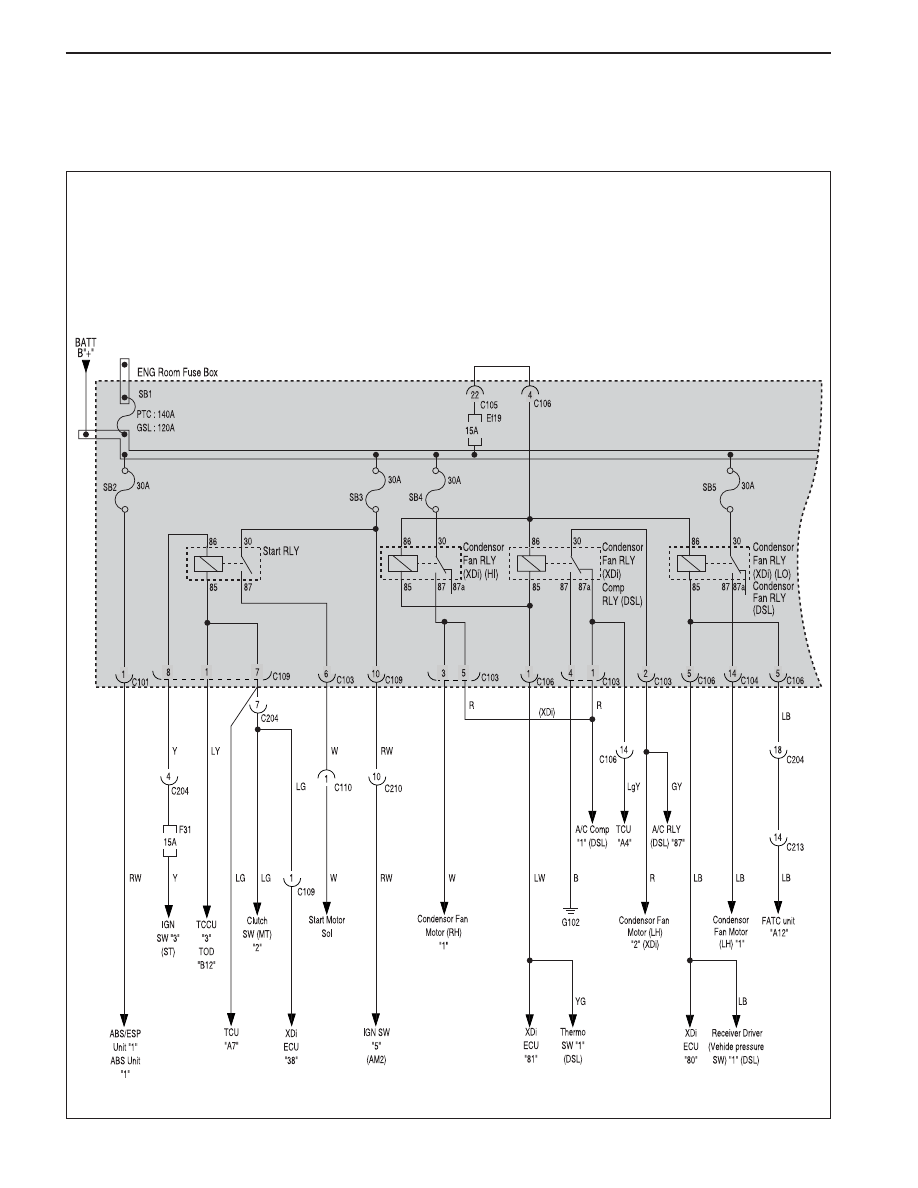

(1) SB1 ~ SB5

WIRING DIAGRAM FOR POWER SUPPLIES  3-35

SSANGYONG  REXTON XDi(RHD)

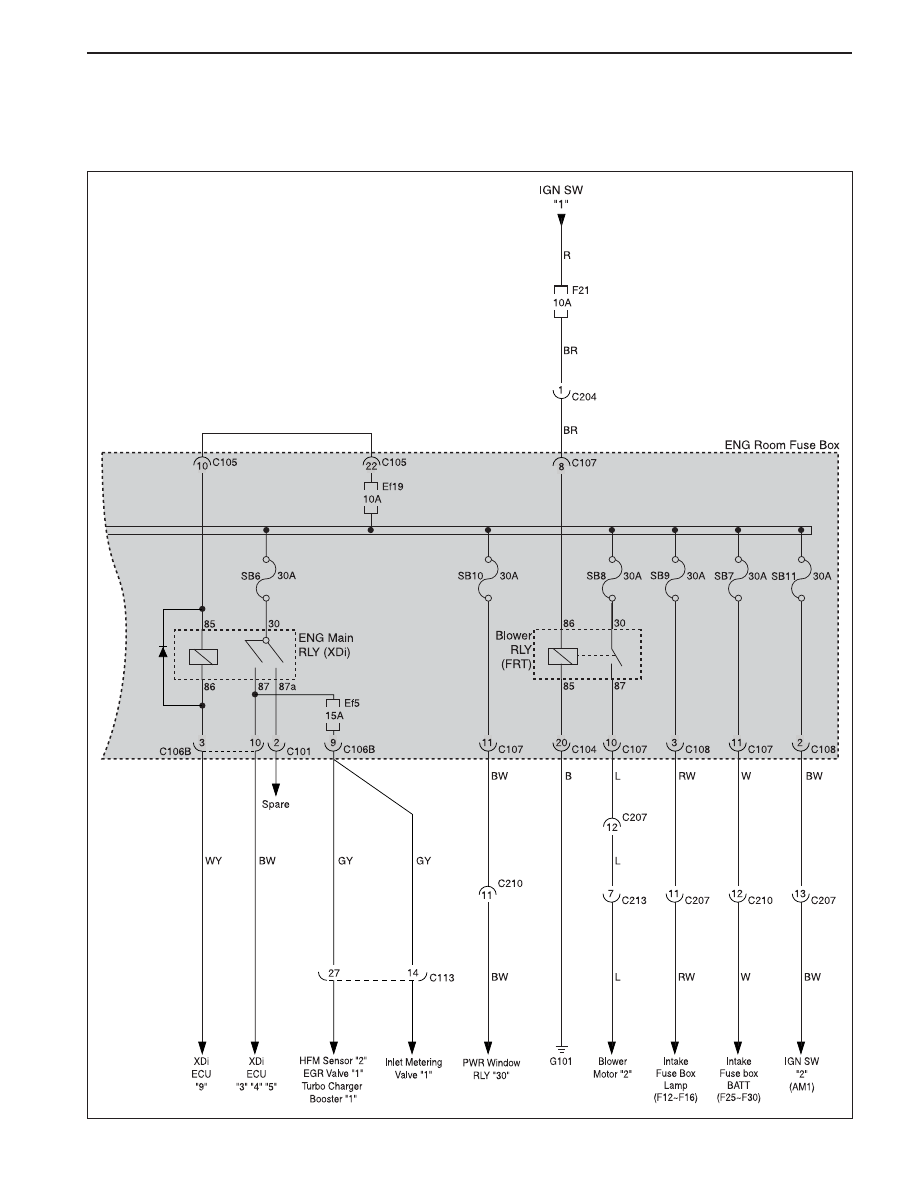

(2) SB6 ~ SB11
