1) Console Box

- Foot lamp and a speaker are installed.

Console box - Fixed type

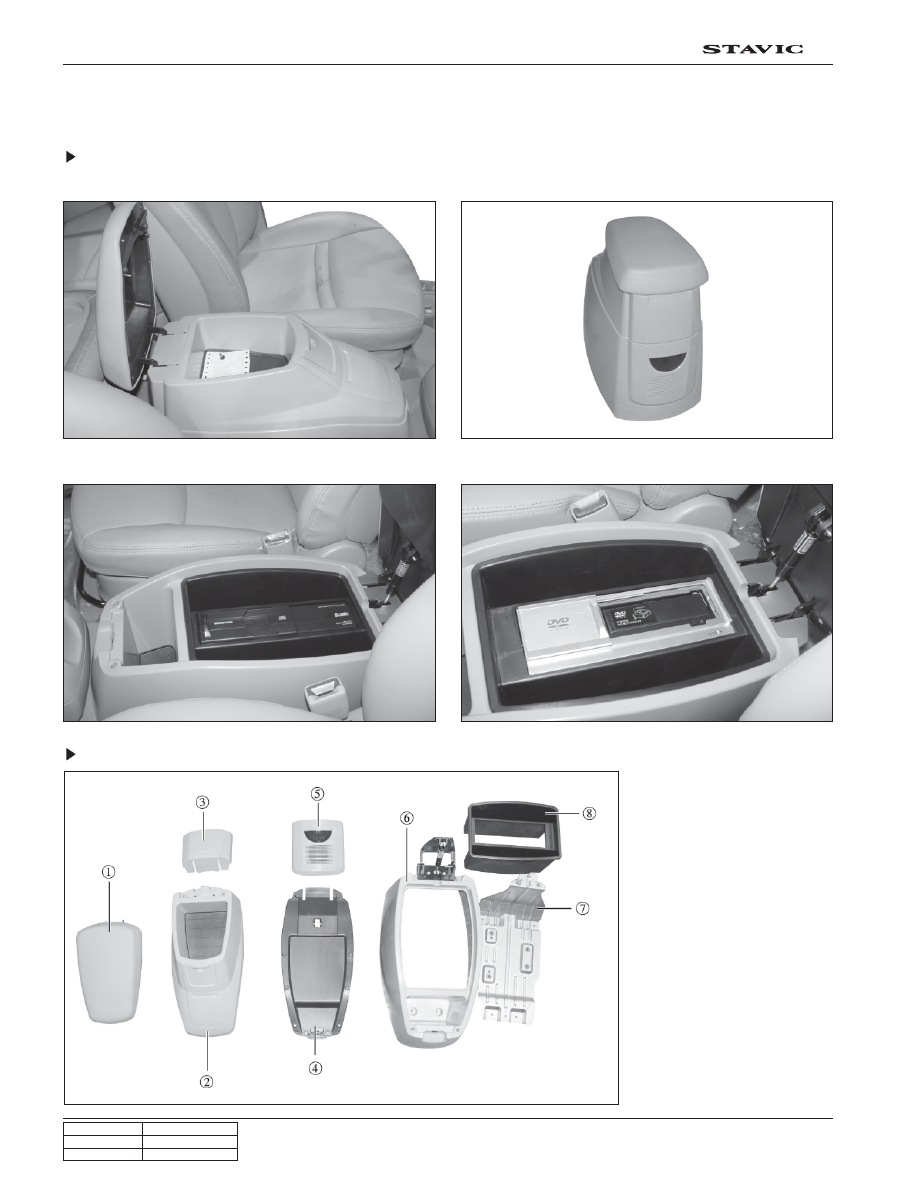

Components

1. Armrest

2. Console main rid & tray

3. Console rear facia

4. Console main rid cover

5. Rear foot lamp

6. Console main & tray

7. Console main bracket

8. CD Changer cover

CD Changer (6 EA)

DVD Changer (8 EA)

Standard

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

59

5A

When Installed

When used as table

When carried out

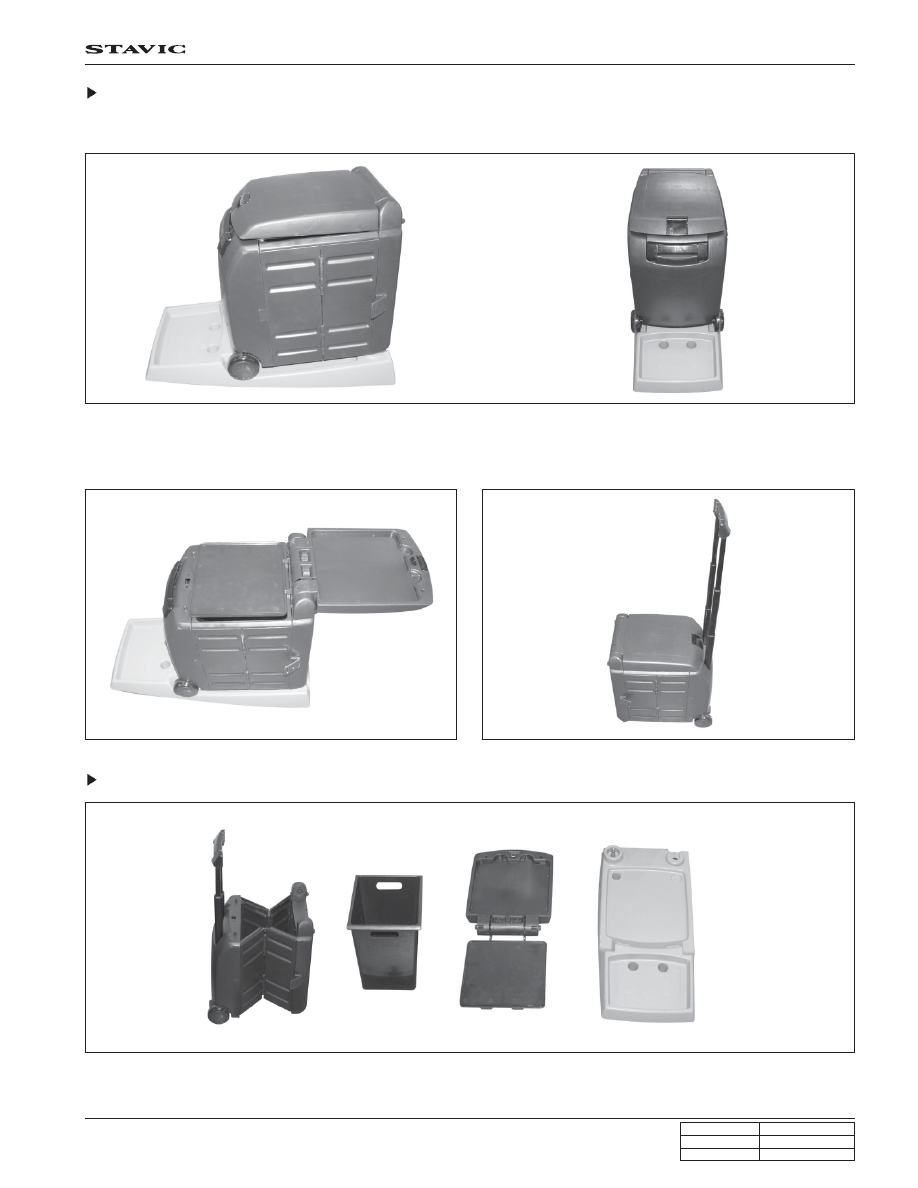

Console box - Portable type

Console box - Portable type

○○○○○○○○○○○○○○○○○○○

○

○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

60

5A

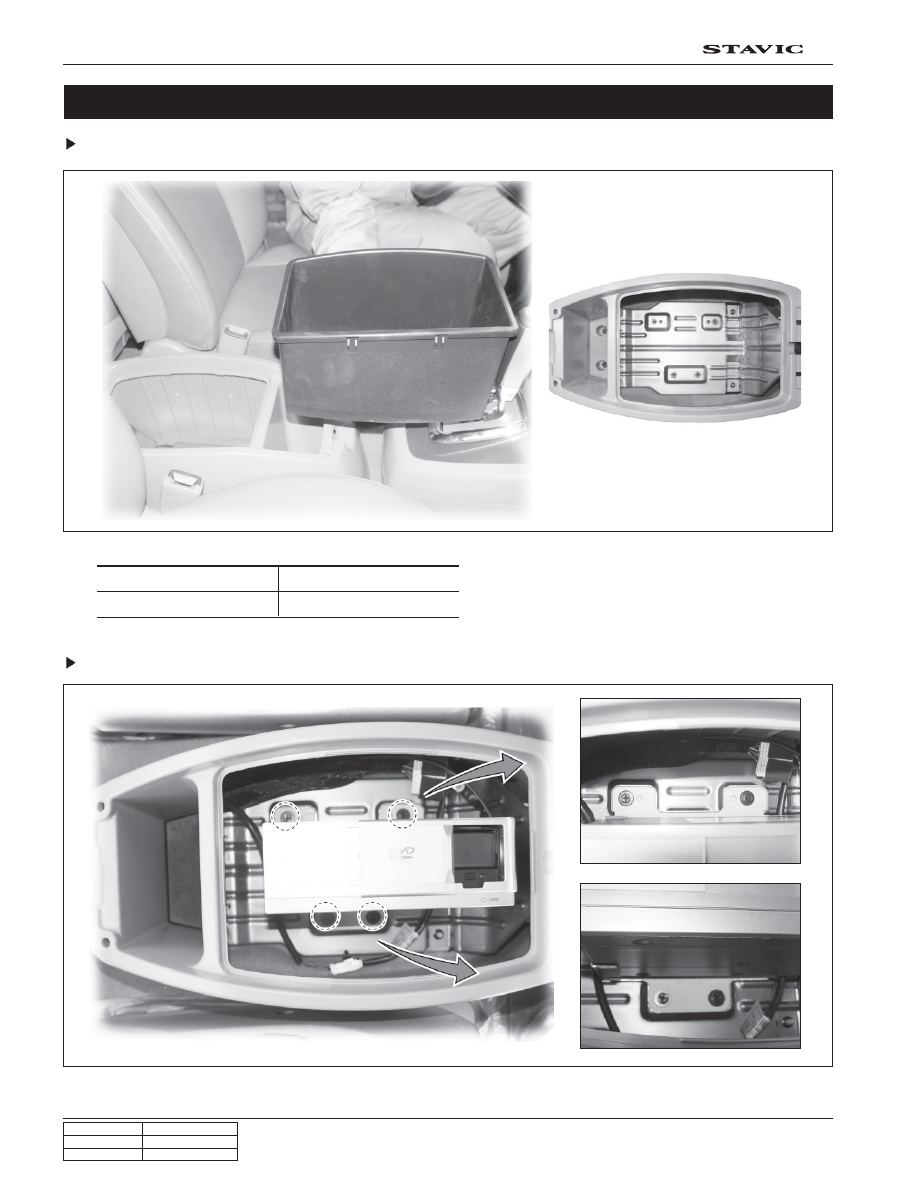

- Unscrew bolts and nuts to remove console box.

Console box assembly

Bolt

Nut

10 mm - 2 EA

10 mm - 2 EA

CD Changer & DVD Changer

- Unscrew the bracket bolts (10 mm - 4 EA) and remove the changer assembly.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

61

5A

2) Glove Box

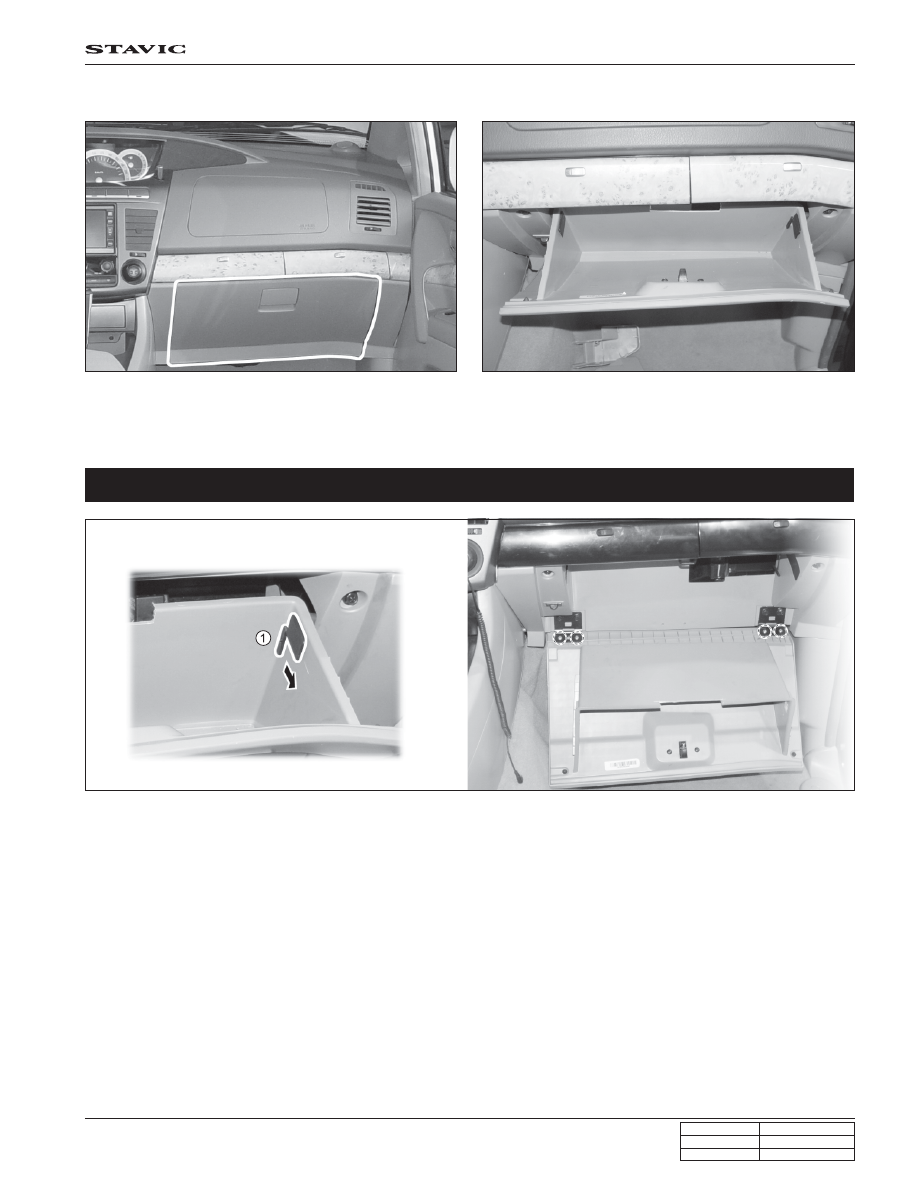

1. Disconnect the glove box clip (1) and wire.

2. Unscrew the box mounting bolts (4 EA).

3. Install in the reverse order of removal.

Removal and Installation
