5) Seat swing (Rear 1st seat)

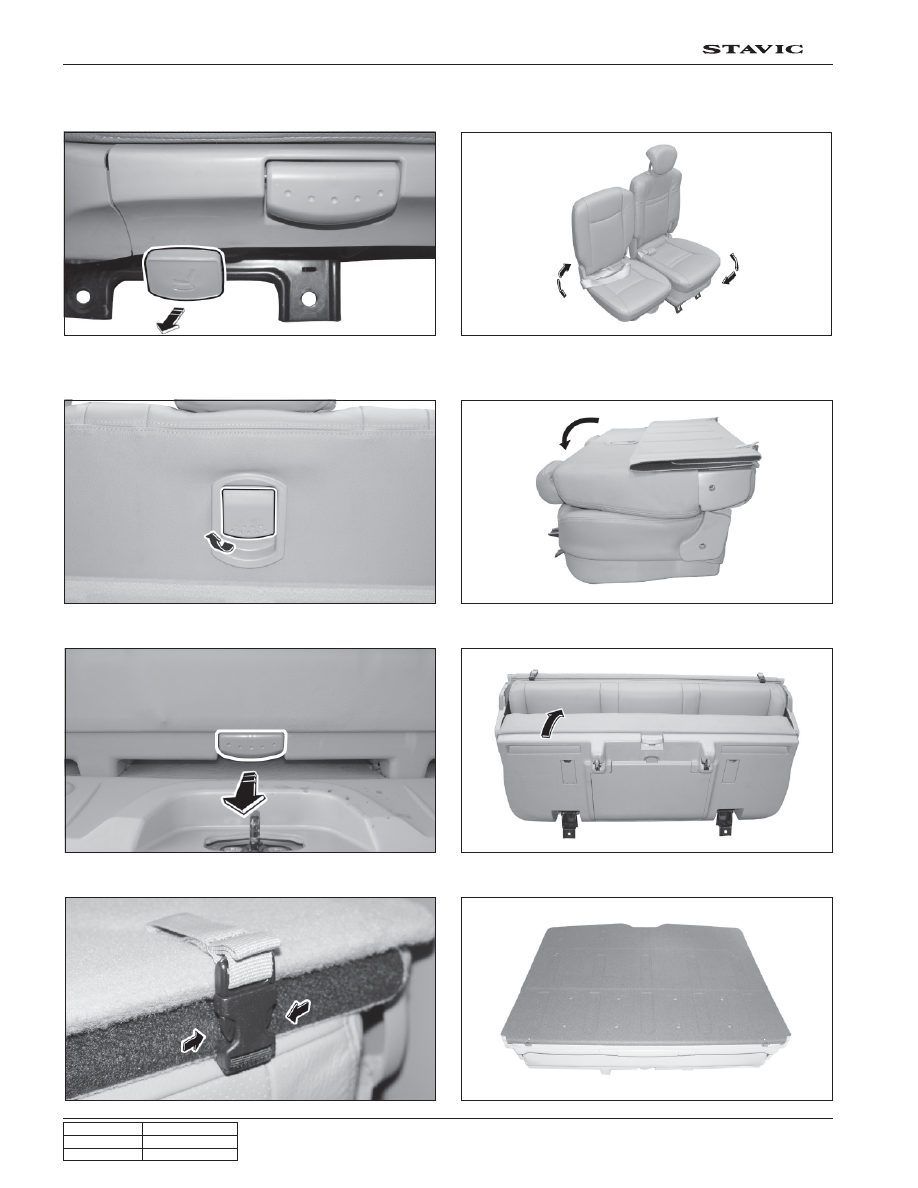

- Turn around seat as the swing lever is pulled.

- As the seat is folded, disconnect hook and spread out the board

6) Rear 3rd seat

- Pull the lever behind back seat to fold the back seat.

- Pull the lever under back seat to fold up the seat

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

55

5A

5. SEAT RAIL

A

B

C

Distance (cm)

50

74

98

A. Inner rail

B. Inner rail

 - Outter  rail

C. Outter rail

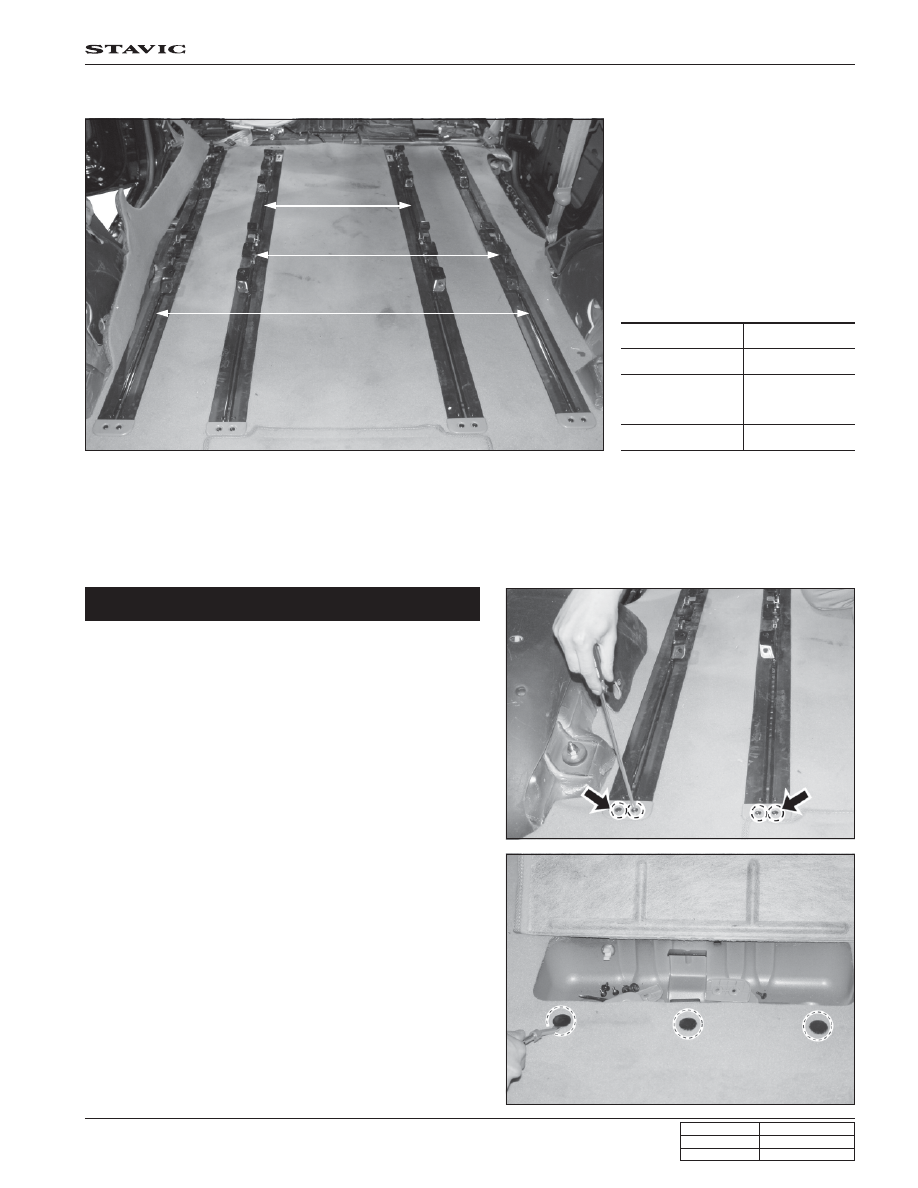

1. Remove all rear seats and then, unscrew the seat rail

guide screws.

2. Remove three screws under OVM tool storage.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

56

5A

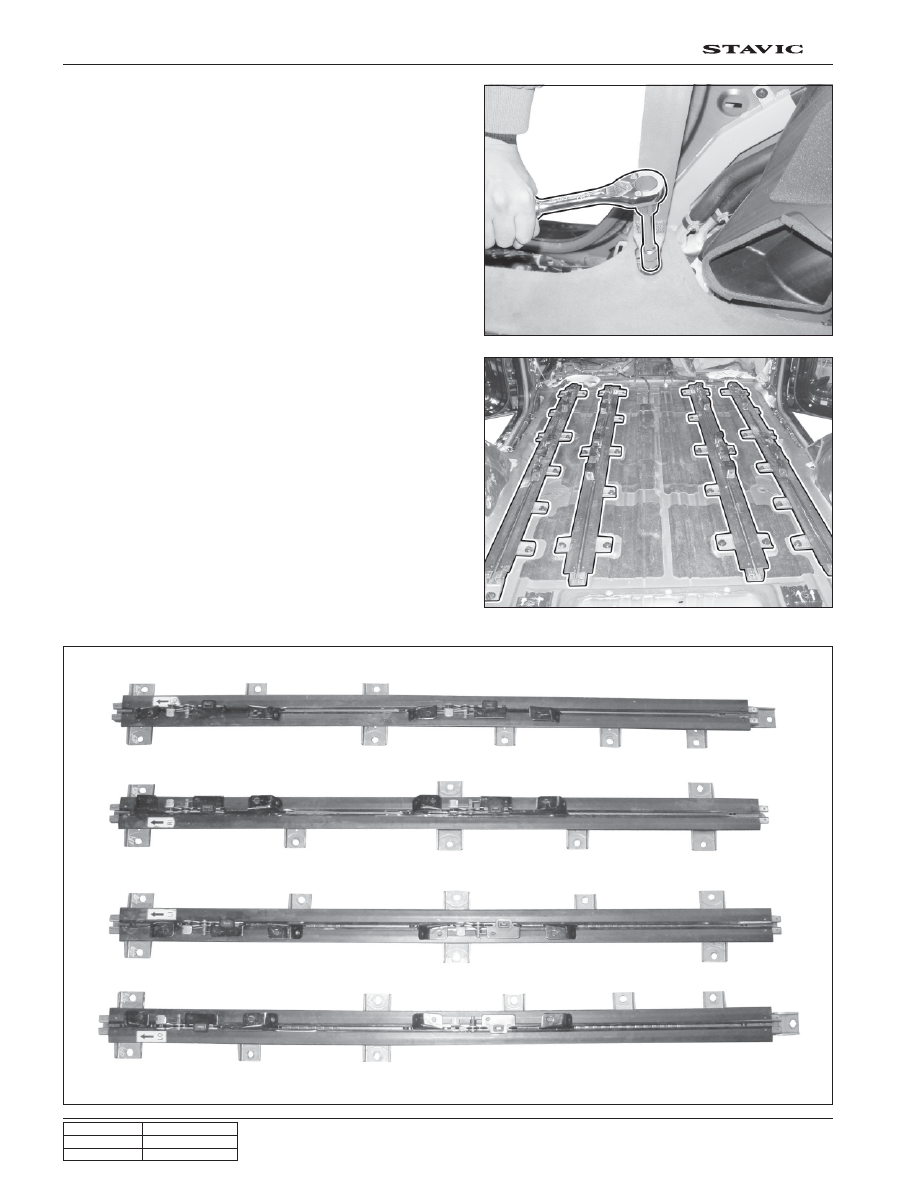

3. Unscrew the rear seat belt lower anchor bolt.

4. Remove the rear carpet and unscrew the seat rail

mounting bolts.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

57

5A

ACCESSORIES

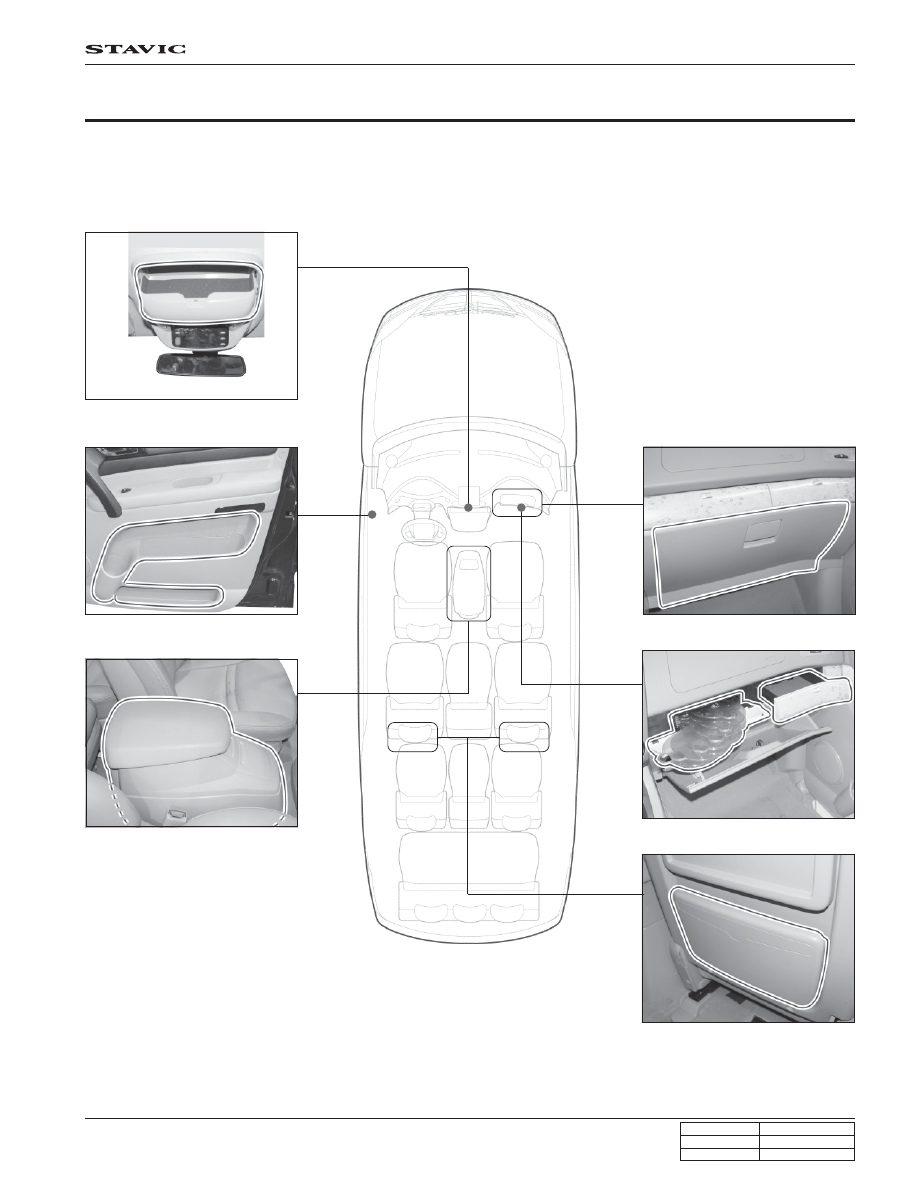

1. STORAGES

Front door map pocket

Seat back pocket

Glove box

Passenger’s cabinet

Console box

Overhead console
