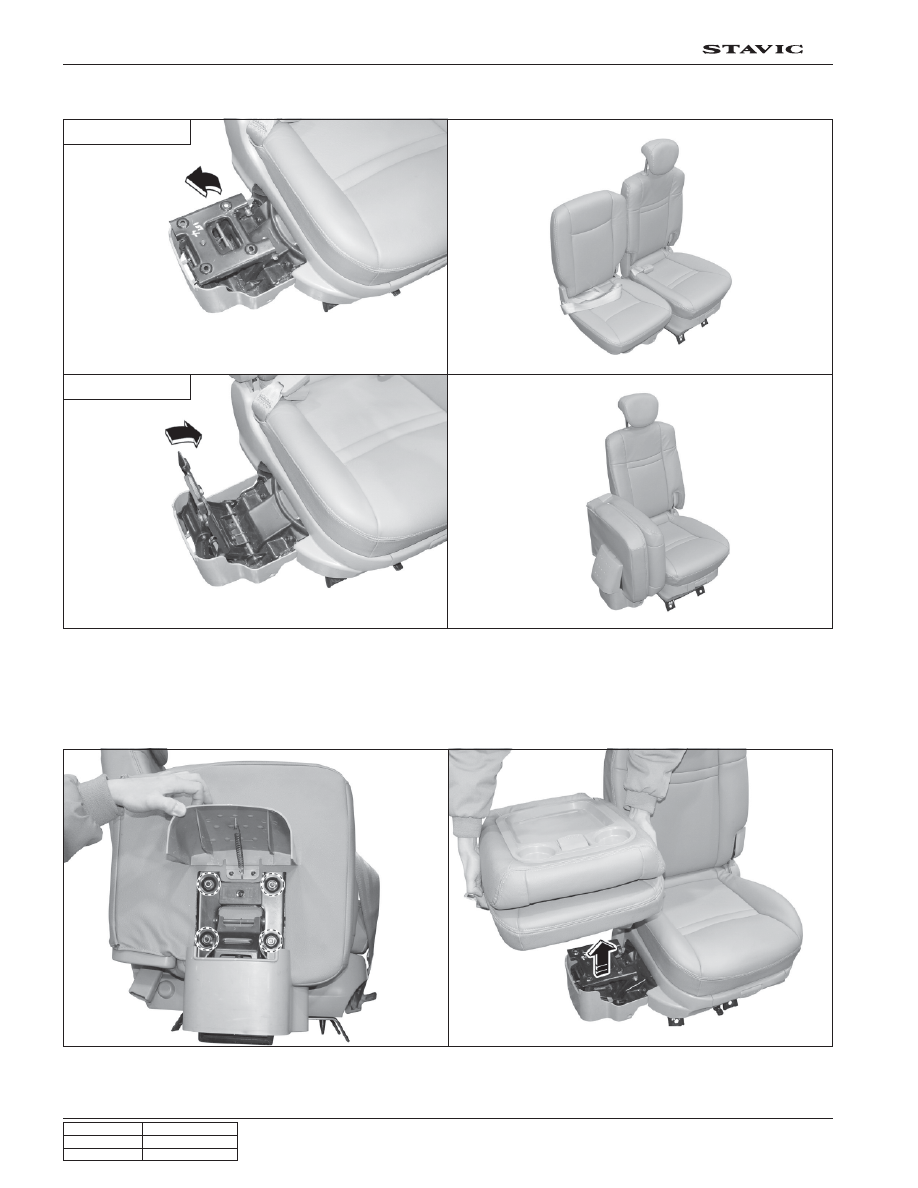

4) Operation of center seat

- Pull up the center seat when to jump

- Push down the center seat when to seat

5) Removal and installation of center seat (jumping seat)

- Unscrew 4 mounting nuts to remove the center seat

When seating

When jumping

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

51

5A

Rear Seat

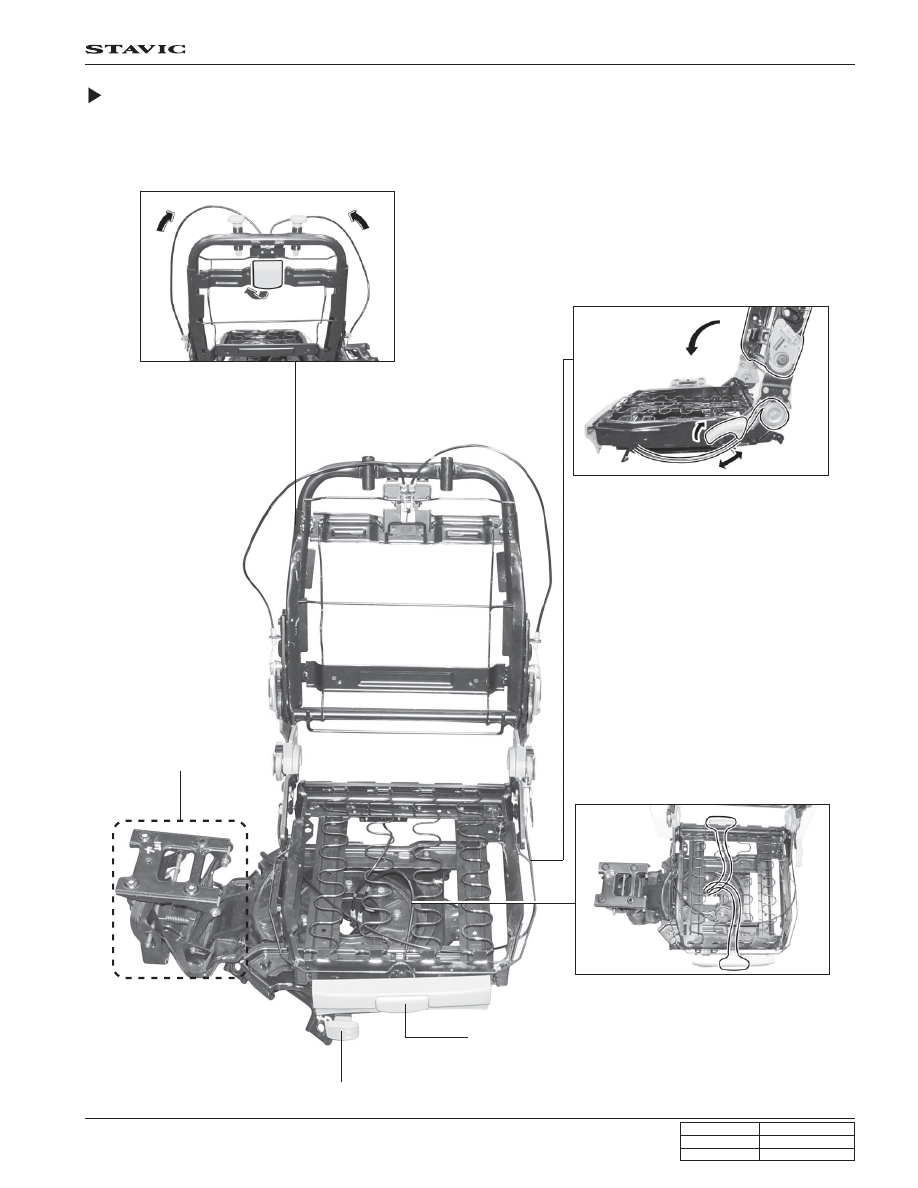

1) Rear 1st seat (swivel seat)

Seat back folding cable

Seat back flat cable

Sliding cable

Jumping

mechanism

Swivel lever

Sliding lever

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

52

5A

Front

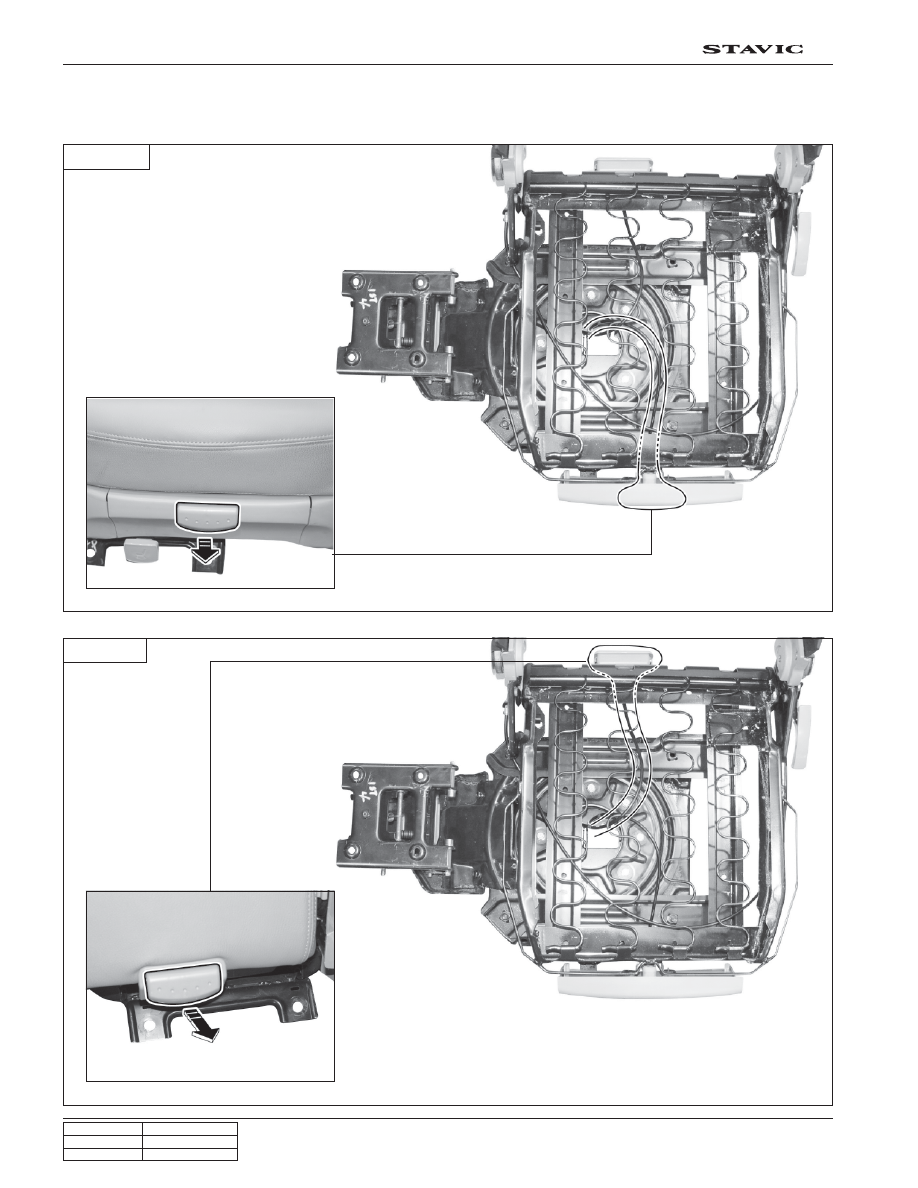

2) Operation of rear seat (Rear 1st and 2nd seat)

Seat sliding

Rear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

53

5A

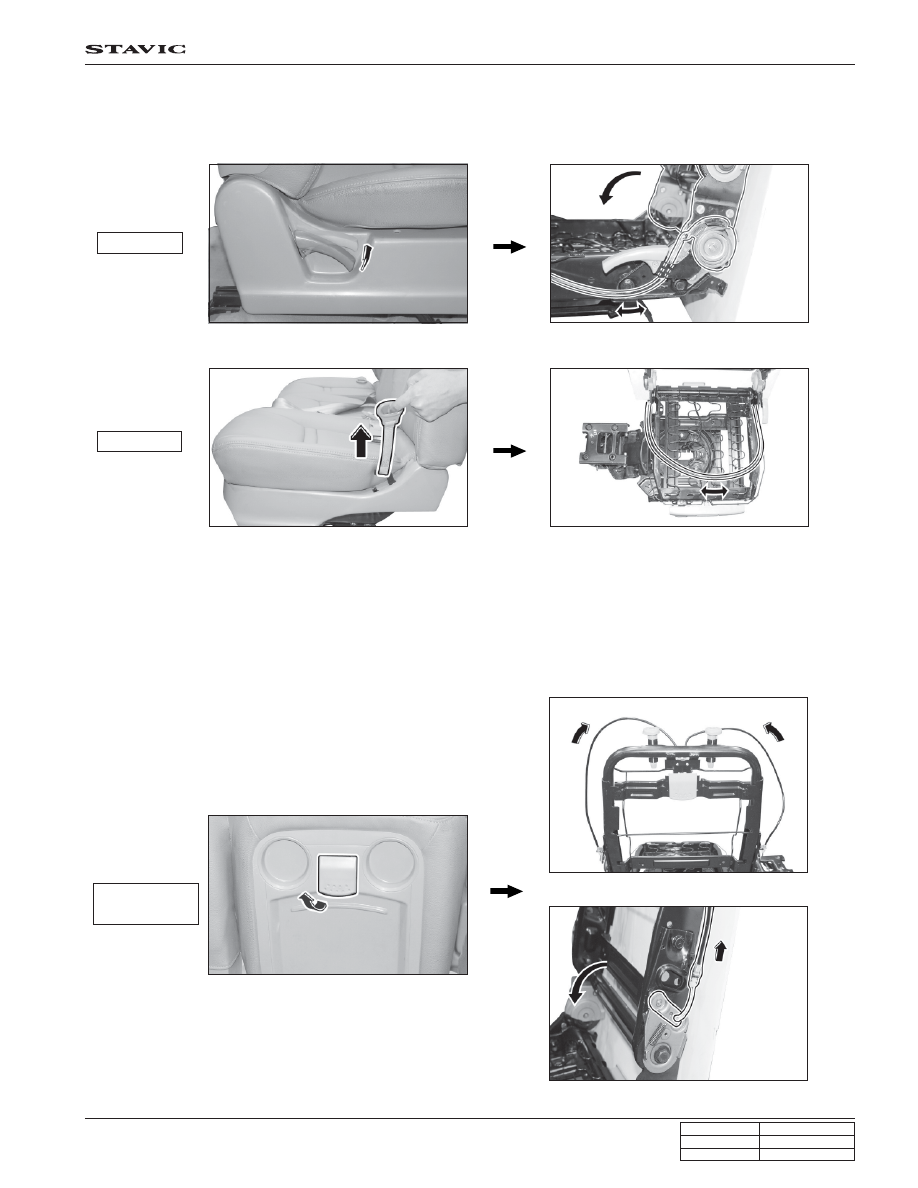

4) Seat back folding

- Fold the rear 1st or 2nd raw seat back to put something on or to utilize it as a table.

3) Seat back flat

- When to recline or to flat fully

Rear 1st

Rear 2nd

Rear

1st/2nd seat

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○
