3) Overhead Console

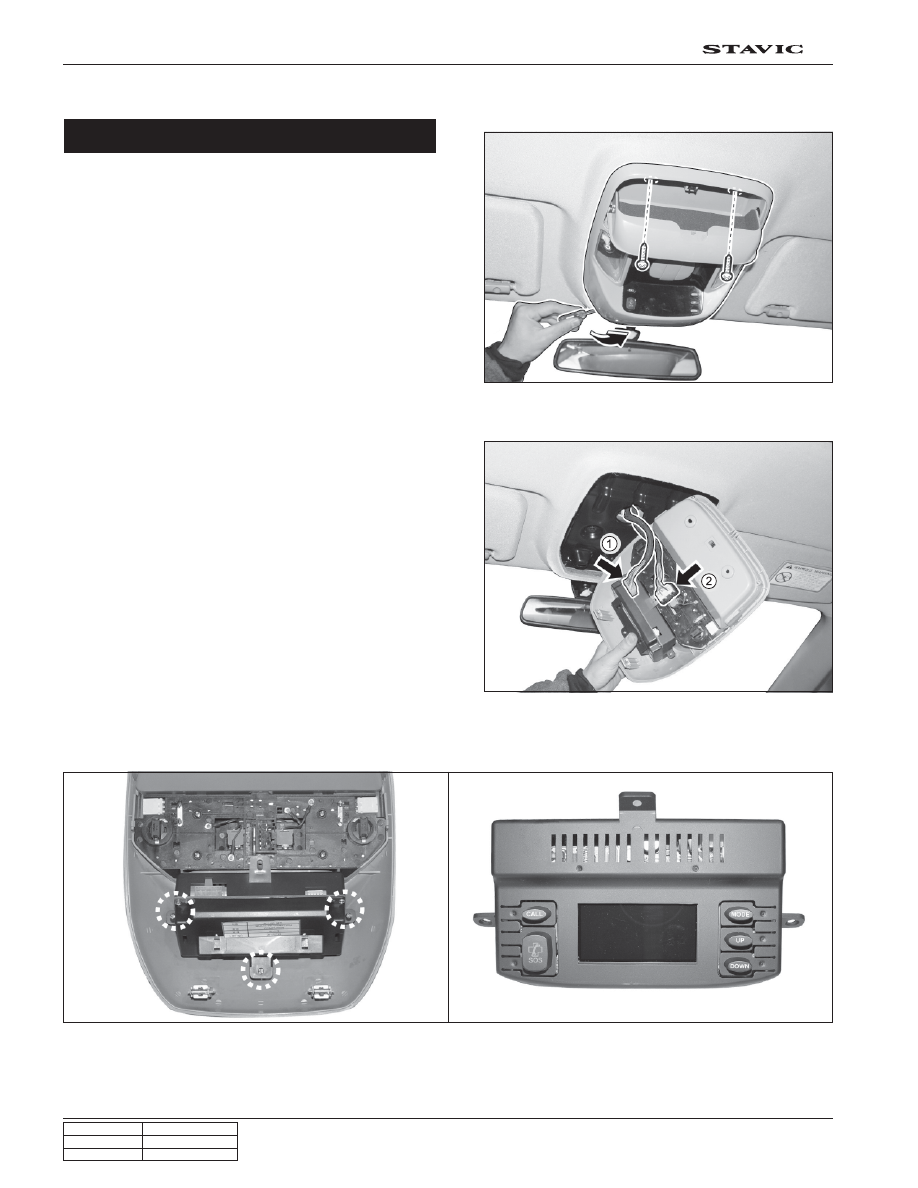

2. Disconnect multi meter and room lamp connector.

And then, remove the console assemble.

3. Unscrew three screws behind the console assembly to remove multi meter.

Removal and Installation

1. Unscrew two mounting screws in the sun glass

cabinet and remove the overhead console by using a
tool.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

63

5A

4) Passenger’s Cabinet

Above glove box

Preceding Work: Removal of glove box and I/P lower panel (passenger)

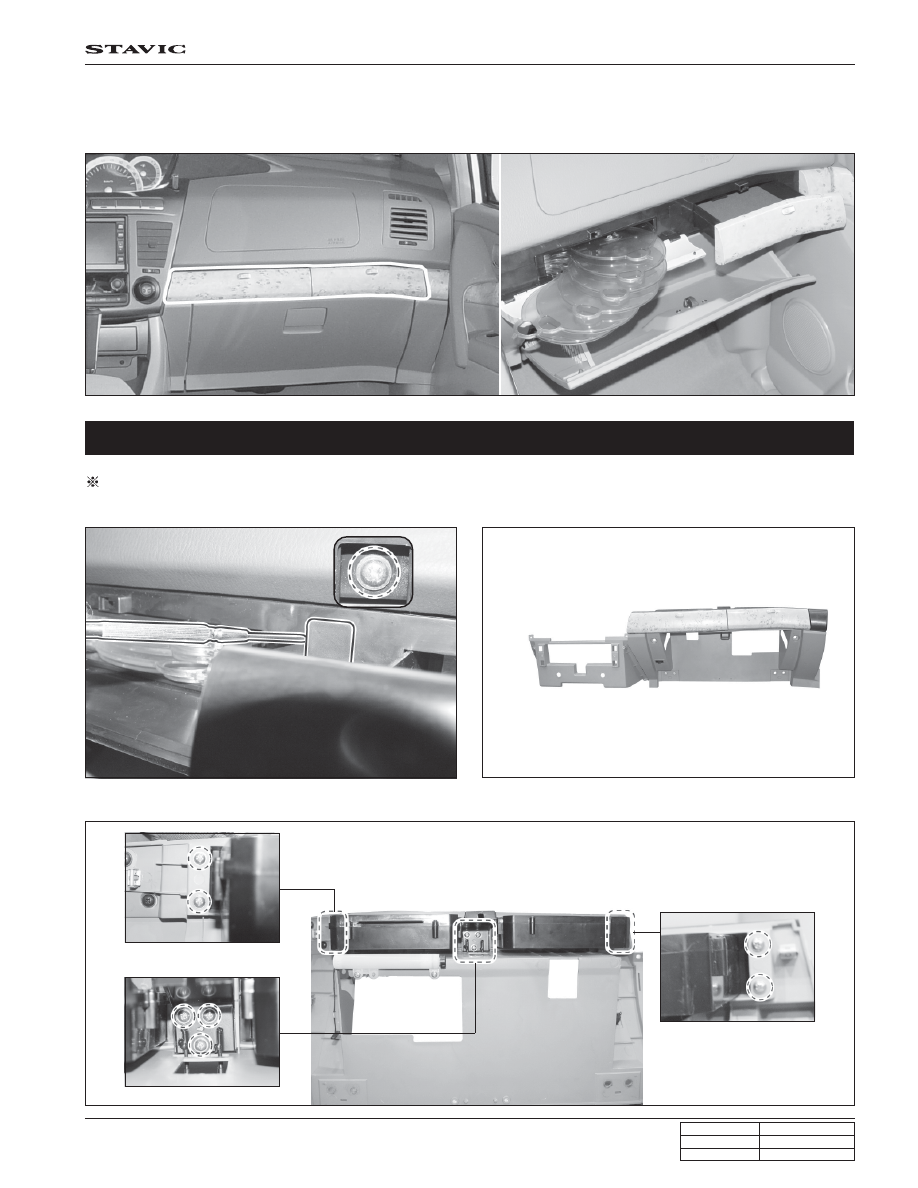

1. Open the cabinet and remove the mounting screws.

2. Unscrew the passenger’s cabinet mounting screws (LH / RH / center) at the back of lower panel.

Removal and Installation

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

64

5A

Ticket holder

Back table

Rear cigar lighter

Front cup holder

Power outlet

Rear cup holder

A

B

Tea table

Front cigar lighter

A

B

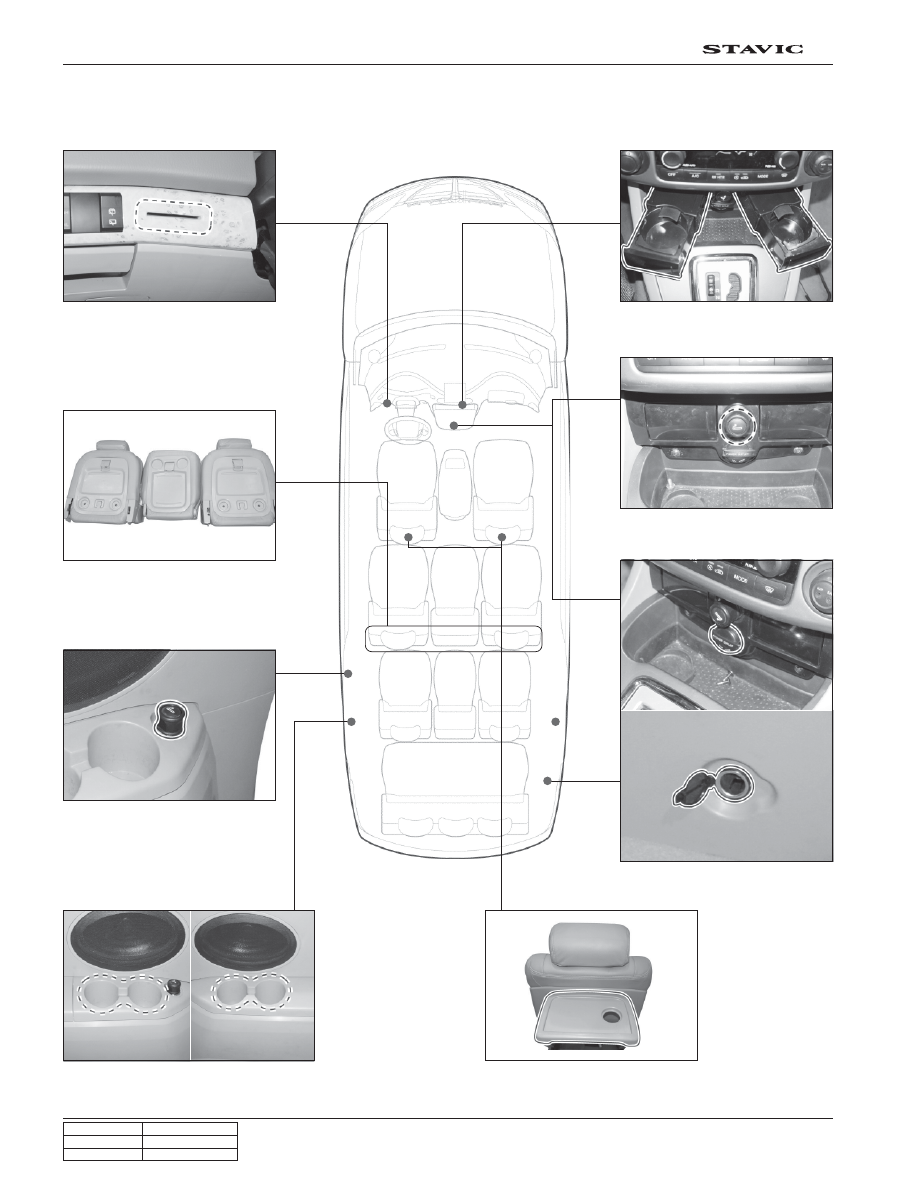

2. CONVINIENT DEVICES

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

65

5A

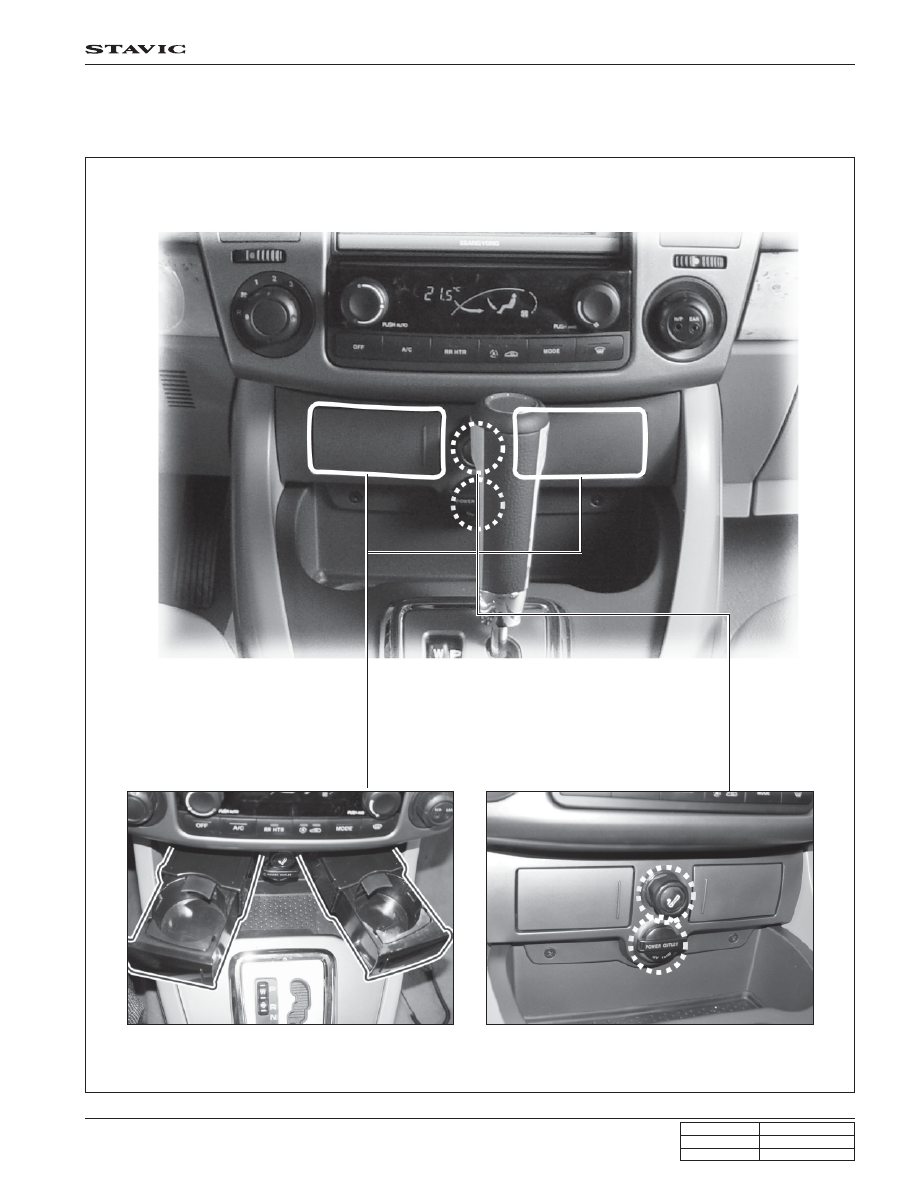

1) Front Cup Holder / Cigar Lighter / Power Outlet Assembly

Under I/P center panel

Cup holder

Power outlet / cigar lighter
