SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 385

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

16

4G

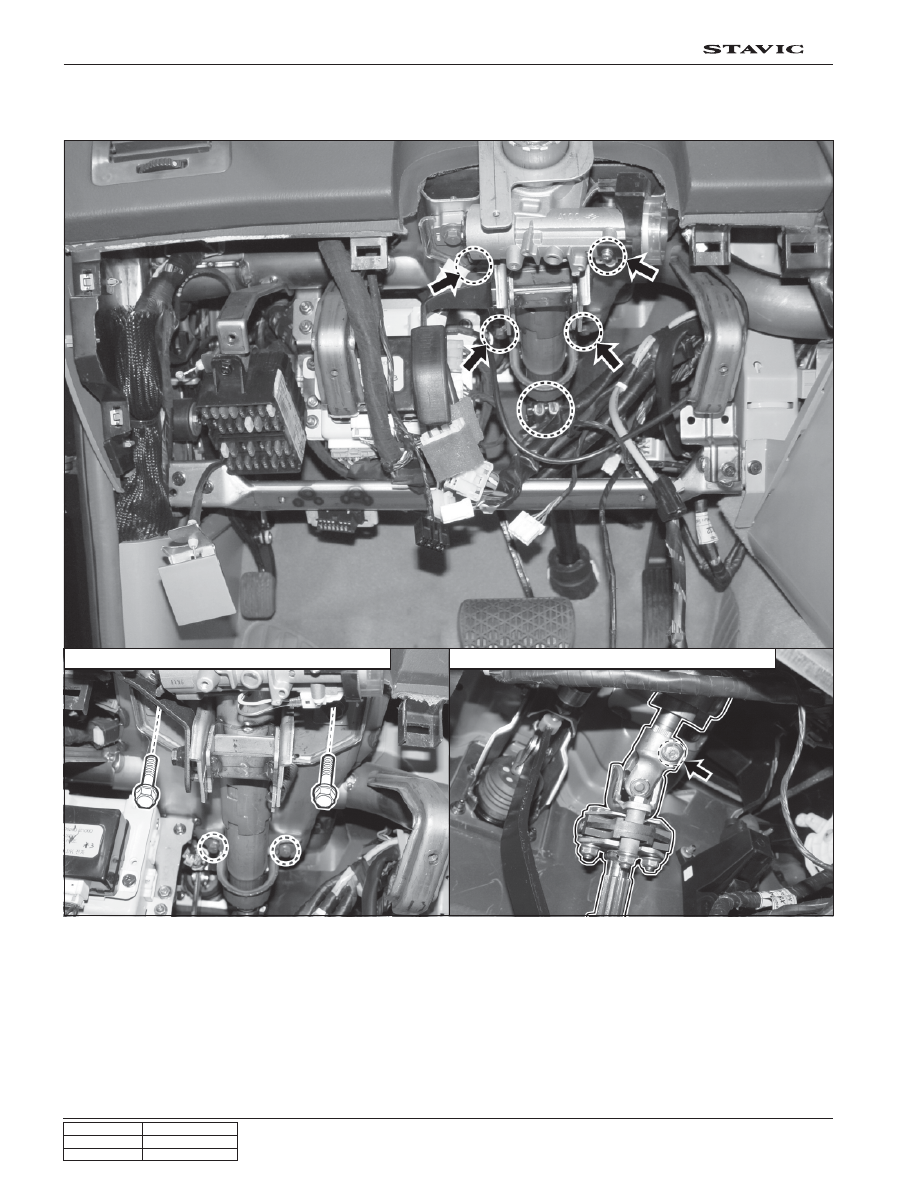

9. Leave marks on the column shaft and lower shaft.

10. Unscrew the column shaft upper mounting bolts(A) and lower shaft mounting bolt.

11. Remove the steering column shaft from lower shaft.

Column shaft upper mounting bolts (2-EA)

Column shaft upper mounting bolts (4-EA)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

17

4G

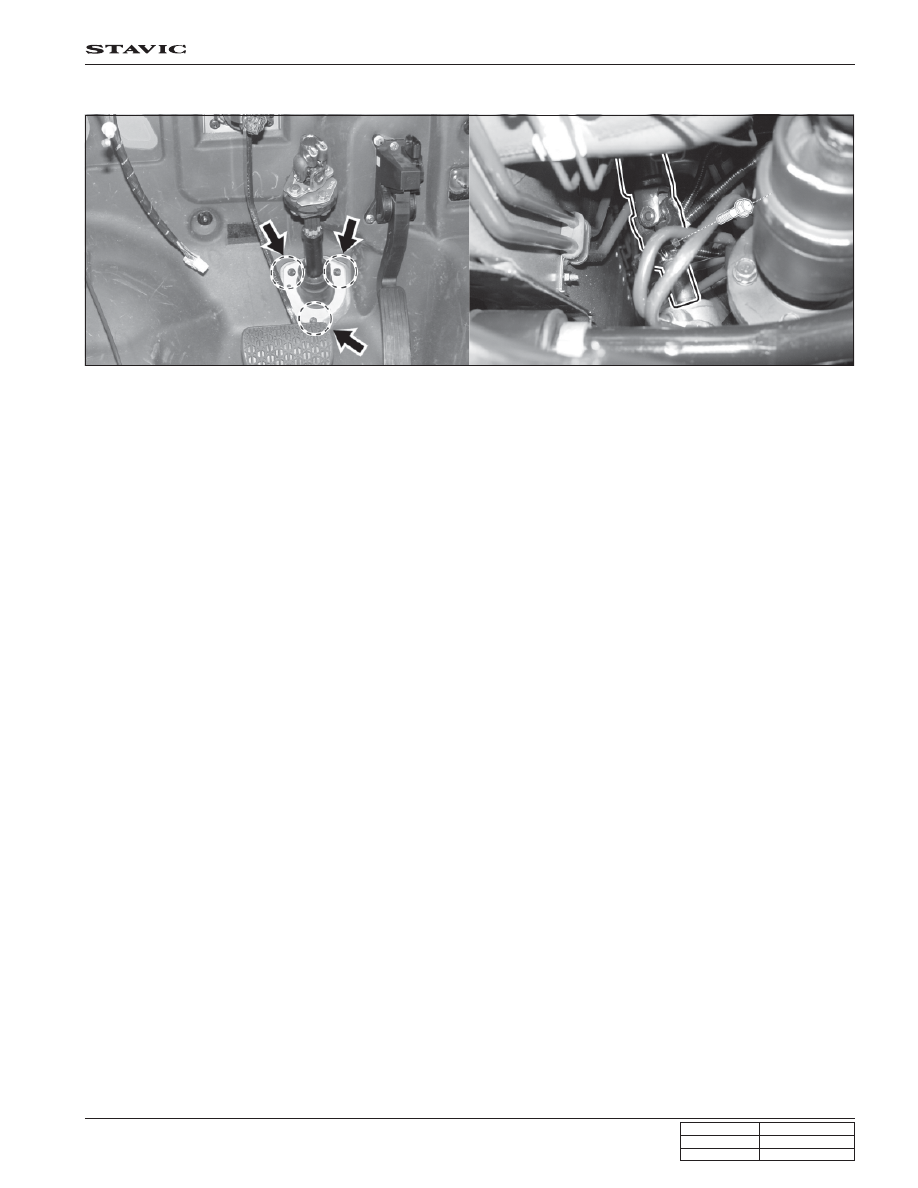

12. Unscrew the lower shaft housing floor mounting bolt(A) and lower shaft mounting bolt on the steering gear box.

13. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

18

4G

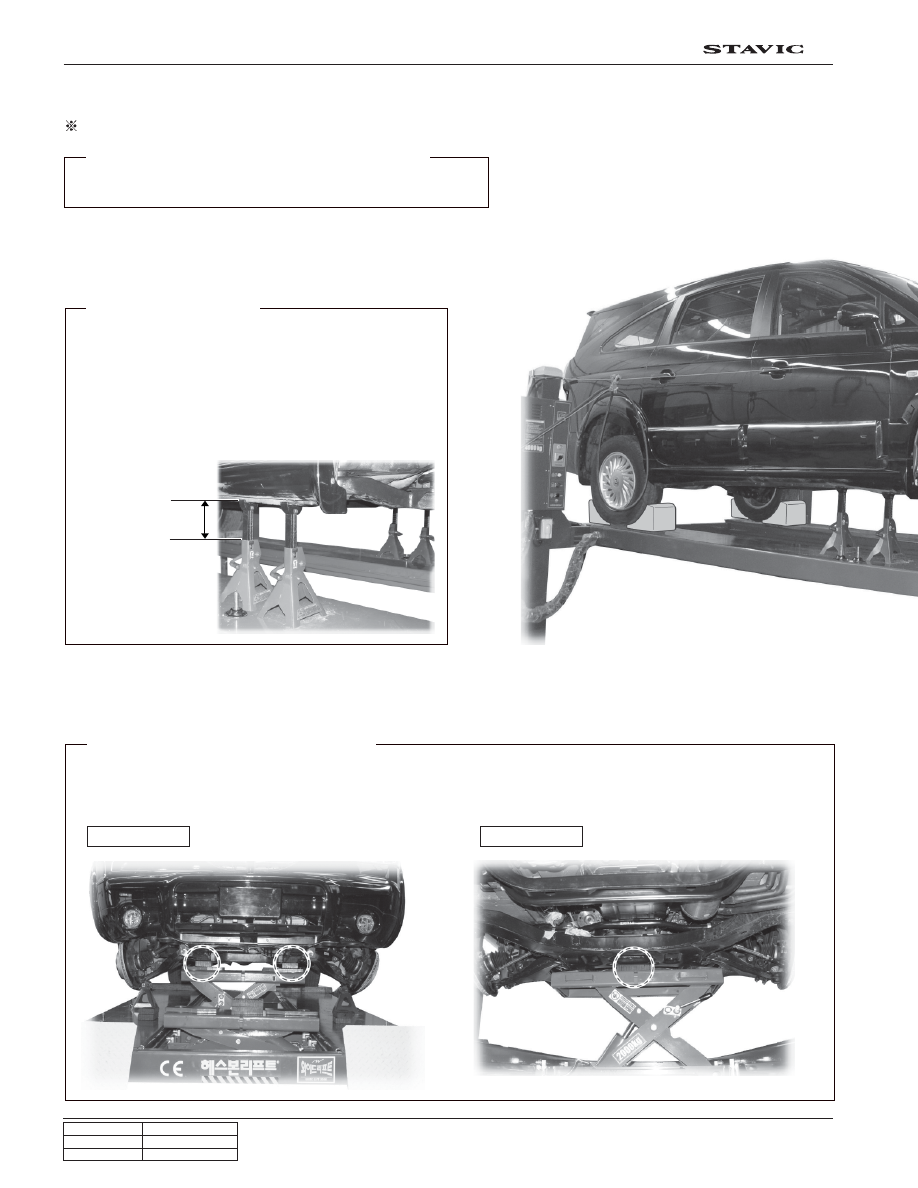

3. STEERING GEAR BOX

Preceding Work

1. Install the safety wedge under both rear wheels

Because the weight balance move to rear when the sub
frame is removed, safe working condition must be
prepaired.

For this reason, Installing the safety jack to both under
body is important to avoid unexpectable accident.

(The height of safty jack to both side must be same)

The supplement lift is used when you remove or install the sub frame

(Keep in mind the center of gravity of sub frame locate near front axle mounting point)

Front

Rear



16.5 cm

(Put the shifting lever in “P” position and apply the parking brake)

2. Additional safety jack

3. The mounting location of suplement lift

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

19

4G

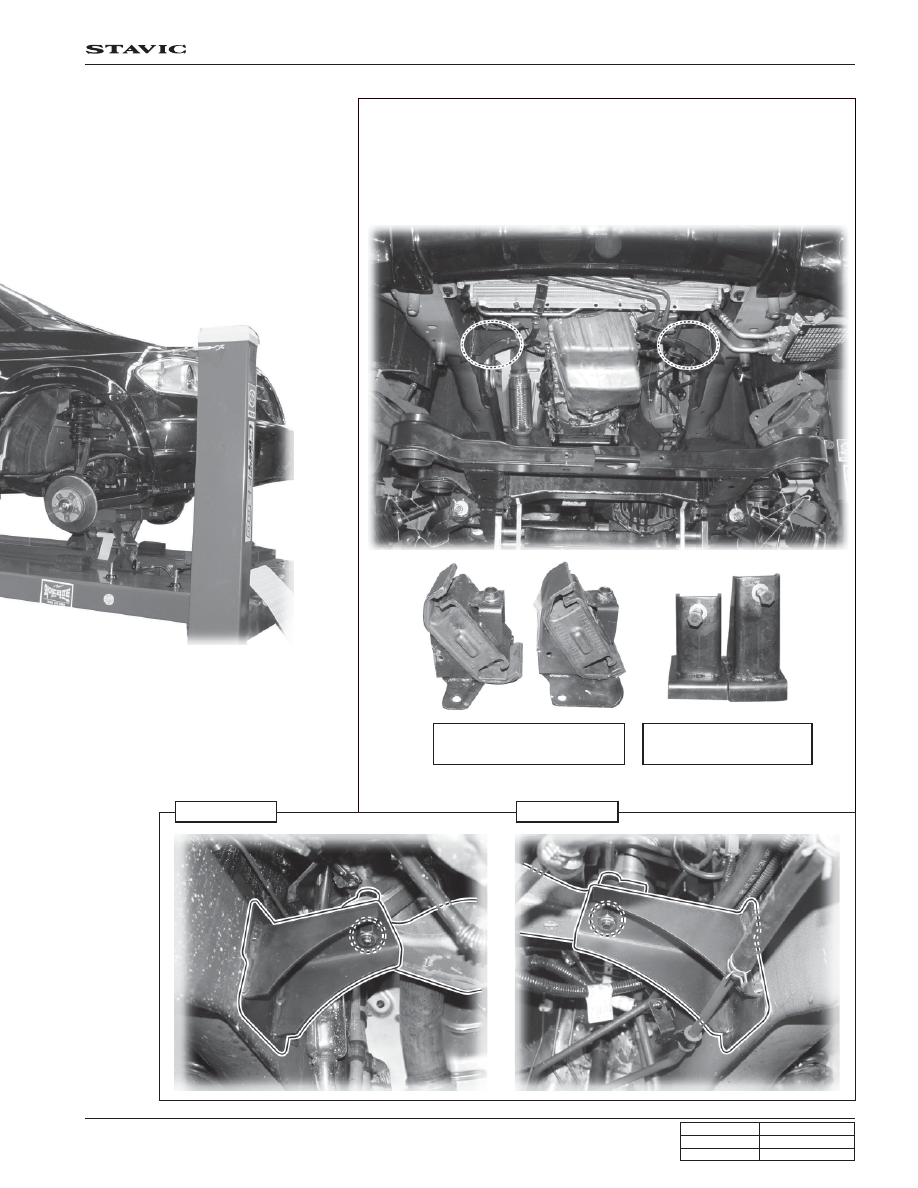

4. Remove the engine lnsulating brackets from the front sub frame as the

engine hung by an additional lift (crane)

5. Install the engine mounting bracket

Before removal of sub frame, install the special tool (Engine mounting
brackets) on the body frame

RH

LH

RH

LH

RH

Part number : A9912 008 2B

Engine mounting

brackets on the body

Engine insulating

brackets on the sub frame

LH
