SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 384

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

12

4G

Steering column mounting bolt

Steering wheel and column shaft lock nut

Airbag module mounting bolt

Steering column and lower shaft mounting bolt

Steering gear box and sub frame mounting bolt

Steering box and lower shaft mounting bolt

Tie rod end nuckle

Tie rod end lock nut

Steering gear box and high pressure pipe

Steering gear box and return(Low pressure) line

Power pump bracket and timing gear case cover

mounting bolt

Power pump and high pressure pipe

Return line and mounting bolt

Power steering column
shaft

Item

2.0 ~ 2.5

4.0 ~ 6.1

0.7 ~ 1.1

1.8 ~ 2.5

7.0 ~ 9.0

1.8 ~ 2.5

3.5 ~ 4.5

6.5 ~ 8.0

1.2 ~ 1.8

1.2 ~ 1.8

2.0 ~ 2.3

4.0 ~ 5.0

1.2 ~ 1.8

Kgf

xxxxxm

Tightening Torque

20 ~ 25

40 ~ 60

7.0 ~ 11

18 ~ 25

70 ~ 90

18 ~ 25

35 ~ 45

65 ~ 80

12 ~ 18

12 ~ 18

20 ~ 23

40 ~ 50

12 ~ 18

N

xxxxxm

Power steering gear
box

Power steering pump

Power steering oil pipe

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

13

4G

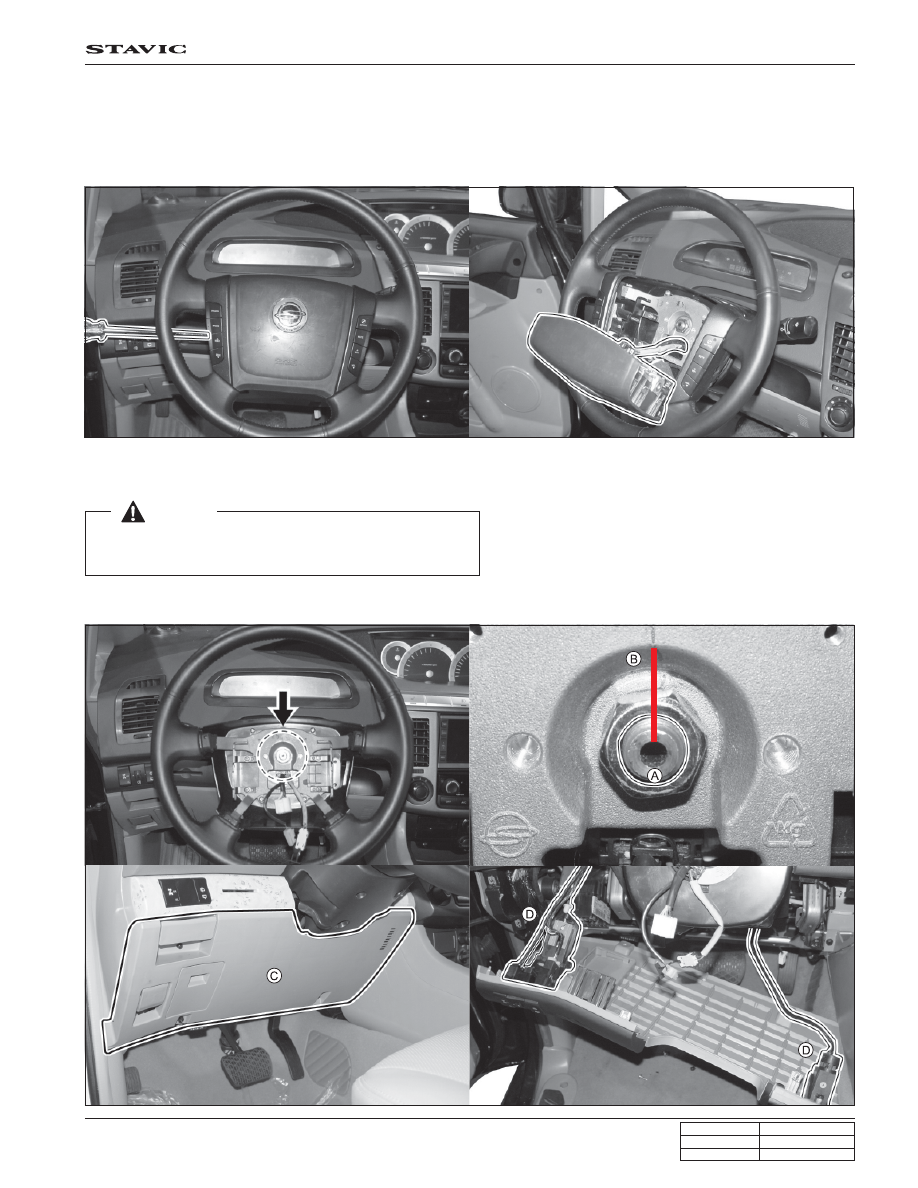

2. COLUMN SHAFT AND LOWER SHAFT

1. Disconnect the battery negative cable and place the tires to straight ahead direction.

2. Unscrew the screws at both sides of steering wheel and remove the horn pad (air bag module). Disconnect the

airbag module connector.

3. Unscrew the steering wheel lock nut and remove the wheel with special tool.

 [Notice]

Leave marks on the column shaft and steering wheel for
correct installation.

4. Remove the instrument lower panel and disconnect all related connectors.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

14

4G

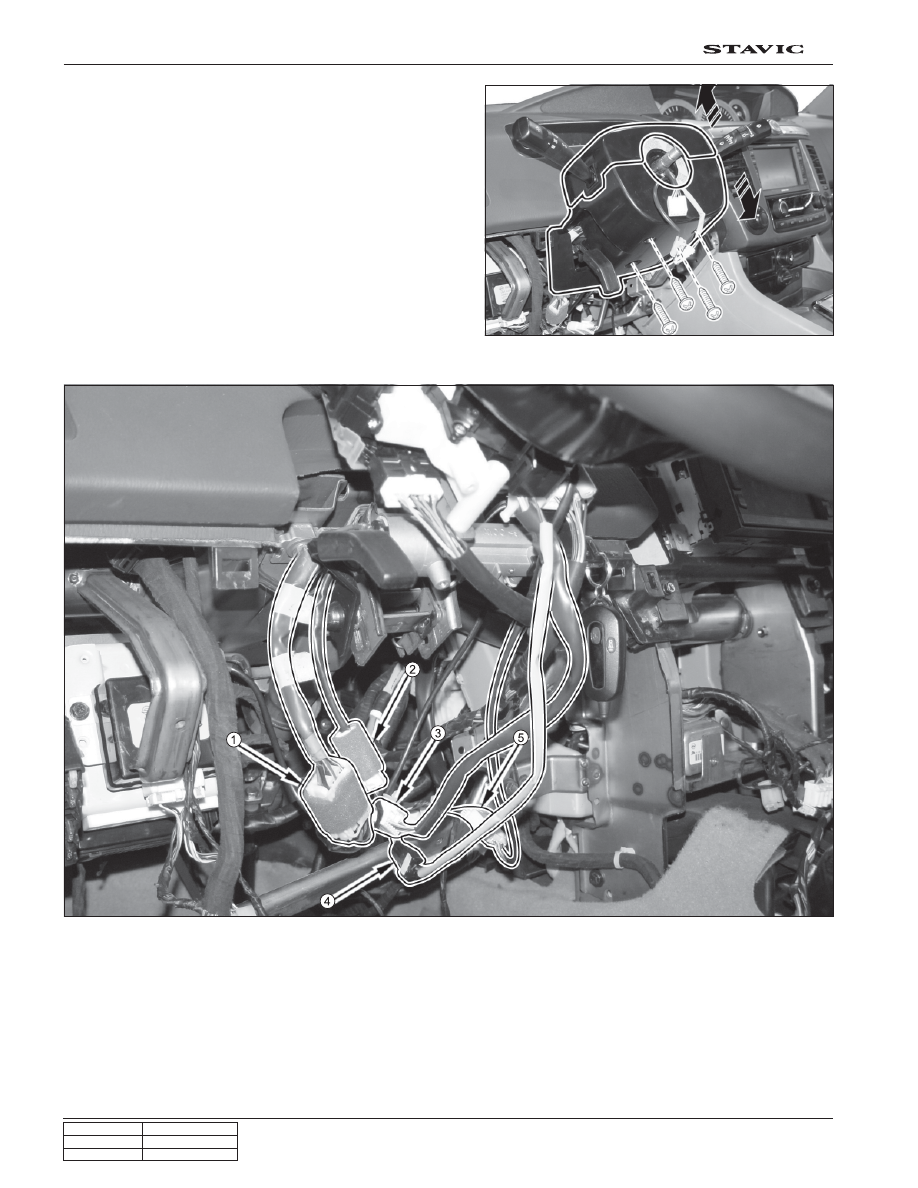

5. Unscrew the steering column cover bolts and remove it.

6. Disconnect five connectors in the cover.

1. Key switch connector

2. Key hole lamp connector

3. Contact coil connector

4. Airbag connector

5. Steering wheel angle sensor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

15

4G

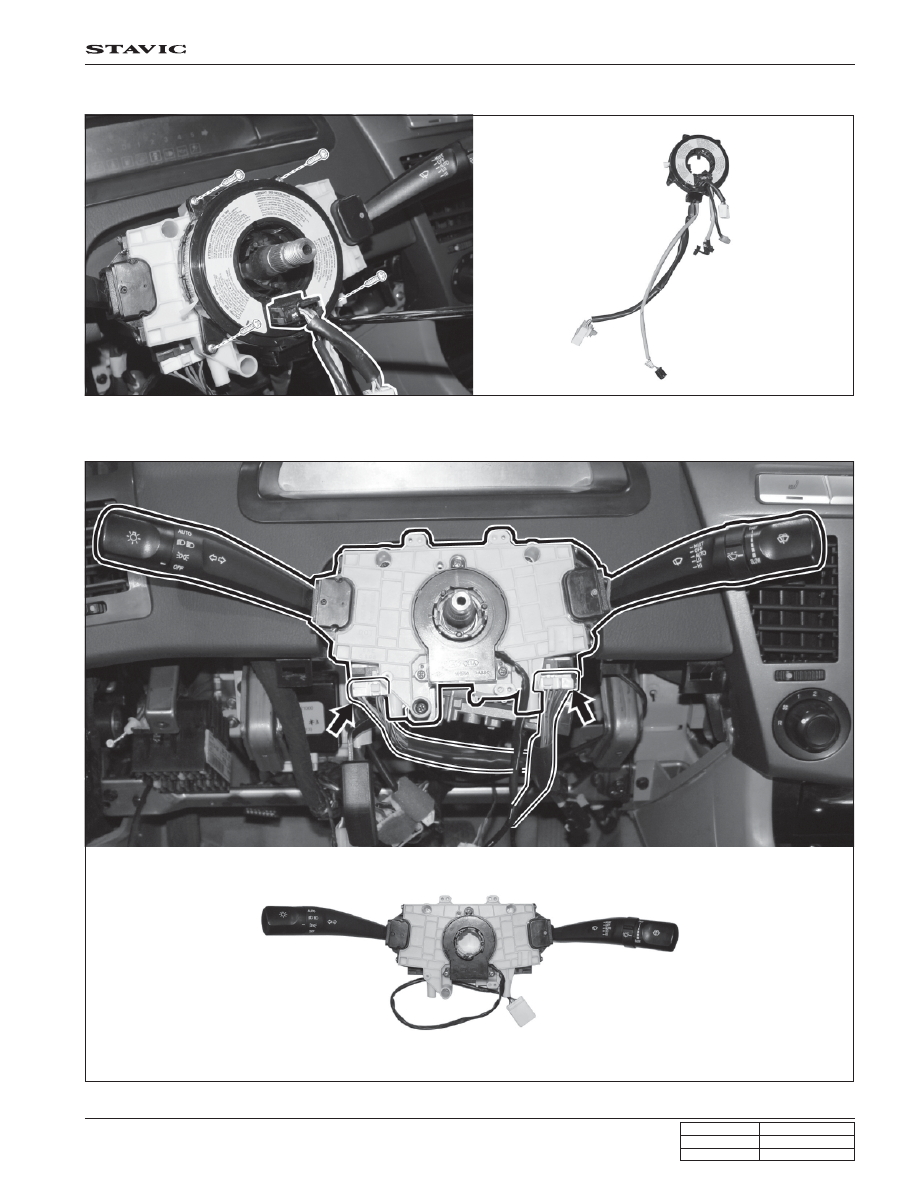

7. Unscrew the contact coil mounting screw and remove it from multi function switch.

8. Disconnect both left and right connectors of multi function switch and unscrew the multi function switch mounting

bolt to disassemble from steering column.
