5) Front Seat Heated Wire and Ventilation Operation

Operating conditions

▶

Engine running

If the engine starts to crank during the seat heated wire and ventilation signal output, the seat heated

wire will not be operated until the cranking stops.

-

-

Operation description

▶

After the ignition is turned on, the temperature of the seat can be adjusted in 3 levels (Level 2
→ Level 1 → OFF) with each seat heated wire and ventilation switch. Every time the switch is

pressed, the temperature level goes down by one level. Pressing the switch a third time will turn off

the operation.

-

Operating process

▶

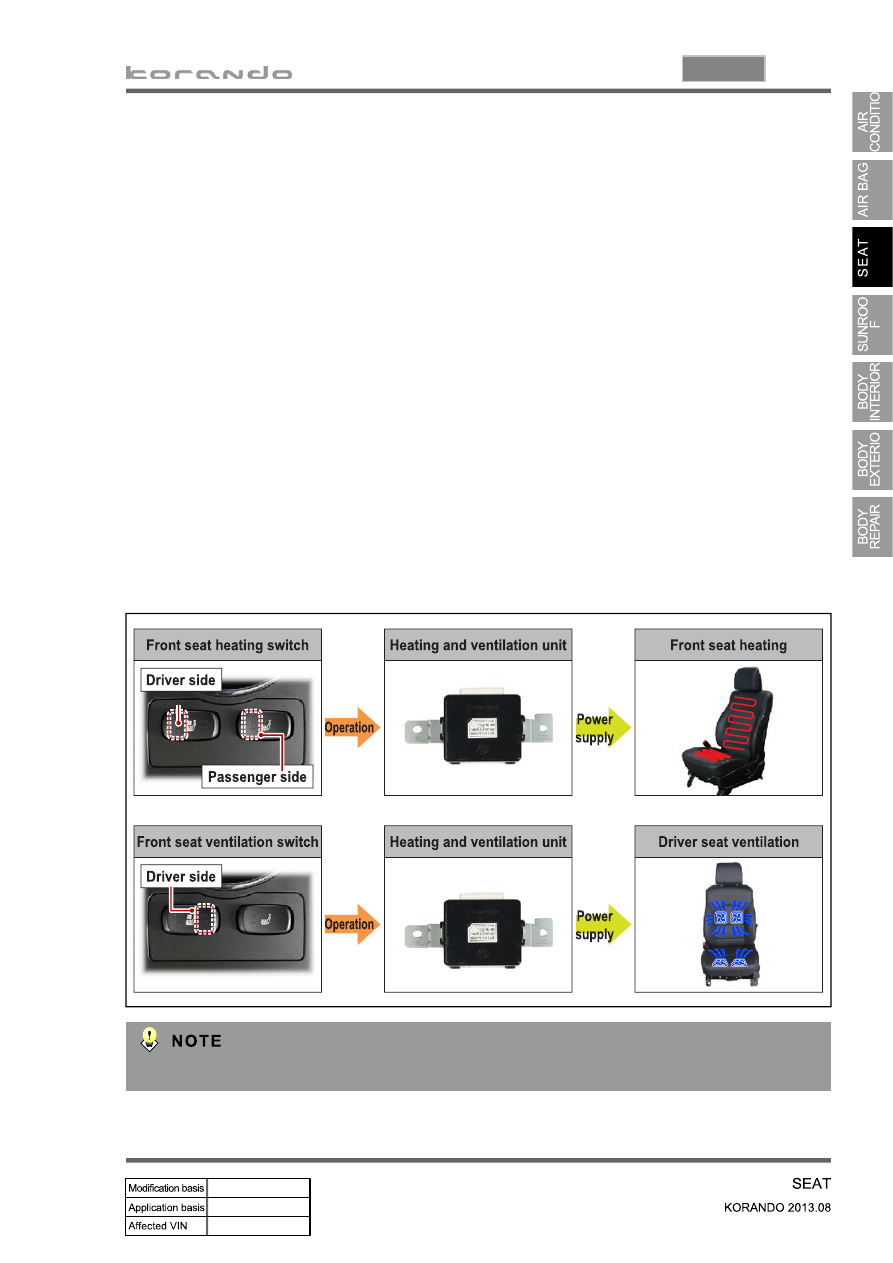

When the front seat heated wire and ventilation switch is pressed, the front seat heated wire and

ventilation unit supplies the power to the corresponding seat for heated wire and ventilation operation

through the switch.

-

The heated wire and ventilation functions cannot be operated at the same time.

(1) Heated wire and ventilation functions for front seat (driver seat heated
     wire and ventilation - 2 levels, passenger seat heated wire - 2 levels)

03-24

Operating conditions

▶

IGN ON

If the engine starts to crank during the seat heated wire signal output, the seat heated wire will not be

operated until the cranking stops.

-

-

Operation description

▶

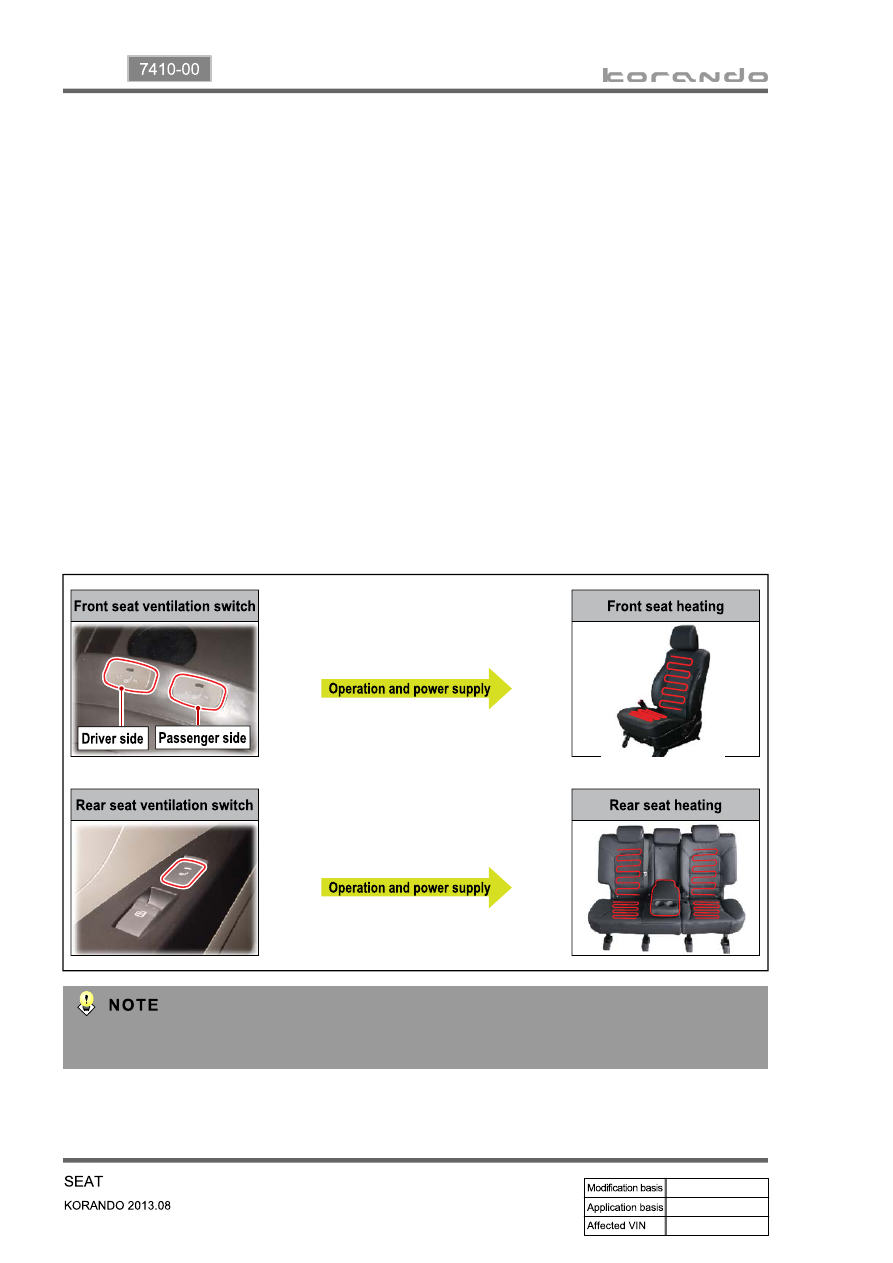

After the ignition is turned on, the heated wire of the front seat can be operated to the desired

temperature (LO/HI) by pressing the front seat heated wire switch.

After the ignition is turned on, pressing a rear seat heated wire switch activates the heated wire of the

corresponding seat and pressing the switch again turns off the heated wire operation.

-

-

Operating process

▶

When the front or rear seat heated wire switch is pressed, the power is supplied to the corresponding

front or rear seat heated wire through the switch.

-

The seat heated wire and ventilation unit is not fitted in a vehicle without seat ventilation function.

(2) Heated wire function for front and rear seats (driver and passenger
     seats LO↔HI, rear seats ON↔OFF)

03-25

7410-00

The 3-point type seat belts are mounted on the driver seat, passenger seat and rear seats (LH, RH,

Center). The seat belts on the front seats (driver's/passenger's) include pretensioner feature which

rewinds the seat belt immediately to protect the occupant's face and chest when a strong frontal collision

occurs.

Front 3-point type seat belt
(Driver & Passenger seats)

Rear 3-point type seat belt (RH)

Front seat belt

Height adjuster

Rear seat belt - RH

Rear seat belt - LH

Rear double buckle -

1st row

Rear center seat belt

Rear buckle - 1st row

6) Seat Heated Wire and Ventilation

(1) Seat belt configuration

3-point type seat belt

(RR center, LH)

03-26

Rear seat belt - LH/RH (3-point type)

Rear center seat belt (3-point type)

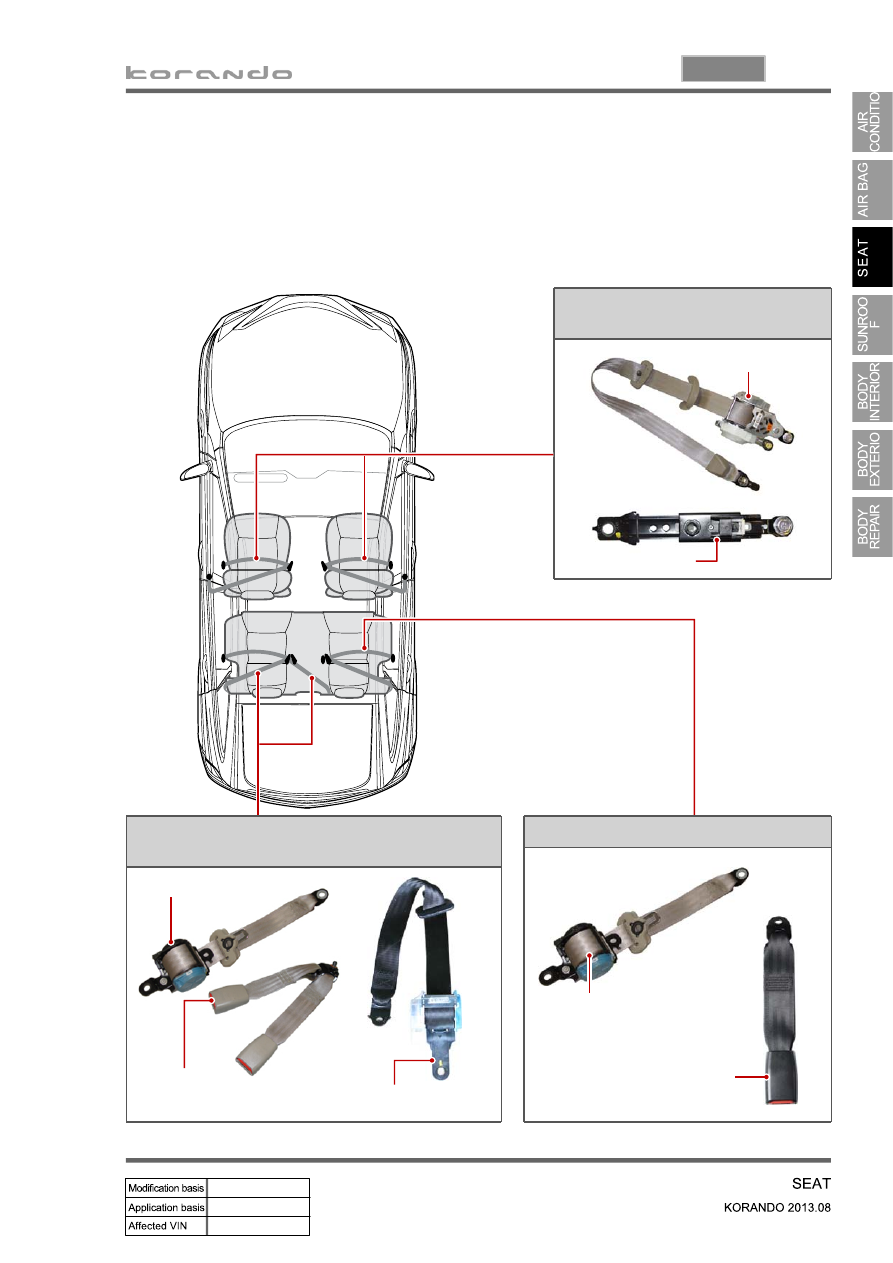

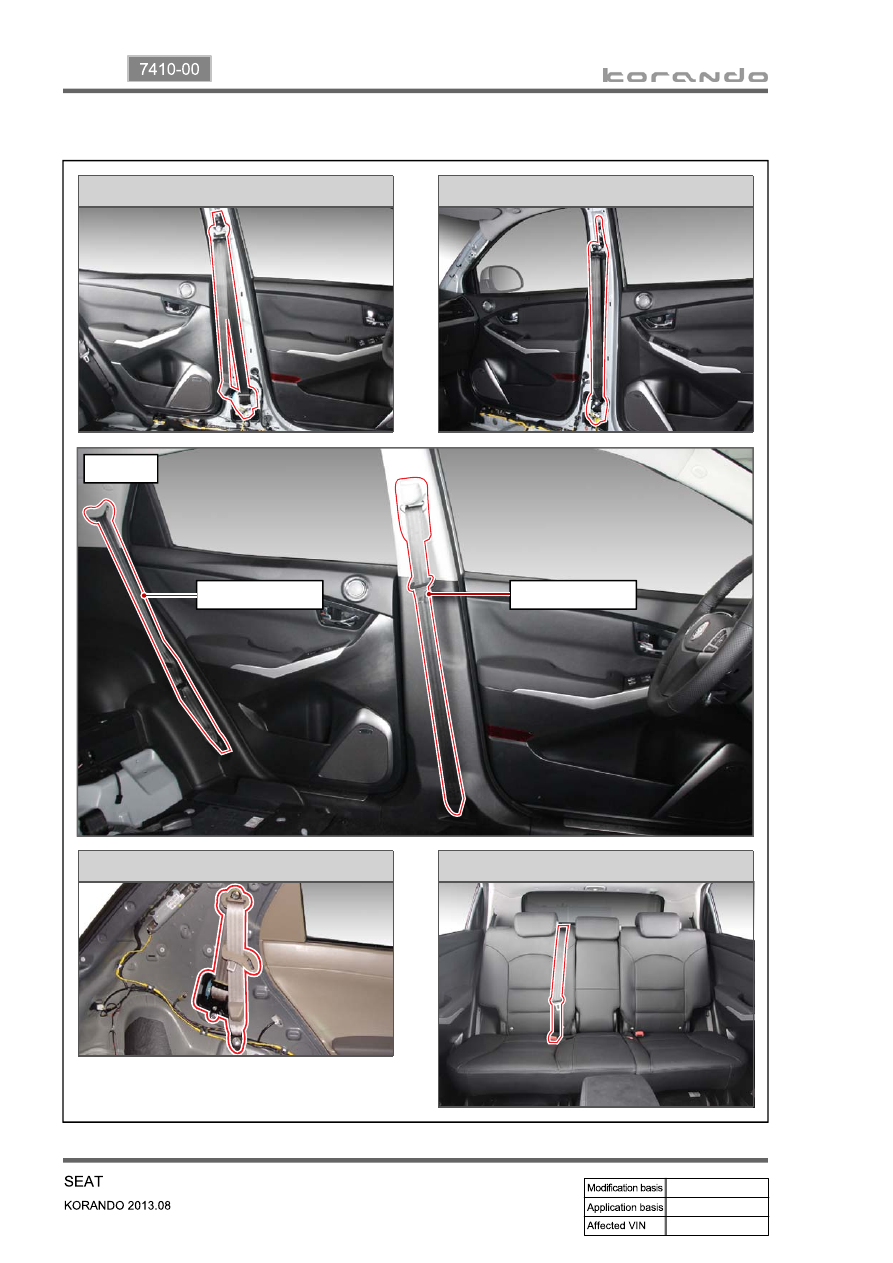

(2) Mounting location for seat belt

Driver seat Belt (3-point type)

Passenger seat Belt (3-point type)

LH

Rear seat belt

Front seat belt
