03-27

7410-00

Pretensioner

Driver side

Passenger side

7) Mounting Location for Pretensioner

The seat belt pretensioner retracts the seat belt instantly by igniting the inflator in the pretensioner when

the front air bag system is activated. It also improves the safety effect of the seat belt by preventing the

front seat occupants from moving forward and keeping occupants in a stable posture.

The load limiter is also installed to reduce the chest impact to a front seat occupant by loosening the seat

belt while maintaining the force applied by the seat belt uniformly when the pretensioner retracts the seat

belt instantly. The seat belt pretensioner is operated first, and then the load limiter is activated.

Height adjuster

This feature improves
comfort and enhances
safety performance in the
event of a collision by
adjusting the shoulder belt
to the desired length to
restrain the occupant.

03-28

1) Child Restraint System Type

There are 2 types in the child restraint system.

- Fixing using seat belt

- Fixing using ISOFIX (for the vehicle with ISOFIX system)

2) Child Restraint System Fixing Type

4. CHILD RESTRAINT SYSTEM (ISO FIX)

Item

Weight

Age

Fixing

method

Rear

LH/RH

seat

Passenger seat/

Rear center seat

Reversed seat

< 10kg

6 to 9 months

Seat belt

U/SU

X

< 13kg

12 to 15 months

Seat belt

U/SU

X

Front face seat

9~18kg

9 to 48 months

Seat belt /

ISOFIX seat

U/UF/SU

X

Booster seat

15~25kg

4 to 6 years

Seat belt

U

X

Booster cushion

22~36kg

6 to 11 years

Seat belt

U

X

U: General child restraint system which should be fixed with the seat belt approved by official institute.

UF/SU: General child restraint system which should be fixed with the ISOFIX system approved by

official/semiofficial institute.

X: Seat which is not allowed to use child restraint system.

-

-

-

03-29

7410-00

3) ISO FIX

Installation using lower latch

▶

There are marks (A), which indicate that the

ISOFIX for child restraint system can be fixed,

at the bottom of the rear seatback as shown in

the figure.

Attach the ISOFIX child restraint system (C) to

the two latches (B) located at the bottom of the

rear seat.

If a ISOFIX child restraint system is used, the

seat belt is not needed.

No lower anchor is installed to the rear center

seat.

The approved ISOFIX child restraint system

can be mounted to the vehicle with ISOFIX

system (2 lower latches and one rear seatback

anchor).

-

-

-

-

-

When installing ISOFIX child restraint system to the vehicle, all the seat belts in the rear seat should

be buckled.

The mounting latches and anchors for the ISOFIX system are only for the child restraint system, so

DO NOT install any restraint system other than ISOFIX specifications, seat belt or other device to

these latches or anchors.

-

-

03-30

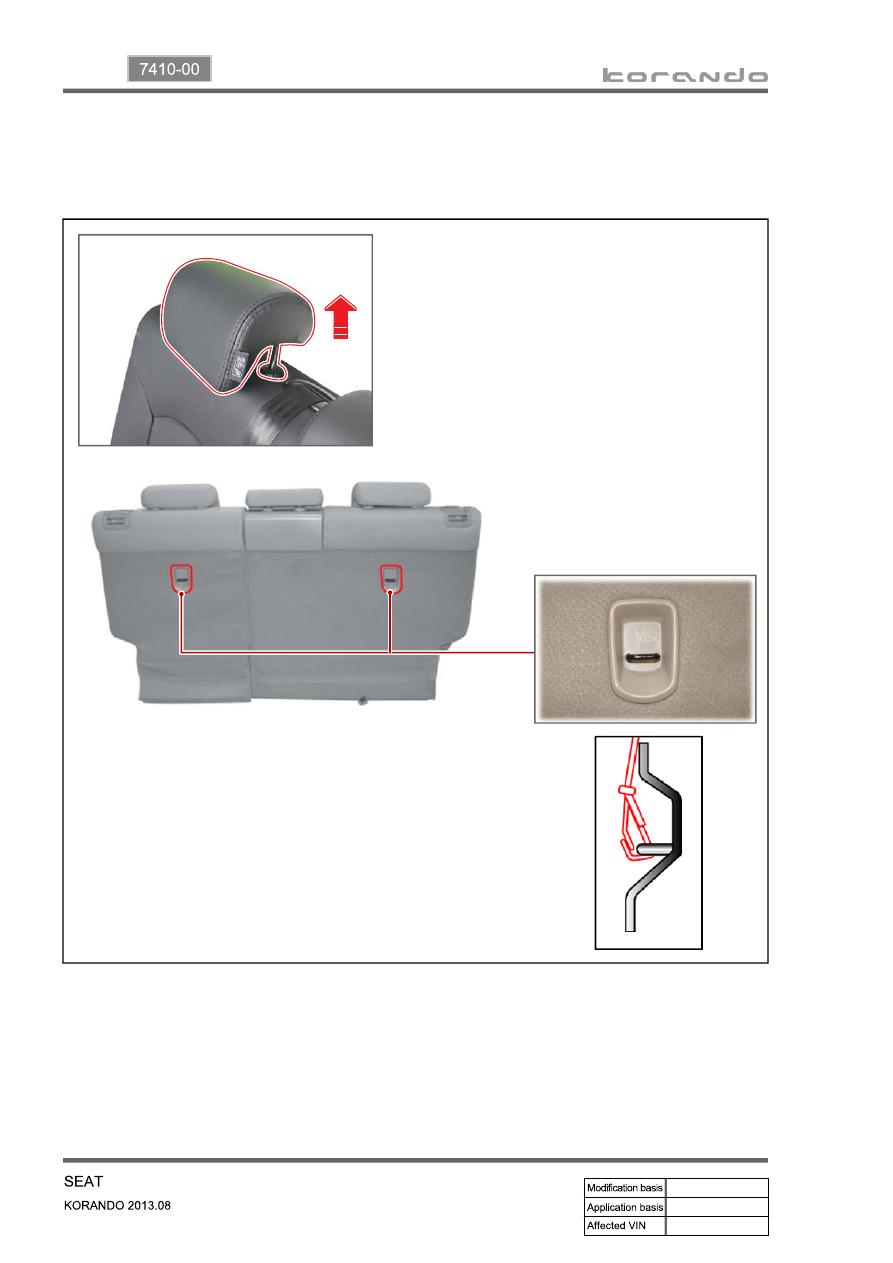

Installation using rear seatback anchor

▶

There are anchors (for hook mounting) for fixing child restraint system, on the back side of the rear

seatback as shown in the figure.

-

Route the belt of the child restraint system over the seatback of the rear seat.

Attach the hook of the child restraint system belt to the anchor firmly, and securely tighten the child

restraint to the seat.

-

-
