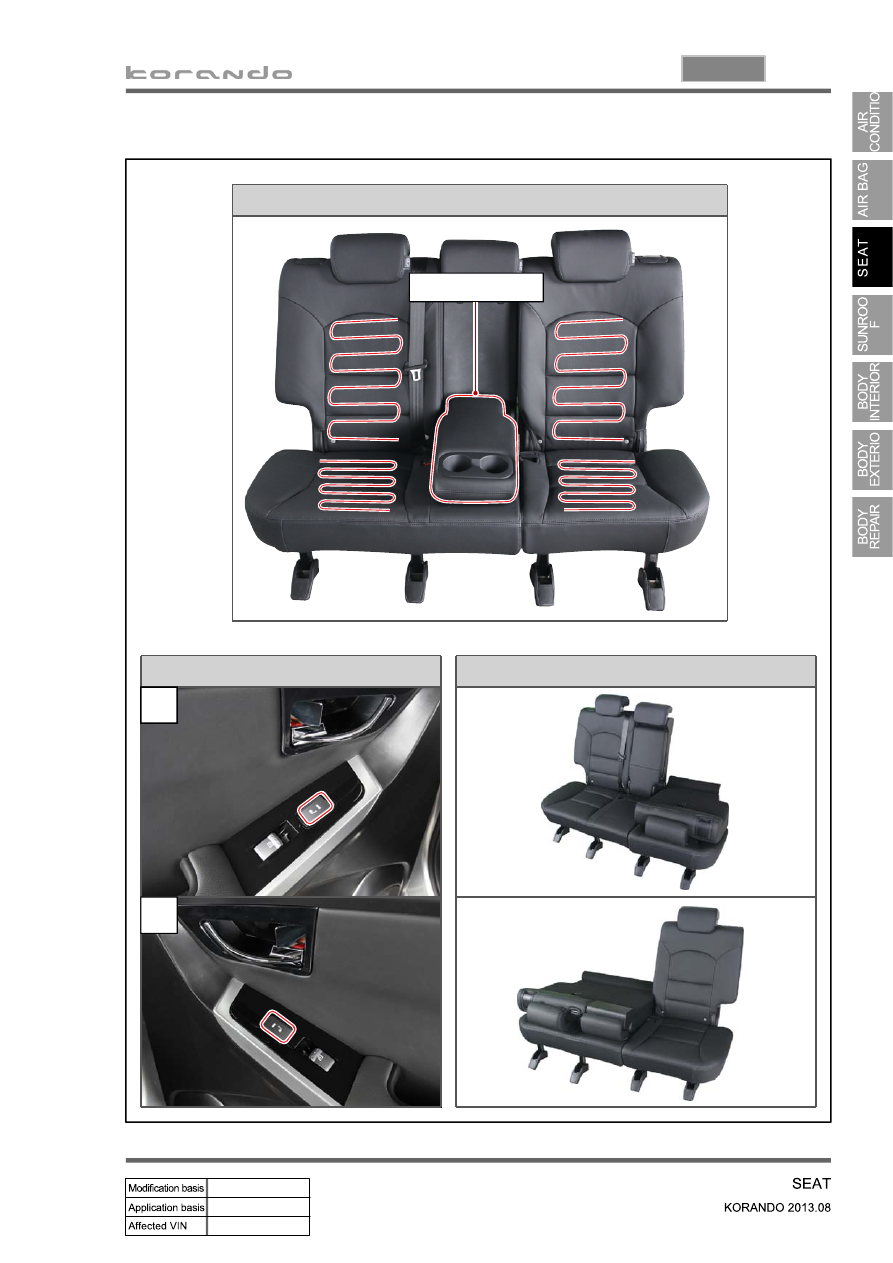

03-19

7410-00

Seatback folding

Rear seat heated wire

Rear seat heated wire switch

(2) Rear seat heated wire functions

Rear armrest

LH

RH

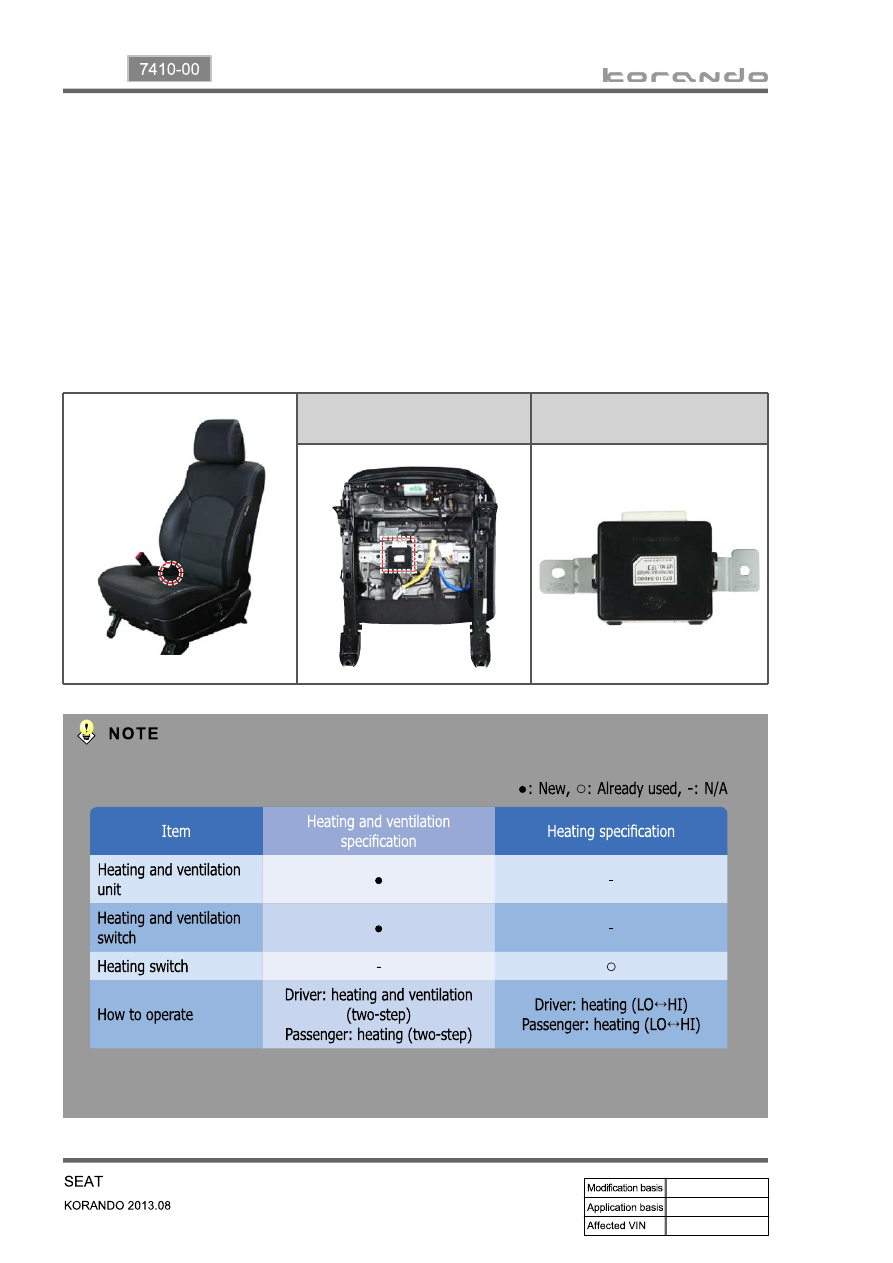

03-20

Mounting location

Seat heated wire and

ventilation unit

4) Front Seat Heated Wire and Ventilation Unit

(1) Front seat heated wire and ventilation unit operation

The seat heated wire and ventilation unit is mounted at the bottom of the driver seat. The temperature of
the seat can be adjusted in 3 levels (Level 2 → Level 1 → OFF) with the seat heated wire and

ventilation switch. Every time the seat heated wire and ventilation switch is pressed, the temperature

level goes down by one level. Pressing the switch a third time will turn off the operation. Pressing the

desired side of the switch heats the seat cushion and seatback or activates the seat ventilation function.

The temperature of the seat is kept uniform by cutting off or connecting power through thermistor fitted in

the seat. The seat heated wire and ventilation unit controls the rpm of the motor using PWM control to

operate the seat ventilation.

Seat heated wire and ventilation unit & switch application

▶

The seat heated wire and ventilation unit is not fitted in a vehicle without seat ventilation function.

-

03-21

7410-00

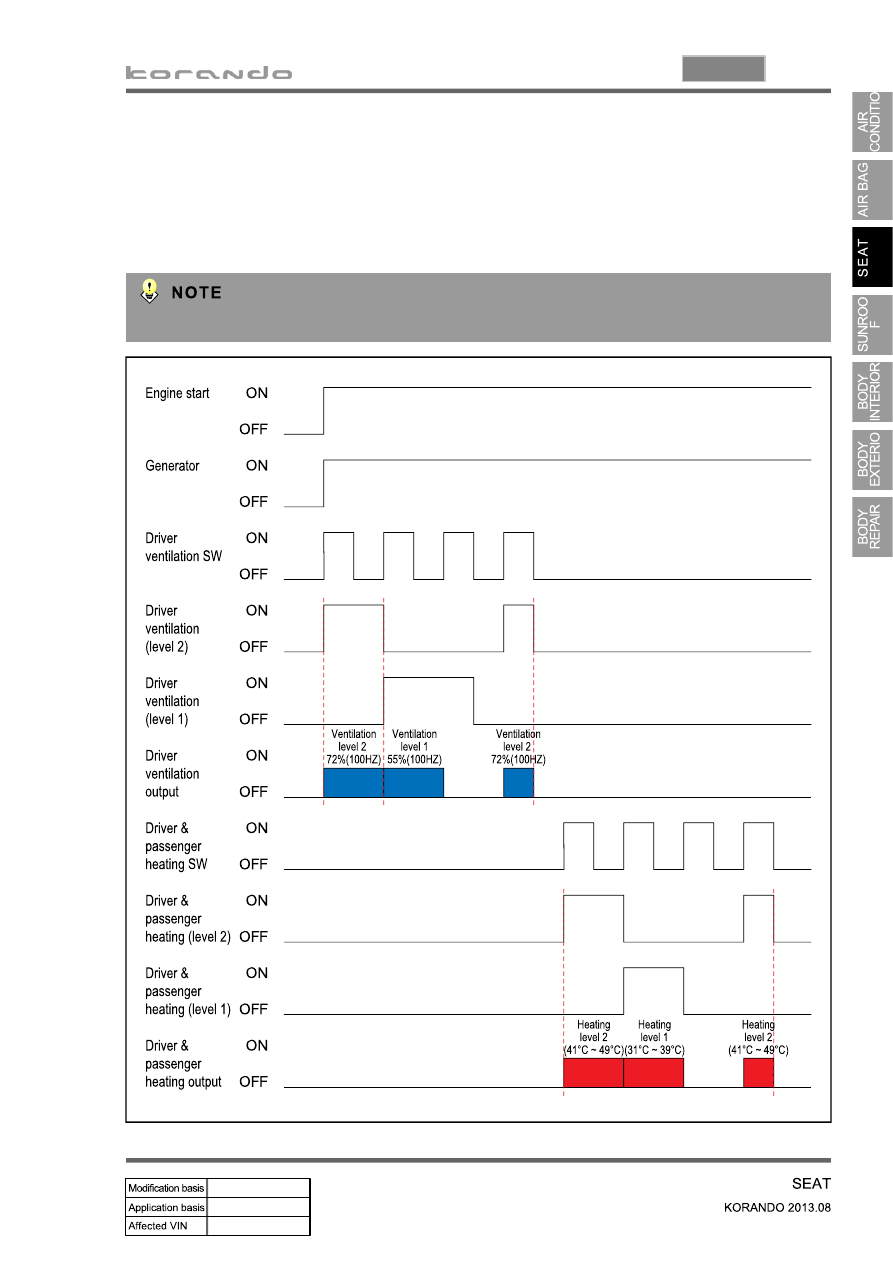

(2) Front seat heated wire and ventilation unit diagram

Condition: Engine running

▶

The temperature of the seat can be adjusted in 3 levels (Level 2 → Level 1 → OFF) with the front

seat heated wire and ventilation switch. Every time the switch is pressed, the temperature level goes

down by one level. Pressing the switch a third time will turn off the operation.

The front seat heated wire and ventilation functions cannot be operated at the same time.

03-22

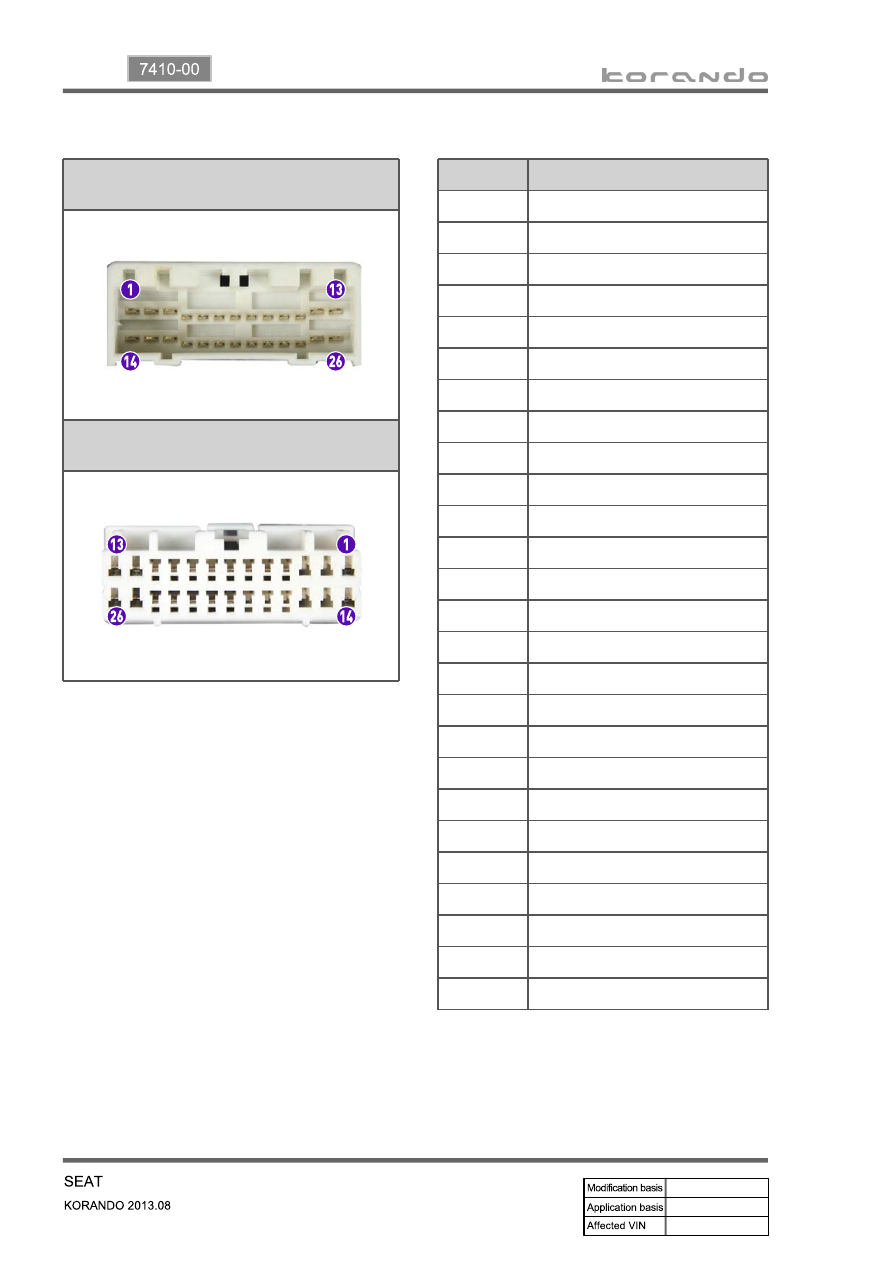

(3) Connector pin description

Seat heated wire and

ventilation unit side

Seat heated wire and

ventilation unit wiring side

Pin No.

Function

1

IGN2

2

-

3

-

4

Ventilation switch

5

Heater switch (LH)

6

Heater switch (RH)

7

Heater level 1 (LH)

8

Heater level 1 (RH)

9

Ventilation level 1 (LH)

10

Heater back (LH) NTC -

11

Heater back (RH) NTC +

12

Cushion ventilation power (+)

13

Heater back (LH) HTR

14

ALT

15

-

16

-

17

-

18

-

19

-

20

Heater level 2 (LH)

21

Heater level 2 (RH)

22

Ventilation level 2 (LH)

23

Heater back (LH) NTC +

24

Heater back (RH) NTC -

25

Heater back (RH) HTR

26

Ground
