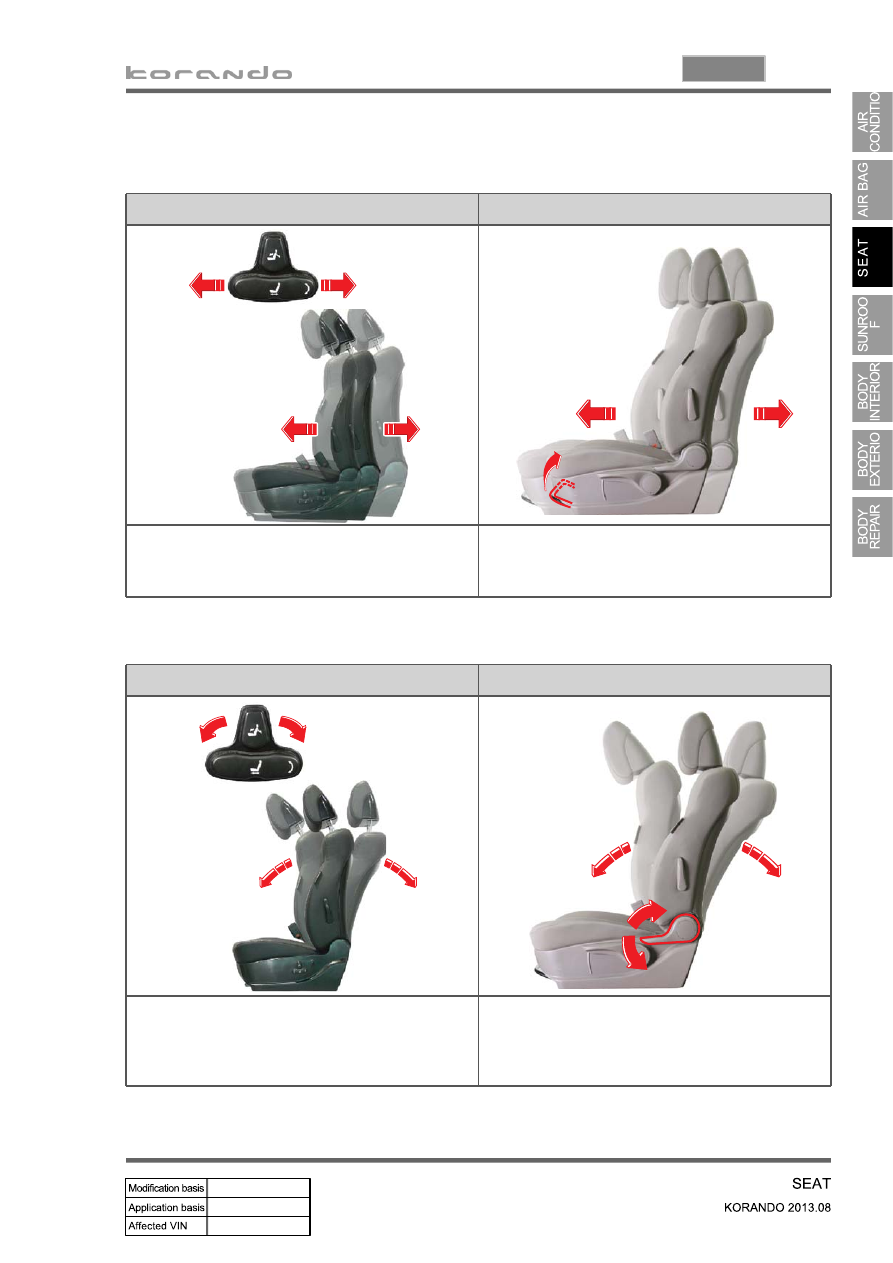

Power seat

Manual seat

Moving the upper part of the recliner knob
forward/backward adjusts the seatback angle by
activating the recliner motor.

Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired angle
to lock the seatback.

Power seat

Manual seat

Moving the slide knob forward/backward moves
the seat forward/backward by activating the slide
motor.

To move the seat forward or backward, pull up and
hold the seat slide lever and move the seat to the
desired position.

(1) Driver seat operation

Seat slide adjustment (forward/rearward)

▶

Seatback reclining adjustment

▶

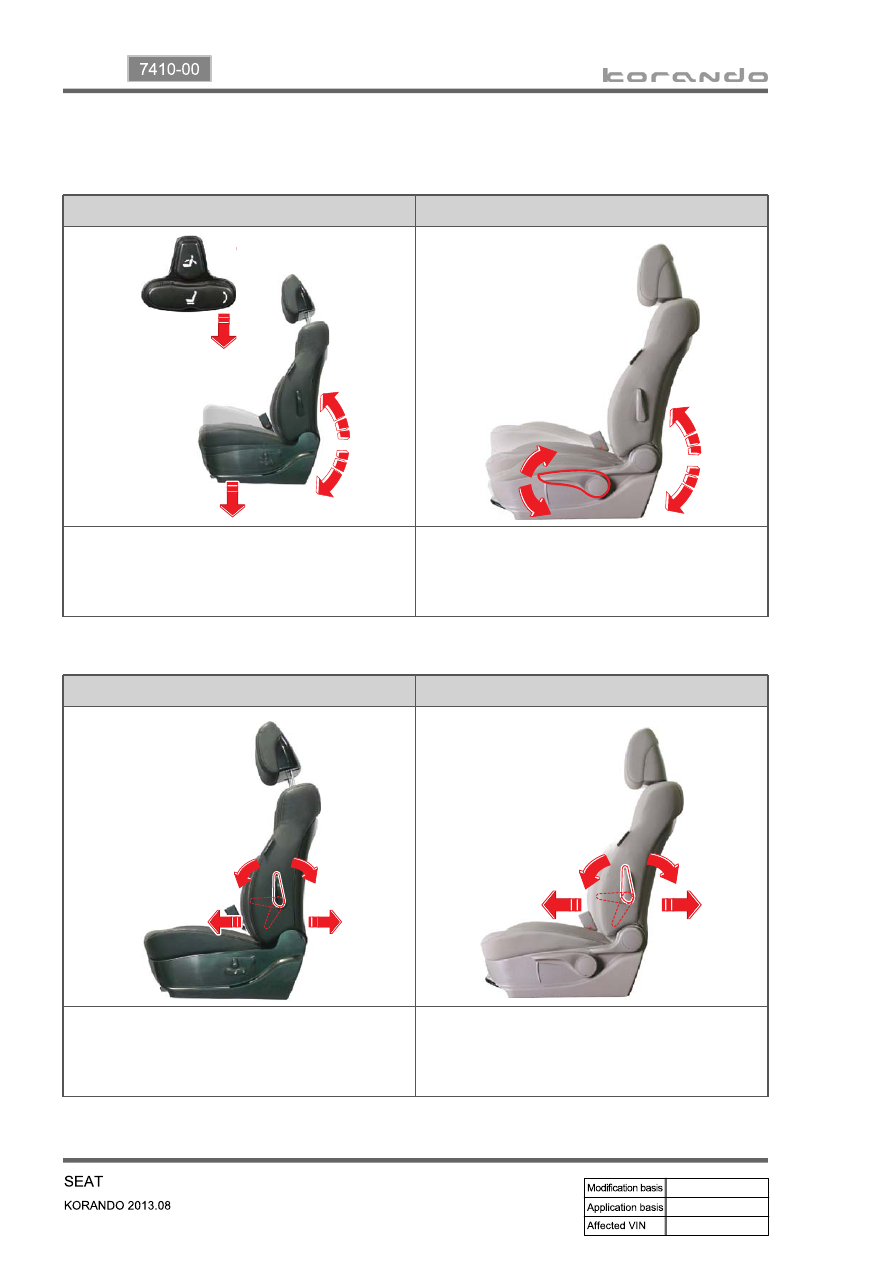

03-12

Power seat

Manual seat

Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.

Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.

Power seat

Manual seat

Moving the slide switch upward/downward moves
the seat cushion upward/downward as the front &
rear up/down motors rotate the rail.

Pulling the recliner knob upward/downward moves
the seat upward/downward.

Seat adjustment (height)

▶

Driver seat lumbar support adjustment

▶

03-13

7410-00

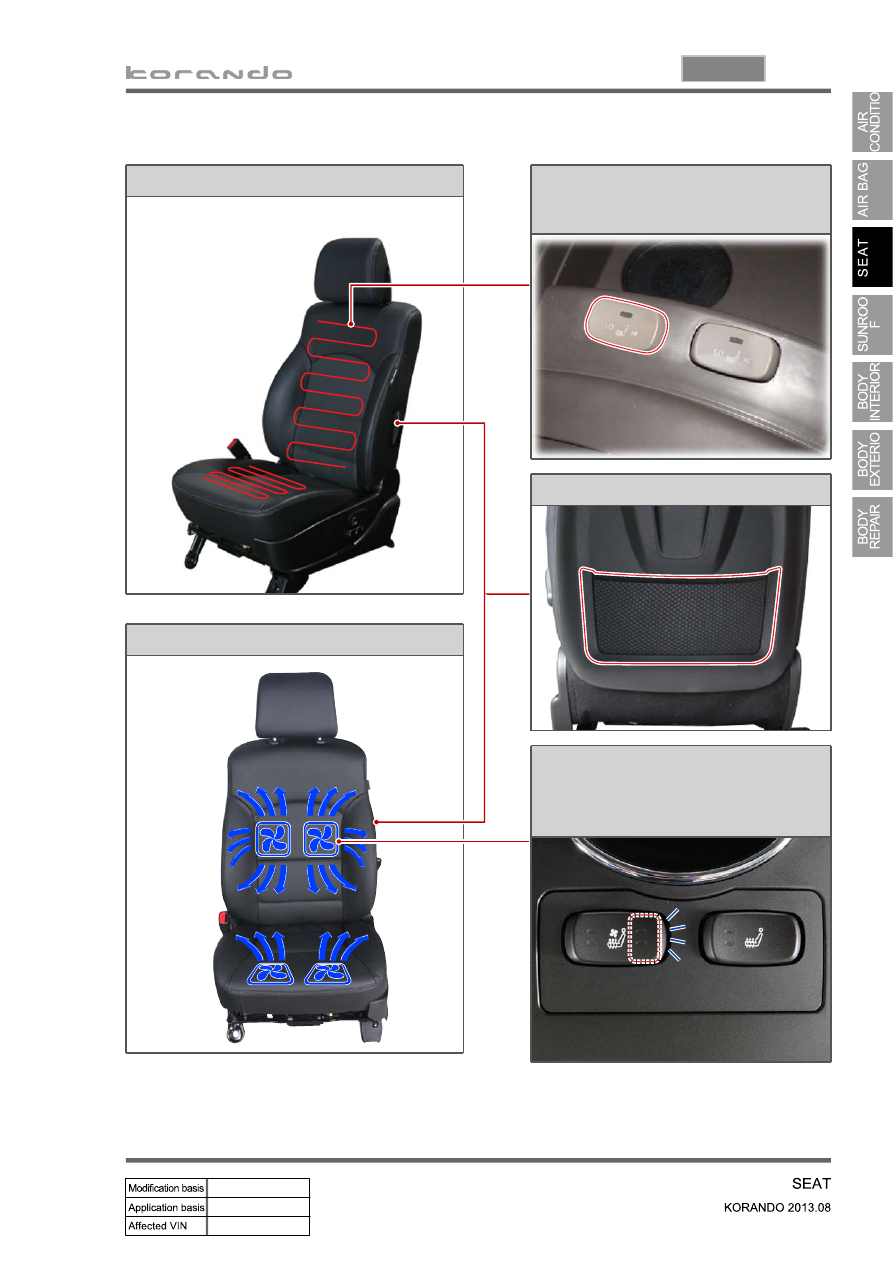

Driver seat ventilation

Driver seat heated wire

Driver seat heated wire switch

(vehicle with heated wire function only)

Driver seat heated wire and ventilation

switch (vehicle with heated wire and

ventilation functions)

Seat back board

(2) Driver seat heated wire and ventilation functions

03-14

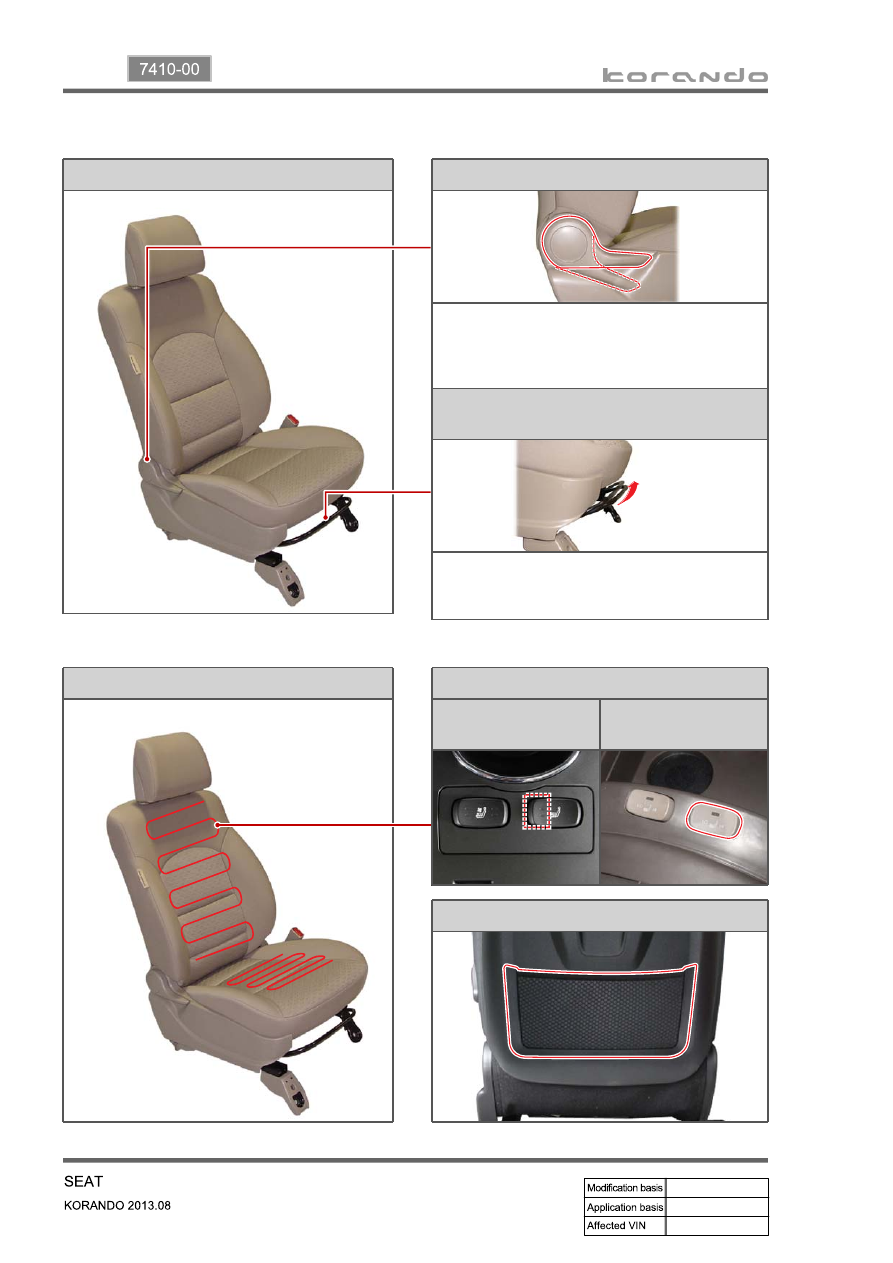

Seatback reclining adjustment

Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired
angle to lock the seatback.

Seat slide adjustment (forward/rearward)

To move the seat forward or backward, pull up
and hold the seat slide lever and move the seat
to the desired position.

Passenger seat heated wire switch

Heated wire and

ventilation

Heated wire

Passenger seat heated wire

(3) Passenger seat operation

Passenger seat

(4) Passenger seat heated wire and functions

Seat back board
