03-3

7410-00

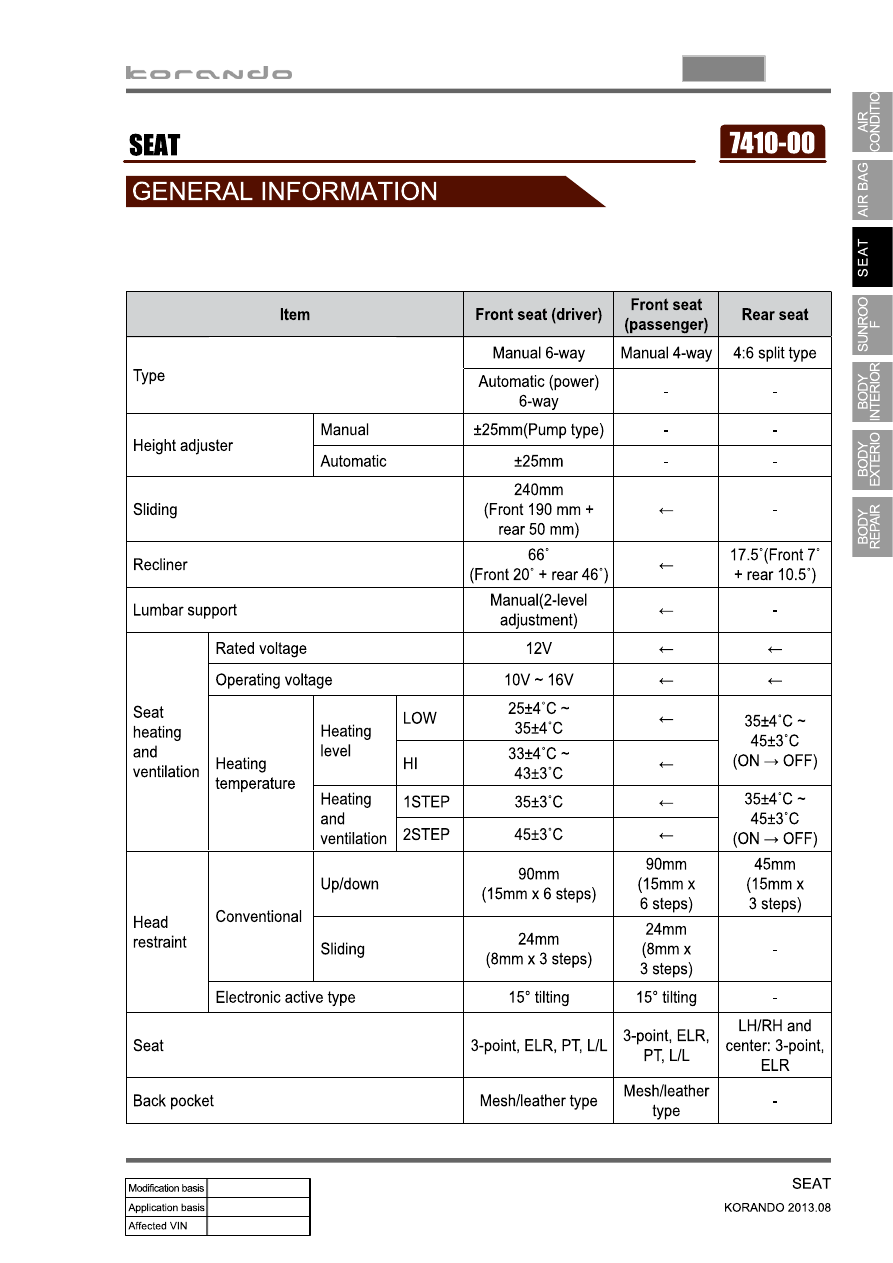

1. SPECIFICATION

1) Specifications

03-4

2) Seat Heated Wire and Ventilation Unit

Item

Specifications

Seat heated
wire and
ventilation unit

Rated voltage

DC 12 V

Operating voltage

DC 9 V to 16 V

Operating temperature

-30˚C to + 80˚C

Rated load

Heated wire

(driver & passenger

seats)

DC 12 V - 5 A ± 10%

Ventilation

(driver seat)

DC 12 V - max. 0.9 A

Cut off over-

current

Heated wire

(driver & passenger

seats)

DC 12 V - 0.75 A ± 10%

Ventilation

(driver seat)

DC 12 V - 8.5 A ± 10%

Ventilation

motor

Operating current

Level 1

DC 12 V - 0.5 A ± 10%

Level 2

DC 12 V - 0.6 A ± 10%

Ventilation motor

revolutions

(rpm)

Seat

cushion

Level 1

(2,400 RPM ± 10%)

Level 2

(2,750 RPM ± 10%)

Seat

back

Level 1

(3,160 RPM ± 10%)

Level 2

(3,660 RPM ± 10%)

03-5

7410-00

2. WARNINGS FOR POWER SEAT

Adjust the driver seat before driving.

Make sure that the seat is firmly secured after adjusting.

Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, your

neck, spine or other parts of the body can be severely injured in the event of an accident.

If you recline the seatback excessively, you could slide under the seat belt and be injured severely

in a collision.

Do not put any object that could damage the seat on the seat.

The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat

warmer system excessively may cause minor burns. The following occupants should exercise

special care when using the heated wire seat.

▷
▷
▷

▷

▷

▷

Infants, children, old or handicapped persons

Persons with sensitive skin

Exhausted persons

Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold

tablets, etc.

-

-

-

-

Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.

Make sure that the head restraints are in place and secured properly. Never drive the vehicle with

the head restraint removed.

To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright

position before driving. If the seatback is reclined too much, the occupant could slide under the seat

belt in a collision or an abrupt stop and cannot be protected properly by the air bag system.

▷

▷

▷

3. CAUTIONS FOR POWER SEAT

You can operate the power seat with the ignition switch OFF. However, frequent operation of the

seat switch with the engine stopped can result in battery becoming discharged.

Operating more than one seat adjustment switch at the same time can cause damage to the seat

motor. Therefore, operate the seat switch only one at a time.

Do not use organic solvents such as benzene, thinner, alcohol or gasoline to prevent the seat cover

from being damaged while cleaning.

Do not operate the seat position adjustment switch forcefully when the seat does not move or it

contacts an object.

If the power seat is not operated, check and correct the problem before driving off.

▷

▷

▷

▷

▷

03-6

Front seat heated wire and ventilation unit

The front seat heated wire and ventilation unit has been added.
- Driver seat (heated wire and ventilation), passenger seat (heated wire)
- The heated wire and ventilation unit is not applied to a vehicle with heated wire only.

Mounting location for

ventilation motor

4. MAJOR CHANGES

Front seat heated wire and ventilation unit

▶

Heated wire and ventilation

unit

mounting location

Seatback

Seat cushion

Seat heated wire and ventilation unit & switch application

▶
