1. SPECIFICATION (HPS)

Component

Item

Specification

Steering wheel

Type

3-spoke

Outside diameter

Φ 380 mm

Number of revolutions

3.09 rotations

Heated wire

Simple ON/OFF

Gear box

Type

Rack and pinion

Gear ratio

46.94

Rack stroke

± 72.5 mm

Steering angle

Inner

38.62°

Outer

31.07°

Wheel alignment

Toe-in

2 ± 2 mm

Oil pump

Type

Vane (removable pump and reservoir)

Maximum pressure

100 ± 3 bar

Displacement

6.0 to 9.75 ℓ/min

Pulley diameter

Φ 115 mm

Steering column

Tilting angle

Up

+ 2.0 deg

Down

- 3.0 deg

Lower shaft

Type

Ball slip

Steering oil

Oil type

S-PSF 3

Oil reservoir capacity

about 1 ℓ

Change interval

EU (Diesel): Check and add at every 20,000

km

GEN (Diesel, Gasoline): Check and add at

every 15,000 km

Turning capability

Min. turning radius

5.35 m

13-4

2. TIGHTENING TORQUE

Item

Tightening torque

Remark

1. Power steering reservoir mounting bolt

8.8 to 13.7 Nm

12 mm x 2 EA

2. Power steering
   pump

Upper mounting bolt/nut

25 ± 2.5 Nm

13 mm x 1 EA

Lower mounting bolt

25 ± 2.5 Nm

12 mm x 2 EA

3. Oil pipe

Eye bolt (pump side)

53.9 to 63.7 Nm

22 mm

Steering gear box side nut

31.4 to 37.2 Nm

17 mm

4. Oil pipe bracket mounting nut

6.8 to 10.8 Nm

10 mm

5. Tie rod end lock nut

44.1 to 53.9 Nm

17 mm

6. Tie rod nut

63.7 to 78.4 Nm

22 mm

7. Lower shaft

Lower mounting bolt
(gear box side)

17.6 to 24.5 Nm

12 mm

Upper mounting bolt (column
side)

17.6 to 24.5 Nm

12 mm

8. Column shaft

Lower mounting bolt

19.6 to 24.5 Nm

12 mm

Upper mounting nut

19.6 to 24.5 Nm

12 mm

9. Steering wheel nut

39.2 to 49.1 Nm

22 mm

10. Loosened gear box mounting bolt/nut

Left: 98.0 to 127.4 Nm

17 mm

Right: 88.3 to 107.9 Nm

17 mm

11. Heat shield mounting bolt

8.8 to 13.7 Nm

12 mm x 2 EA

13-5

0000-00

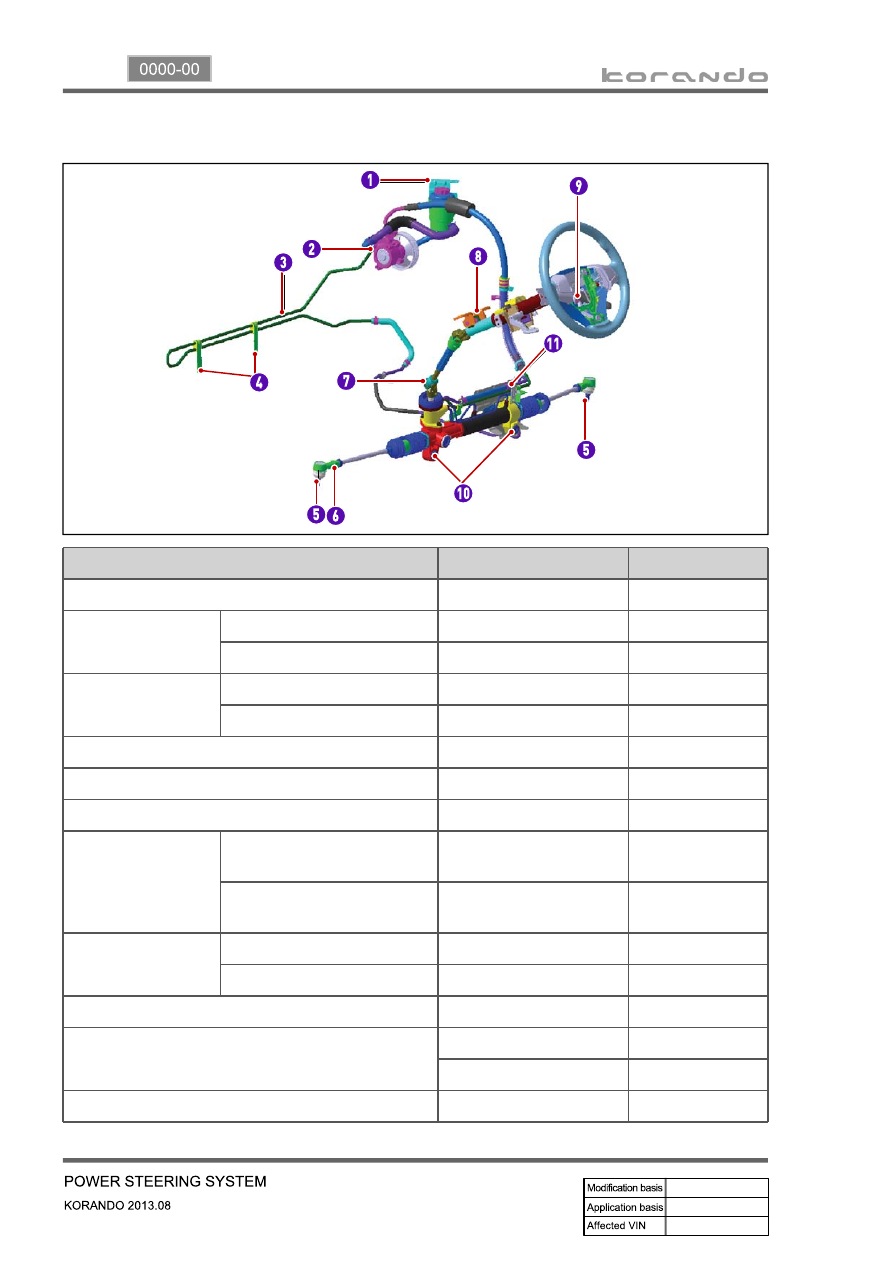

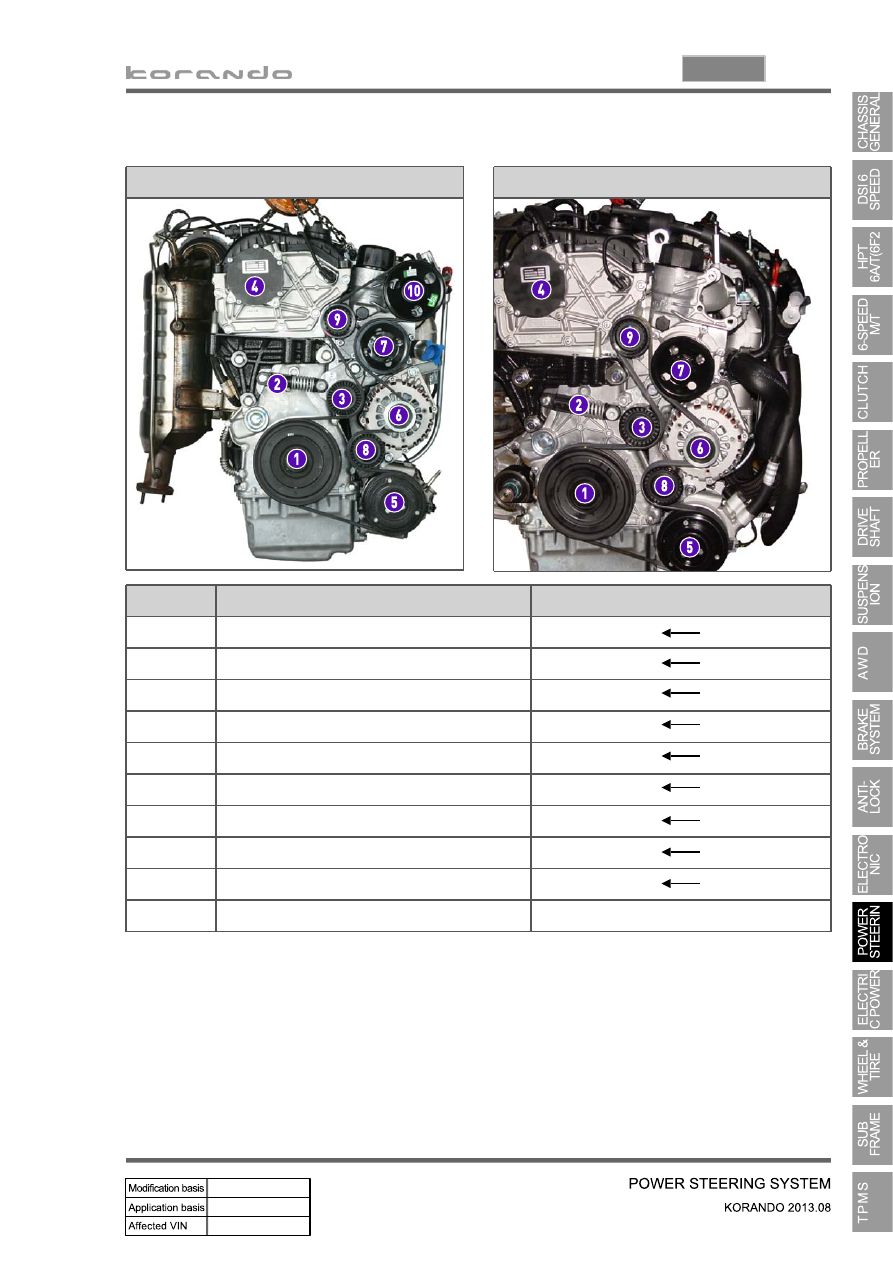

3. DIFFERENCES BETWEEN HPS AND EPS

HPS

EPS

1

Crankshaft pulley (DDU)

2 Auto

tensioner

3 Tensioner

pulley

4 Vacuum

pump

5

A/C compressor pulley

6 Alternator

pulley

7

Water pump pulley

8

No.1 idle pulley

9

No.2 idle pulley

10

Power steering pump

-

HPS (Hydraulic Power Steering)

EPS (Electric Power Steering)
