12-23

0000-00

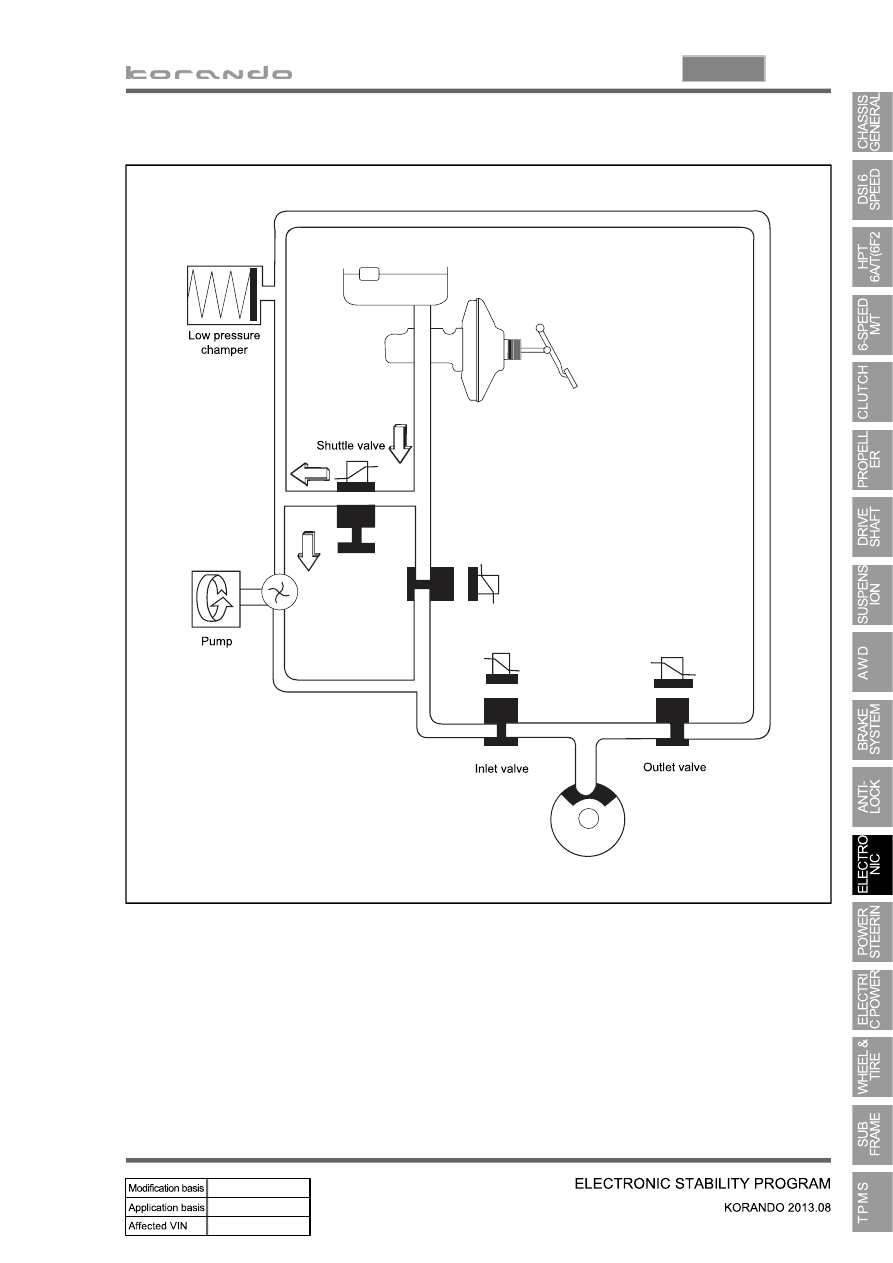

3) HOLD (ESP is working) Mode

The Inlet valve and outlet valve will be closed to maintain the pressure in the hydraulic circuit applied at

the wheels. By closing the valves, the hydraulic pressure at the wheels will not be lost or supplied any

more. During ESP operation, the separation valve closes and only the shuttle valve at the pump opens.

12-24

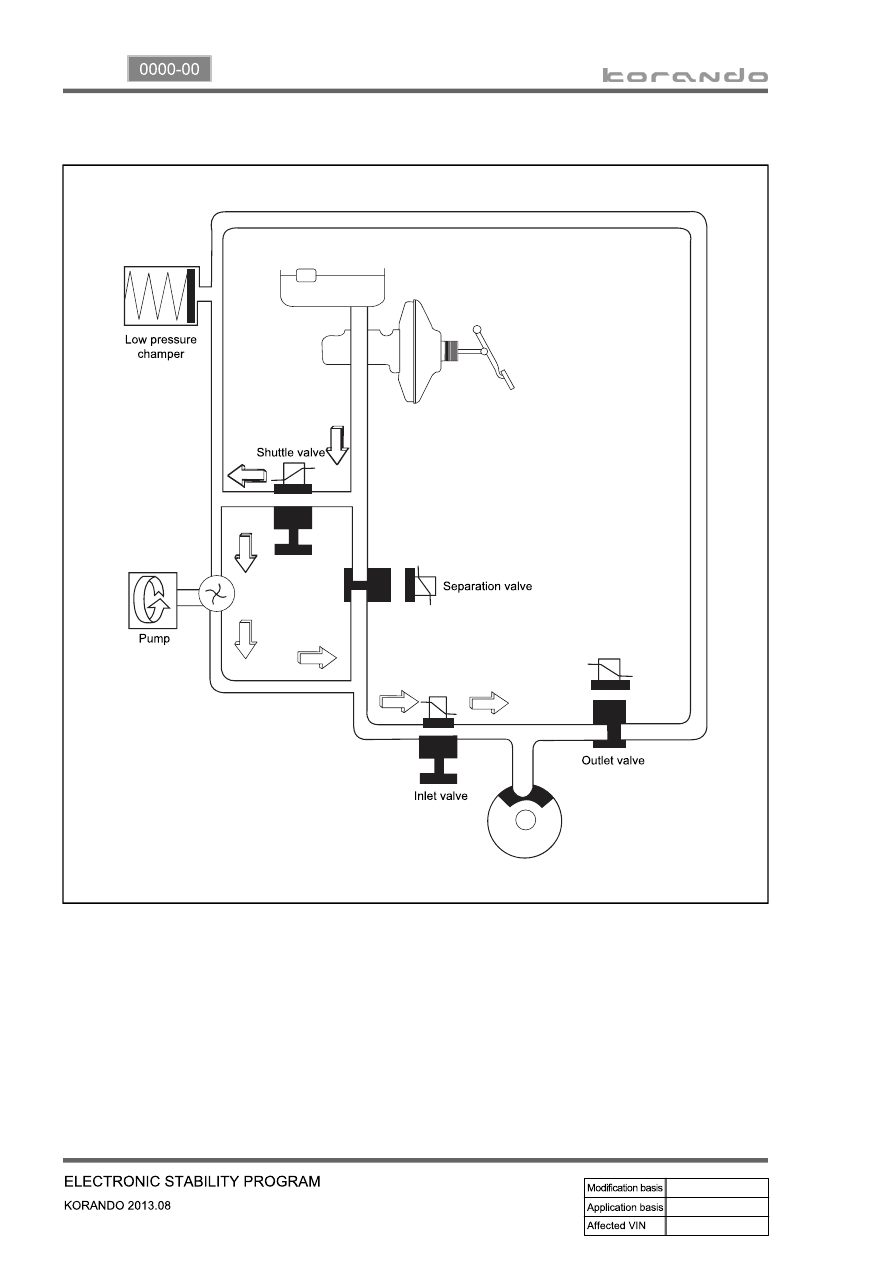

4) RISE (ESP is working) Mode

The shuttle valve and inlet valve will be open and the separation valve and outlet valve will be closed.

Then, the pump is operated. When ESP operates while the ABS is operating, the pressure will be

increased continuously until just before the corresponding wheel gets locked.

12-25

0000-00

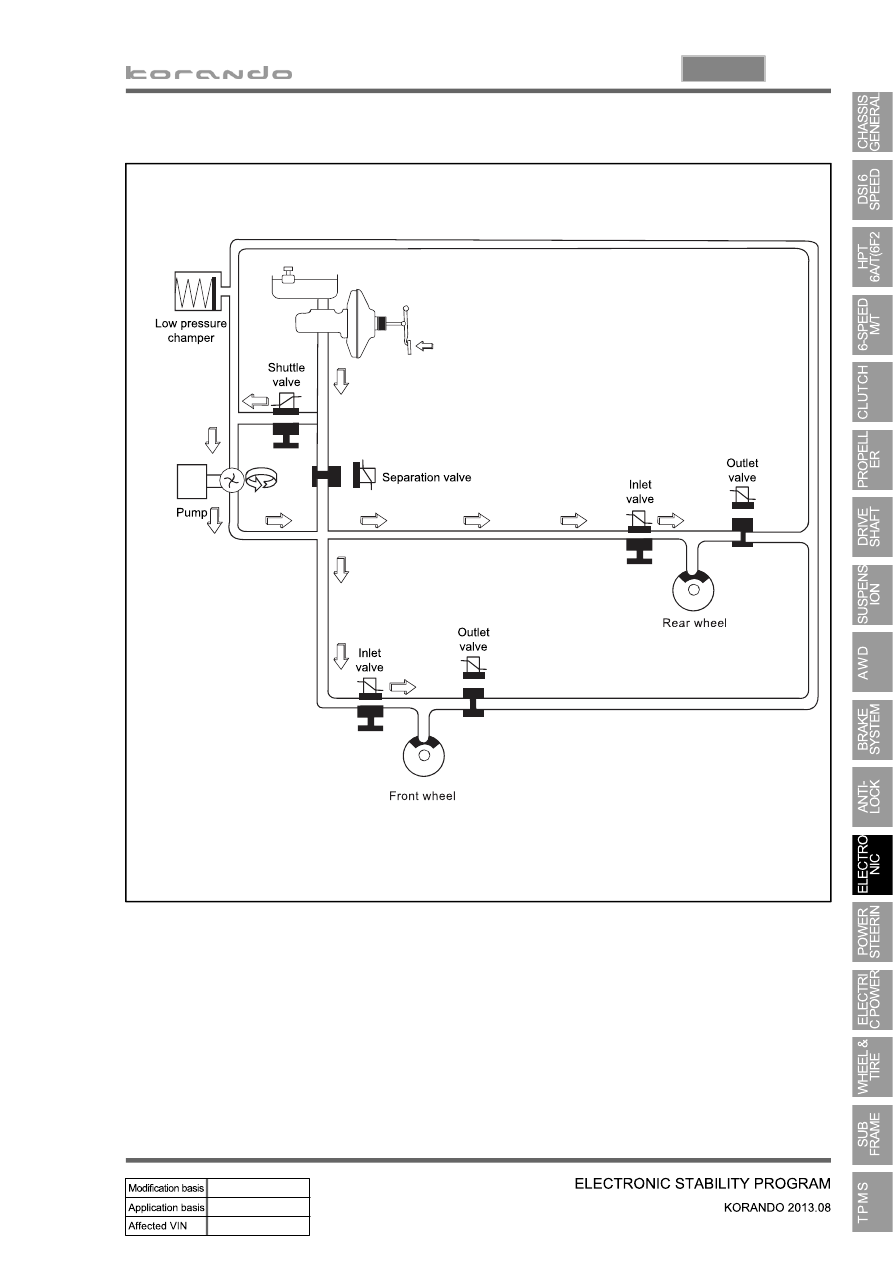

5) Hydraulic Circuit of HBA

The above figure shows one front and one rear wheel and the same hydraulic circuit forms as in the ESP

operation. When HECU recognizes that it is an emergency and it is required for hard braking, depending

on the pressure value of the brake pressure sensor and pressure changes caused by the pressure sensor

timing, it operates the pump immediately to apply the brake pressure at the wheels. Then, the pressure in

the pump increases until just before the corresponding wheel gets locked. The motor still keeps rotating

and the outlet valve and the separation valve will stay closed. When the wheel starts to lock, the HBA

function cancels and switches to ABS operation.

12-26

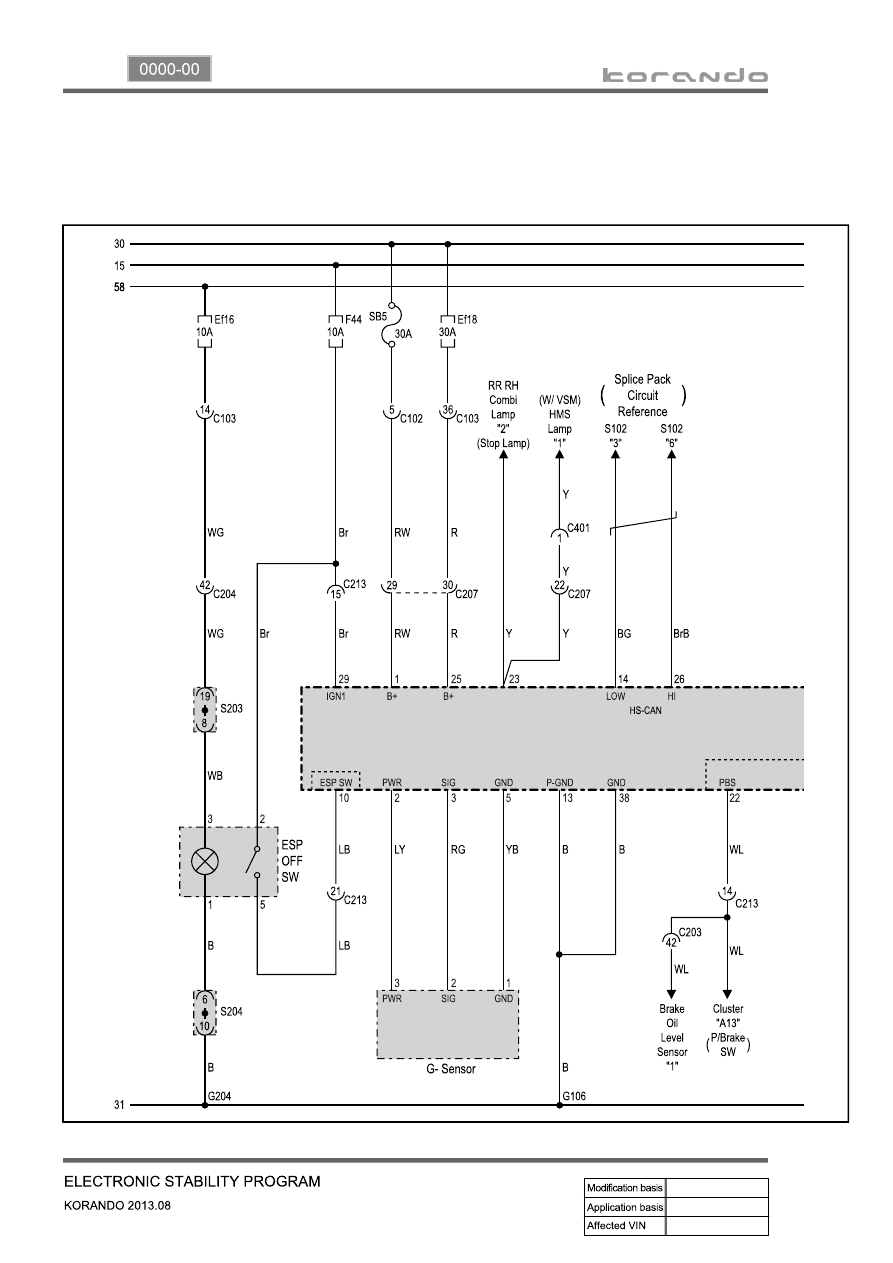

7. CIRCUIT DIAGRAM

Wheel speed sensor, Stop lamp switch, Self diagnostic connector, Warning lamp (ABS/ESP)

▶
