SsangYong Korando III (2010 year). Manual - part 513

11-12

Bluetooth (hands-free)

microphone

It sends the transmission tone
signal to the head unit and outputs
the receiving tone and navigation
guidance sound to the driver's door
speaker during hands-free calling.

3. OPERATION PROCESS

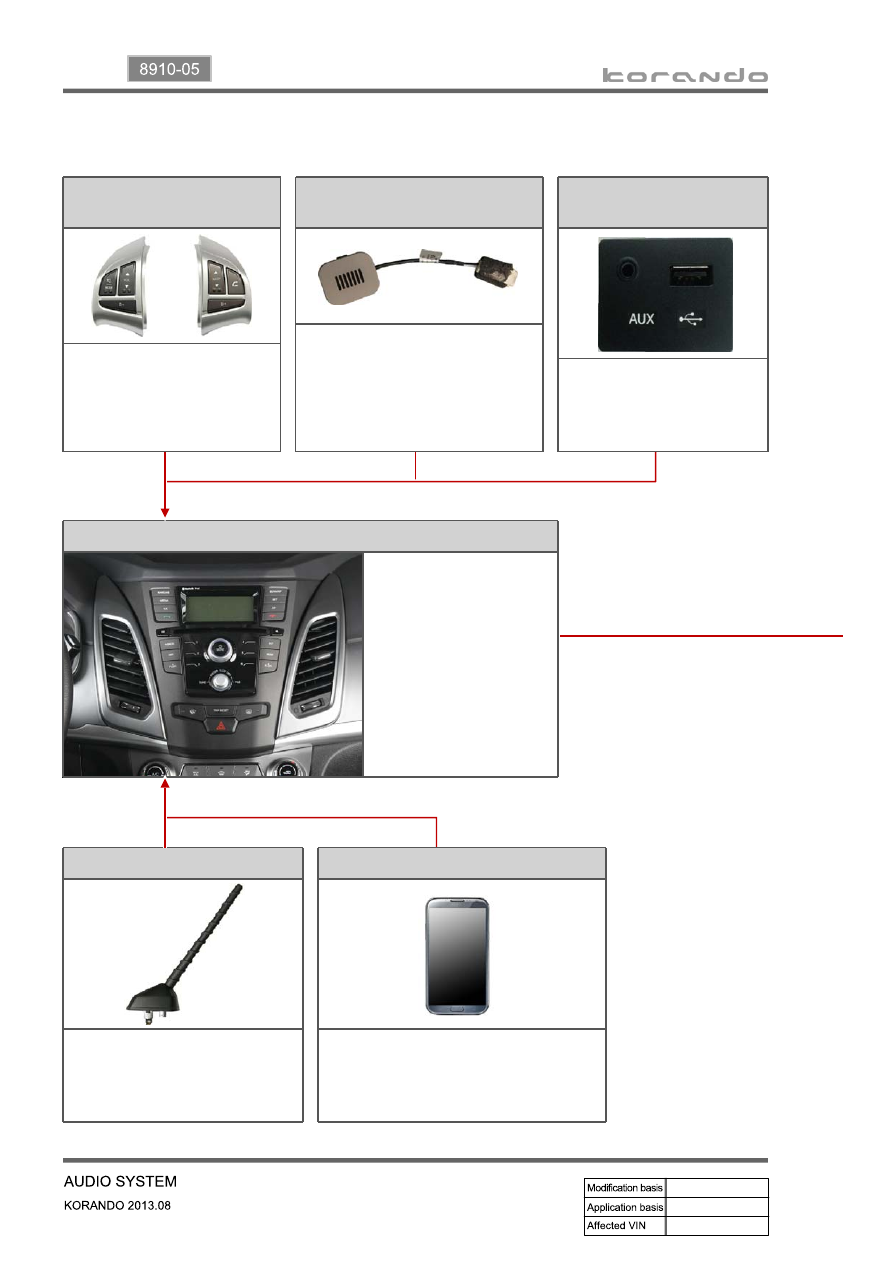

Audio head unit

The audio system plays a
various types of music
such as radio, MP3, CD,
USB and iPod. It has a
built-in high output
amplifier, allowing to
provide the high-quality
sound.

Micro pole antenna

Micro pole radio antenna is fitted
to ensure the high sensitivity.

Bluetooth (hands-free)

Once the pairing is complete, after
searching for the Bluetooth phone, you
can use a various functions and contents
in the phone via Bluetooth.

Audio remote control switch

Outputs the signal when
power, mode, volume
up/down, handsfree, seek
up/down, mute switch is
operated.

USB/AUX jack assembly

Sends USB signal, AUX
(stereo) and iPod output
signals.

11-13

8910-05

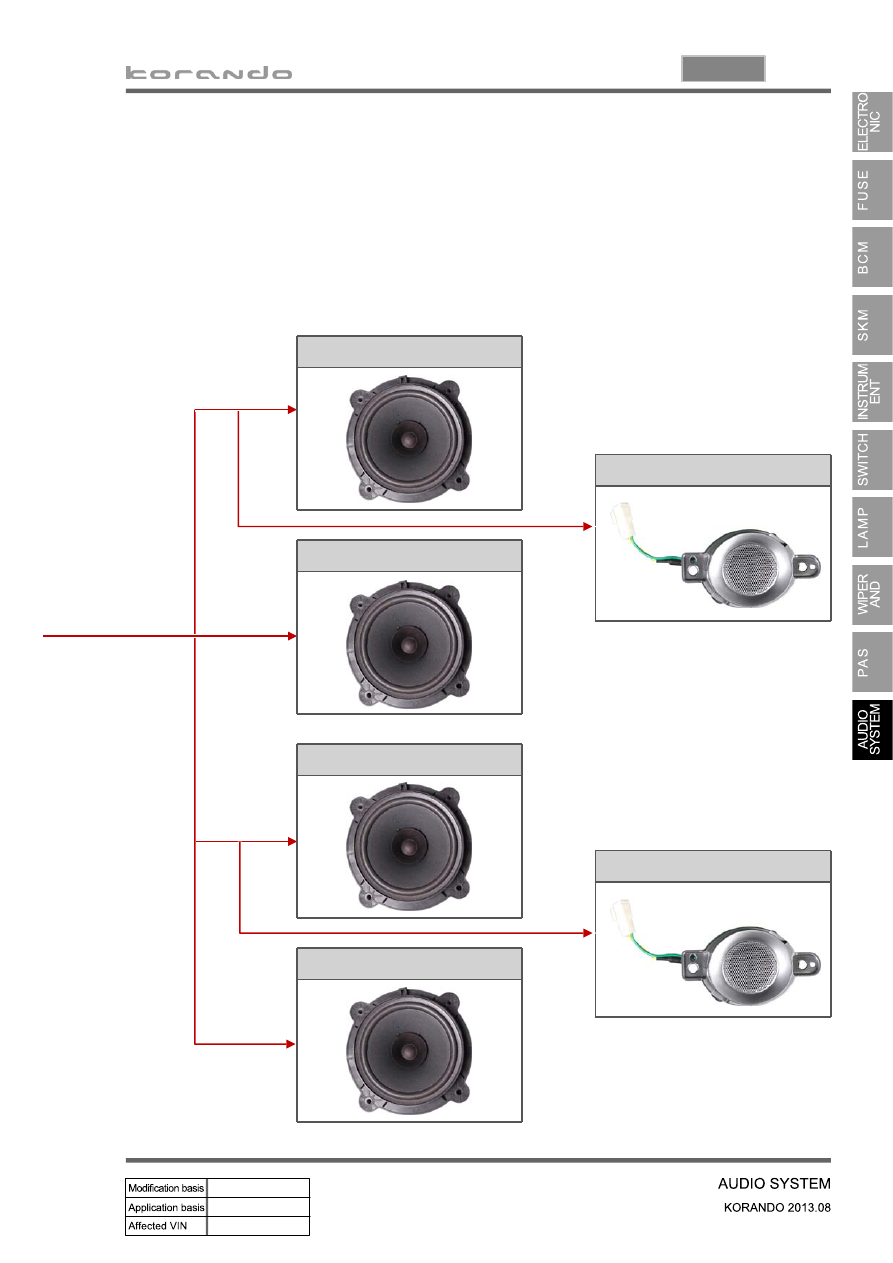

Door speaker FL

Door speaker RL

Door speaker FR

Door speaker RR

Tweeter speaker FL

Tweeter speaker FR

11-14

1) Audio Head Unit

4. SWITCH OPERATION AND FUNCTION

No.

Name

Description

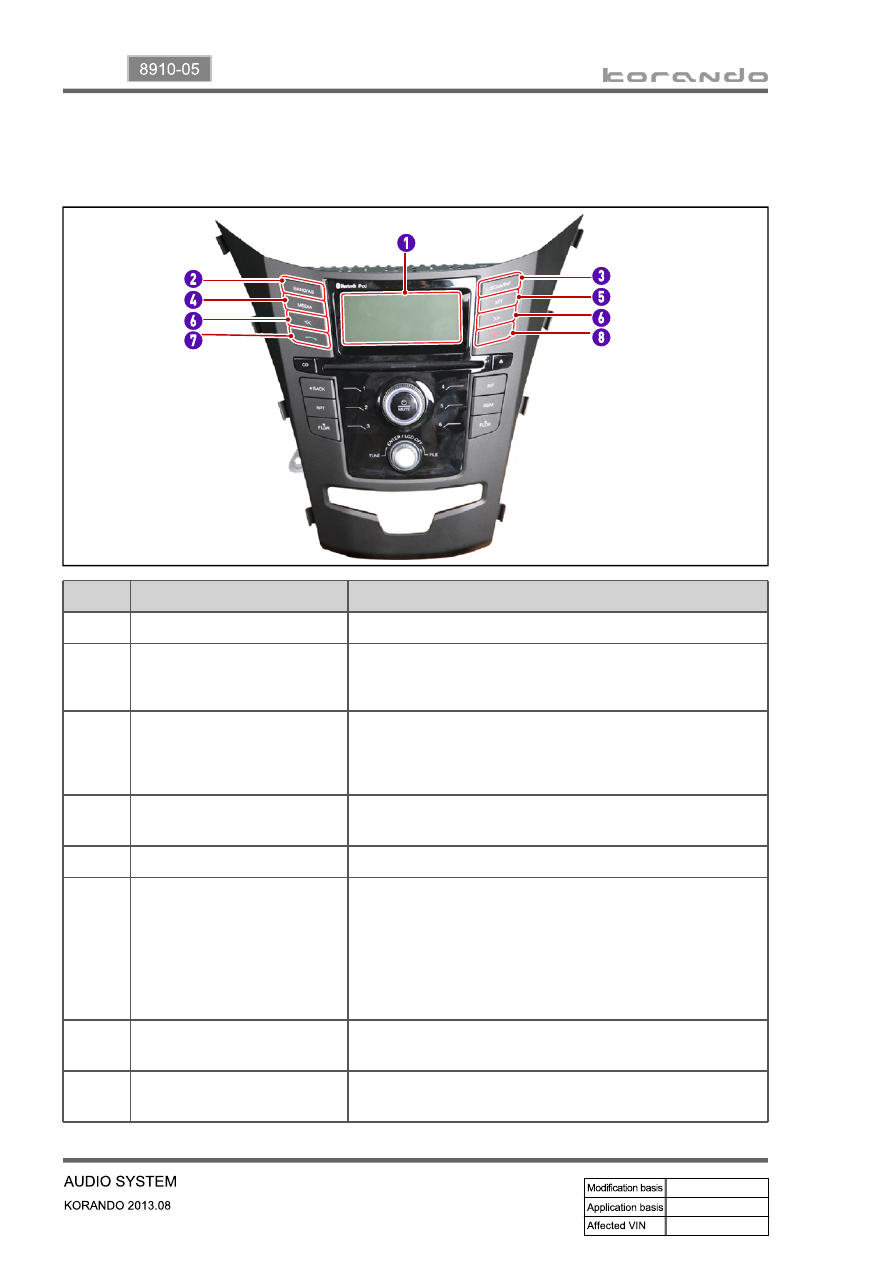

1

Display window

Displays operation status and various information

2

[BAND/AS] button

Briefly press: Switching between AM and FM radio
Press and hold: Registering and storing station with good
reception automatically

3

[SCAN/INF] button

Briefly press: Scanning receivable stations or displaying
other information of music currently playing
Press and hold: Displaying data table of music currently
playing

4

[MEDIA] button

Playing connected external device such as
USB/iPod/Bluetooth/AUX

5

[SET] button

Enter into setting mode

6

Adjustment button

7

Dial button

Briefly press: Receive a phone call
Press and hold: Connect to Bluetooth phone

8

End button

Briefly press: End a call
Press and hold: Disconnect Bluetooth phone

Radio mode

Briefly press: Search broadcasting frequency

Press and hold: Search receivable frequency

MP3/CD/USB/iPod mode

Briefly press: Move to previous/next song

Press and hold: Fast forwarding/rewarding

-

-

11-15

8910-05

No.

Name

Description

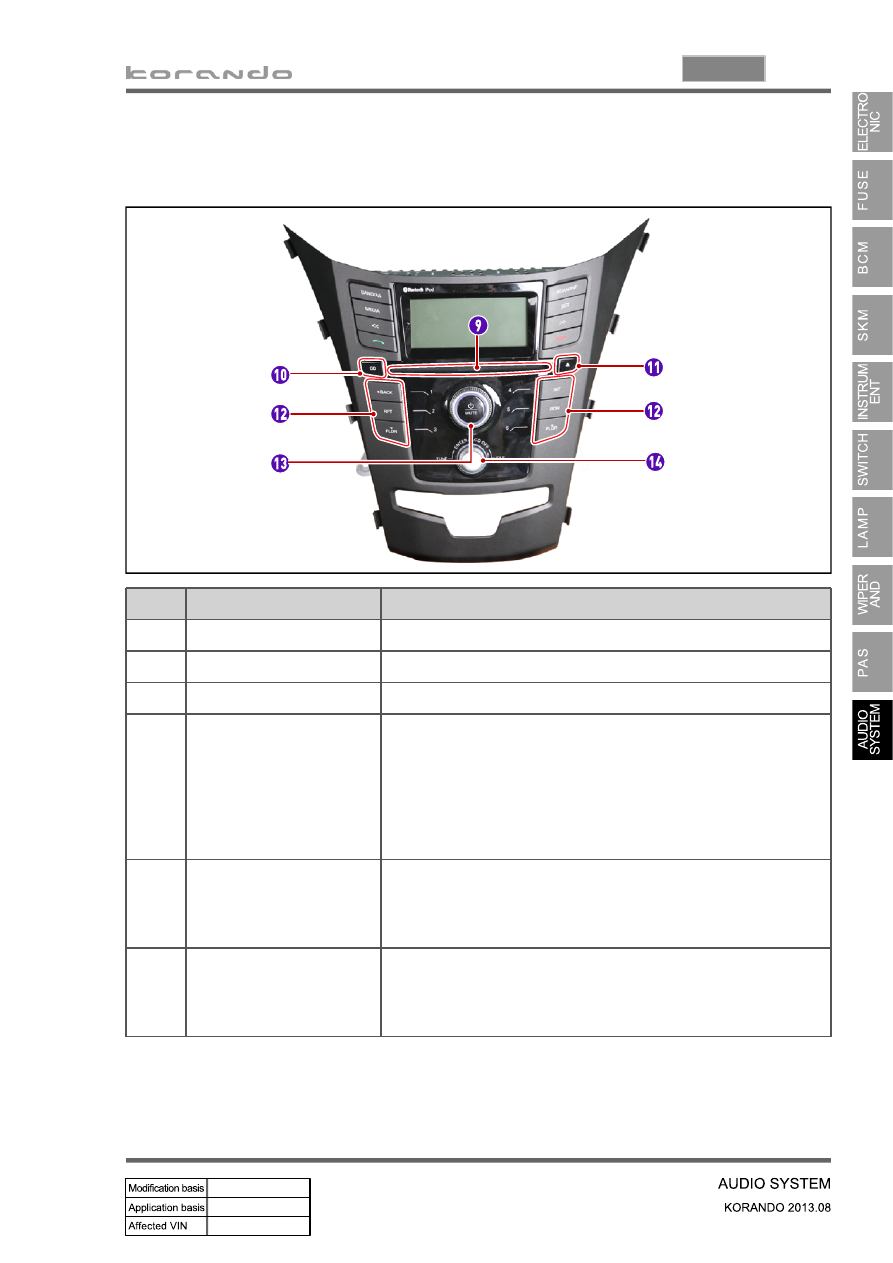

9

Disc slot

Insert or eject a disc to play

10

CD button

Select CD/MP3 disc play function

11

Disc eject button

Eject a disc

12

Station memory button
[1~6]

13

Power/mute button with
volume dial

Briefly press: Switch the system on, activate/deactivate mute
Pause ON/OFF
Press and hold: Switch the system off
Turn dial: adjust volume

14

[ENTER] button,
[TUNE]/[FILE] dial

Turn dial: change frequency, song or menu
Press dial: Change or select item or setting value
Press and hold dial: Turn off display window backlight (comes on
if any of buttons is pressed)

Radio mode

Briefly press: Select a stored station directly

Press and hold: Store the listening broadcasting frequency

MP3/CD mode
Press [3FLDR▼] / [6FLDR▲] button to move other folder

-

-
