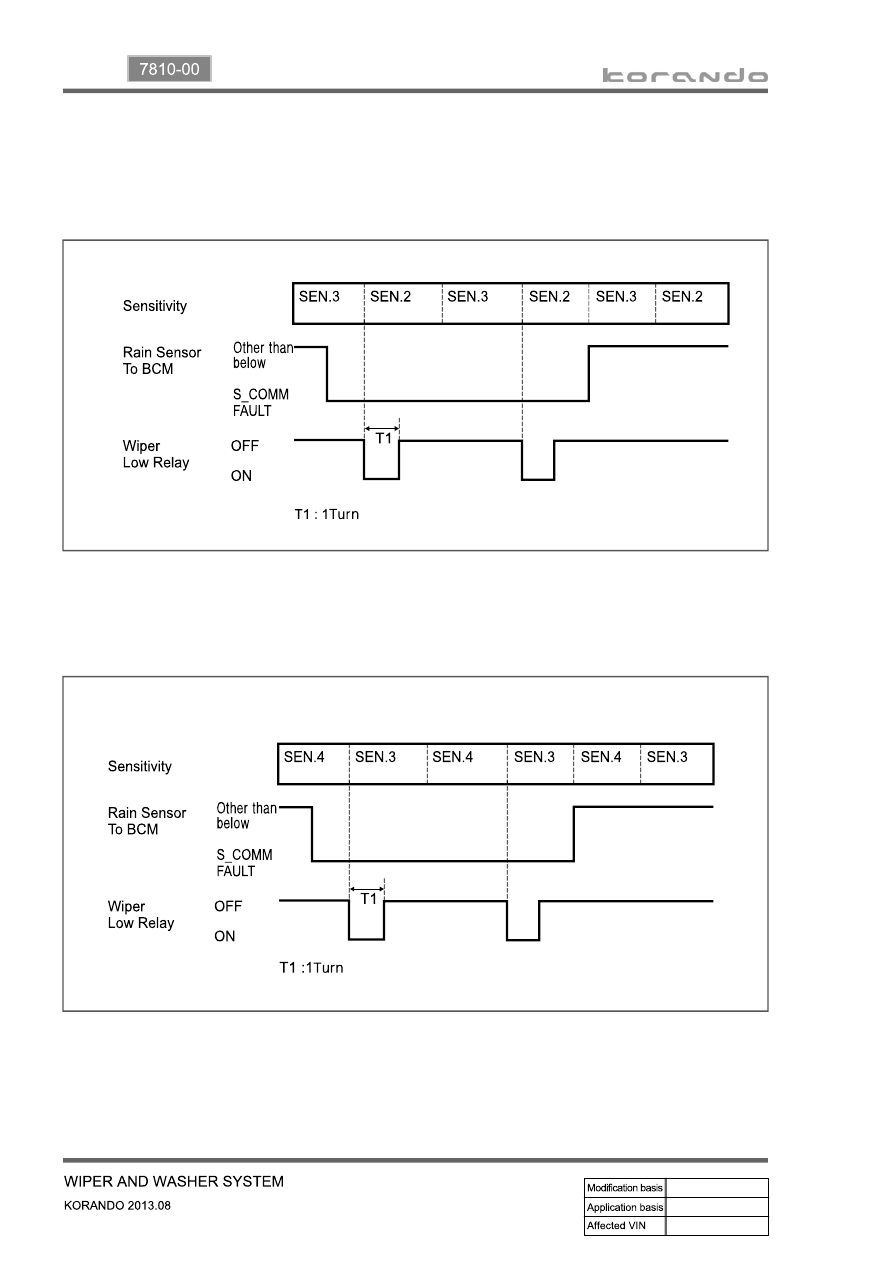

When the wiper speed control switch is turned to step 3 from step 4 the wiper motor cycles one time

at low speed, provided that the BCM receives a communication error signal from the rain sensor unit

with IGN ON and the INT/AUTO switch ON.

2.

When the wiper speed control switch is turned to step 2 from step 3 the wiper motor cycles one

time at low speed, provided that the BCM receives a faulty sensor signal from the rain sensor unit

with IGN ON and the INT/AUTO switch ON.

1.

(6) For faulty rain sensor

08-25

7810-00

For the vehicles without rain sensor, the BCM operates the wiper as follows:

When turning the ignition switch to ON from OFF position with the intermittent wiper switch in "ON"

position, the wipers do not operate.

When turning the wiper switch to ON from OFF position after turning the ignition switch to ON position,

the wipers operate one cycle.

The wiper's operation cycle depends on the vehicle speed (CAN communication with instrument

cluster) and wiping speed the side fascia panel.
- Wiping cycle: 3 ± 0.5 sec. (FAST) to 19 ± 2 sec. (SLOW)

1.

2.

3.

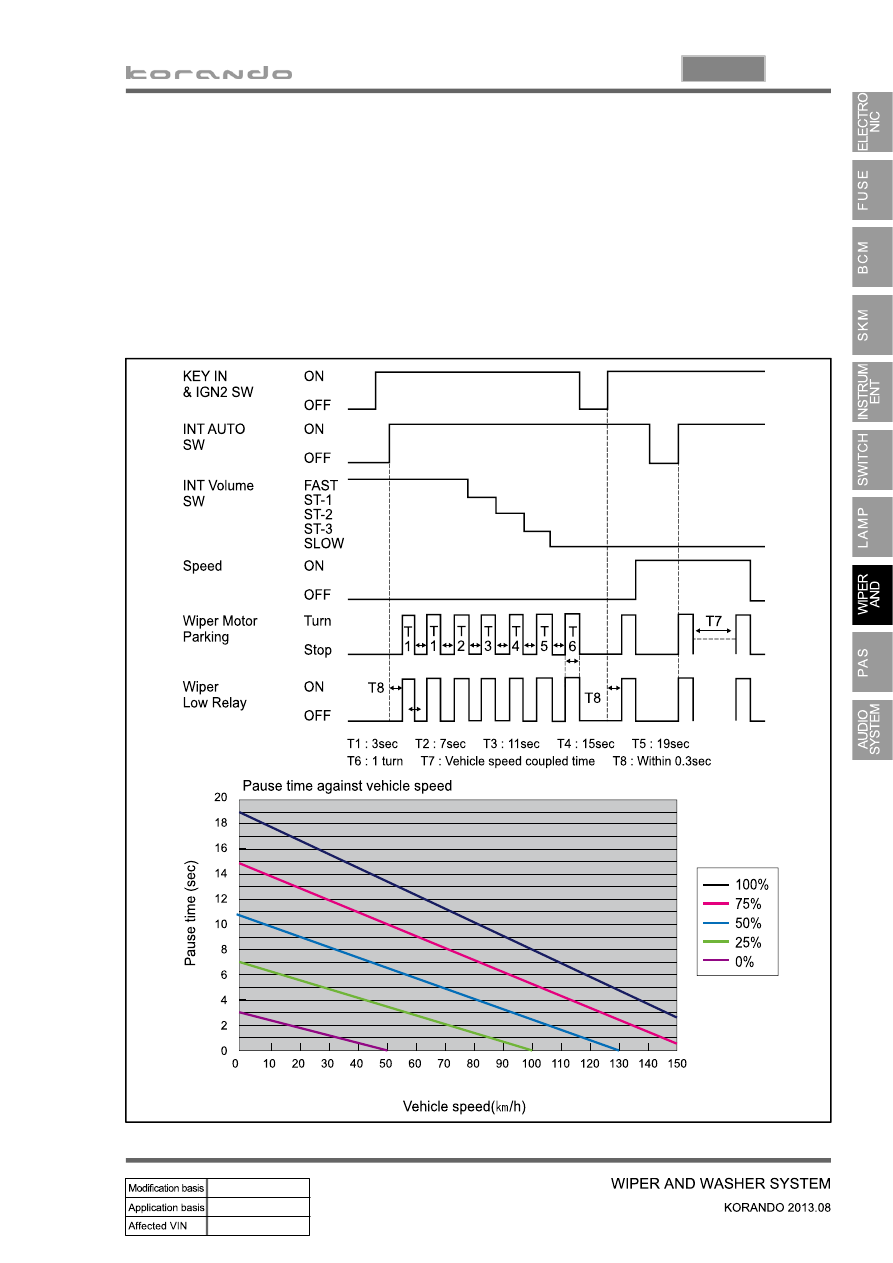

(7) Speed sensitive intermittent wiper

08-26

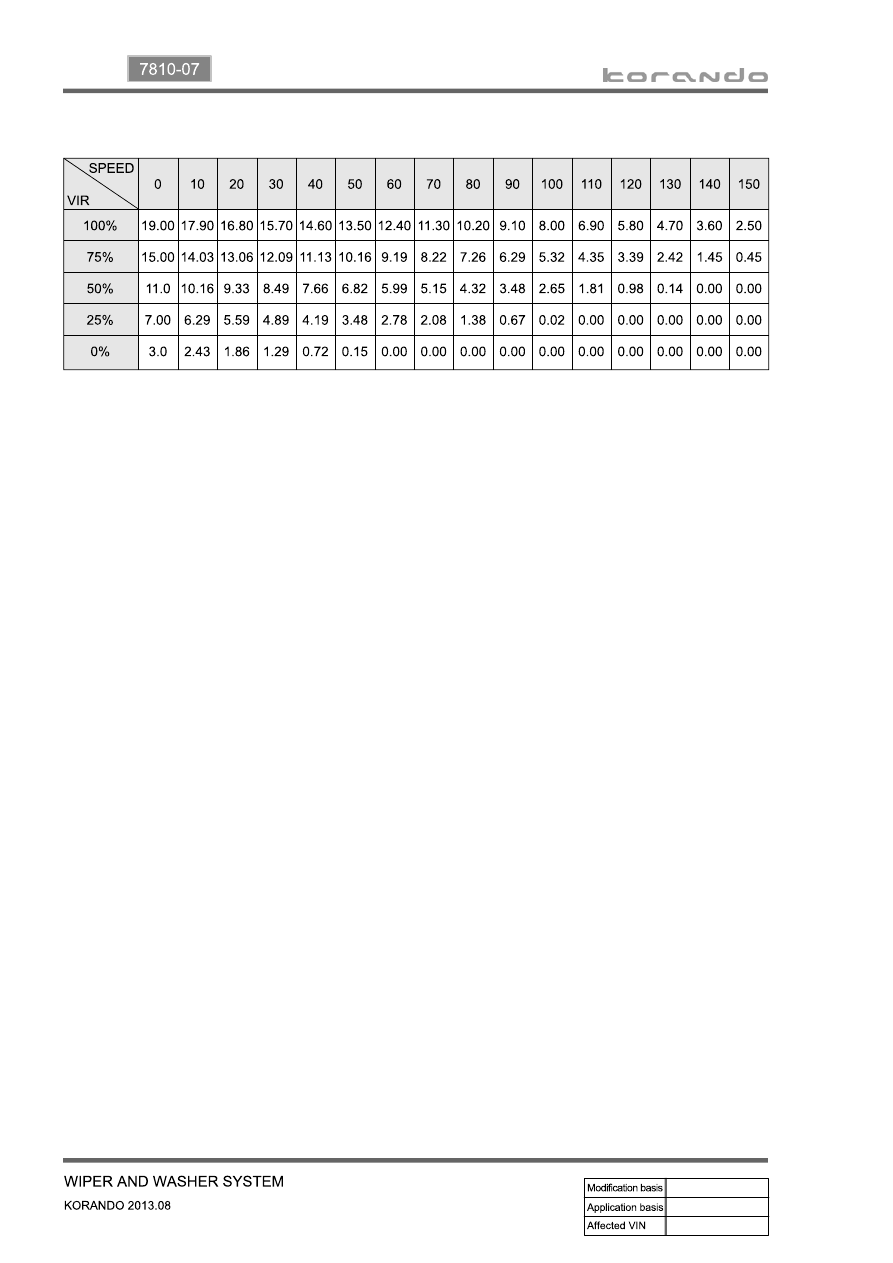

Speed sensitive intermittent wiper interval

▶

09-3

8790-00

1. SPECIFICATION

Pin No.

Specification

Pin No.

Specification

Rated voltage

DC 12.0 V

Insulating resistance No heat & fire due to current

leak

Operating voltage

DC 9.0 V ~ 16.0 V

Max. permissible

current

Unit: 100 mA or less

Operating

temperature

-30℃ ~ +80℃

Sensor: 20 mA or less

Storage temperature

-40℃ ~ +85℃

Weight

Unit: 75.7 g±5 g

Maximum humidity

95%

Sensor: 38.7 g±5 g

2. CAUTIONS

Sensor Cannot Detect

▶

When the sensor is frozen (operate normally when it's thawed)

When the sensor is covered with foreign materials such as snow or condensation

(if the foreign materials are removed, the sensor operates normally.)

-

-

Not defective but improperly working

▶

When the sensing portion is frozen (operates normally after thawed)

When reversing on rough roads, gravel roads, hills, or grass.

When receiving other ultrasonic signals (metal sounds or air braking noises from heavy

commercial vehicles).

When there is heavy rainfall or water drops.

When the sensor is covered with snow.

-

-

-

-

-

Certain obstacles that sensors cannot detect

▶

Thin and narrow objects, such as wires, ropes, or chains

Cotton, sponge, clothes, snow that absorb ultrasonic waves.

-

-

Weak Sensing Scopes

▶

When the ambient temperature is too high or too low.

When a 1 m or less long small object with a diagmeter of 100 mm or less is detected.

-

-
