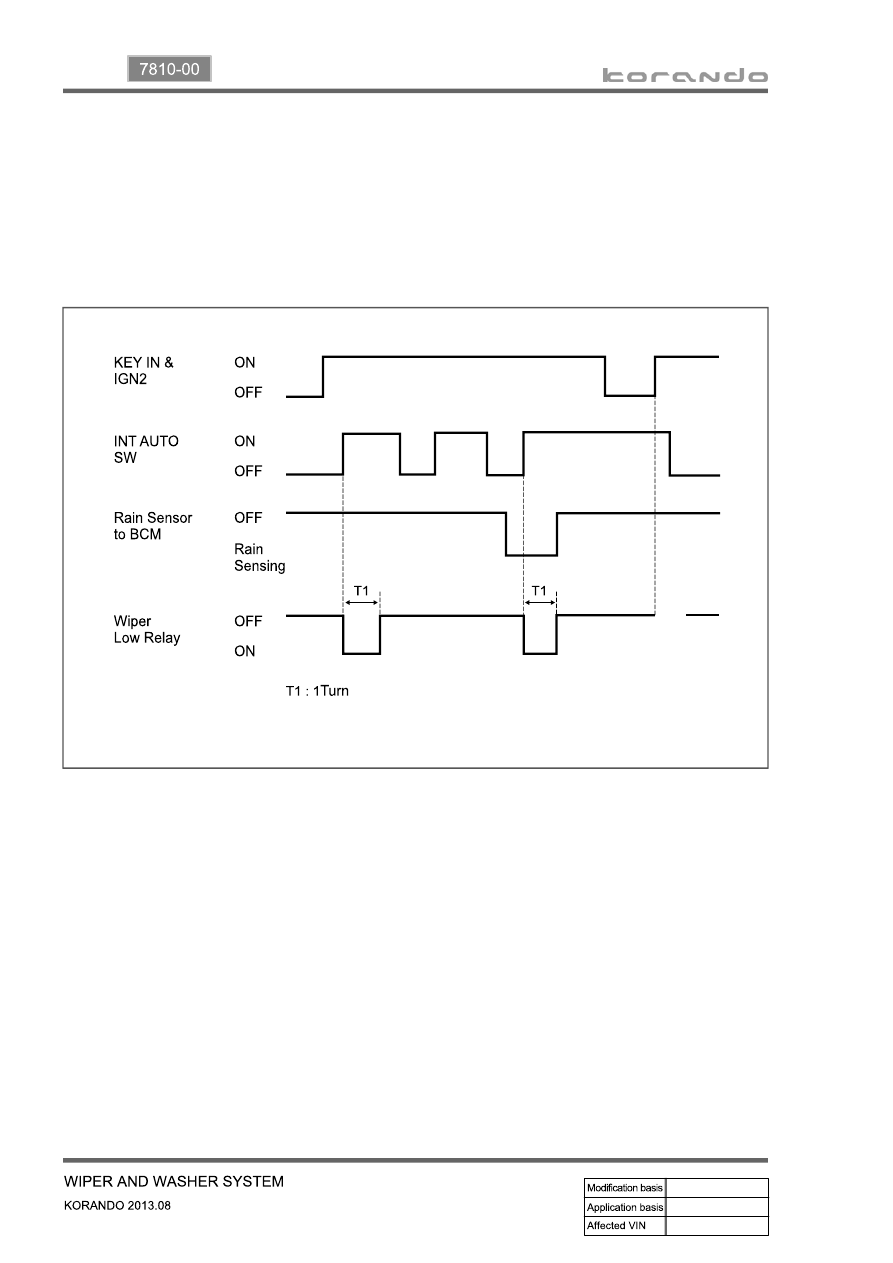

If the intermittent/automatic wiper switch is in "ON" position, the wiper motor does not operate even

when turning the ignition switch to ON from OFF position.

When the INT/AUTO wiper switch is turned on from off with the ignition switch ON, the wiper is

operated at low speed for the 1st cycle regardless of the rain sensor signals. After that, if the

INT/AUTO wiper switch is turned on from off, the wiper cycles one time at low speed only when the

rain sensor detects the presence of rain.

1.

2.

(2) Power-up reminder wiper

08-21

7810-00

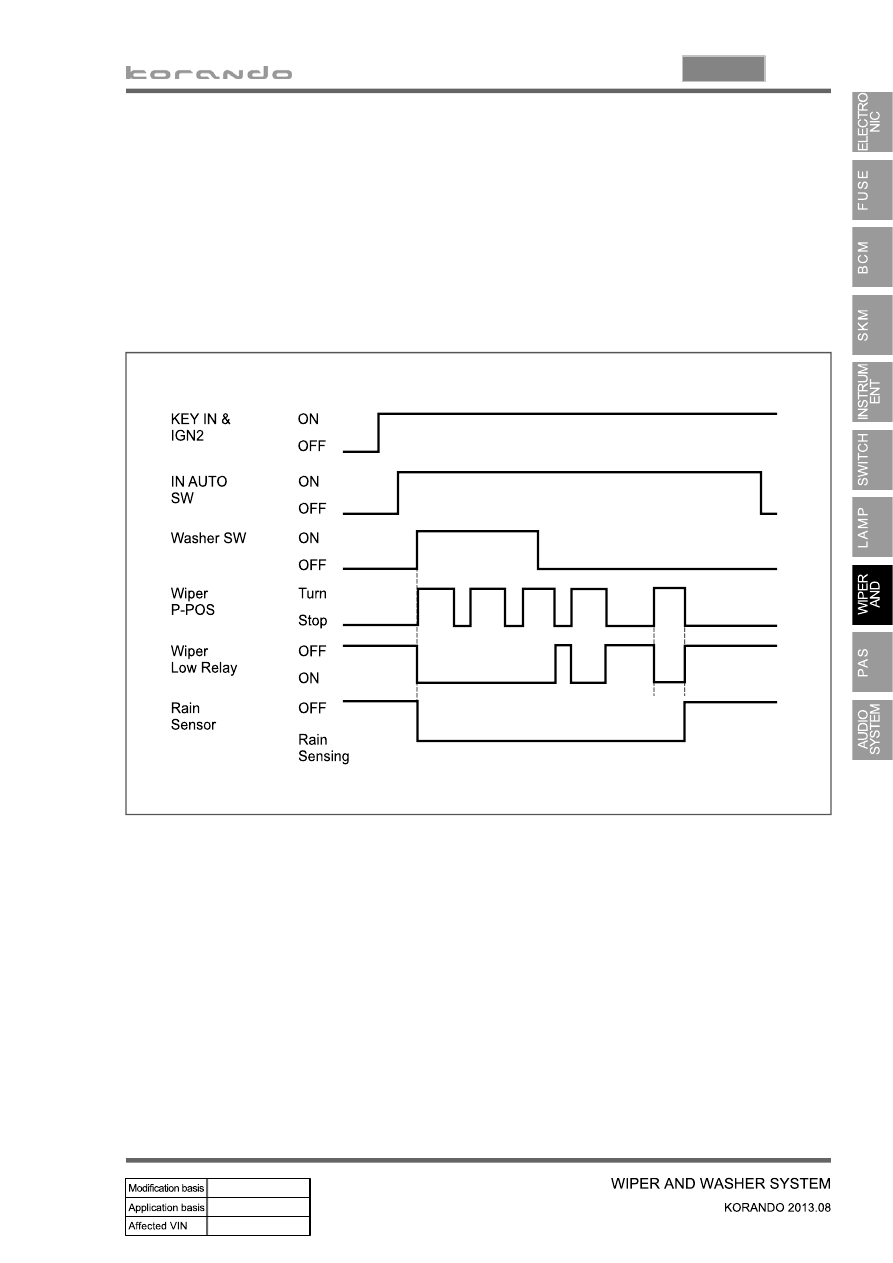

When the washer switch signal is received during intermittent operation coupled with rain sensor

with IGN ON and intermittent/automatic

washer switch operation, the wipers operate in washer coupled mode regardless of the

communication with the rain sensor. However, if the washer switch

signal is received the washer relay is activated and wiper relay remains activated,

when the data coupled with rain sensor indicates continuous wiper operation.

Even though the wiping system is in washer coupled wiper mode, the operating data are sent to

rain sensor.

1.

2.

(3) Washer coupled wiper operation during rain sensor coupled operation

08-22

When the wiping speed control switch is turned to "FAST" with IGN2 ON, intermittent/automatic wiper

switch in "ON" position and wiper motor stop (parking position), the wiper motor operates one cycle at

low speed.

(only when the rain sensor detects raindrops)

If the wiping speed control switch is changed more than 2 stages within 2 seconds, the wiper motor

operates only one cycle.

1.

*

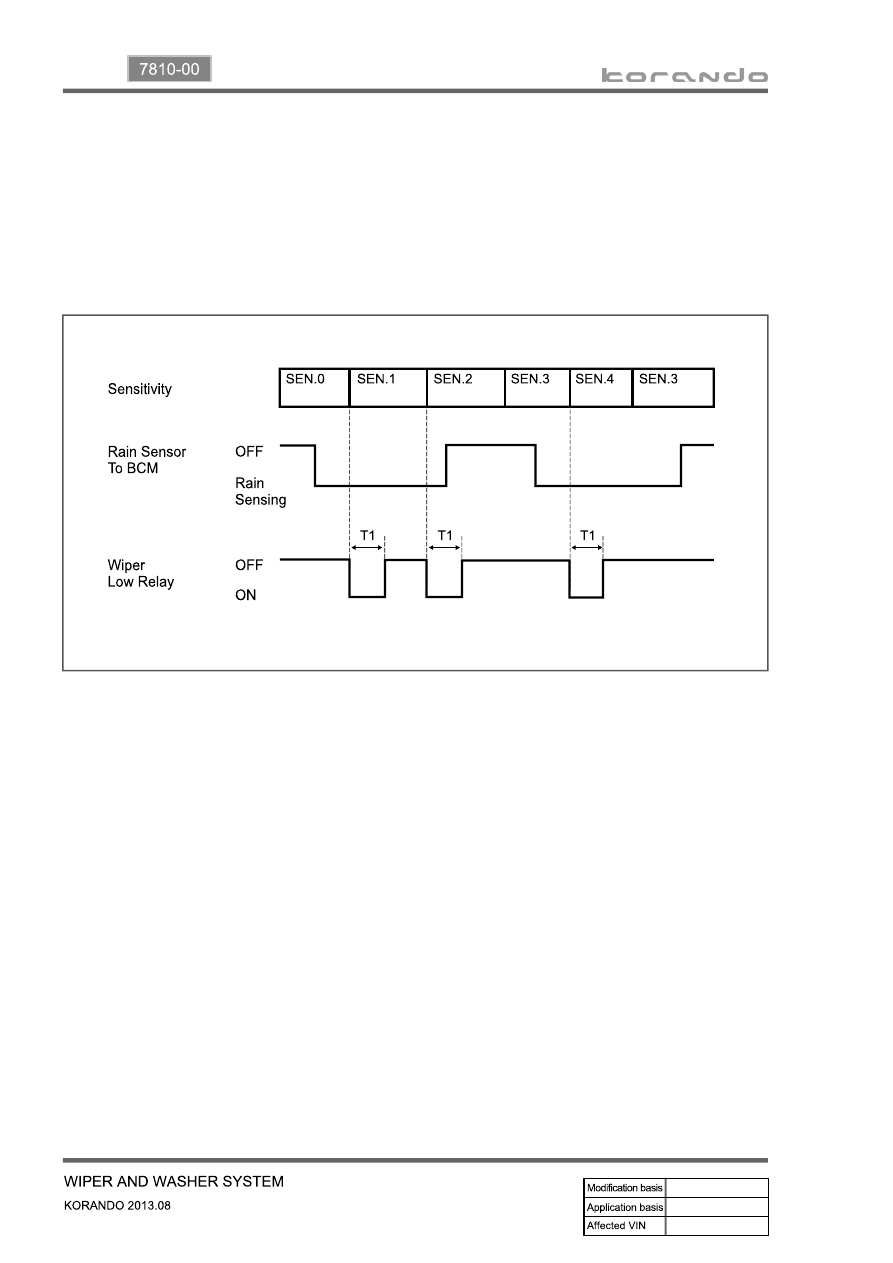

(4) Sensitivity control (instant wiping)

08-23

7810-00

When the parking terminal is shorted to power with IGN2 ON and intermittent wiper switch in "ON"

position, the wiper system sends the signal for current wiping status for 2 seconds. After that, it

sends the current signal for parking status continuously.

* The wiper motor is operated only when there is a request from the rain sensor.

2.

The wiper system sends continuously the signal for current status when the wiper parking terminal

is shorted to ground with IGN2 ON and intermittent wiper switch in "ON" position.

* The wiper motor is operated only when there is a request from the rain sensor.

1.

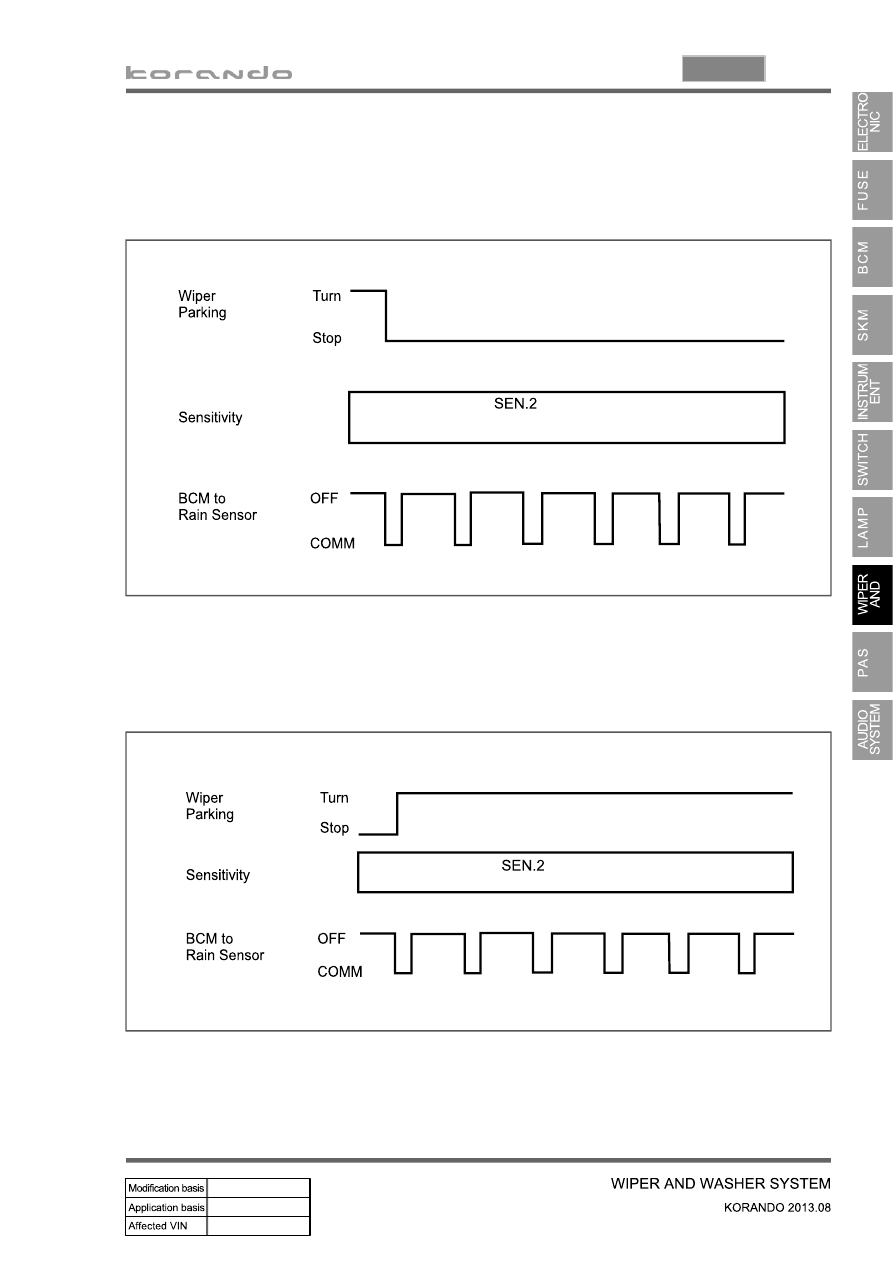

(5) For abnormal wiper parking signal
