Rear wiper switch

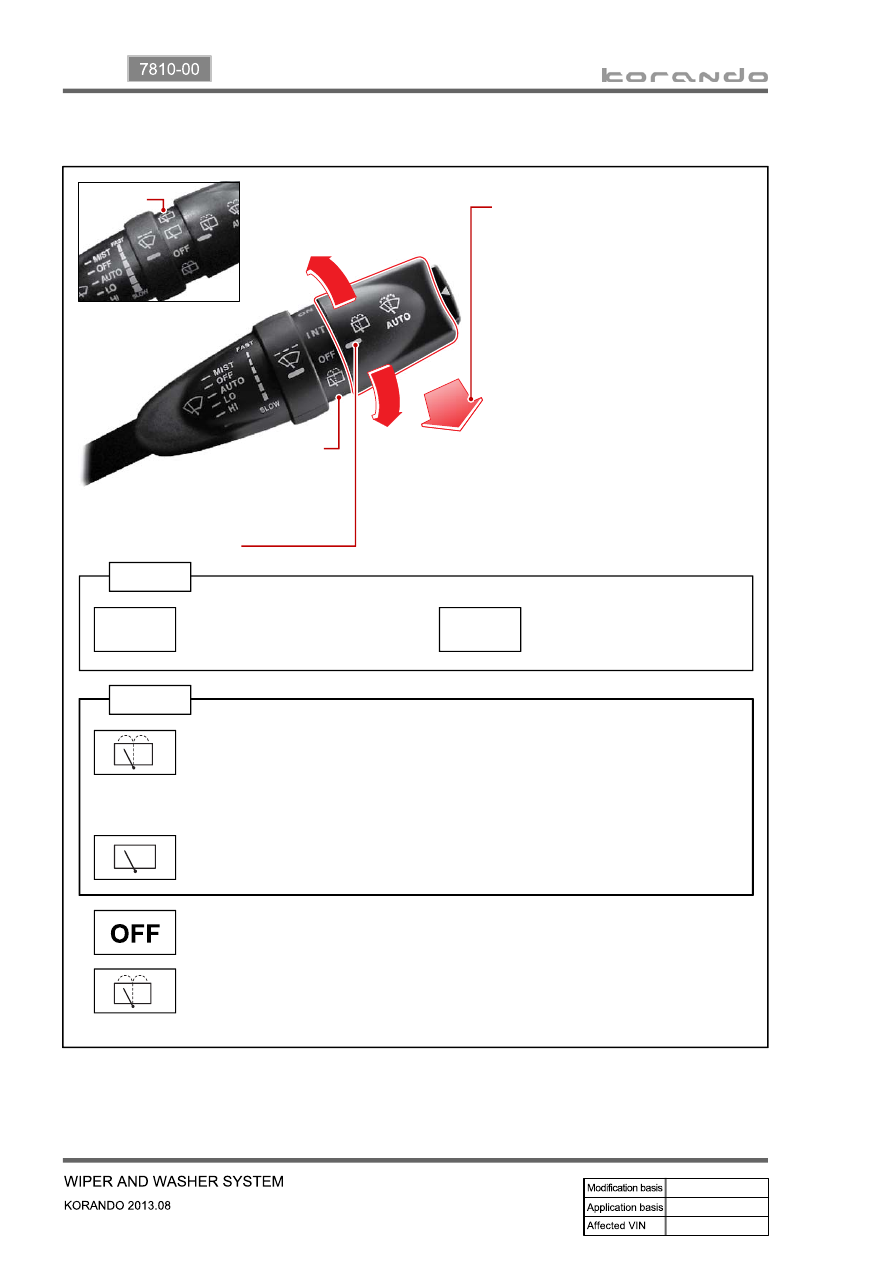

3) Rear Wiper Control Function

Type B

Type A

Windshield Washer Operation
In the “OFF” position, pull the

lever toward you to spray washer

fluid on the windshield and to

operate the wipers 1~3 cycles.

Pull the lever briefly (for less than 0.6

seconds): One wiping cycle with

washer spray

Pull and hold the lever for more than

0.6 seconds: Three wiping cycles

with washer spray

The spray and wiper operation will

continue until you release the lever.

TYPE B

When the switch is fully turned, washer fluid will be sprayed onto the rear window

glass and the wiper will also operate. When the switch is released, it will return to
the “OFF” position and turn off the wiper and washer.

Rear wiper is not in operation.

TYPE A

INT

Rear wiper operation

(Intermittent)

ON

Rear wiper operation

(Normal Speed)

Rear wiper operation

When the switch is fully turned, washer fluid will be sprayed onto the rear window

glass and the wiper will also operate. When the switch is released, it will return to

the Rear Wiper Operation mode and only the wiper will keep operating.

08-17

7810-00

4) Rear Washer Control Function

The rear washer motor is operated only when the rear washer switch is activated with the ignition

key ON.

If the front washer or automatic washer switch signal is received during the rear washer switch

operation, the washer motor stops and the front washer or automatic washer motor begins to

operate.

1.

2.

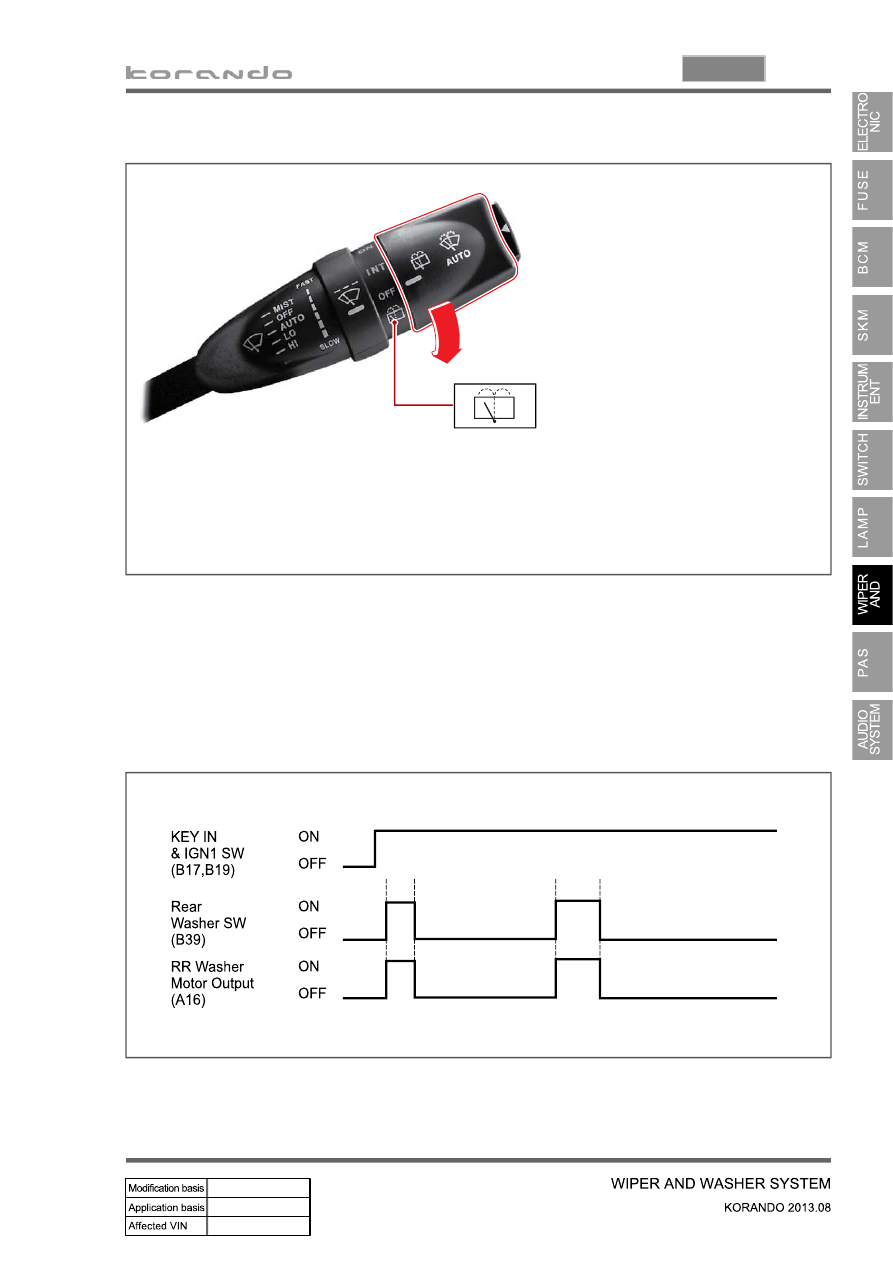

Rear washer motor control

▶

When the switch is fully turned, washer fluid will be

sprayed onto the rear window glass and the wiper

will also operate. When the switch is released, it will
return to the “OFF” position and turn off the

wiper and washer.

08-18

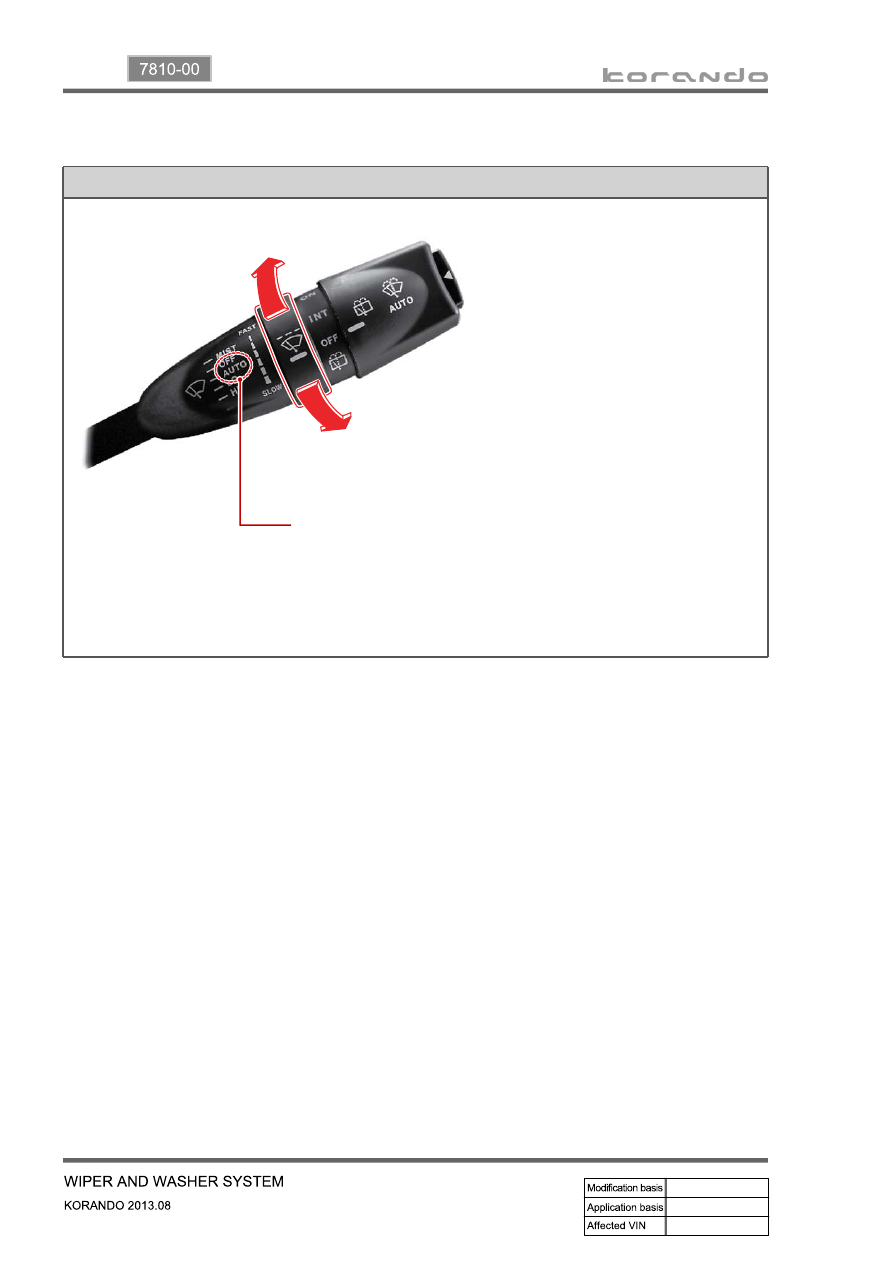

AUTO operation and sensitivity control

5) Rain Sensor Coupled Wiper Control Function

AUTO: Wiper operates automatically by rain sensor

FAST <----> Auto delay/auto speed control

A position that can control sensitivity against rains on the

windshield and transmits wiping demand signal accordingly.

08-19

7810-00

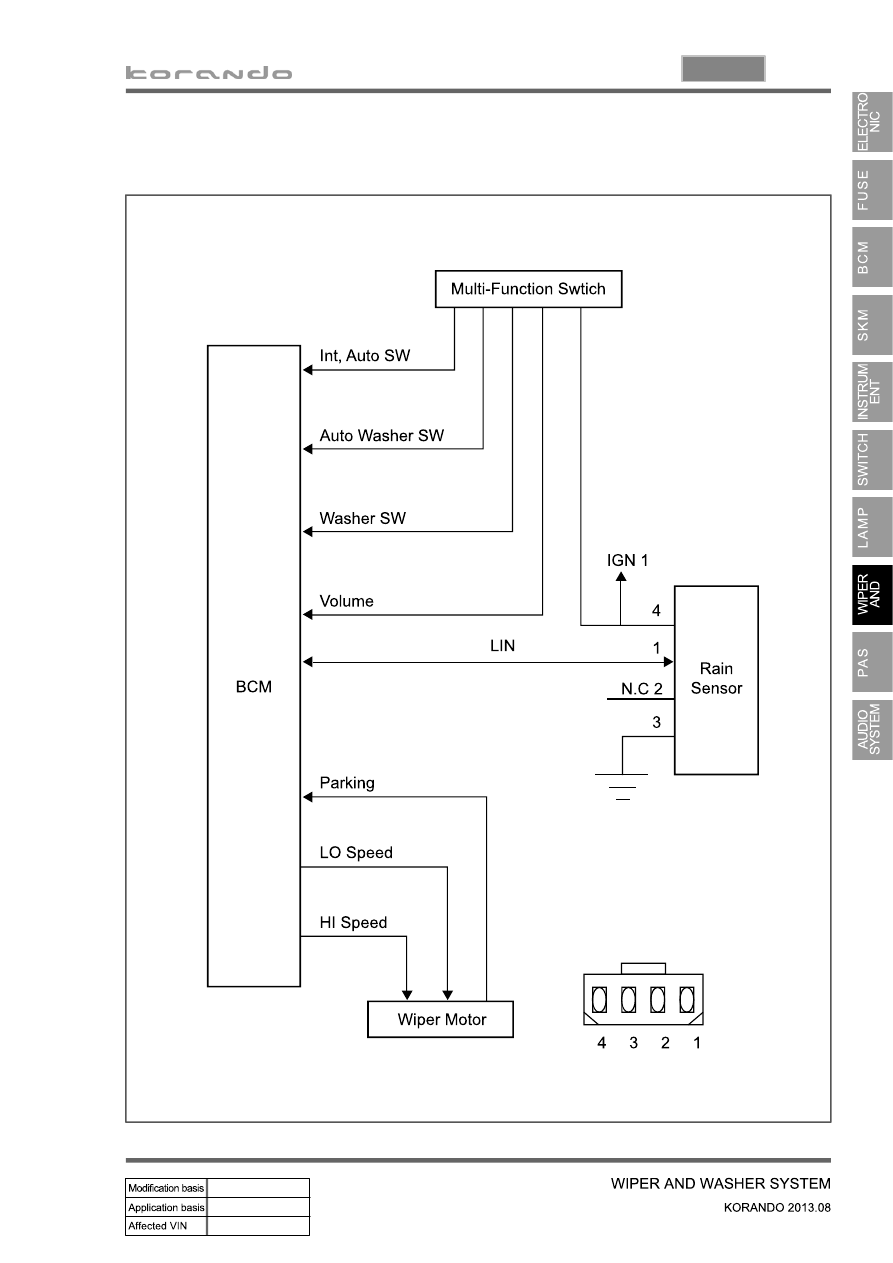

System layout

▶

(1) Rain sensor coupled wiper operation (LIN)
