08-12

(2) Wiper LO/HI control

The wiper LOW relay is turned on when the multifunction wiper switch is at the LO position. The wiper

HIGH relay is turned on when the wiper switch is at the HI position. When the wiper switch is at the HI

position, both the LOW relay (constant operation) and HIGH relay are operated.

The wiper motor returns to parking position and stops, even when turning off the ignition switch during

wiper operation.

The wiper relay should stay ON in low/high wiper operation mode even if the parking signal for the

wiper motor is not received. In INT/AUTO wiper operation mode, the wiper relay should be turned

OFF after 5 seconds if there is no parking signal for the wiper for 3 seconds and informs the driver of

parking position signal abnormality.

While the wiper operates at low/high speed, the front/rear washer switch can be operated but the auto

washer switch cannot.

The wiper motor returns to parking position and stops when turning off the ignition switch during wiper

operation in high mode.

1.

2.

3.

4.

5.

08-13

7810-00

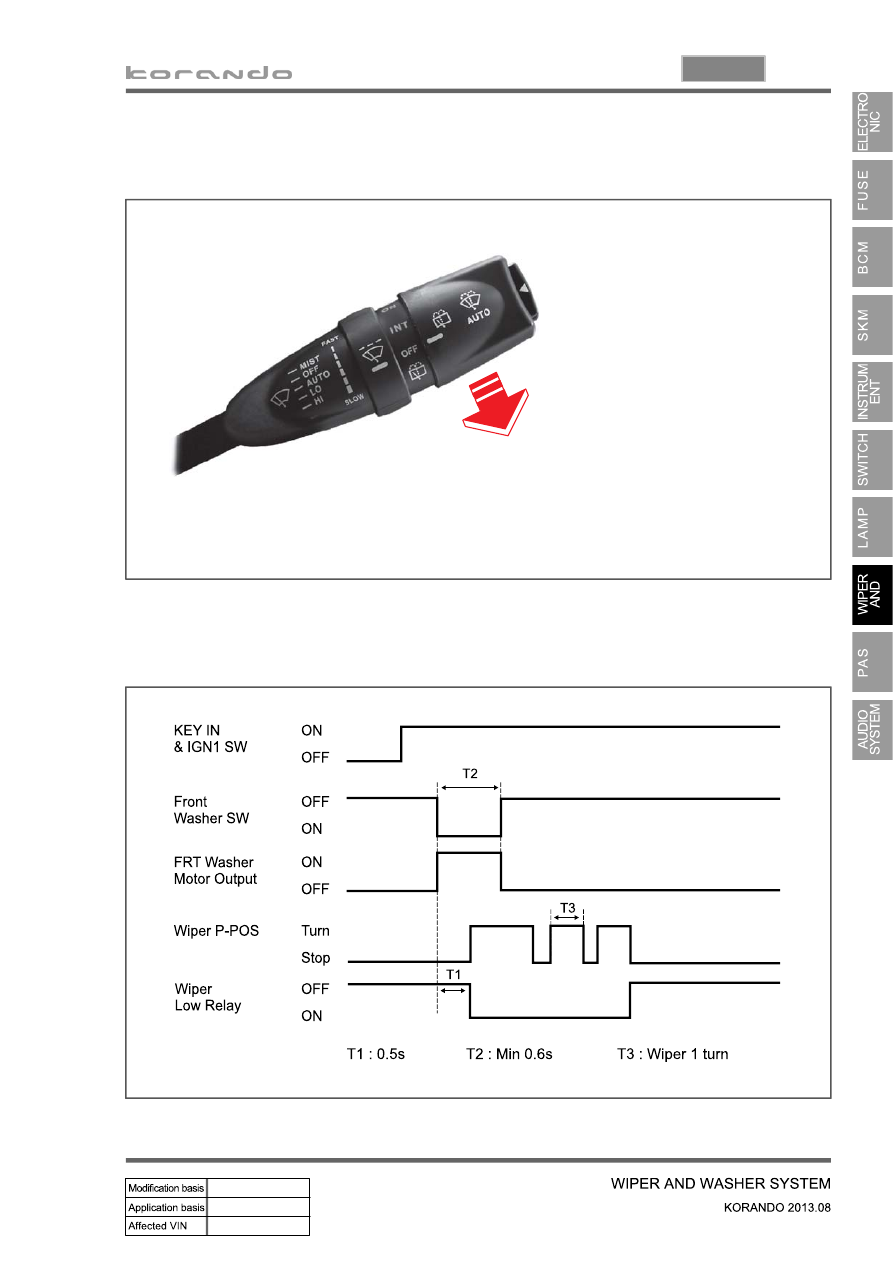

When holding the front washer switch at ON position for more than 0.6 seconds with IGN ON, the

wiper relay is activated 0.5 seconds after. The wiper stops after three more wipes since that the

washer switch is turned to "OFF" position.

1.

2) Windshield Washer Control Function

(1) Windshield washer coupled wiper

Wiper and Washer Coupled Operation

Pull the switch briefly (for less than 0.6 sec.)

: One wiping cycle

Pull and hold the switch for more than 0.6 sec.

: Three wiping cycles with washer fluid spray

　　　　　　　　

08-14

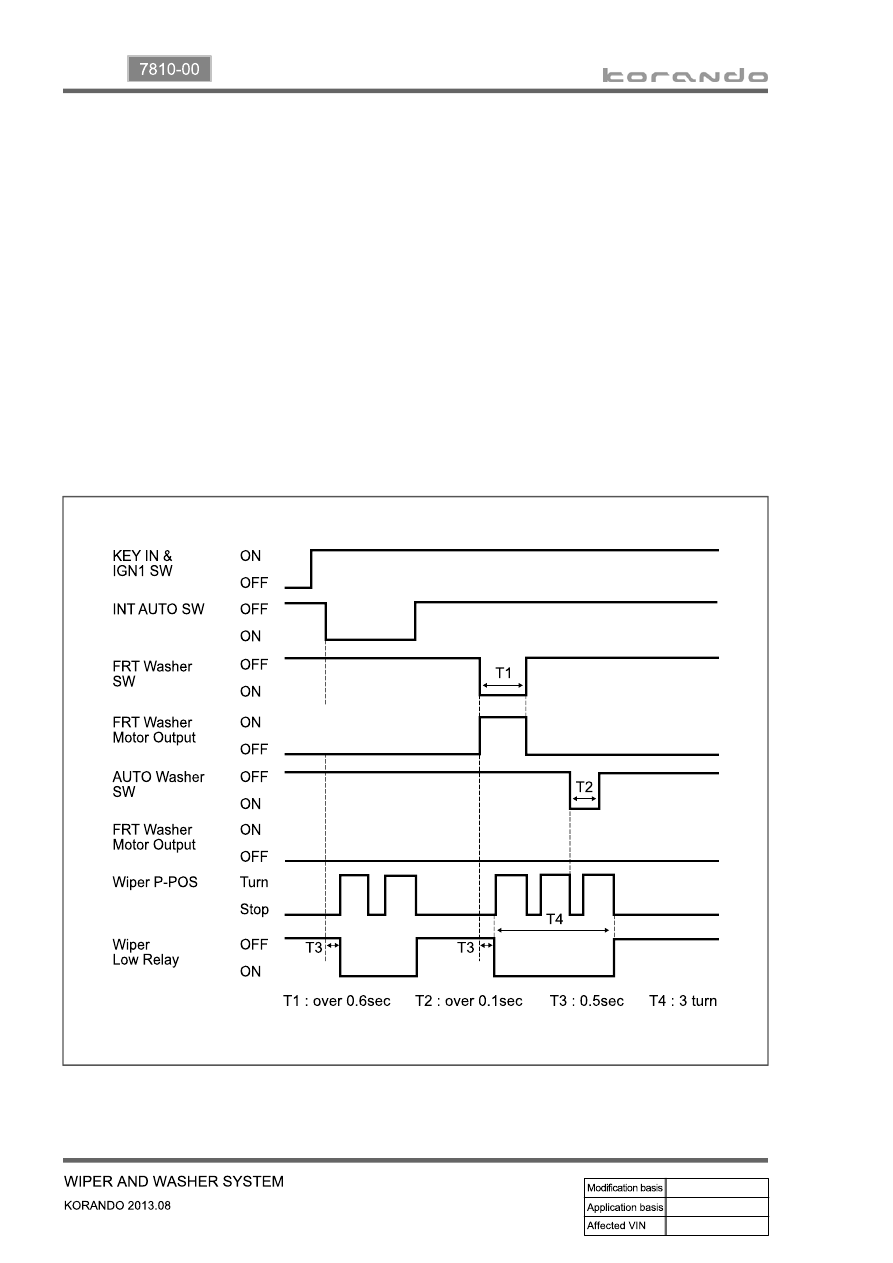

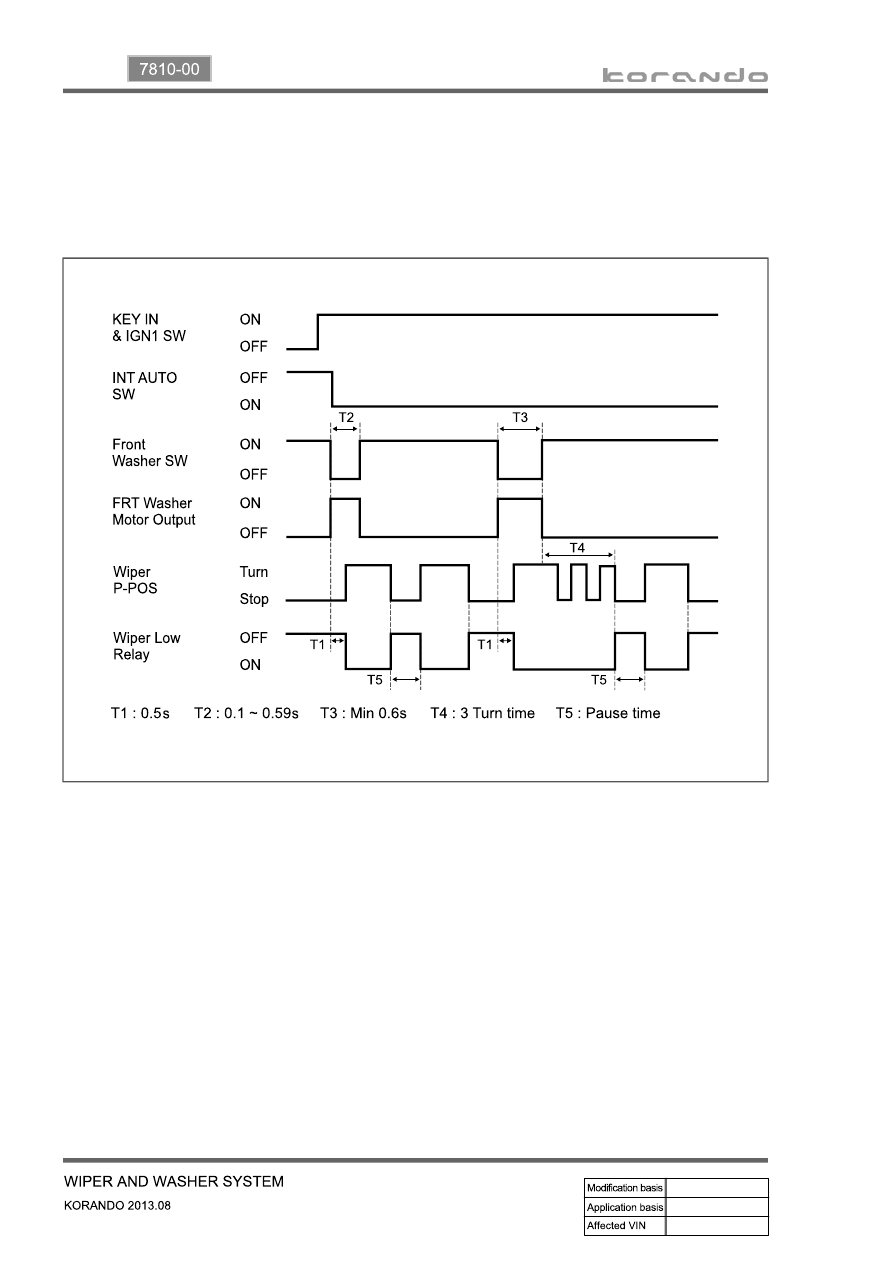

When holding the front washer switch at ON position for 0.1 to 0.59 seconds during the wiper

operation by the intermittent/automatic wiper switch, the wiper will operate only once. When holding

the washer switch for more than 0.6 seconds, the wiper relay is activated 0.5 seconds after. The

wiper stops after three more wipes since that the washer switch is turned to "OFF" position.

2.

08-15

7810-00

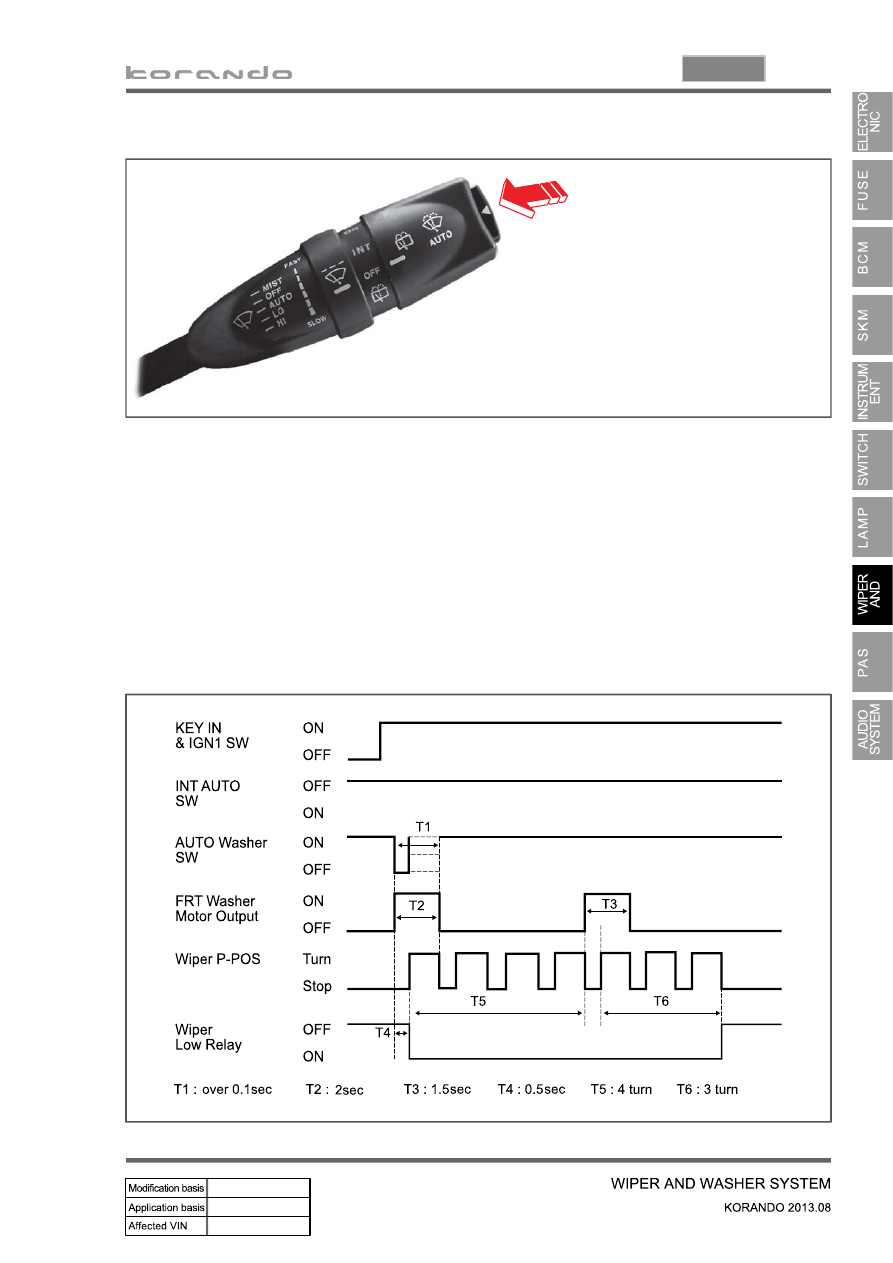

When the AUTO washer switch is operated with IGN ON and the INT/AUTO switch OFF, the

washer motor is operated for 2 sec. and the wiper continues to cycle 4 times. And then the washer

motor is operated for 2 sec. and the wiper continues to cycle 3 times before returning to park

position.

The auto washer switch signal is overridden during speed sensitive intermittent wiper, washer

coupled wiper or auto washer coupled wiper operation.

When turning the wiper switch to AUTO position during the operation of auto washer, the auto

washer stops its operation and the intermittent/automatic wiping mode will be started.

The front and rear washer switch signal are overridden during the operation of auto washer.

The input from the switch during the AUTO washer coupled wiper operation also is ignored.

1.

2.

3.

4.

5.

(2) AUTO washer coupled wiper

Auto washer switch

If pressing the switch when the wiper switch turns

to the "OFF" position, washer fluid is sprayed

once and wiper operates 4 times.

After a while, washer fluid is sprayed once more

and the wiper operates 3 times.
