Shift lever

IP display (SVC only)

When the gear selector lever is shifted into “R", the parking aid system is activated and three

sensors in the rear bumper detect the distance to any obstacle. The PAS detects the returning signals

reflected to the obstacles at regular intervals when the vehicle is parked to indicate the display and alarm

for the distance between the obstacles by phase so as to allow the driver easy parking by securing safe

distance.

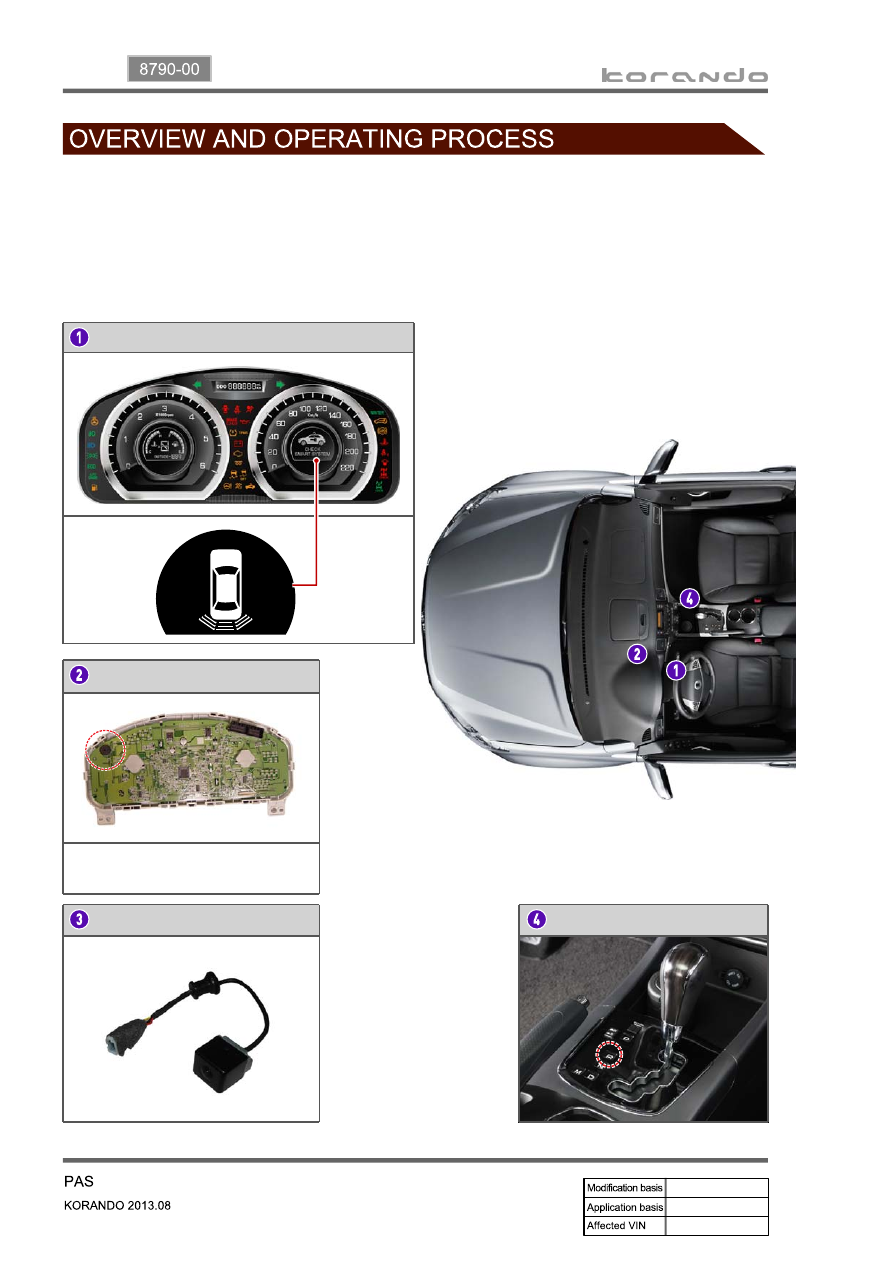

1. OVERVIEW

Buzzer for PAS

Buzzer sounds using instrument
cluster buzzer

Rearview camera

09-5

8790-00

PAS sensor

Parking aid unit

2. CONFIGURATION

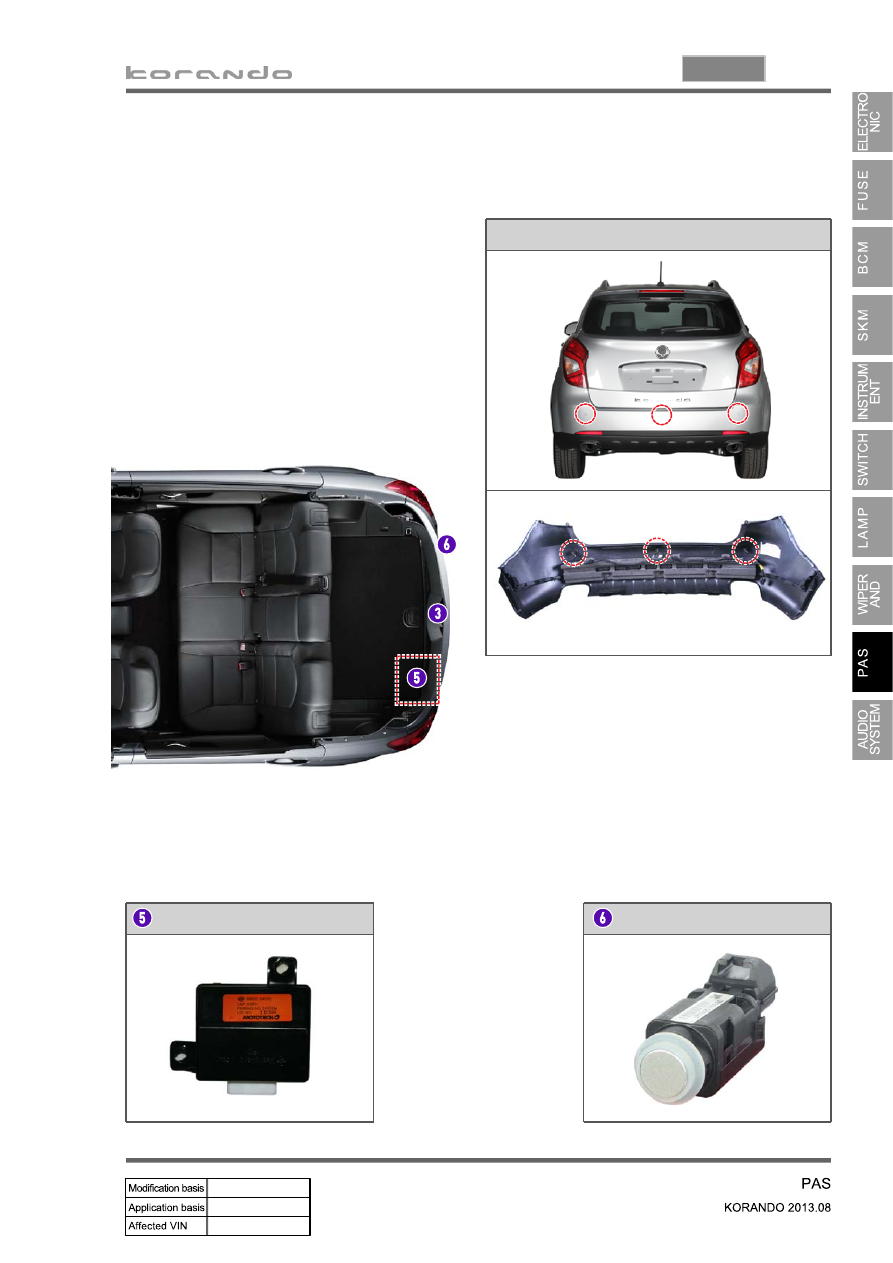

Installation of PAS sensor

09-6

3. OPERATING PROCESS

1) Block Diagram

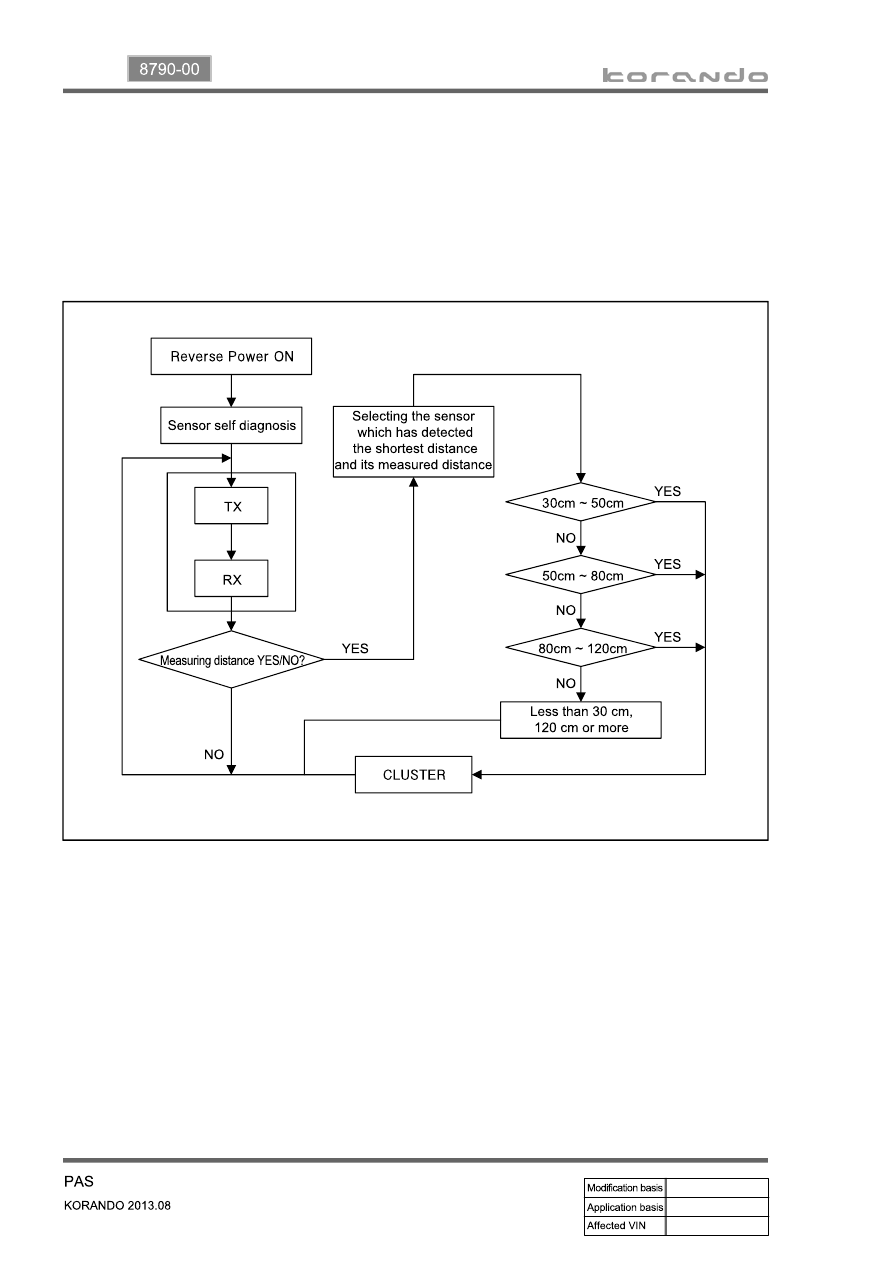

When PAS receives "R" signal, it starts to detect the obstacles behind vehicle after self diagnosis.

If the system detects the obstacle, the buzzer sounds according to the distance. If there is no obstacle, starts

to detect the obstacles after self diagnosis again.

09-7

8790-00

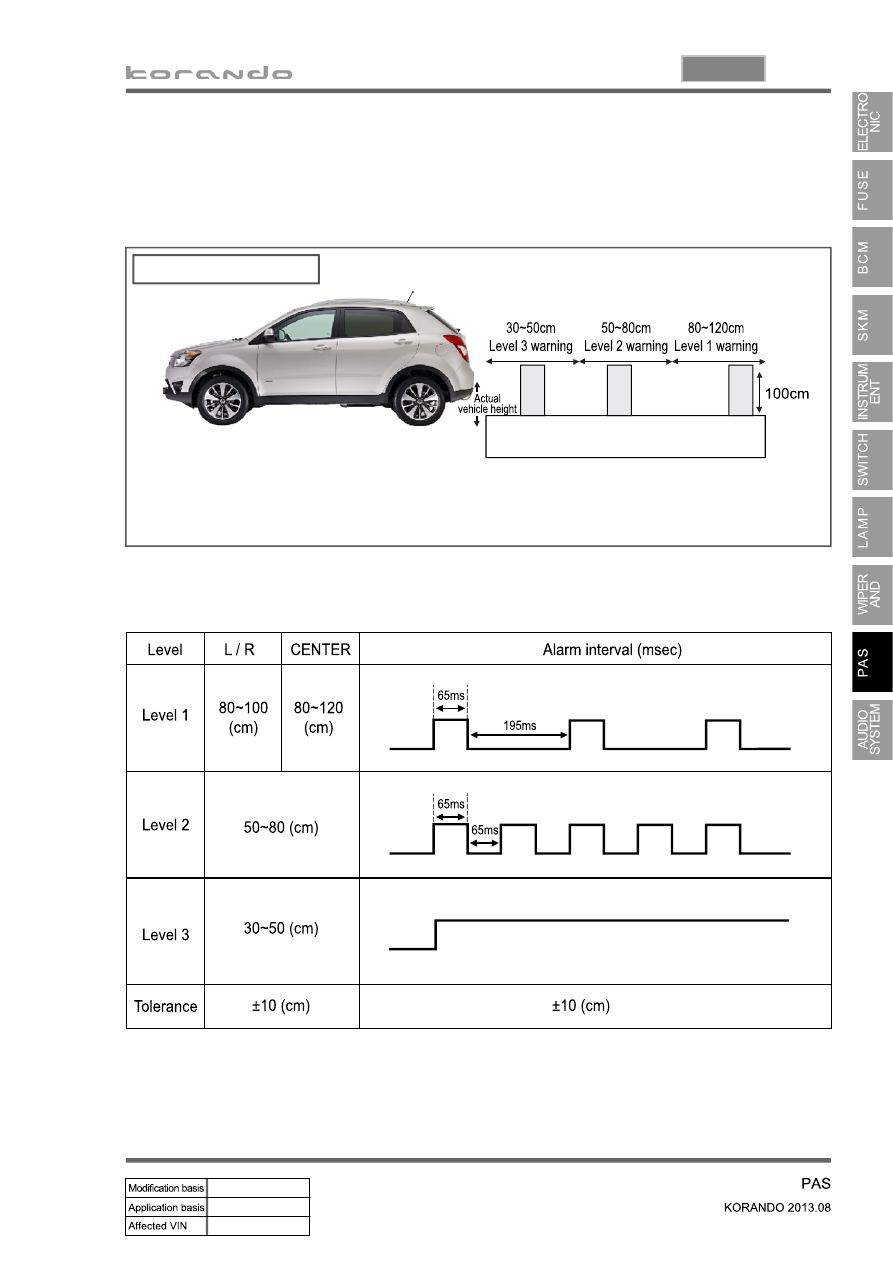

While reversing, if obstacles are within stage 1, the warning beep sounds with long intervals. If within

stage 2, the warning beep sounds with short intervals and if within stage 3, the warning beep sounds

continuously.

Sensor detection range

Within 20 cm from the ground

(Objects may not be detected in this range.)

Buzzer interval when measuring distance

▶

2) Rear PAS Sensor
