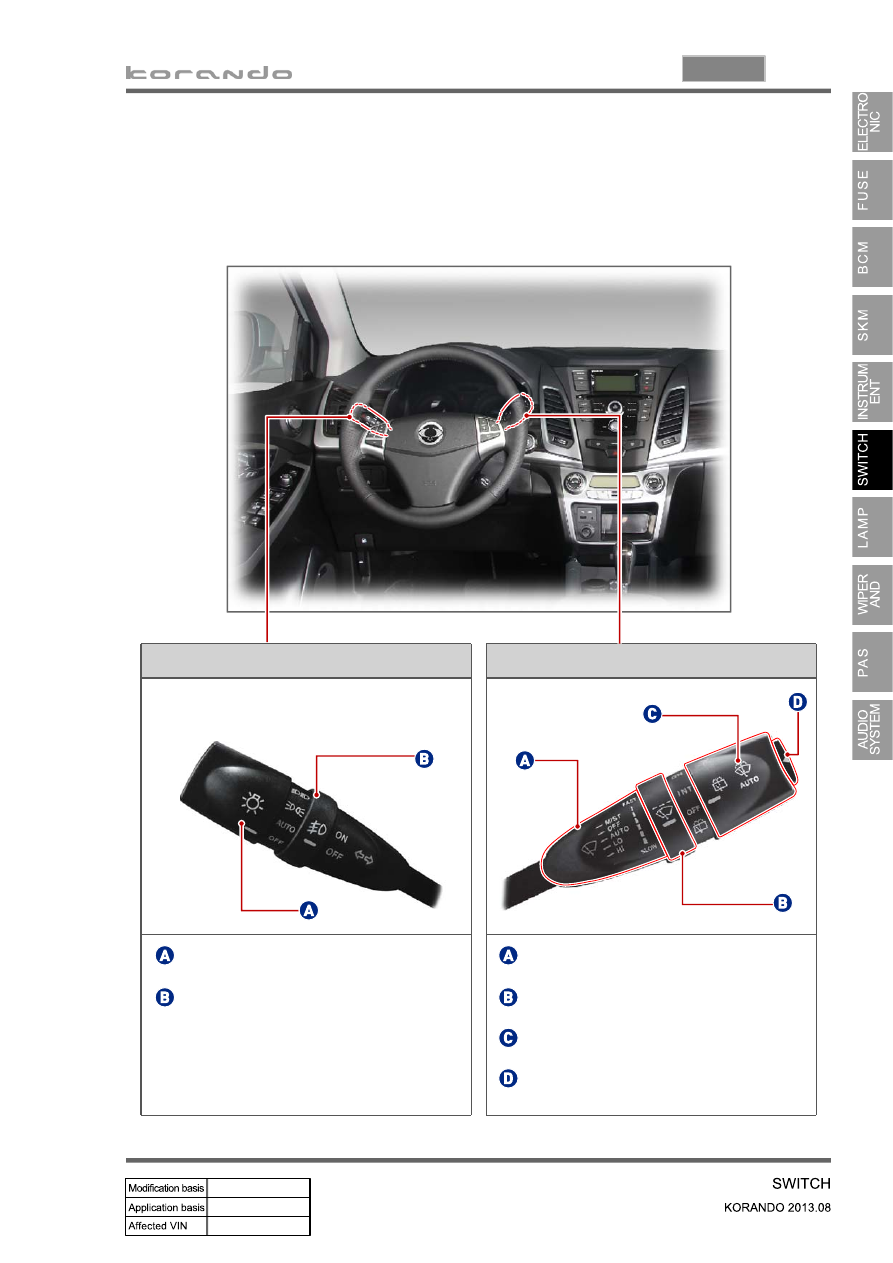

06-39

8510-00

Multifunction wiper switches

2) Multifunction Switch

Multifunction light switches

Light switch

Front wiper switch

Wiper speed dial

Rear wiper switch

Front fog lamp switch

Front auto washer switch

The multifunction switch contains the auto washer and wiper switch, front fog lamp switch and auto

hazard warning flasher switch. For the vehicle with air bag, since the contact coil is fitted to the upper part

of the multifunction switch and ESP steering wheel angle sensor is fitted to upper part of the contact coil,

pay attention to when removing and fitting or checking the wiring.

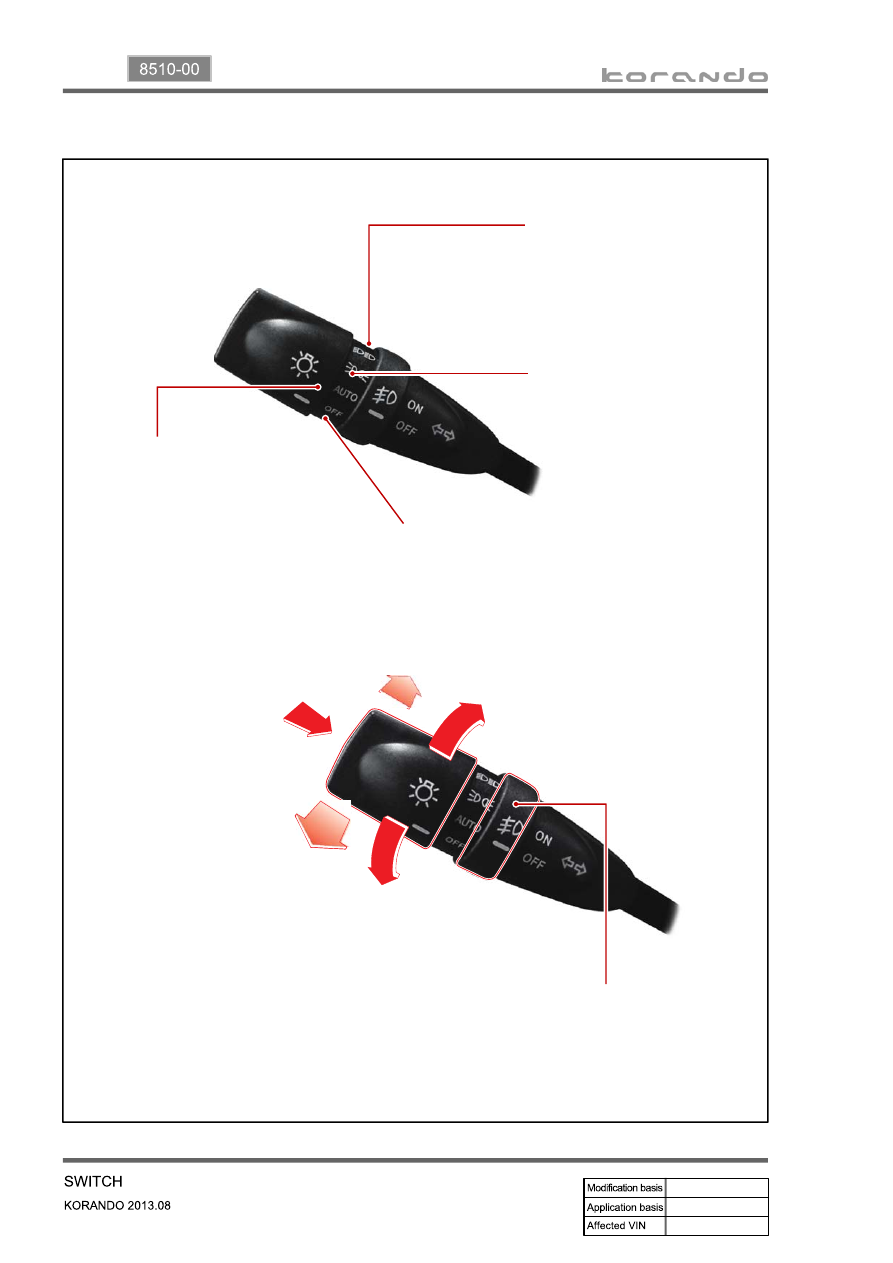

06-40

Light switch

▶

Headlamps ON

Headlamp, side-marker, tail,

license plate, fog, and

instrument cluster lamps come

on.

Tail lamp ON

Side-marker, tail, license plate,

fog, and instrument cluster

lamps come on.

Automatic light ON

Head- and tail lamps

automatically turn on or off based

upon the intensity of the sunlight

analyzed by the automatic light

sensor.

Lights OFF

High beam ON

To turn on the headlamp high

beam, push the lever towards

the instrument cluster with the

headlamp low beam on.

Right turn signal lamp blinks

Passing

Regardless of the position of the light

switch, when holding the lever toward the

steering wheel, the headlights are on high

beam during the hold.

Front fog lamp switch

To turn on the fog lights, turn this

switch while the tail lamps or

headlamps are turned on.

Left turn signal lamp blinks

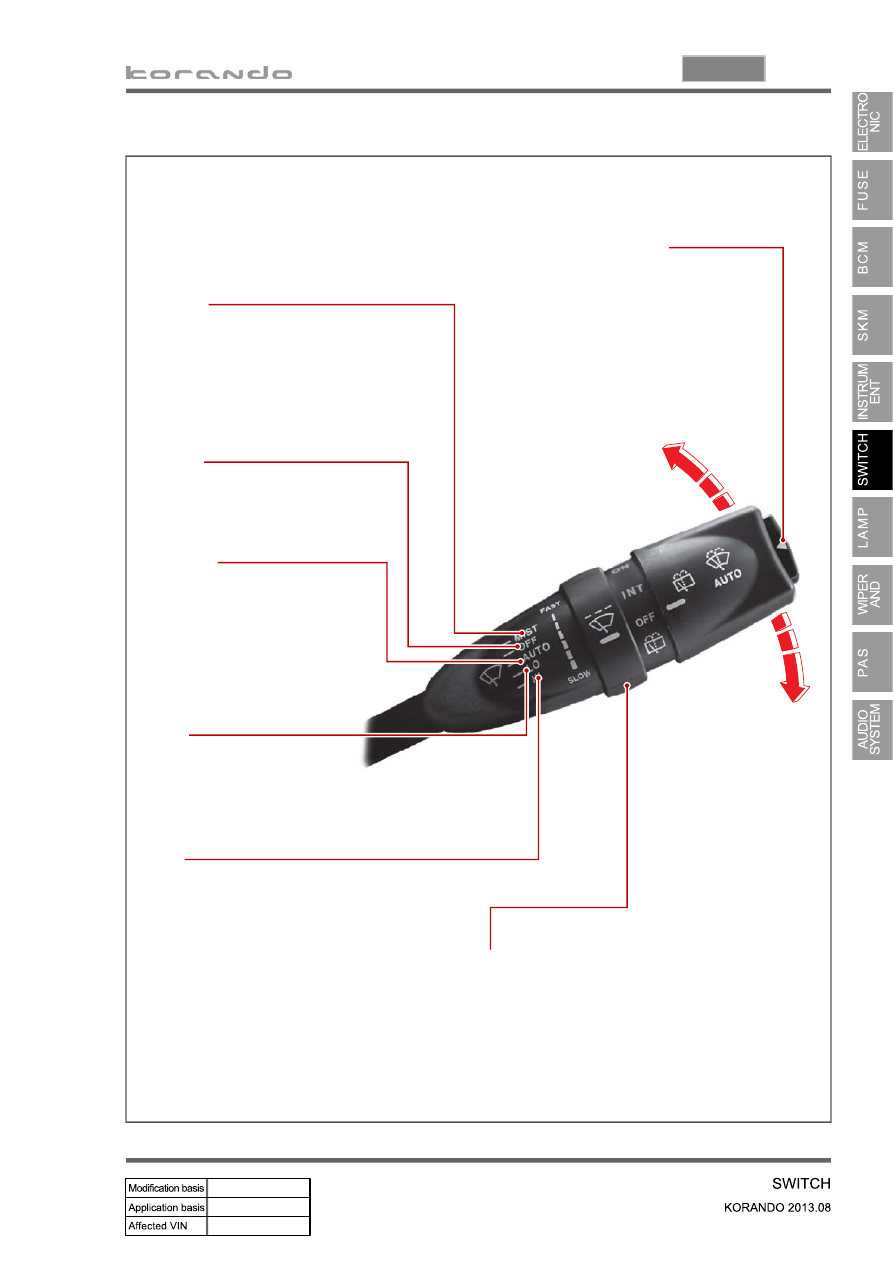

06-41

8510-00

If you move the wiper switch to “MIST”

position and release it, the windshield

wipers operate one wiping cycle. The

wipers will operate continuously if the

switch is held in this position.

Front automatic wiping speed control switch

The interval of wiping speed can be adjusted by turning the

control knob upward or downward when the windshield

wiper switch is in AUTO position.

Fast: Fast interval

Slow: Slow interval

Wipers are not in operation.

Operates automatically

according to the vehicle speed

and amount of rainfall.

Continuous wipe, fast operation

Continuous wipe, slow

operation

MIST

OFF

AUTO

LO

HI

Auto washer switch

If pressing the switch when the wiper

switch turns to the "OFF" position,

washer fluid is sprayed once and

wiper operates 4 times.

After a while, washer fluid is sprayed

once more and the wiper operates 3

times.

Wiper switch

▶

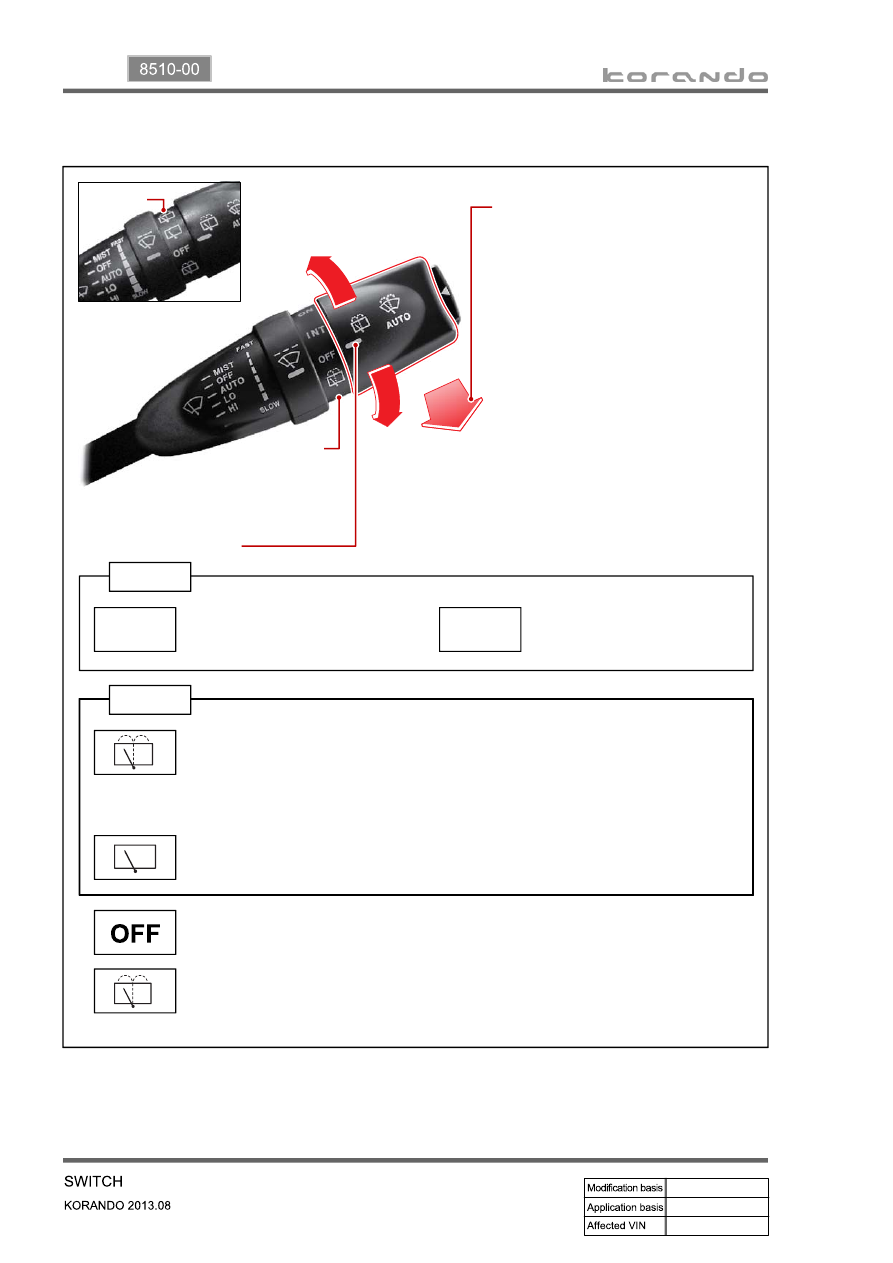

06-42

Rear wiper switch

Type B

Type A

Windshield Washer Operation
In the “OFF” position, pull the

lever toward you to spray washer

fluid on the windshield and to

operate the wipers 1~3 cycles.

Pull the lever briefly (for less than 0.6

seconds): One wiping cycle with

washer spray

Pull and hold the lever for more than

0.6 seconds: Three wiping cycles

with washer spray

The spray and wiper operation will

continue until you release the lever.

TYPE B

When the switch is fully turned, washer fluid will be sprayed onto the rear window

glass and the wiper will also operate. When the switch is released, it will return to
the “OFF” position and turn off the wiper and washer.

Rear wiper is not in operation.

TYPE A

INT

Rear wiper operation

(Intermittent)

ON

Rear wiper operation

(Normal Speed)

Rear wiper operation

When the switch is fully turned, washer fluid will be sprayed onto the rear window

glass and the wiper will also operate. When the switch is released, it will return to

the Rear Wiper Operation mode and only the wiper will keep operating.
