SsangYong Korando III (2010 year). Manual - part 487

06-31

8510-00

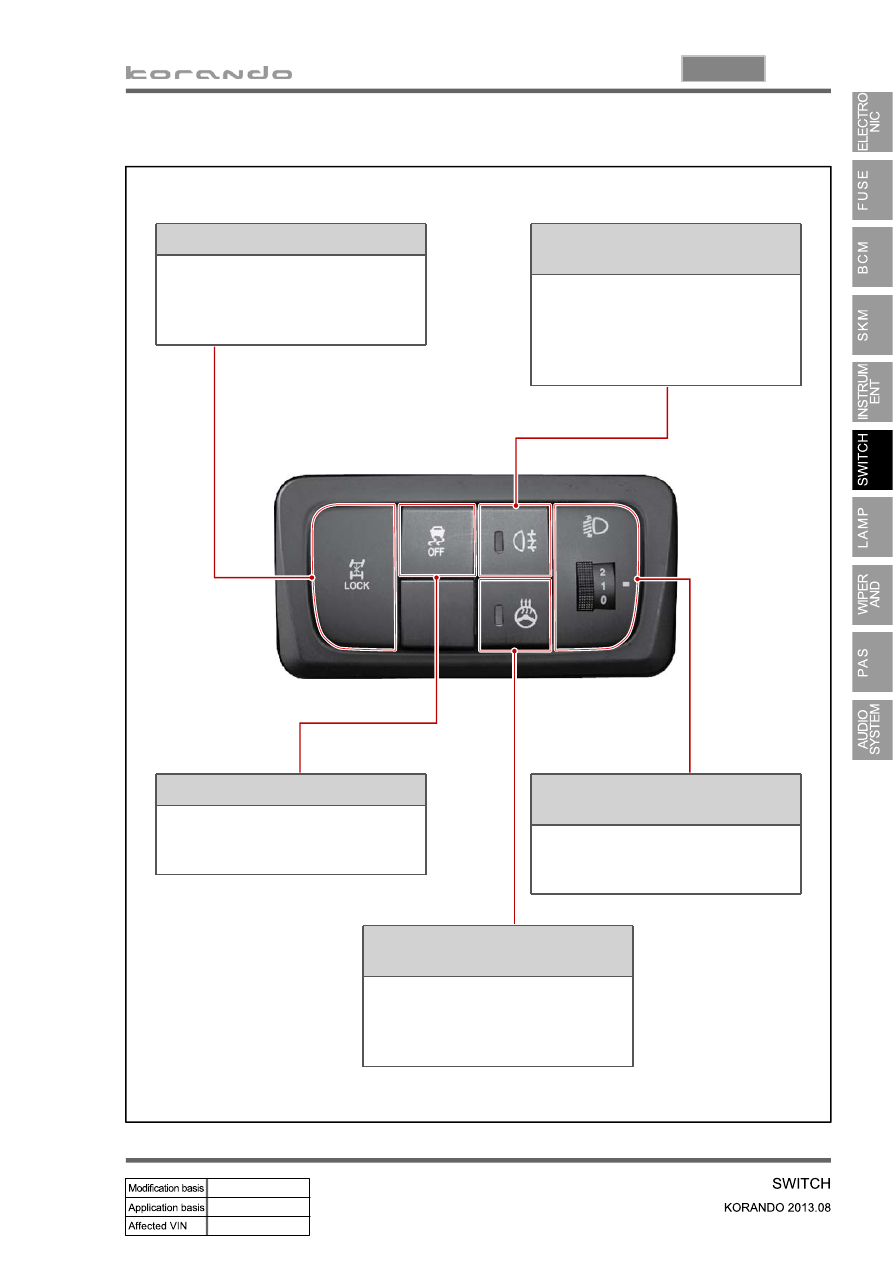

4WD LOCK switch

This switch is of push lock type, which
enables to increase/decrease the
torque to the rear wheels in AWD
mode.

Steering wheel heating

switch

This switch is of push return type,
which is used to activate or deactivate
the steering wheel heating function.

ESP OFF switch

The ESP OFF switch is of push return
type, which is used to stop or resume
the ESP function.

4WD LOCK switch

This switch is of push lock type, which
enables to increase/decrease the
torque to the rear wheels in AWD
mode.

HLLD

(Headlamp Leveling Device)

The headlamp aiming can be adjusted
by using this dial-type switch.

Rear fog lamp switch

(EU ONLY)

This switch is of push return type,
which sends ON/OFF signal to the
BCM so that the BCM can switch on
the lamps by activating the rear fog
lamp relay.

06-32

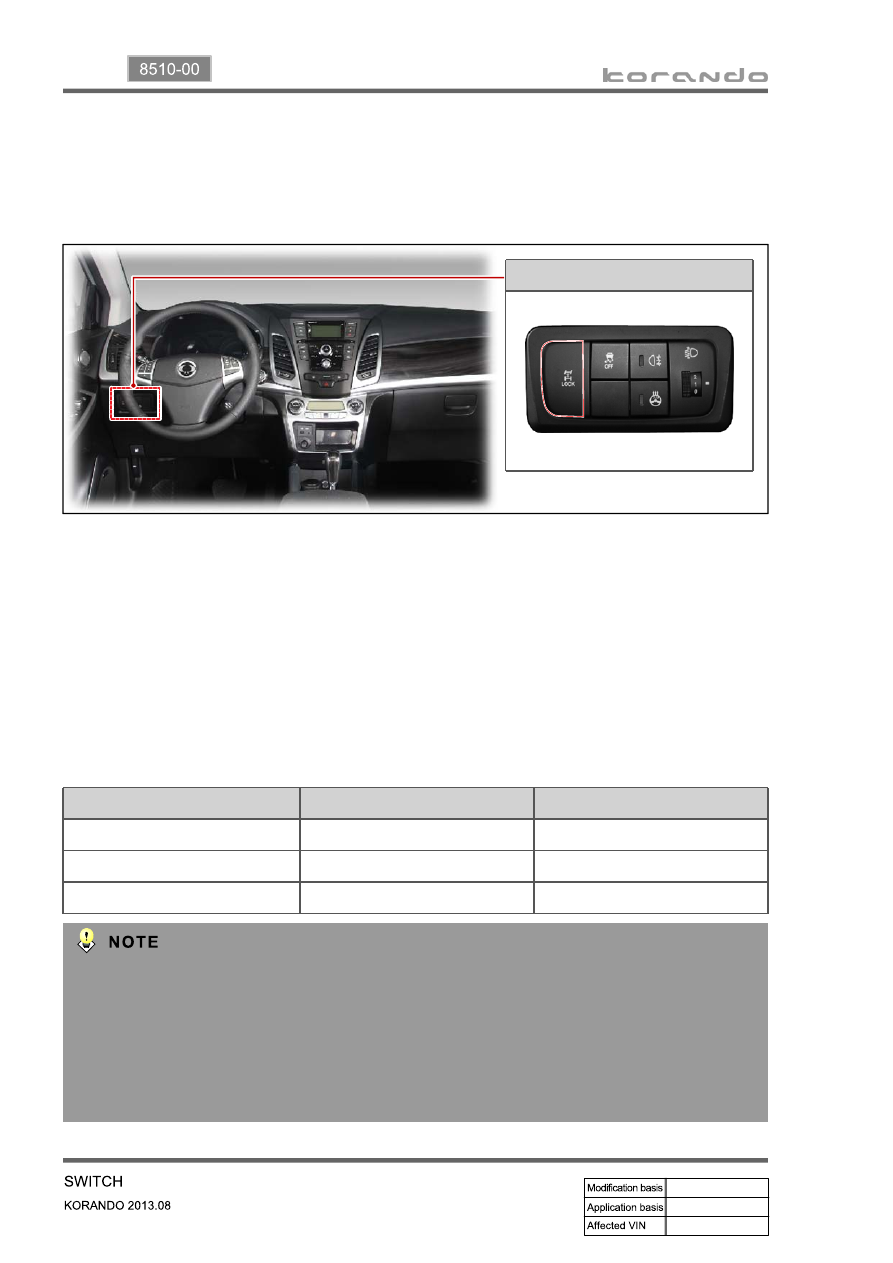

How to operate 4WD LOCK switch

▶

When the switch is pressed, 4WD LOCK mode is activated (4WD LOCK indicator lamp comes on). If

you press the switch again, the system enters 4WD AUTO mode (indicator lamp goes off).

4WD AUTO mode (normal)

▶

4WD LOCK switch

(1) 4WD LOCK switch

This provides a slip control for the rear wheels depending on the driving conditions such as stationary,

straight-line motion or cornering motion.

4WD LOCK mode (4WD LOCK switch pressed)

▶

In 4WD LOCK mode, the 4WD LOCK control works in the same way as the AUTO mode, but it

increases the driving force to the rear wheels more than in AUTO mode.

If the rear wheel speed is over 40 km/h, the vehicle enters into the 4WD AUTO mode automatically. If

it is below 35 km/h, the vehicle returns to the 4WD LOCK mode.

-

-

4WD mode operation table

▶

4WD LOCK switch

Vehicle speed

Drive mode

Deactivated (4WD AUTO)

Unlimited

4WD AUTO

Activated (4WD LOCK)

40 km/h or higher

4WD AUTO

Activated (4WD LOCK)

Below 35 km/h

4WD LOCK

4WD: 4WD stands for Four Wheel Drive and drives all the wheels to maximize the vehicle's driving

force on the unpaved road, rough road, steep hills, sandy or muddy road for enhanced driving

performance.

Electric AWD (All Wheel Drive): 4-wheel drive is an electric drive system in which the vehicle is

usually driving in 2WD mode but, if the vehicle determines that 4WD is needed because of the

differences in slip and cornering between front and rear wheels, road gradient and etc., it is switched

to 4WD automatically by the E-coupling control unit.

06-33

8510-00

Overview

▶

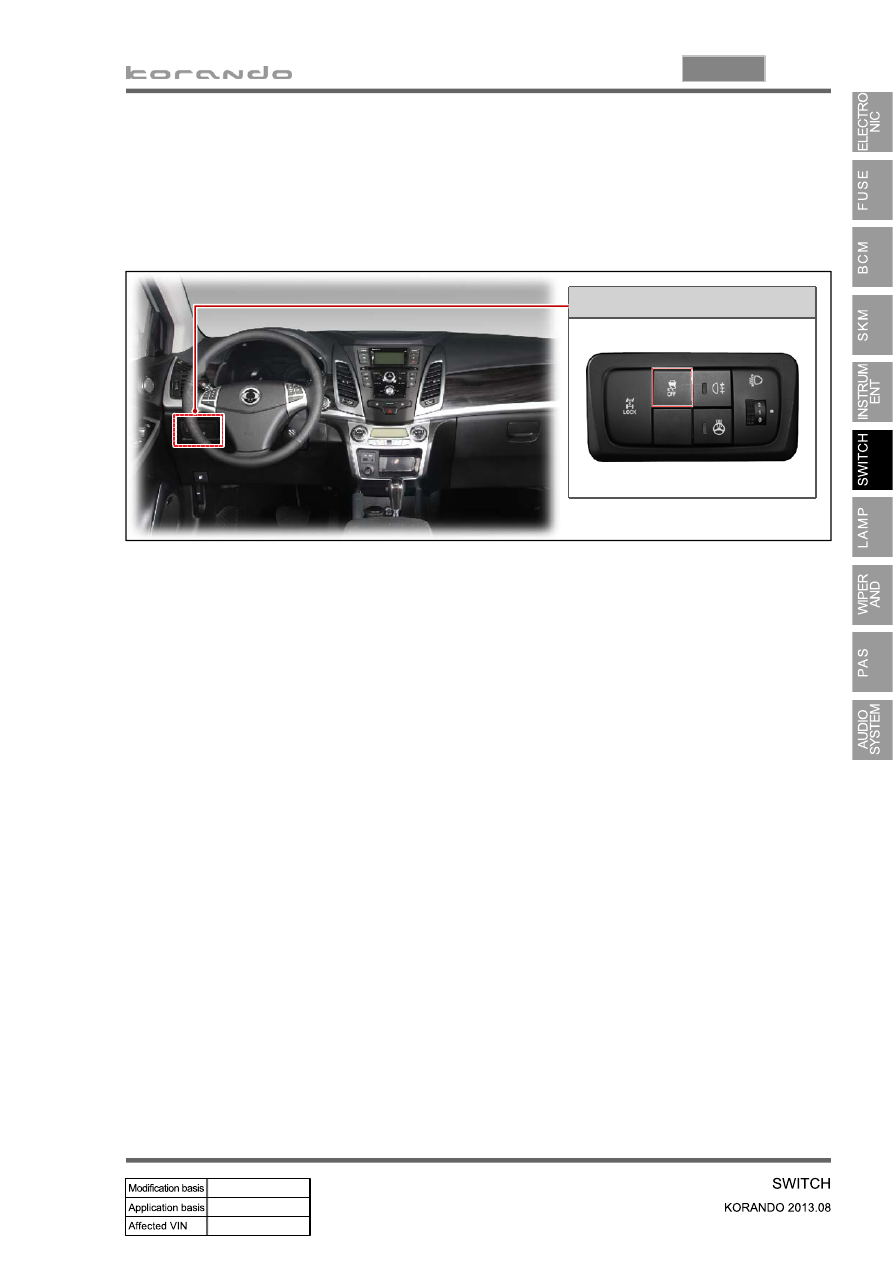

The ESP OFF switch is located to the driver's lower panel. When the driver press the ESP OFF switch, the

ESP OFF indicator lamp comes on in the instrument cluster and the ESP becomes disabled. However, the

ABS still works as it should.

ESP ON/OFF switch (only for vehicle with ESP)

▶

ESP OFF switch

(2) ESP OFF switch

ESP OFF indicator lamp module (only for vehicle with ESP)

▶

The ESP function turns ON and OFF each time the driver presses the ESP ON/OFF switch. This

switch is a constant-open type instant contact switch and grounded to IGN1. The default setting is

ESP ON and it is turned on and off each time the switch is pressed.

If the driving wheels are slipping on snowy or icy roads, the engine rpm may not increase even

when you depress the accelerator pedal, and accordingly, you may not be able to move your

vehicle. In this case, stop the ESP function by pressing the ESP OFF switch. When the ESP OFF

switch is pressed, the ESP function stops and the vehicle is driven independently from the sensor

outputs.

-

-

▷ CAN Cluster Type

The ESP OFF lamp shows how the ESP function works.

The ESP OFF lamp comes on when:

ESP function is deactivated by switch input

-

06-34

Initialization mode after IGN ON, ESP disabled due to failure, during ESP operation (blink), under

diagnostic mode, indicator lamp ON in instrument cluster, impossible to communicate with CAN

module.

-

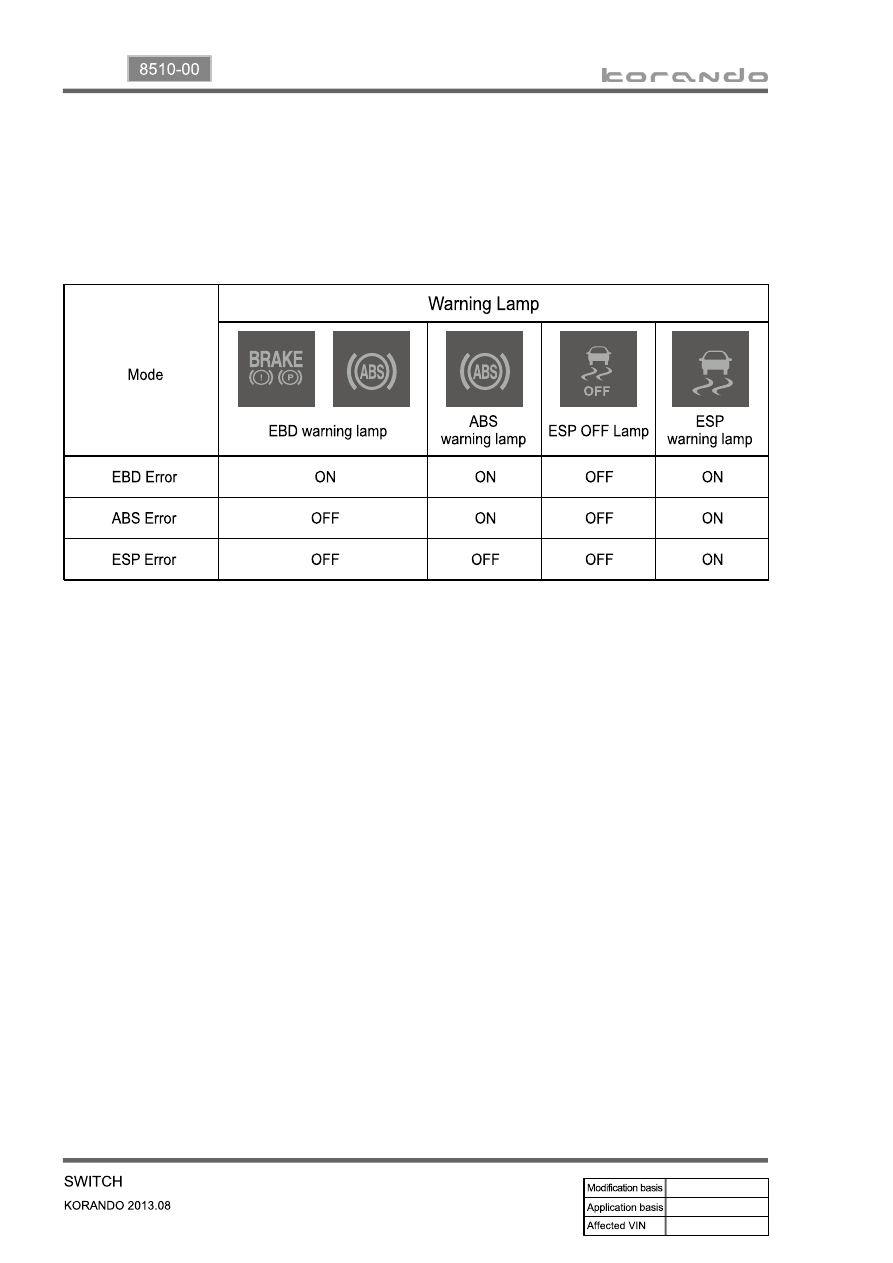

ESP warning lamp module

▶

The ESP warning lamp shows self-diagnosis result of ESP function and whether there is a fault. The

ESP warning lamp comes on when:
