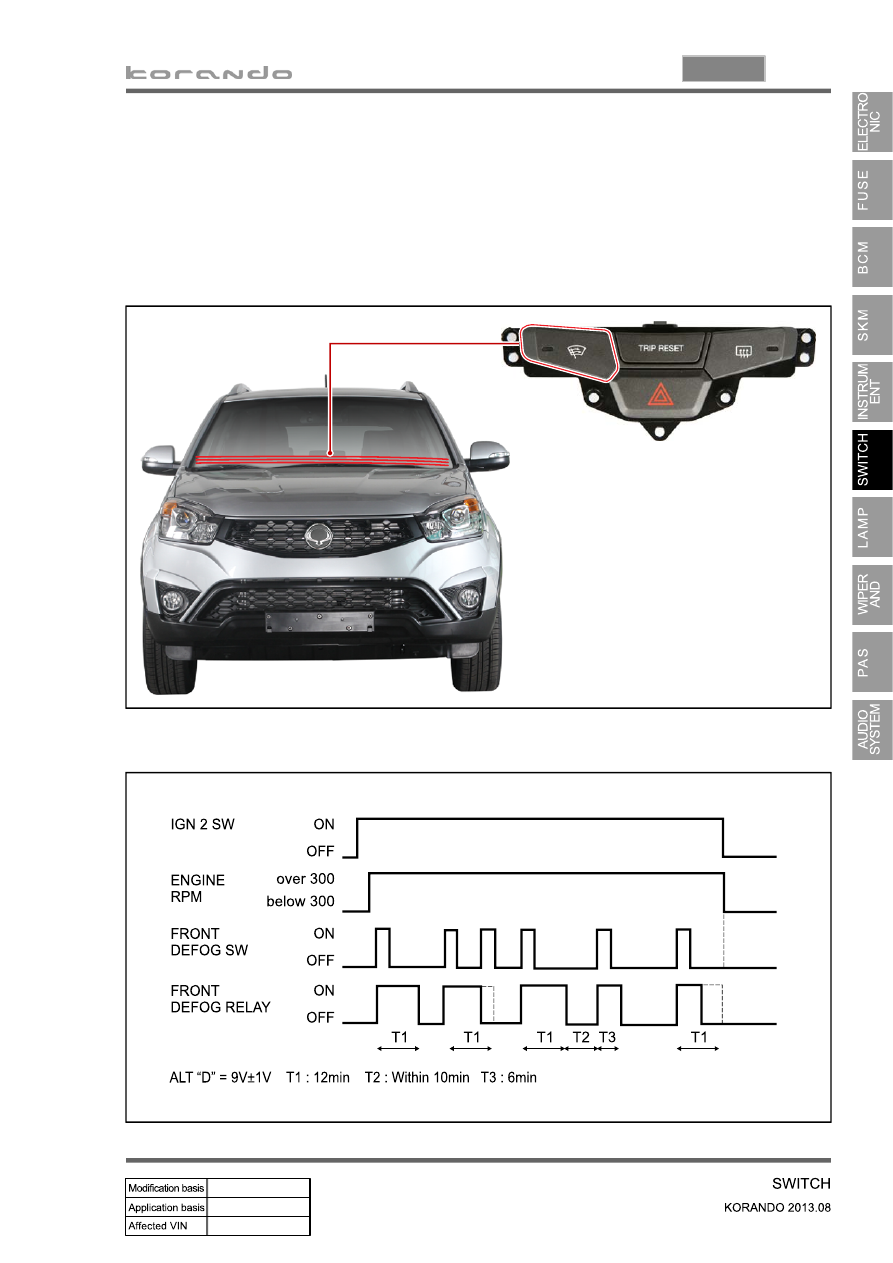

(2) Windshield heating switch

The windshield glass/outside mirror heating is operated by BCM.

The heating operates for about 12 minutes when the switch is pressed with the engine started.

Press the switch again to stop the operation.

The output is "ON" only for 6 minutes when turning on the rear defogger switch within 10 minutes after

completion of output for 12 minutes. This can be done only once.

This function is available only when the engine is running.

Operation curve

▶

06-28

SVC class instrument cluster

TRIP A

TRIP B

STD class instrument cluster

TRIP A

TRIP B

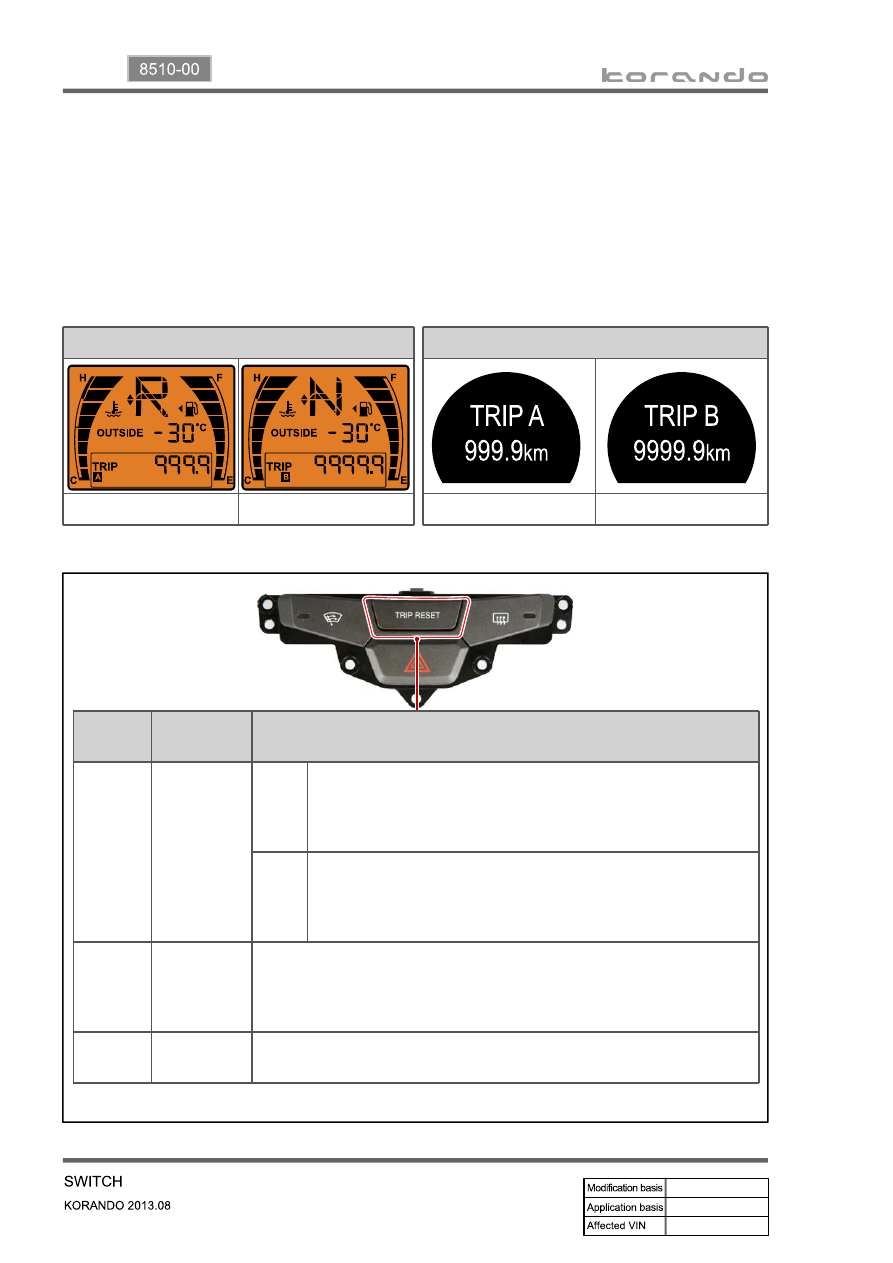

(3) Trip switch

Whenever pressing this button, the information is displayed in the following order: Odometer, Trip A, Trip

B, Distance to empty, Average fuel consumption, Instant fuel consumption, Illumination level, Ambient air

temperature (for STD); Trip A, Trip B, Distance to empty, Average fuel consumption, Instant fuel

consumption, Illumination level, Ambient air temperature (for SVC). Press and hold (for more than 1 sec)

this button to initialize (reset) Trip A/Trip B and average fuel consumption, adjust illumination level or

change the unit of temperature.

Description

▶

The factory setting is DTE mode.

※

Display

Mode

Switch

Detecting

time

Function

Briefly

and hold

Below 1

second

(60 to

980 ms)

STD

- Mode change
   (Odo→Trip A→Trip B→DTE
   →Average fuel consumption→Instant fuel consumption
   →Illumination level→Ambient air temperature)

SVC

- Mode change
   (Trip A→Trip B→DTE→Average fuel consumption
   →Instant fuel consumption→Illumination level
   →Ambient air temperature)

Press

and hold

Over 1

seconds

- Reset
   (Trip A, B, average fuel consumption)
- Change
   (Illumination level (6 to 1), temperature unit (℃↔℉))

Not

press

Over 3

seconds

- Mode change
   (Illumination level→Ambient air temperature→Odo)

06-29

8510-00

Operation process

▶

When the driver presses the switch, all the turn signal lamps flash regardless of the ignition switch status.

Pressing the switch again turns off the turn signal lamps. The turn signal lamp does not operate while the

hazard warning flasher operates.

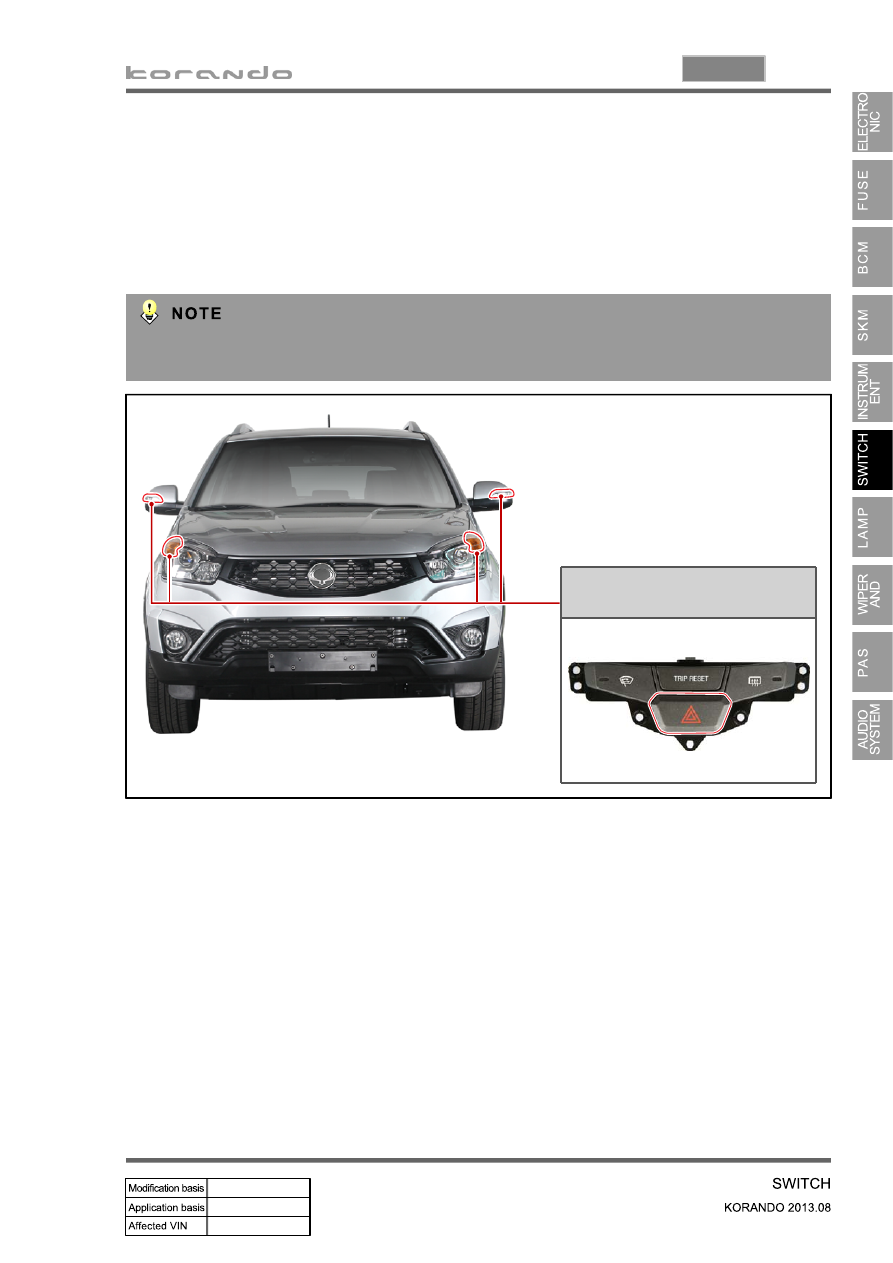

Hazard warning flasher switch

(4) Hazard warning flasher switch

The hazard warning flasher blinks during emergency hazard warning lamp control and air bag

deployment signal activation.

06-30

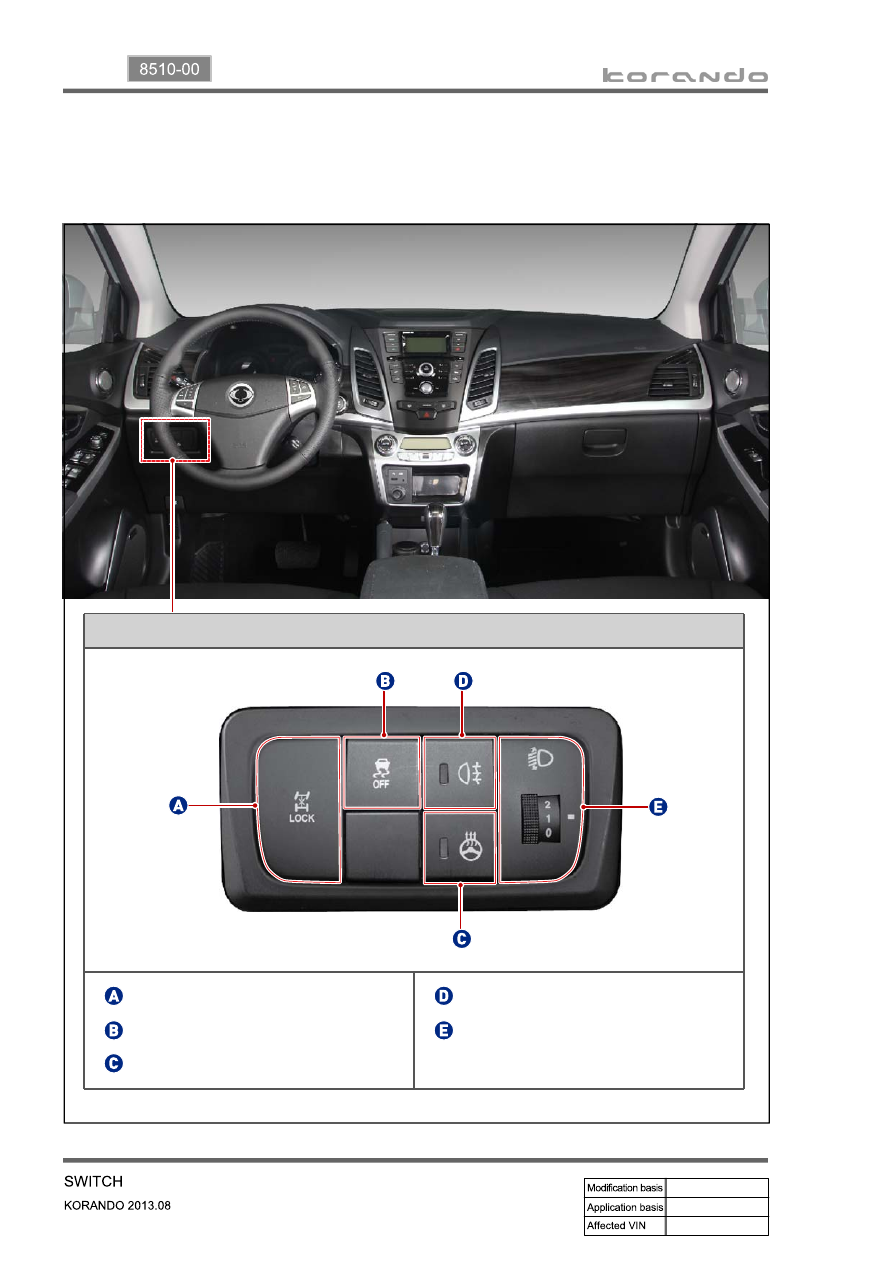

Lower main panel switch

3) Lower Main Panel Switch

Rear fog lamp switch (EU ONLY)

Steering wheel heating switch

HLLD (Headlamp Leveling Device)

4WD LOCK switch

ESP OFF switch

This helps the driver to drive the vehicle comfortably by operating the switch for the driving situation.
