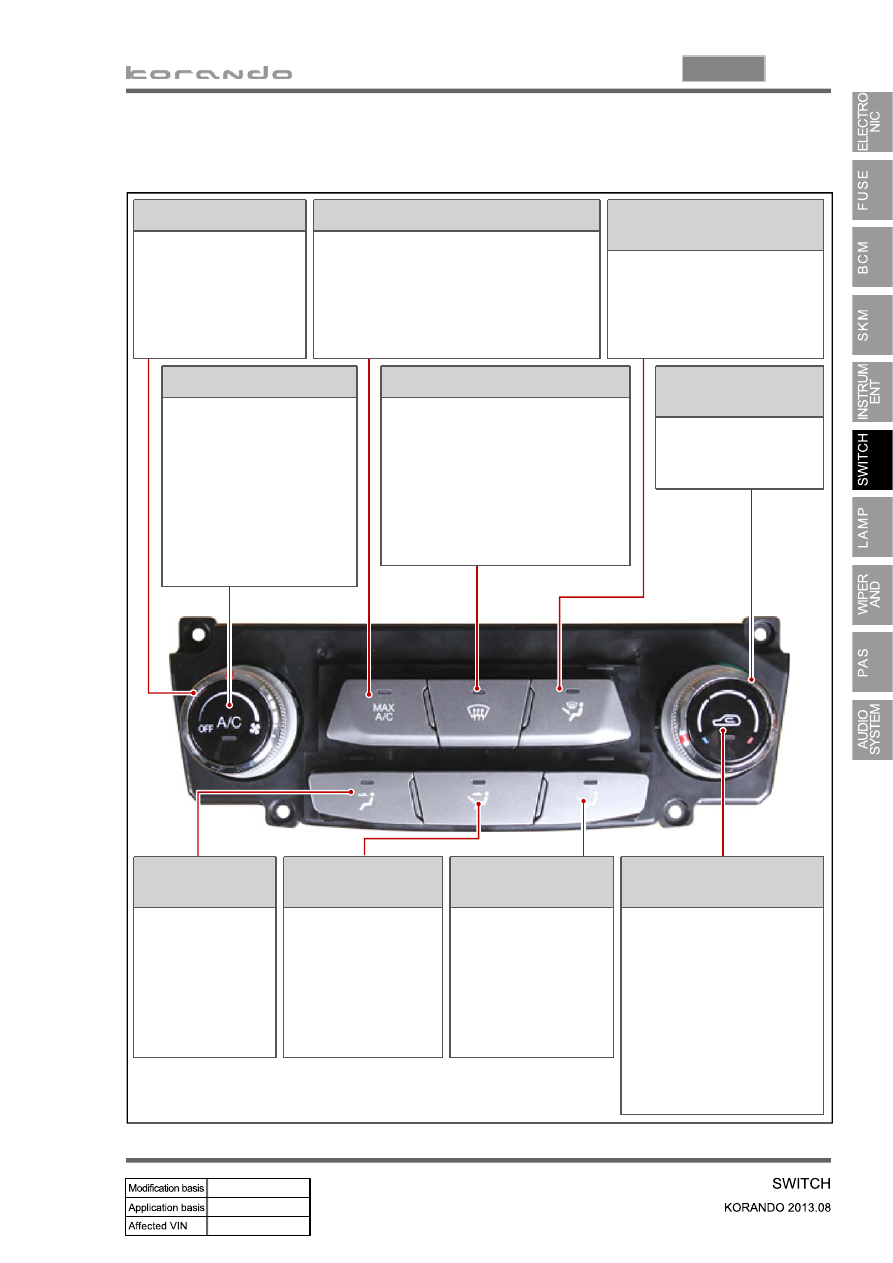

Bi-level mode

switch

If the switch is
pressed, the indicator
comes on while the
air flows to the
footwell and the
upper part of the
body.

Foot mode

switch

If the switch is
pressed, the indicator
comes on while the air
flows to the footwell
and the upper part of
the body.

Manual

b.

Fan speed dial

Turn the dial to the left
or right to adjust the fan
speed in 7 steps. At this
time, the indicator lamp
comes on.

Vent mode switch

If the switch is
pressed, the
indicator comes on
while the air flows
to the upper part of
the body.

Air source selection

switch

When the switch is pressed,
the indicator comes on and
the mode is switched to the
recirculation mode at the
same time. When pressed
again, the indicator goes out
and switched to the fresh air
mode at the same time.

MAX A/C switch

This is designed for increasing driver
comfort. When the switch is pressed, the
indicator comes on and the air
conditioner starts at the same time and
vent and recirculation modes are
selected automatically.

Defroster & foot

mode switch

If the switch is pressed, the
indicator comes on while the
air flows to the footwell and
the windshield.

Defroster mode switch

This is used to remove the
condensation from the windshield.
When you press the switch, the
indicator comes on and the air
distribution is changed to the
windshield at the same time, then
the air conditioner starts to operate.

A/C switch

When the switch is
pressed, the indicator
comes on and the air
conditioner starts at the
same time. Pressing the
switch again gets the
indicator lamp go off and
the air conditioner stop at
the same time.

Temperature control

dial

Turn the dial to the left
or right to adjust the set
temperature.

06-24

Center fascia switch

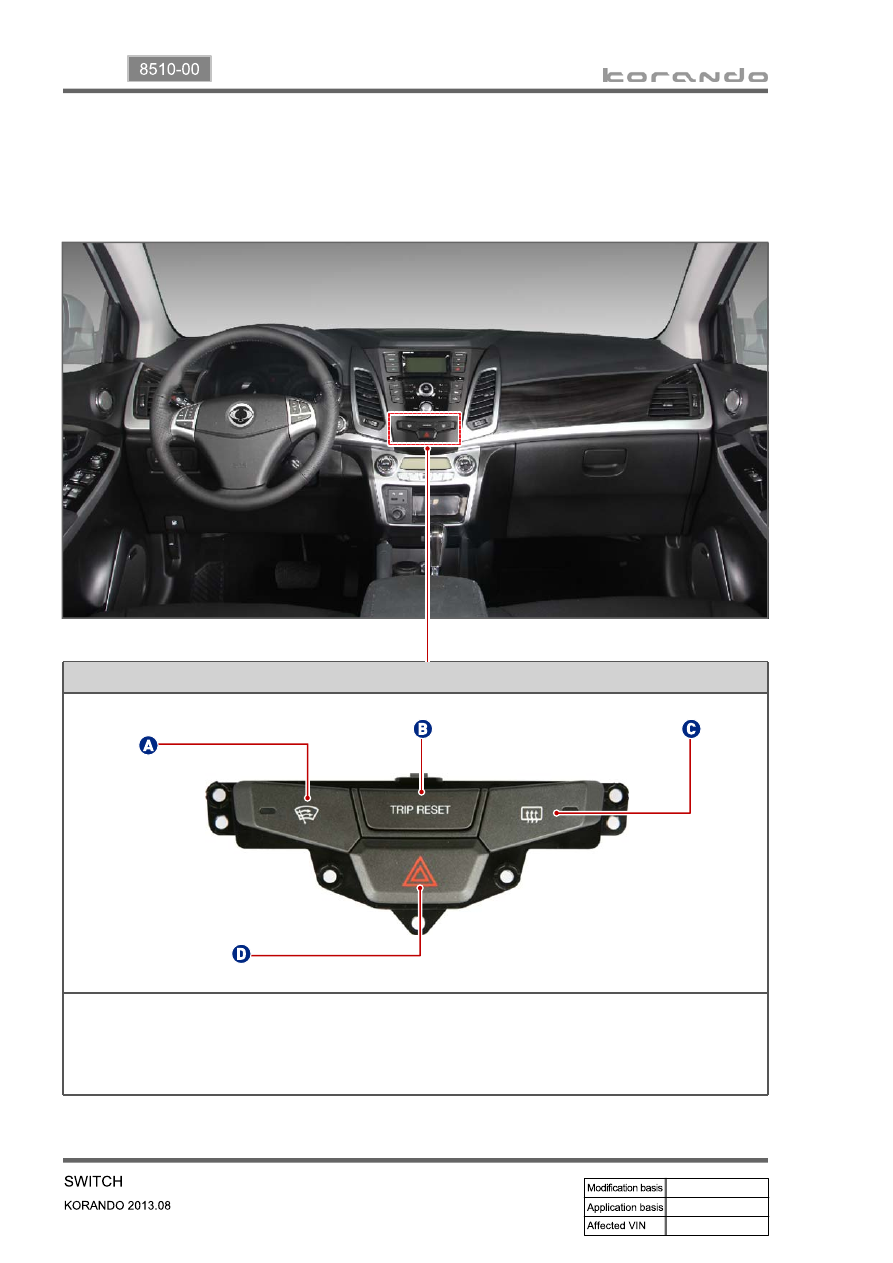

2) Center Fascia Switch

This helps the driver to drive the vehicle comfortably by operating the switch for the driving situation. It

consists of the windshield heating switch, TRIP/RESET switch, rear glass/outside rearview mirror

heating switch and hazard warning flasher switch.

Windshield heating switch

TRIP/RESET switch

Rear glass/outside rearview mirror heating switch

Hazard warning flasher switch

A.

B.

C.

D.

06-25

8510-00

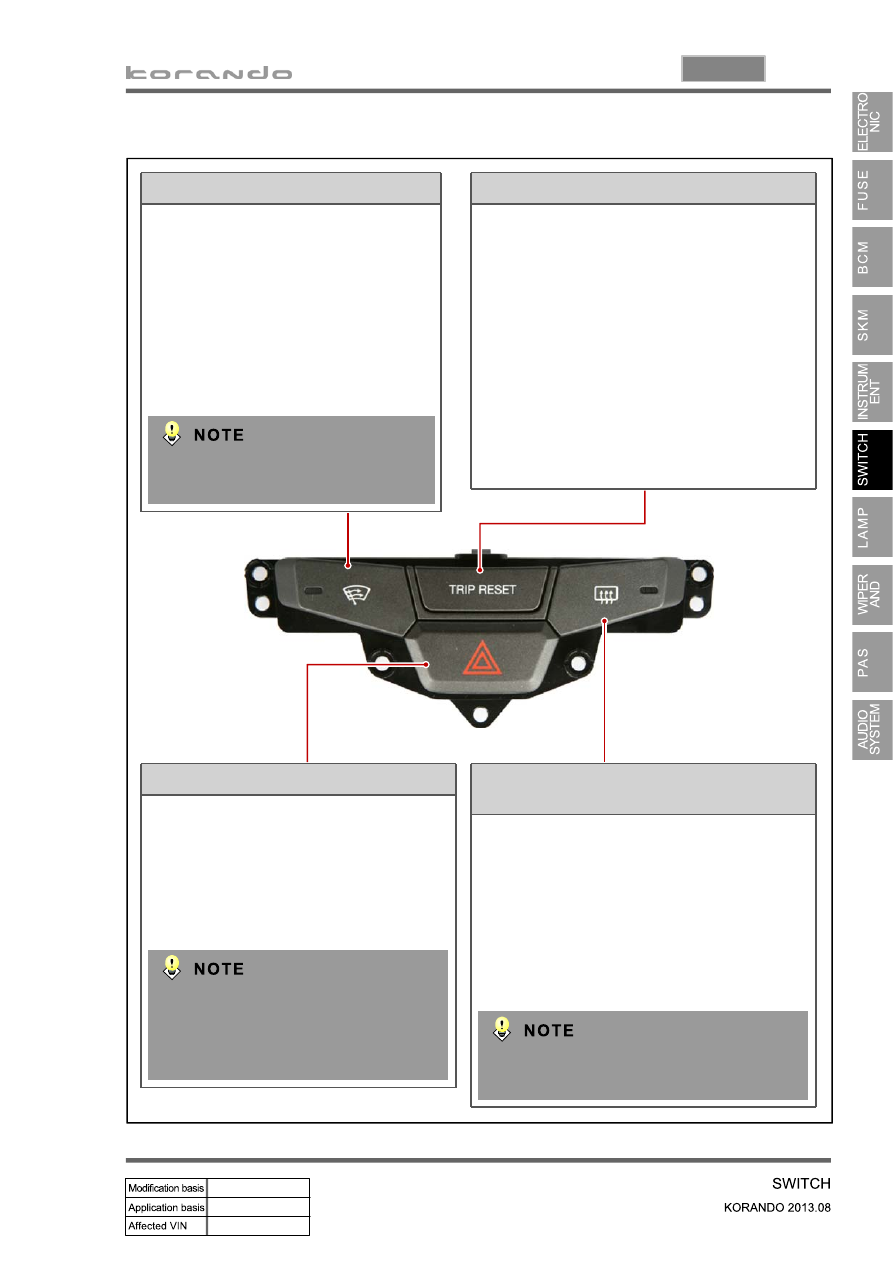

Windshield heating switch

Press this switch to operate the windshield
heating system for 12 minutes. Press the
switch again to stop the system. The
heated glass will operate for about 6
minutes when the switch is pressed again
within 10 minutes after completion of its
first operation cycle. The indicator lamp for
the switch comes on when the heating is
on.

Hazard warning flasher switch

When the driver presses the switch, all the
turn signal lamps flash regardless of the
ignition switch status. Pressing the switch
again turns off the turn signal lamps. The turn
signal lamp does not operate while the
hazard warning flasher operates.

TRIP/RESET switch

Whenever pressing this button, the information is
displayed in the following order: Odometer, Trip
A, Trip B, Distance to empty, Average fuel
economy, Instant fuel economy, Illumination level,
Tire pressure (with TPMS), Ambient air
temperature (for STD); Trip A, Trip B, Distance to
empty, Average fuel economy/Instant fuel
economy, Illumination level, Tire pressure (with
TPMS), Ambient air temperature (for SVC). Press
and hold this button to initialize (reset) Trip A/Trip
B and average fuel consumption, adjust
illumination level or change the unit of
temperature.

Description

▶

Rear glass/outside rearview mirror heating

switch

Press this switch to operate the rear glass and
outside rearview mirror heating system for 12
minutes. Press the switch again to stop the
system. The heated glass will operate for about 6
minutes when the switch is pressed again within
10 minutes after completion of its first operation
cycle. The indicator lamp for the switch comes on
when the heating is on.

The switch is operable only when the engine

is started.

The hazard warning flasher blinks

during emergency hazard warning

lamp control and air bag deployment

signal activation.

The switch is operable only when the

engine is started.

06-26

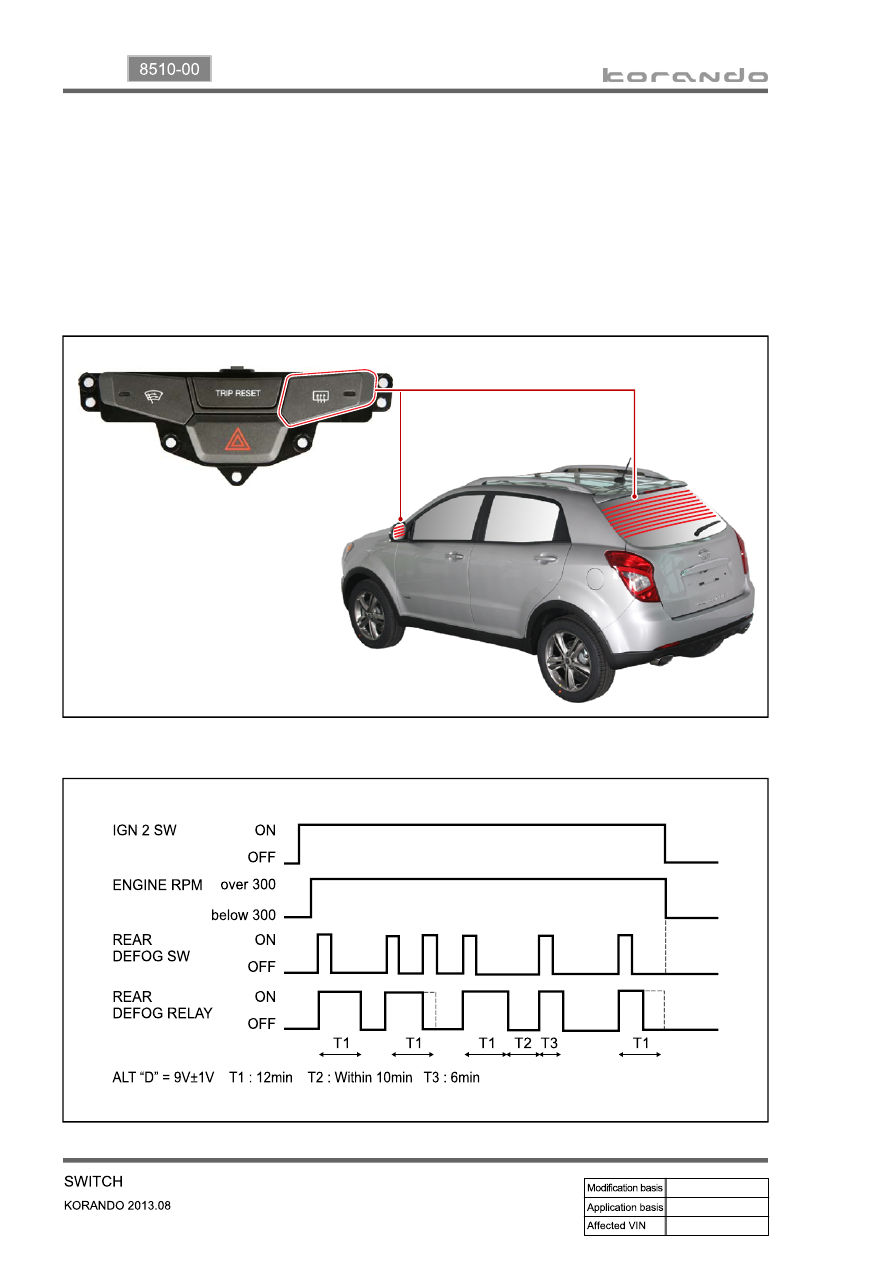

(1) Rear glass/outside mirror heating switch

Overview

▶

The rear glass/outside mirror heating is operated by BCM.

The heating operates for about 12 minutes when the switch is pressed with the engine started.

Press the switch again to stop the operation.

The output is "ON" only for 6 minutes when turning on the rear defogger switch within 10 minutes after

completion of output for 12 minutes. This can be done only once.

This function is available only when the engine is running.

Operation curve

▶
