06-19

8510-00

When you turn the folding switch to the "ON" position, the folding relay is activated for 16

seconds.

When you turn the folding switch to the "OFF" position, the unfolding relay is activated for 16

seconds.

When you turn the folding switch to the "OFF" position with the folding relay activated, the unfolding

relay is activated for 0.1 second.

1.

2.

3.

Folding/unfolding control

▶

The control logic is the same for folding to unfolding operation and unfolding to folding operation.

-

The AUTO folding/unfolding function is not available when the folding switch is ON.

The AUTO folding/unfolding function is available when the folding switch is OFF.

-

-

06-20

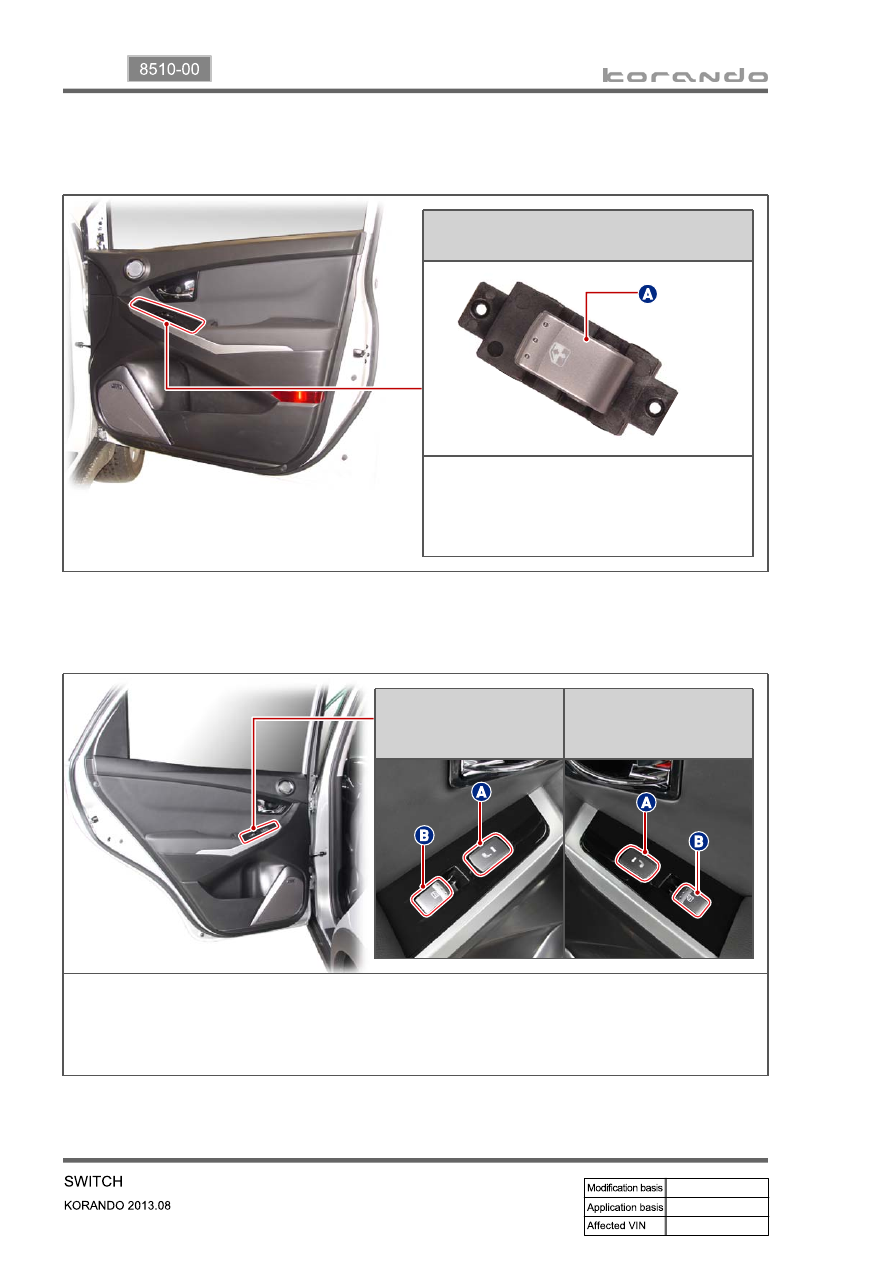

Rear door power

window sub switch

(LH)

Rear door power

window sub switch

(RH)

3) Power Window Sub Switch (Passenger)

Power window sub switch (passenger)

Power window sub switch

(passenger)

The window is operated only when the

switch is operated.

A.

It is mounted to the door trim and can open or close only the window at the door.

4) Rear Door Power Window Sub Switch

It is mounted to the door trim and can open or close only the window at the door.

Rear seat heating switch

When you press the switch, the heating is operated and indicator lamp comes on.

Power window switch

The window is operated only when the switch is operated.

A.

B.

06-21

8510-00

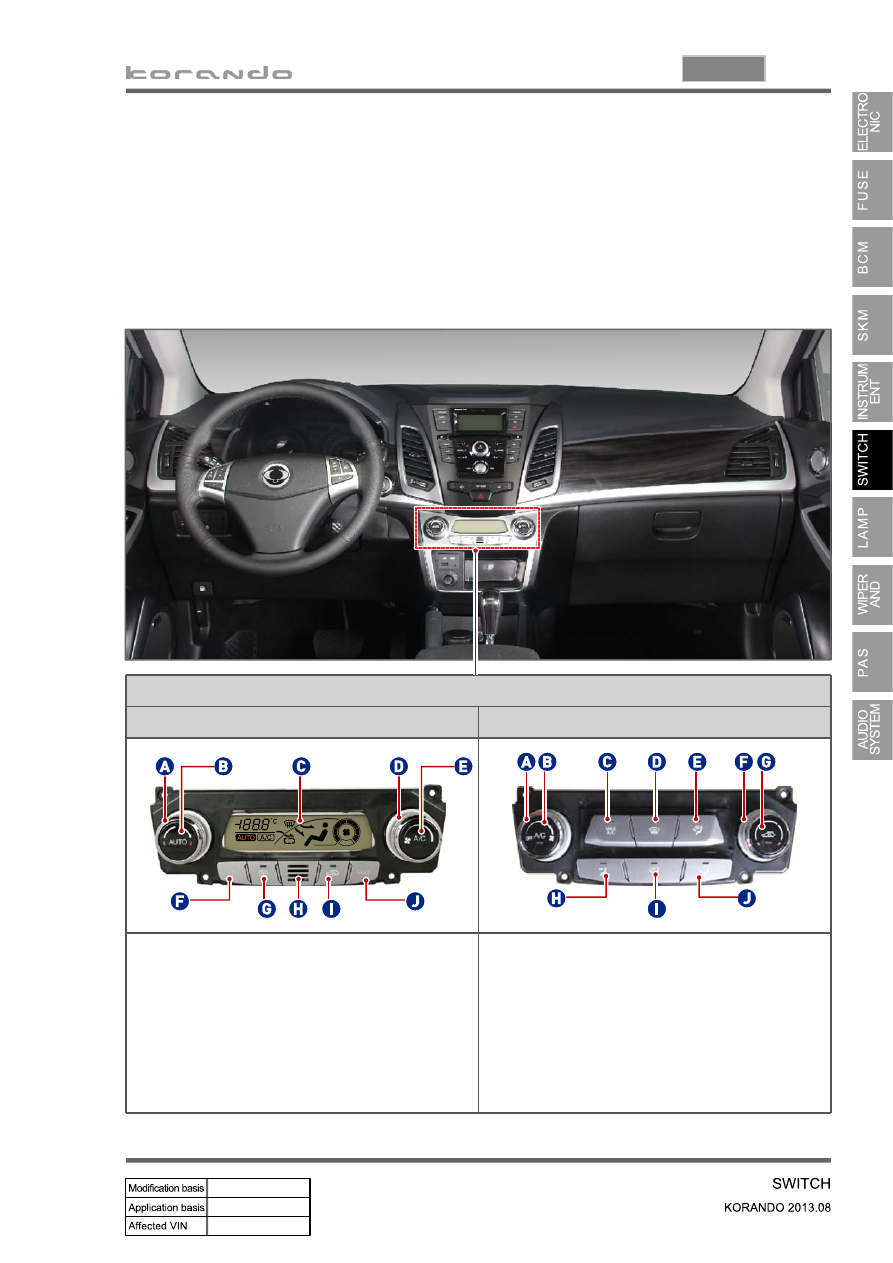

Heater and A/C control switch

Automatic

Manual

1) Overview

3. INTEGRATED INSTRUMENT PANEL SWITCH

It is mounted to the instrument panel and combined with the cooler; which provides cooling and

dehumidification by repeating the cycles of compression -> condensation -> expansion -> evaporation,

and heater; which controls the heating systemically in the course of circulating the coolant heated by the

engine heat to the heater. This allows the driver to maintain the indoor comfortable conditions throughout

the year.

Temperature control

dial

AUTO switch

LCD display

Fan speed dial

A/C switch

A.

B.

C.

D.

E.

ON/OFF switch

Defroster mode switch

Indoor temperature sensing

part

Air source selection switch

Air distribution switch

F.

G.

H.

I.

J.

Fan speed dial

A/C switch

MAX A/C switch

Defroster mode switch

Defroster & foot mode

switch

Temperature control dial

A.

B.

C.

D.

E.

F.

Air source selection switch

Vent mode switch

Bi-level mode switch

Foot mode switch

G.

H.

I.

J.

06-22

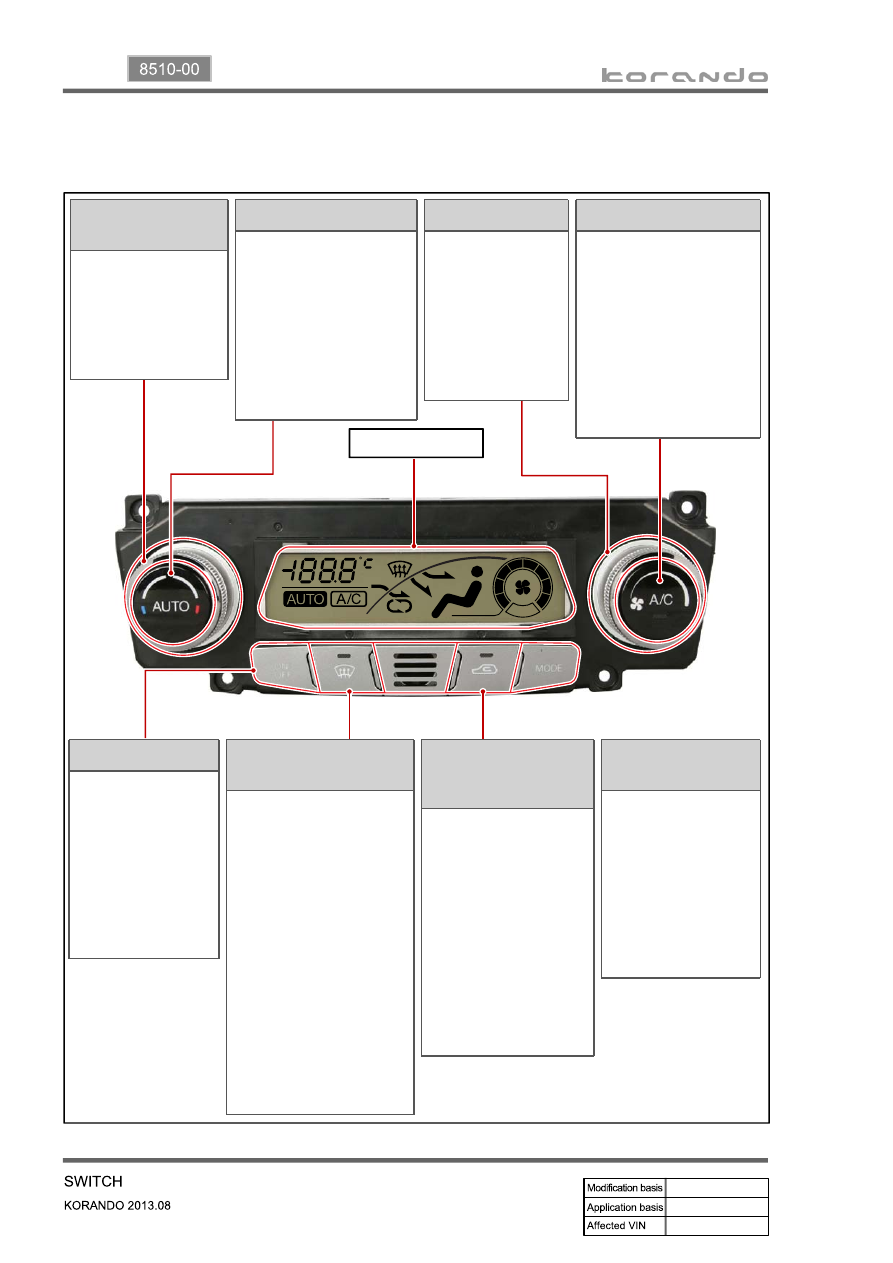

Temperature

control dial

To set the
temperature, turn the
dial to the left or right.
The LCD display
shows the set
temperature.

Fan speed dial

Turn the dial to the
left or right to adjust
the fan speed in 8
steps and the fan
speed can be
checked through
the LCD display.

Air source

selection

switch

When the switch is
pressed, the indicator
comes on and the
mode is switched to the
recirculation mode at
the same time. When
pressed again, the
indicator goes out and
switched to the fresh air
mode at the same time.

Description

▶

Automatic

a.

ON/OFF switch

Pressing the switch
turns the FATC
on/off. When the
FATC is turned on, it
memorizes the
previous status
before becoming off.

Air distribution

switch

The mode is switched
in the following order
each time the switch
is pressed: Vent
mode→Bi-level
mode→Foot
mode→Defroster &
Foot mode.

LCD display

AUTO switch

When pressing this
switch, "AUTO" is shown
on the display and the
fan speed and air
distribution mode are
adjusted automatically to
keep interior temperature
to the set temperature.

Defroster mode switch

This is used to remove
the condensation from the
windshield. When you
press the switch, the
indicator comes on and
the air distribution is
changed to the windshield
at the same time, then the
air conditioner starts to
operate. When you press
the switch again, the
indicator goes off and the
air distribution returns to
the previous status.

A/C switch

When the switch is
pressed, the indicator
comes on and the air
conditioner starts at the
same time. Pressing the
switch again gets the
indicator lamp go off and
the air conditioner stop at
the same time.
