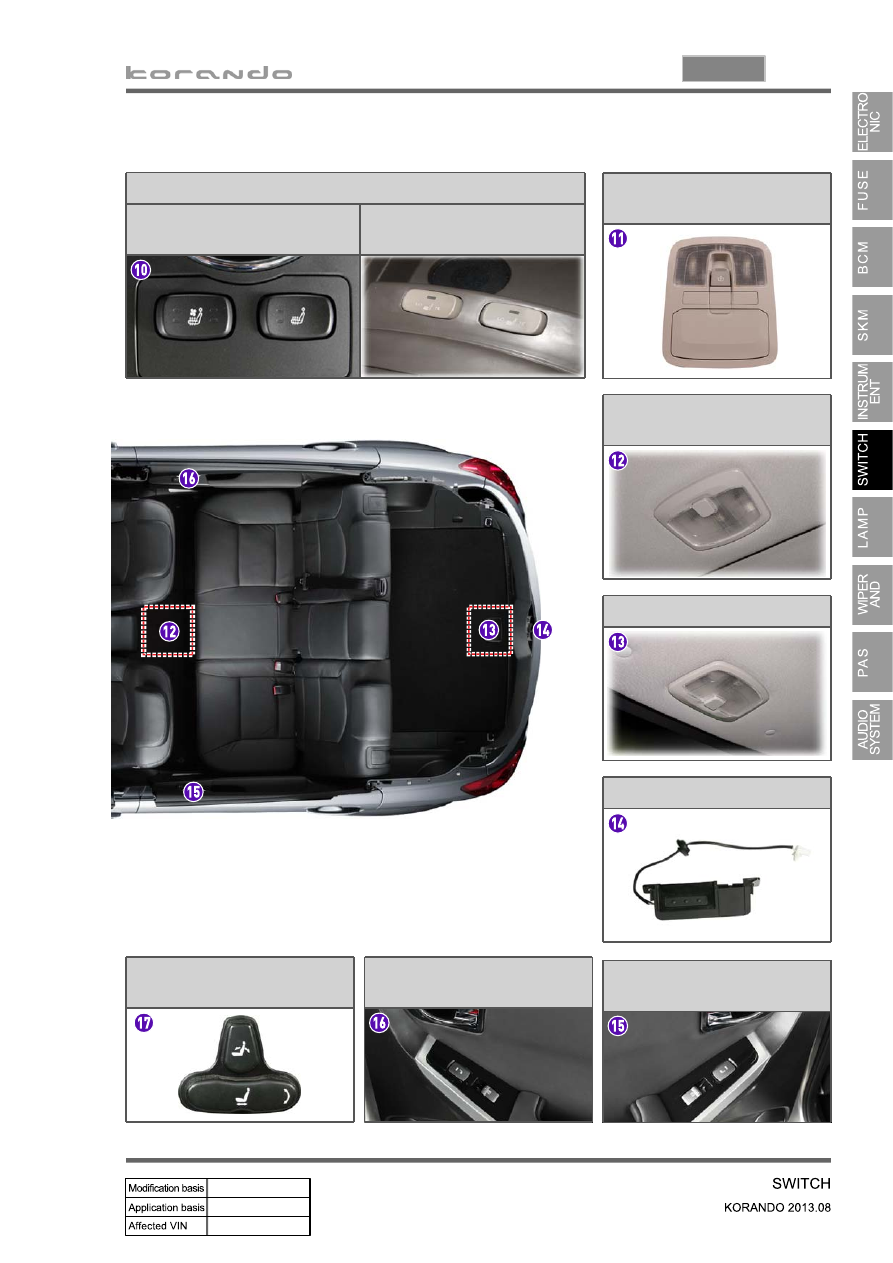

Rear door switch and

heating switch (RH)

Front seat heating and ventilation switch

With heating and ventilation

switch

With heating switch

Rear door switch and

heating switch (LH)

Driver power seat

switch

Tailgate switch

Luggage lamp switch

Center room lamp

switch

Overhead console

switch

06-12

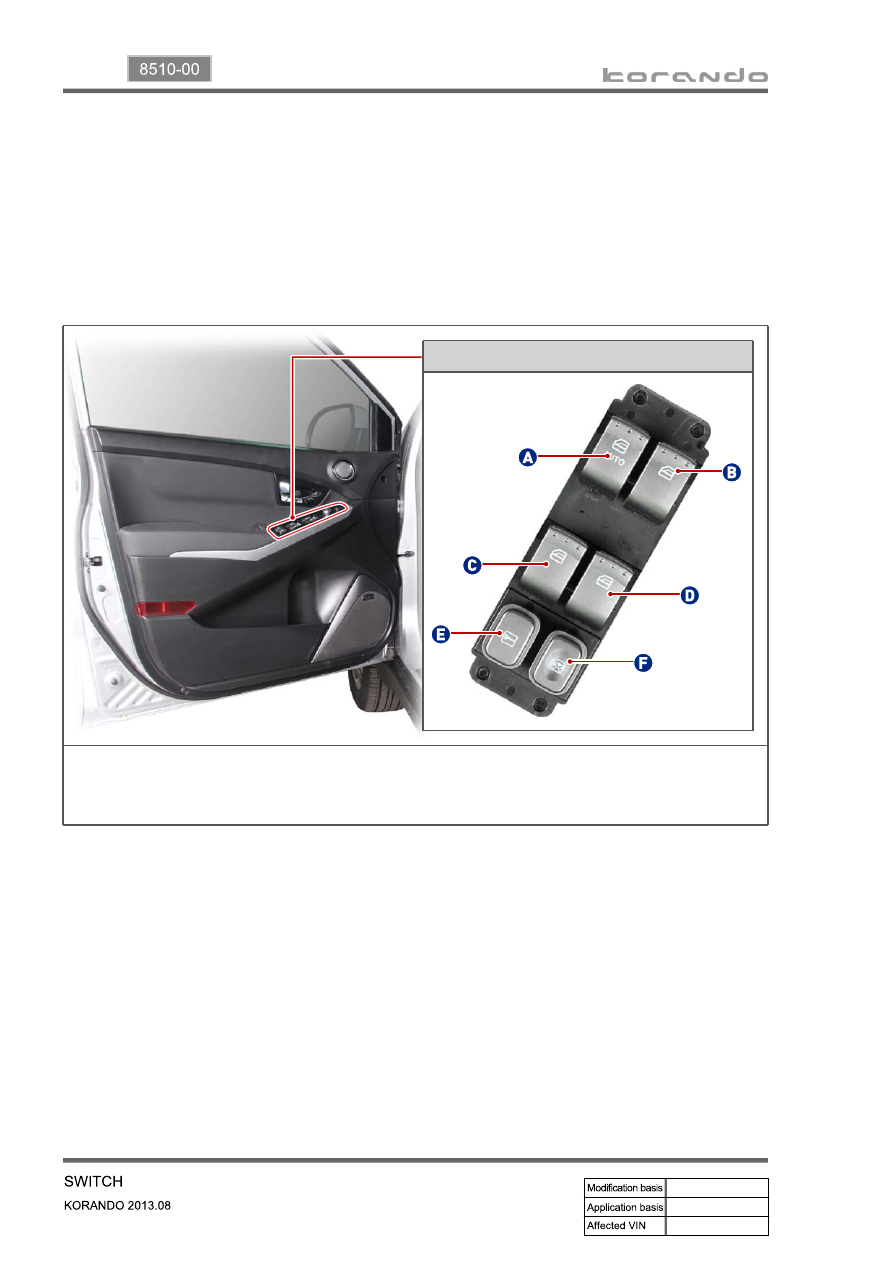

Driver door window switch

Passenger door window switch

Rear LH window switch

A.

B.

C.

Rear RH window switch

Door lock/unlock switch

Window lock switch

D.

E.

F.

Power window main switch

It is mounted to the door trim and can open or close the 4 windows. It has the switches which can lock or

unlock all the doors and windows. The window main switch has the auto open and close function (only

for driver), anti-trap system and driver window safety function.

Driver window safety function

▶

The anti-trap system enables the driver's window to automatically reverse when something is caught in

the window as it is closing. When the sensor detects an obstacle, the window will be lowered

immediately. The anti-trap safety system is available only for the driver's window equipped with the

automatic rolling up (Auto-up) function. The anti-trap safety system does not operate when the window

is about to touch its window frame.

1) Driver Door Switches

2. SWITCH CLUSTER ON DOOR TRIM

(1) Power window main switch

06-13

8510-00

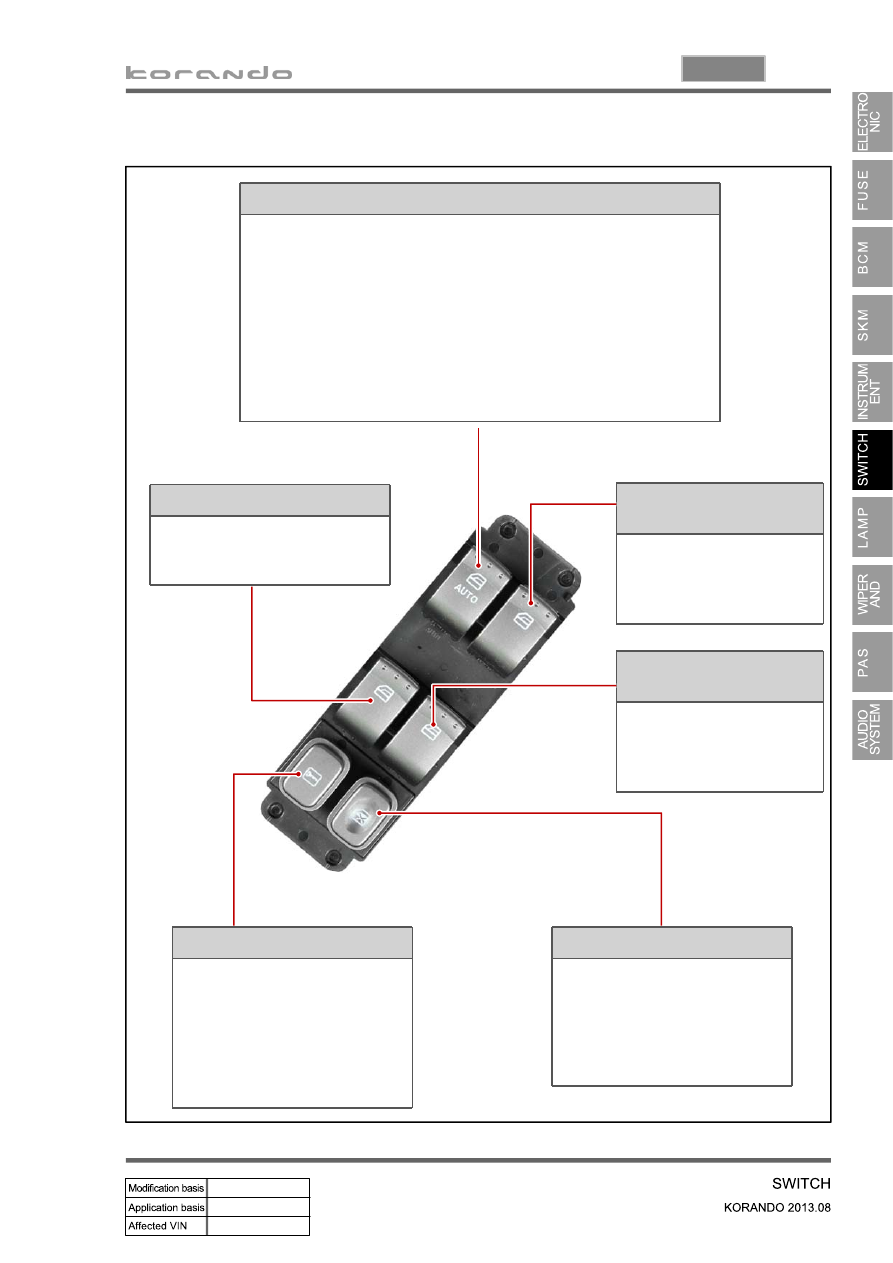

Door lock/unlock switch

When the door lock/unlock switch
is pressed while all doors
including the tailgate are locked,
all doors will be unlocked. When
the switch is pressed again, all
doors will be locked.

Window lock switch

If the window lock switch is
pressed down, only driver window
is operative. Passenger and rear
windows cannot be operated by
their switches.

Rear LH window switch

The window moves upwards or
downwards while this switch is
operated.

Passenger door

switch

The window moves upwards
or downwards while this
switch is operated.

Rear RH window

switch

The window moves upwards
or downwards while this
switch is operated.

Driver door window switch

The driver's door window switch has Auto down/Auto up function. The
window can be controlled within 30 seconds by activating the power
window relay even after turning off the ignition switch.
However, if any of front doors is opened or the Lock switch on the
remote control key is pressed (theft deterrent mode is activated)
during the delaying period, the delaying time is immediately canceled
(power window relay is deactivated).
There are two variants of this: only auto down and anti-trap (auto
down and auto up).

06-14

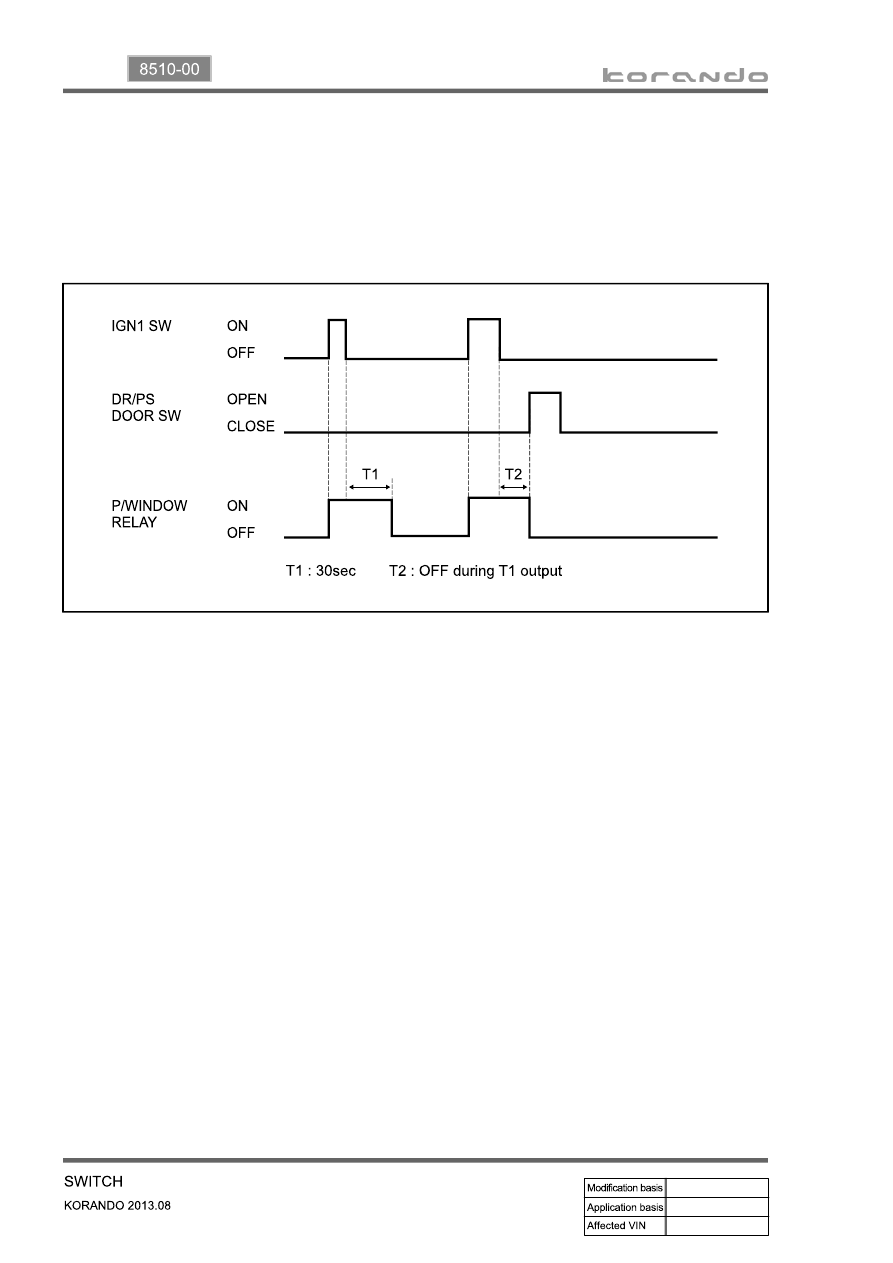

Time lag power window control

▶

When turning the ignition switch to ON position, the power window relay is turned ON.

The power window relay keeps ON for 30 seconds even when stopping the engine.

However, the power window relay is turned OFF when opening a front door.

When locking the door (activation of theft deterrent mode), the power window relay is immediately

turned OFF.

1.

2.

3.
