- Addition of driver seat ventilation switch and staged operation of switch
- Front seat heating & ventilation switches classified according to specifications
   Switch with heating & ventilation: 2nd step → 1st step → OFF
   Switch with heating: LO ↔ HI (same as conventional switch)

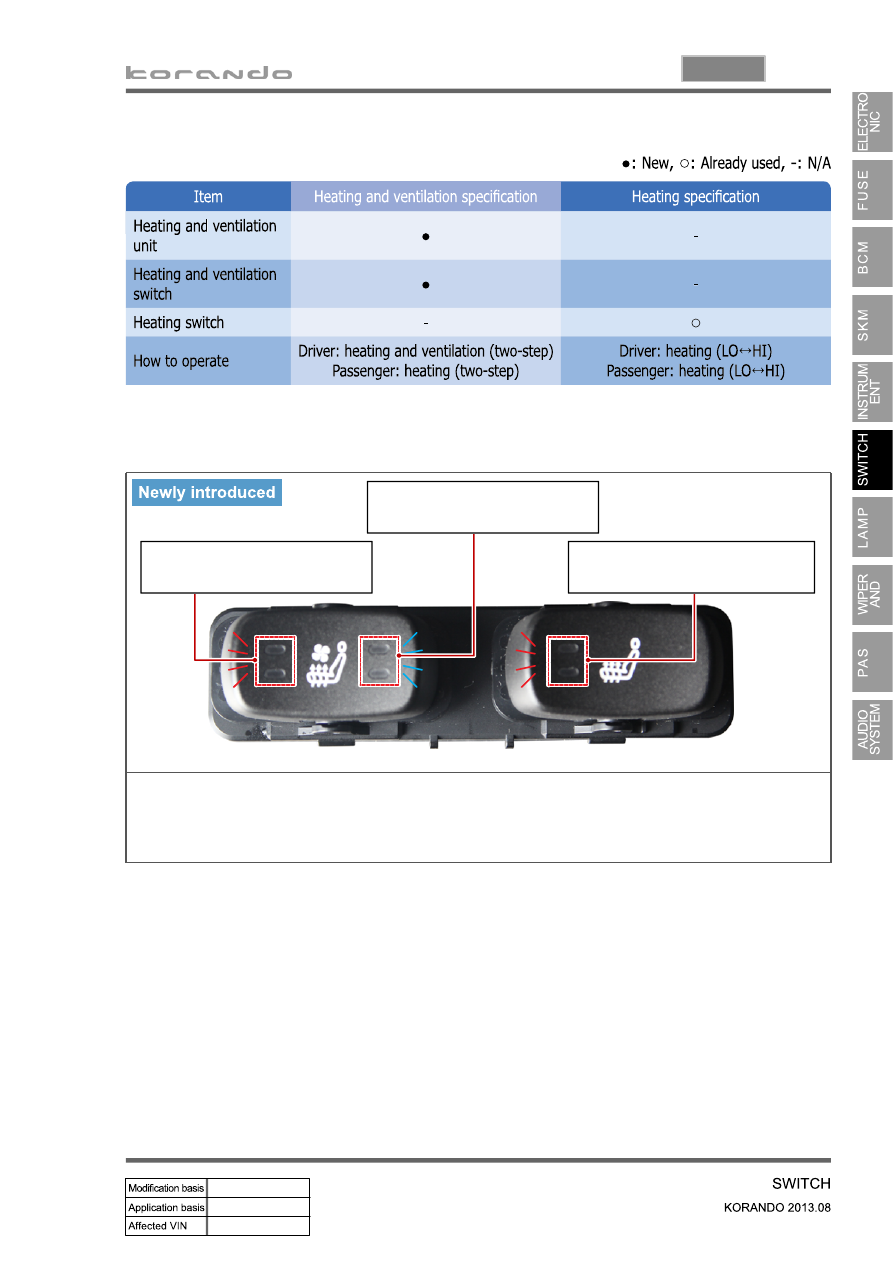

Front seat heating & ventilation switch (2-level of driver seat heating and ventilation, 2-level of

passenger seat heating)

▶

Driver seat heating switch
(2nd step → 1st step → OFF)

Driver seat ventilation switch
(2nd step → 1st step → OFF)

Passenger seat heating switch
(2nd step → 1st step → OFF)

Seat heating and ventilation unit & switch application

▶

06-8

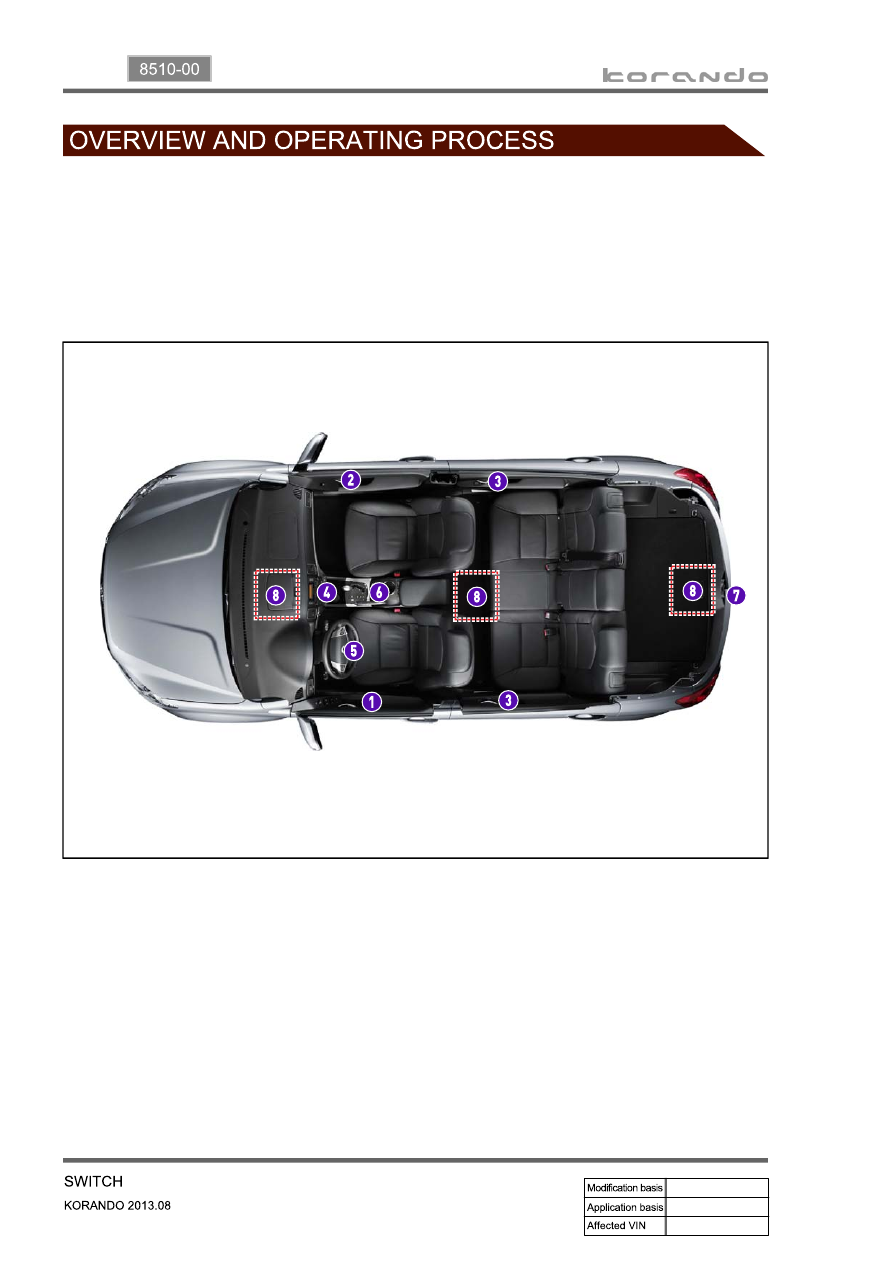

1. OVERVIEW

1) Mounting Locations

Door panel switch (driver)

Door panel switch (passenger)

Door panel switch (rear)

IP panel switch

Steering wheel switch

Front console switch

Trunk switch

Headlining switch

1.

2.

3.

4.

5.

6.

7.

8.

This helps to enable the driver to drive the vehicle safely and comfortably by operating the switch for the

driving situation.

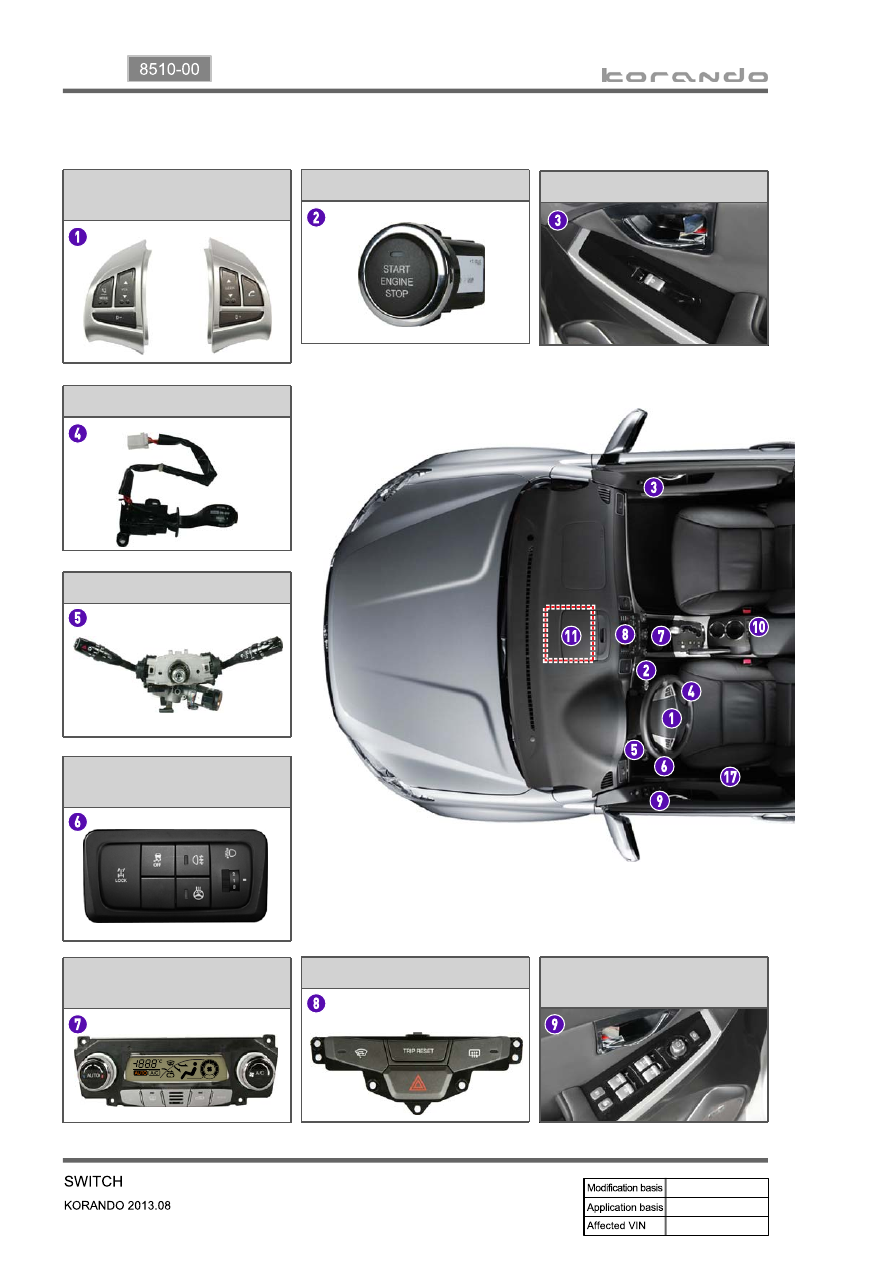

06-10

Drive door main switch

& outside mirror switch

Heater and A/C control switch

(auto)

Start/stop switch

Steering wheel remote

control switch

Center fascia switch

Passenger door switch

Lower main panel

switch

Cruise control switch

Multifunction switch

Switch layout

▶
