1. SPECIFICATIONS

Unit

Specification

Multifunction

switch

Rated voltage

DC 12 V

Rated

load

Multifunction

turn light

switch

Light switch

ON: 1 A (relay load)

Dimmer & passing

switch

High beam: 0.3 A (relay load)

Low beam: 0.3 A (relay load)

Passing: 0.3 A (relay load)

Turn signal lamp

switch

0.1 A (relay load)

AUTO hazard

warning flasher

switch

0.1 A (relay load)

Multifunction

wiper

switch

Wiper switch

LO: 0.1 A (relay load)

HI: 0.1 A (relay load)

AUTO: 0.22±0.05 A (relay load)

Fixed: Max. 0.1 A (relay load)

AUTO washer switch

0.1 A (relay load)

Washer switch

0.1 A (relay load)

Wiping speed control

switch

Max. 25 mA

Mist switch

0.1 A (relay load)

Rear wiper & washer

switch

Rear wiper: 0.1 A (relay load)

Multifunction switch

▶

06-4

Lower main switch

▶

Item

Specification

Lower main switch

4WD LOCK switch

DC 12V - 0.1A

ESP OFF switch

DC 12V - 0.1A

Steering wheel heating switch

DC 12V - 0.1A

Center fascia switch

▶

Item

Specification

Center fascia switch

Hazard warning flasher switch

DC 12V - 0.1A (max. 30 mA)

TRIP/RESET switch

DC 12V - 0.1A (max. 30 mA)

Windshield heating switch

DC 12V - 0.1A (max. 30 mA)

Rear glass and outside rearview mirror

heating switch

DC 12V - 0.1A (max. 30 mA)

Power window main switch

▶

Item

Specification

Power window main

switch

Rated voltage

DC 12 V

Operating voltage

DC 9 to 16 V

Rated load

AUTO switch

0.7 A (motor load)

AUTO/MANUAL switch

10 A (motor load)

Window lock switch

10 A (motor load)

Door unlock switch

0.4 A (motor load)

Power window sub switch

▶

Item

Specification

Power window sub

switch

Rated voltage

DC 12 V

Operating voltage

DC 9 to 16 V

Rated load

Manual switch

10 A (motor load)

06-5

8510-00

Audio remote control switch

▶

Cruise control switch

▶

Item

Specification

Cruise control switch

ON/OFF

DC 5V - 10mA

DECEL

DC 5V - 10mA

ACCEL

DC 5V - 10mA

 RESUME

DC 5V - 10mA

Item

Resistance

Output voltage

Audio

 remote control

switch

VOL -

0 Ω ± 5%

0 to 0.3 V

VOL +

3.3 KΩ ± 5%

0.4 to 1.0 V

MODE

6 KΩ ± 5%

1.1 to 1.4 V

MUTE

9.9 KΩ ± 5%

1.5 to 1.8 V

SEEK UP

16.7 KΩ ± 5%

1.9 to 2.25 V

SEEK DOWN

31.3 KΩ ± 5%

2.26 to 2.64 V

TIP -

670 Ω ± 5%

-

TIP +

1.08 KΩ ± 5%

-

Bluetooth

(hands-free)

64.7 KΩ ± 5%

2.66 to 3.0 V

Front seat heating and ventilation switch

▶

Item

Specification

Front seat heating

and ventilation switch

Driver seat heating switch

12V - 0.1A (max. 30 mA)

Driver seat ventilation switch

12V - 0.1A (max. 30 mA)

Passenger seat heating switch

12V - 0.1A (max. 30 mA)

06-6

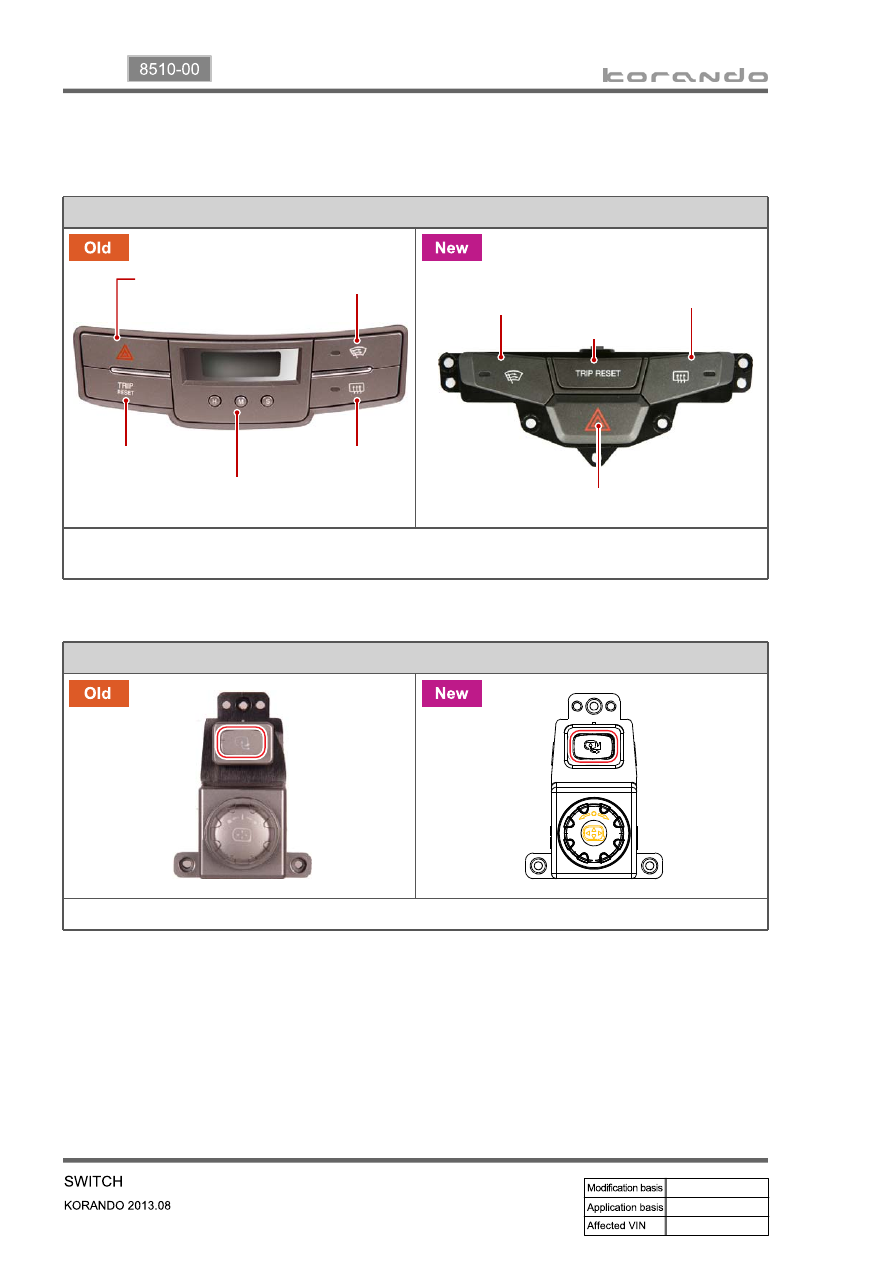

2. MAJOR CHANGES

Center fascia switch

▶

Center fascia switch

- Center fascia switch design and layout changed
- Digital clock switch deleted

Outside rearview mirror switch

▶

Outside mirror switch

- Changed from self-return type to push-lock type

Hazard warning flasher

switch

TRIP reset switch

Digital clock

Windshield

heating switch

Rear glass/outside

rearview mirror

heating switch

Windshield

heating switch

TRIP reset switch

Rear glass/outside

rearview mirror

heating switch

Hazard warning lamp switch
