SsangYong Korando III (2010 year). Manual - part 479

05-48

Pin No.

Message

Operating condition

Domestic

Export

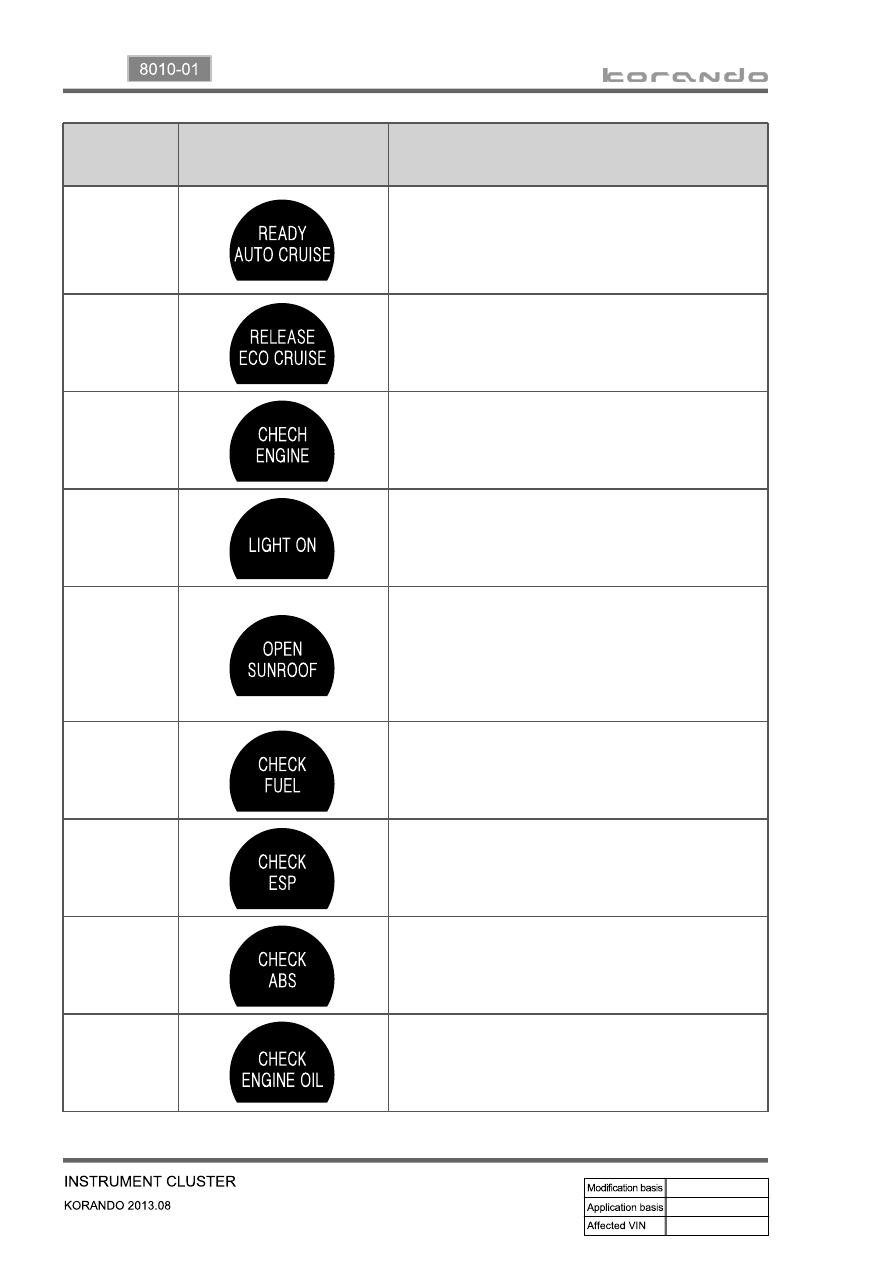

Cruise control

This message comes on when the ECO cruise mode
is deactivated.

EMS

This message comes on when the engine is faulty.

Lamp

This message comes on when the tail lamps are ON
with the ignition in the "OFF" or "ACC" position.

SUNROOF
SYSTEM

For the vehicle with SKM, this message comes on
when the sunroof is open with the ignition in the "OFF"
or "ACC" position. For the vehicle without SKM, this
comes on when the sunroof is open with the ignition in
the "OFF" position and the key removed.

Low fuel level

This message comes on when the remaining fuel is
insufficient.

ESP check

This message comes on when the ESP system is
faulty.

ABS check

This message comes on when the ABS system is
faulty.

Engine oil level
check

Message

Operating condition

Auto cruise

LCD display shows this message when turning on the
cruise control switch with ignition ON or engine
running. This message disappears when activating the
cruise control by operating “ACCEL” switch on the
cruise control lever.

05-49

8010-01

Pin No.

Message

Operating condition

Domestic

Export

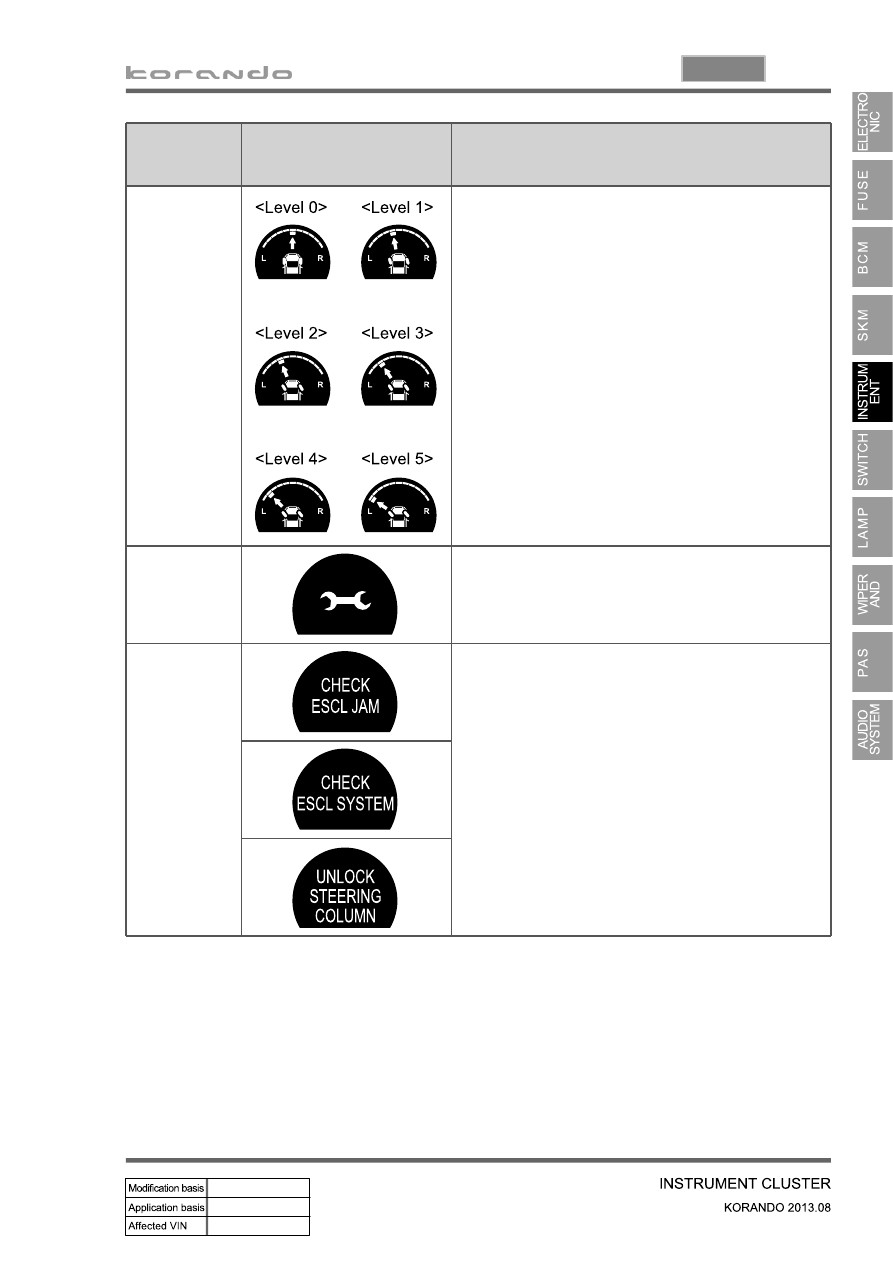

Tire alignment
(applies to
vehicle with
EPS)

CAN scan

(This message goes off when all the CAN signal inputs
are normal)

ESCL

LCD display shows this message when ESCL (Electric
Steering Column Lock) system is defective. There is
no specific ESCL warning light on the instrument
cluster.
This problem could be temporary. Turn the ignition off
and then on again to check if this message will be
disappeared.

This message helps the driver to predict the driving

direction since the tire alignment is displayed on the

instrument cluster.

The images on the left show that the tires are

aligned to the left. When the tires are aligned to the

right, the image is symmetrical vertically.

Tire alignment is displayed between level 0 and

level 5 depending on the alignment degree when

the ignition switch is turned to "ON" position from

"OFF" position with the shift lever in "P" or "N"

position. While the images up to level 2 comes on

for 5 seconds, the images from level 3 stay on.

These messages are not displayed when the EPS

check message is displayed.

-

-

-

-

Pin No.

Message

Operating condition

05-50

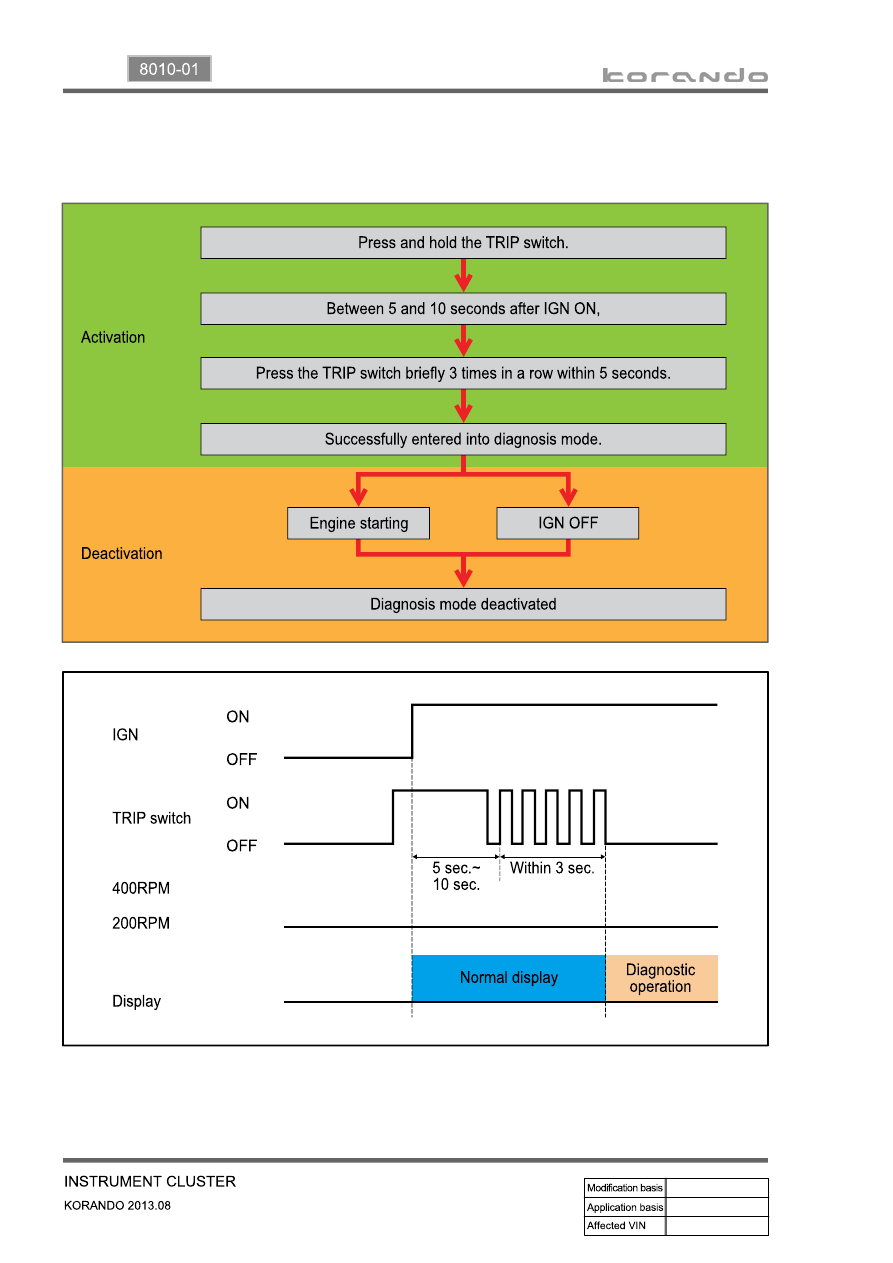

5. SELF DIAGNOSIS PROCESS

1) Self Diagnosis Process Mode

05-51

8010-01

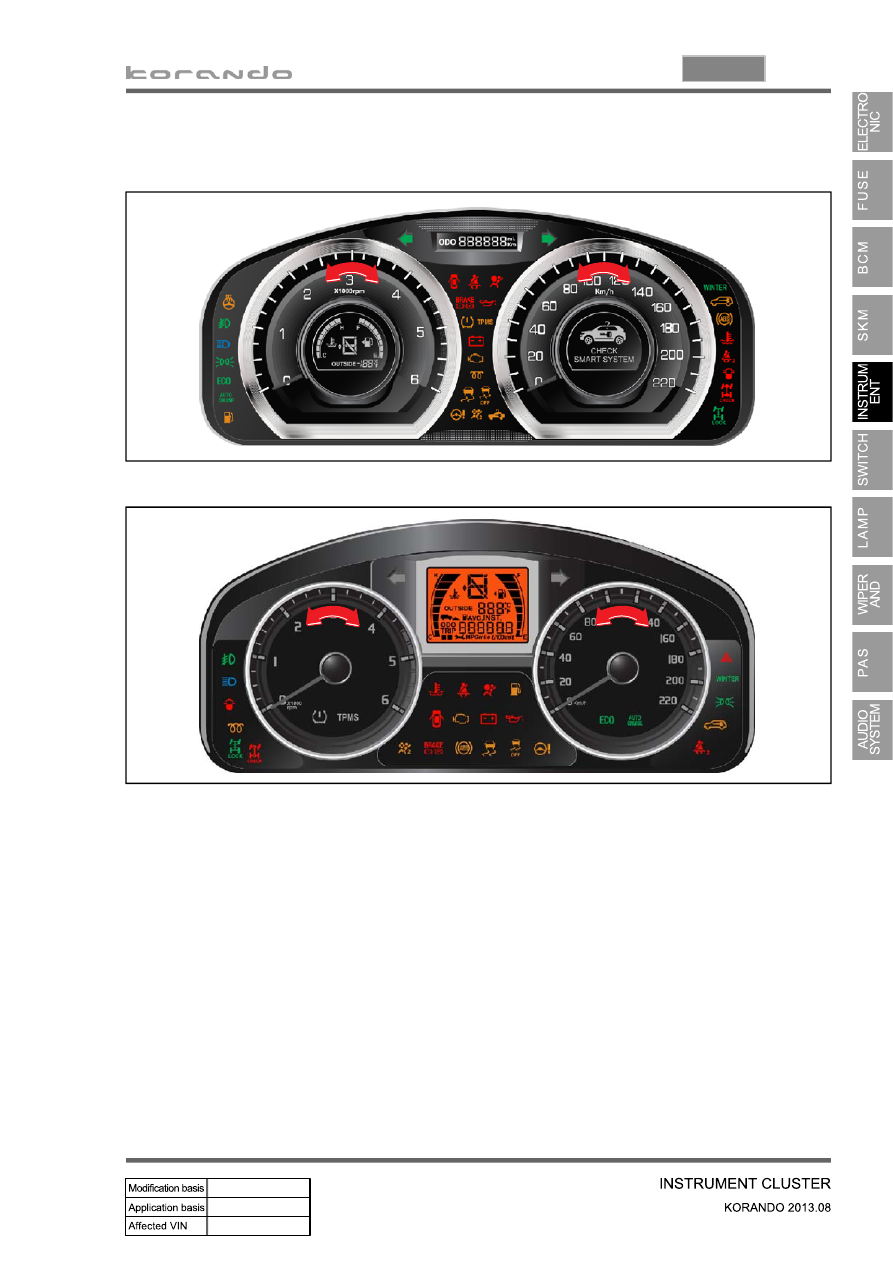

2) What Is Shown On Instrument Cluster

Supervision type

▶

Standard type

▶

(1) Self diagnosis for gauge

Speedometer/tachometer (RPM): Oscillates between lower mark and upper mark repeatedly.

-

(2) Self diagnosis for warning lamp and indicator lamp

All the warning lamps and indicator lamps come on by MICOM control (CAN communication) and

they blink if faulty.

(However, the wired type symbols such as air bag, LH/RH turn signal indicators, hazard warning

flasher, high beam, front fog lamp do not come on.)

-

(3) Miscellaneous

When entering into the self diagnosis mode, the instrument cluster illumination output will be 100%.

All the segments are ON.

-

-
