Timeout processing time for buzzer interval after measuring distance/self diagnosis: 600 ms

- If timeout is reached, the PAS returns to undetected condition.

Process while re-inputting

After timeout, the process is performed normally if the signal required for display is received from

beginning to end.

(not detectable if the signal is received in the midst of process)

1.

2.

Exception/error handling

-

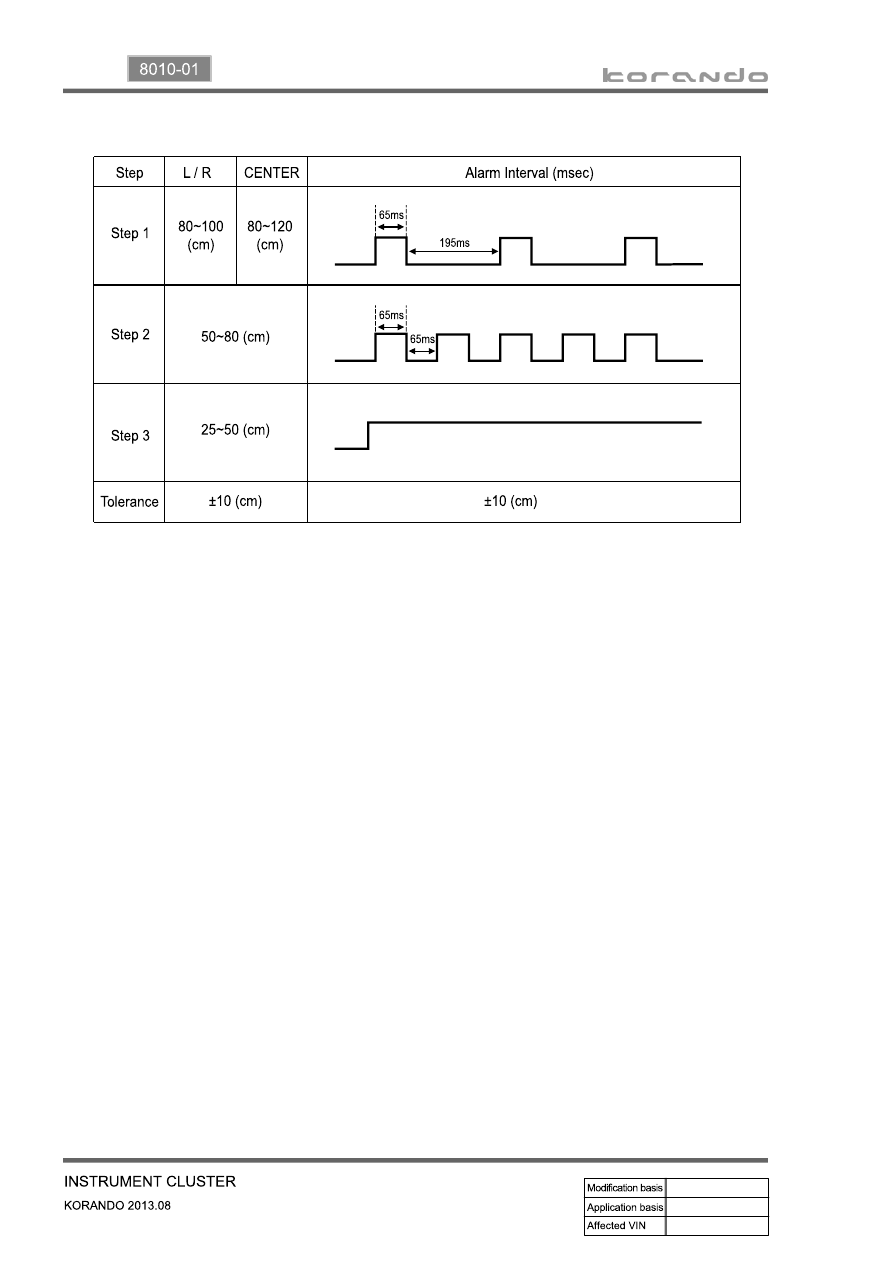

Buzzer interval when measuring distance

▶

05-45

8010-01

Pin No.

Message

Operating condition

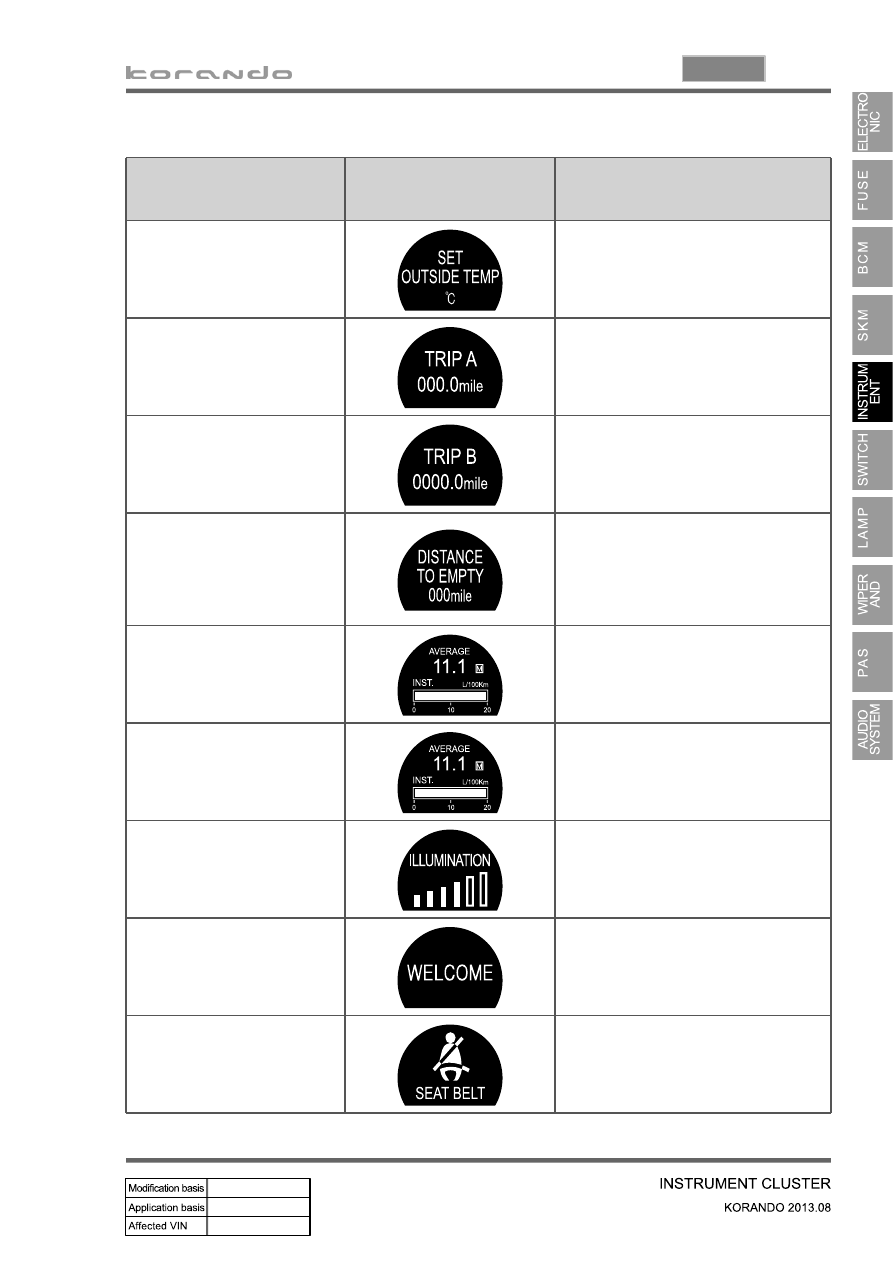

Ambient temperature:
indicates air temperature
outside control

TRIP switch

Trip A

Reset: Press and hold the Trip switch
for more than 1 second

Trip B

Reset: Press and hold the Trip switch
for more than 1 second

Distance to empty:
indicates a distance can be
driven with the fuel remaining
control

Factory-setting mode

Average fuel consumption:
indicates average fuel
control

Reset: Press and hold the Trip switch
for more than 1 second

Instant fuel consumption:
indicates fuel consumption for
a short periods

TRIP switch

Illumination brightness:
indicates tail lamp brightness
control

Brightness control: Press and hold the
Trip switch for more than 1 second

Start-up screen

LCD display shows this message for 2
seconds after ignition ON.

Driver's seat belt
reminder

LCD display shows this message for 4
seconds after “WELCOME”
message.

DOT LCD message display

▶

Pin No.

Message

Operating condition

05-46

Pin No.

Message

Operating condition

Domestic

Export

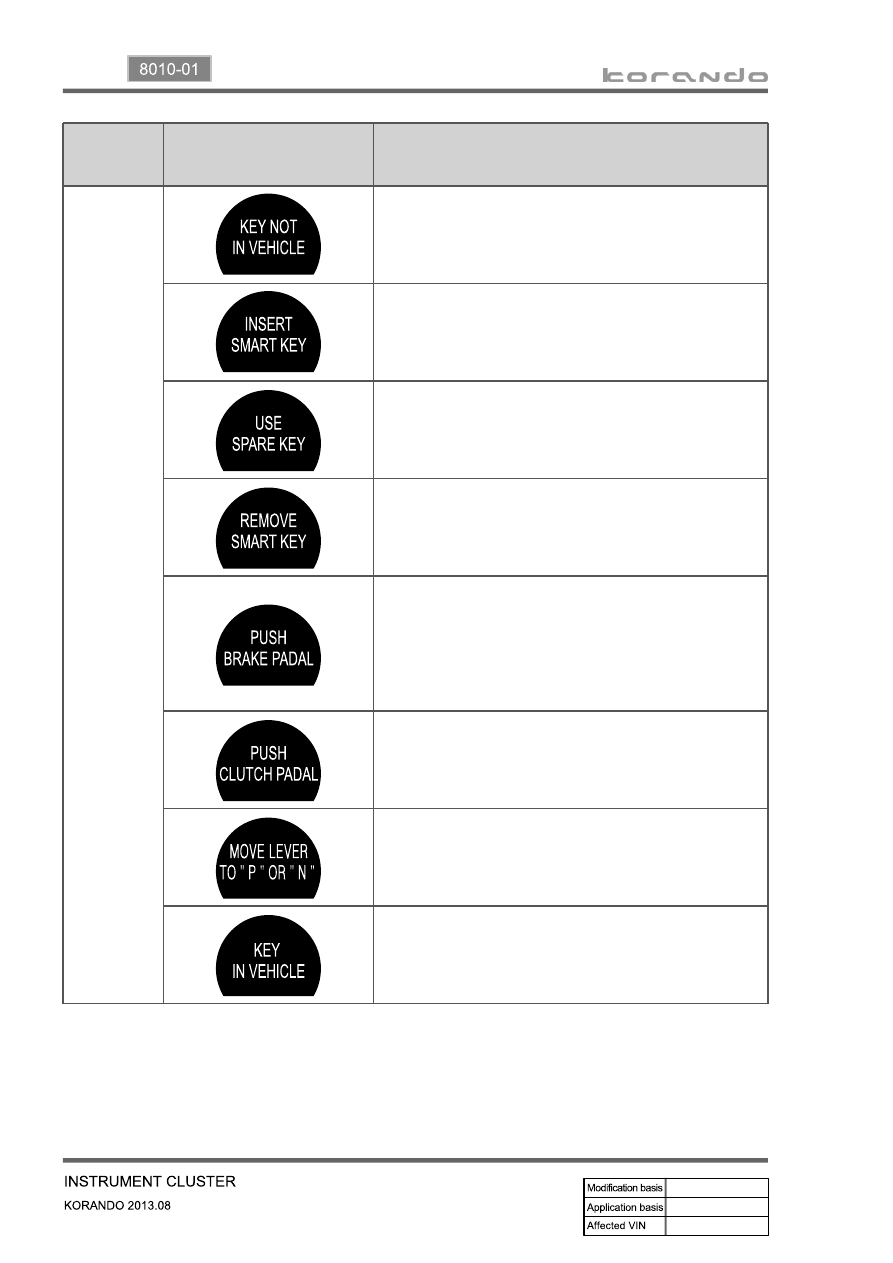

Smart key
warning

This message comes on the LCD display, if the smart
key is not in the vehicle when the door is open and
closed in the ignition ON or ACC mode.

This message comes on the LCD display for approx. 10
seconds, if the ignition switch is pressed when the smart
key is not in the vehicle.

This message comes on the LCD display for approx. 10
seconds, if the smart key verification fails after inserting
the smart key into the key holder.

LCD display shows this message and Smart key
reminder sounds for 10 seconds when you open the
driver’s door with engine OFF and Smart key inserted
in the Smart key holder.

This message informs the driver that the brake pedal
should be depressed and the ignition switch be pressed
in order to start the engine, if the ignition is switched to
ACC mode for more than one time when the driver keeps
pressing the ignition switch without depressing the brake
pedal.

LCD display shows this message when you press the
ignition switch without depressing the clutch pedal.

This message comes on for approx. 10 seconds to
inform the driver that the ignition switch should be
pressed with the shift lever in P in order to start the
engine.

When a Smart key is inside the vehicle and all doors are
closed, LCD display shows this message if you press the
Lock button on the other Smart key.

Pin No.

Message

Operating condition

05-47

8010-01

Pin No.

Message

Operating condition

Domestic

Export

Smart key
warning

LCD display shows this message for 10 seconds
when the ignition switch or Smart key system is
defective.

This message comes on for approx. 10 seconds if
the low smart key battery is detected when the
ignition switch is pressed or the engine is started.

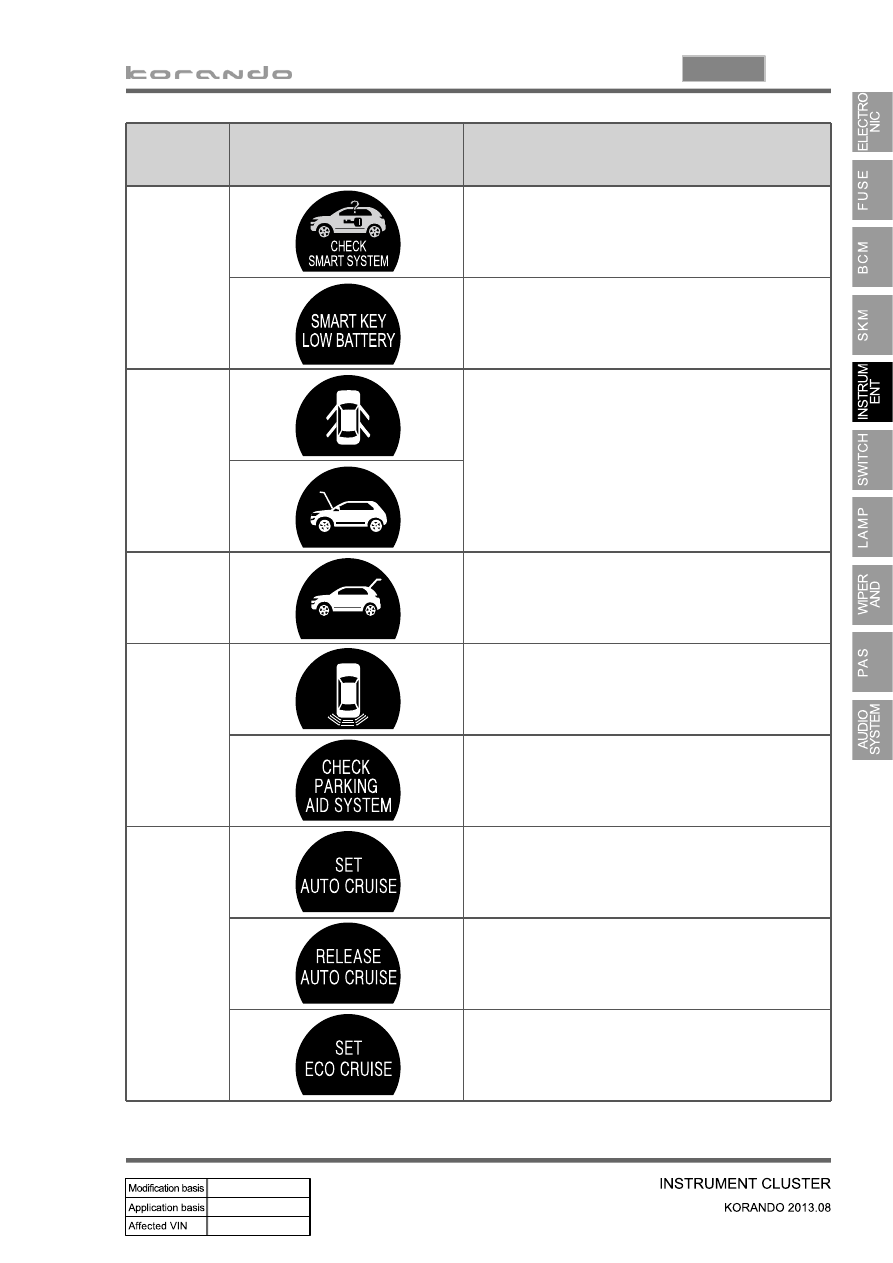

Door/PAS

LCD display shows this message when the door,
engine hood or tailgate is open.

Parking aid
system

If any obstacle is detected in the rear of the vehicle
when the shift lever is moved to "R" position with IGN
ON, each sensor shows its position and distance.

If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the
same way as the PAS distance measurement mode.

Cruise
control

This message comes on when the cruise control
system is activated.

This message comes on when the cruise control
system is deactivated.

This message comes on when the cruise switch is
moved to the ECO position.

Pin No.

Message

Operating condition

Tailgate

If the tailgate is open, open status messages are
displayed in 4-step graphics.
