SsangYong Korando III (2010 year). Manual - part 476

05-36

Function

Signal

Remark

Display type

3 digits LCD

Display range

50 km ~ 999 km
(30 miles ~ 999 miles)

Resolution

1 km (mile)

Display interval

every 1 seconds

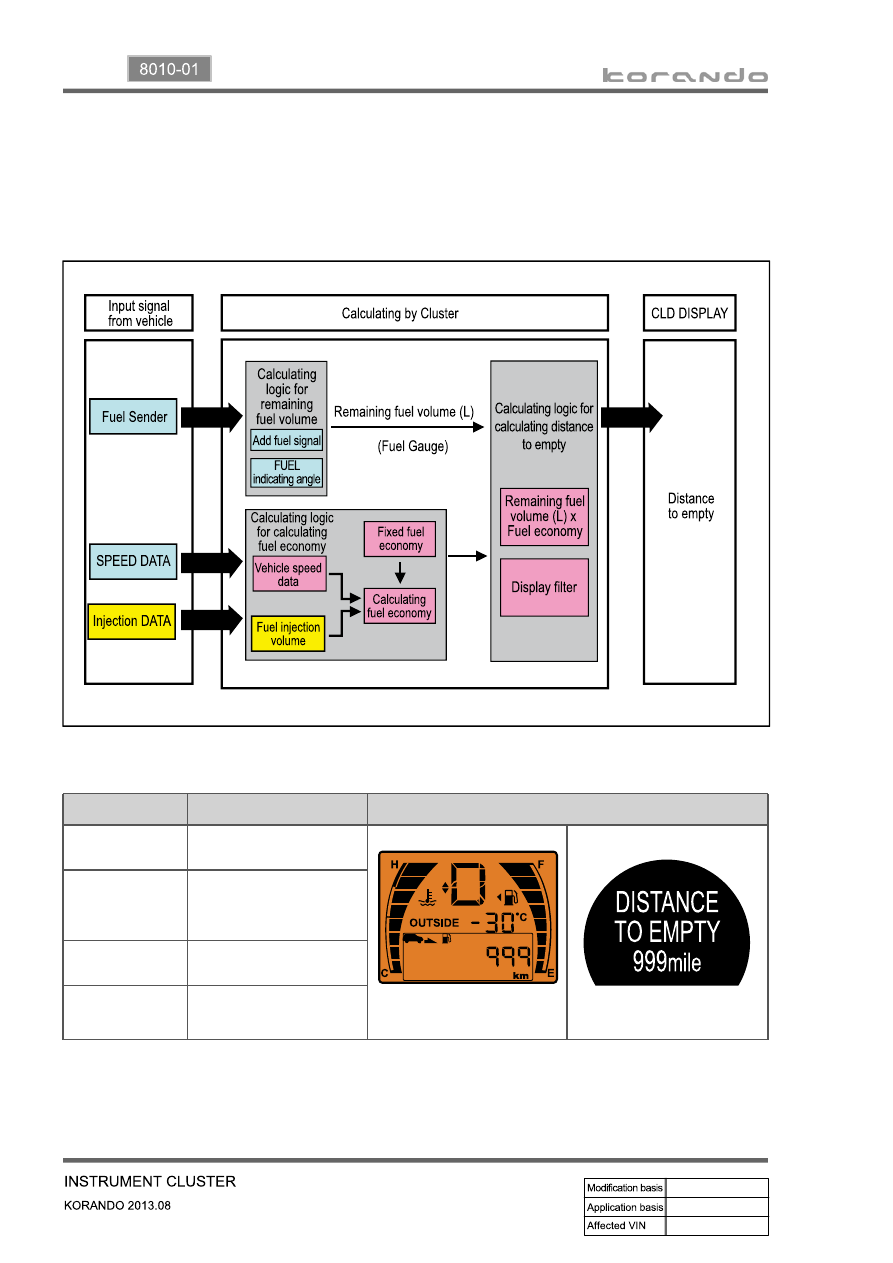

(1) DTE (Distance To Empty) Mode

The DTE (distance to empty) function is an estimation on how much further the vehicle can be driven with

the fuel remaining in the tank, based on the previous driving pattern (fuel economy).

7) Display Mode

STD Class Odometer Display & Data Storage

▶

<STD>

<SVC>

05-37

8010-01

Function

Signal

Remark

Display type

3 digits LCD

Display range 0.0 km ~ 99.9 km

(0 miles~99.9 miles)

Resolution

0.1 km (mile)

Display
interval

every 10 seconds

Data clear

- Disconnect B+
   voltage
- Press and hold
  Reset switch for
  more than 1 sec.
- Reset automatically
  when refilling

Standard type
- Drives at speed of 1 km/h or higher after refueling
- Press TRIP switch for more than 1 sec.

Supervision type
- To set reset ON/OFF when driving at speed of 1 km/h or higher after refueling
A) For auto reset
- Drive at speed of 1 km/h or higher after refueling
- Menu is not reset when pressing TRIP switch for more than 1 sec.
- Changed to manual setting when pressing TRIP switch for more than 5 sec.
B) For manual reset
- Menu is not reset when driving at speed or 1 km/h or higher after refueling
  Menu is reset when pressing TRIP switch for more than 1 sec.
- Changed to automatic setting when pressing TRIP switch for more than 5 sec.

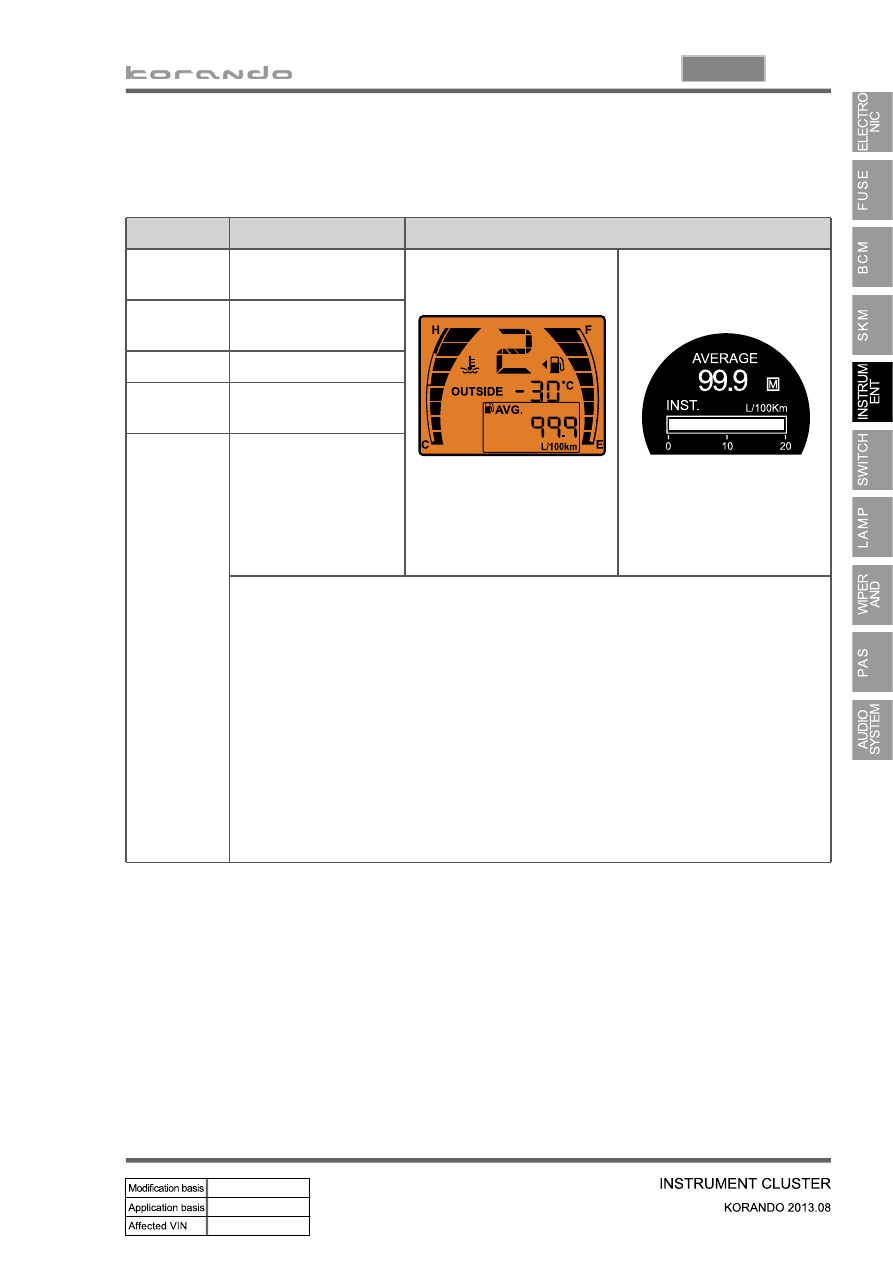

(2) Average Fuel Consumption Mode

The LCD display indicates average fuel consumption calculated based on total driving distance and total

fuel consumption since B+ power supply or data reset.

<STD>

<SVC>

05-38

When the ignition is switched on and the vehicle is drived more than 10 km, average fuel consumption

is displayed at every 200 ms, based on the fuel consumption and driving distance for 600 ms.

-

Function

Signal

Remark

Display type

DOT BAR TYPE(92DOT)

Display range

0.0 ~ 20(ℓ/100km, km/ℓ)/ 0.0 ~ 50(MPG)

Resolution
(DOT)

0.2174(ℓ/100km, km/ℓ per Bar),
0.5435(MPG per Bar)

Display interval

every 200ms(25℃)

<SVC>

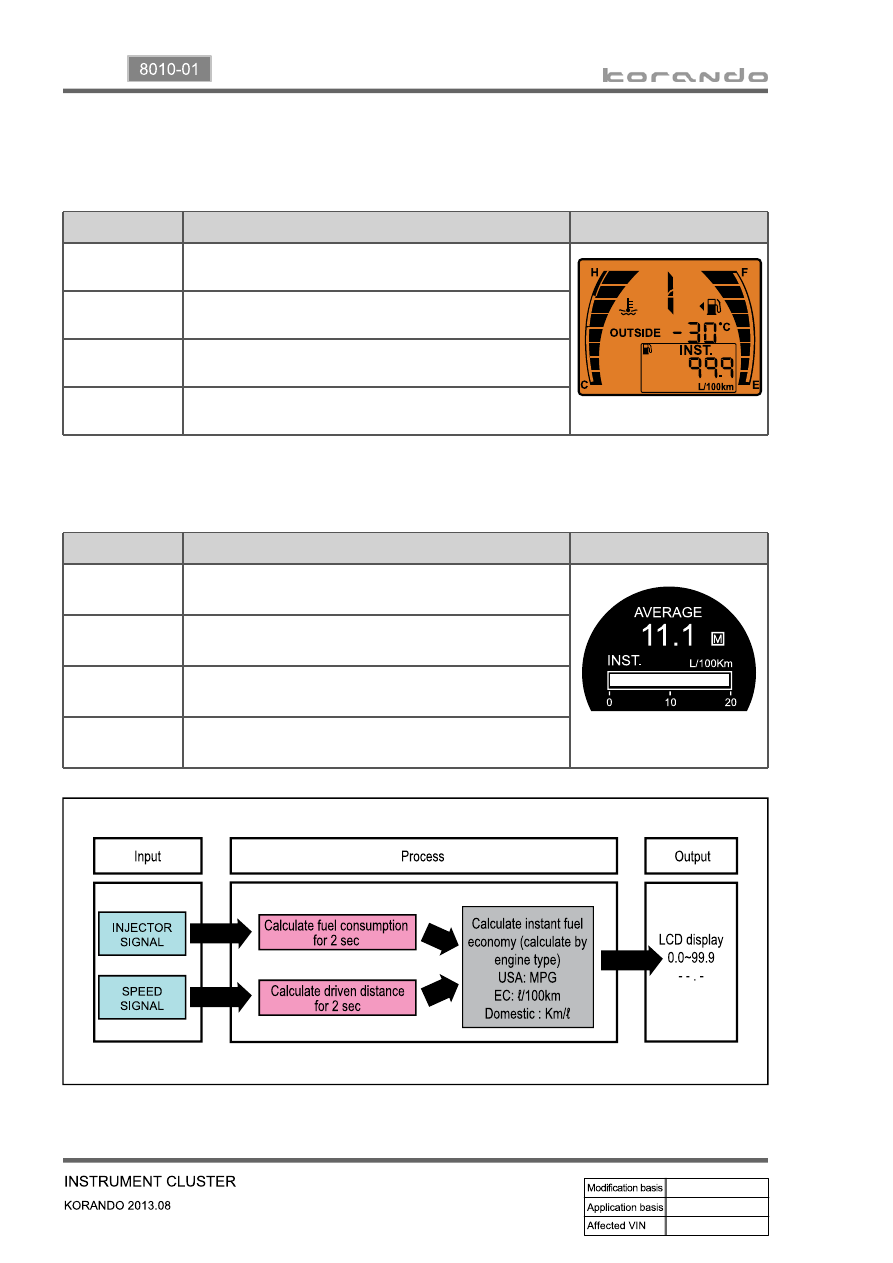

(3) Instant Fuel Consumption Mode

The LCD display indicates the instant fuel consumption (for 2 seconds) calculated based on driving

distance and fuel consumption for last 2 seconds.

Function

Signal

Remark

Display type

3 digits LCD

Display range

0.0 ~ 99.9
(MPG, ℓ/100 km, km/ℓ)

Resolution

0.1 km (mile)

Display interval

every 2 seconds

<STD>

05-39

8010-01

SVC class instrument cluster

STD class instrument cluster

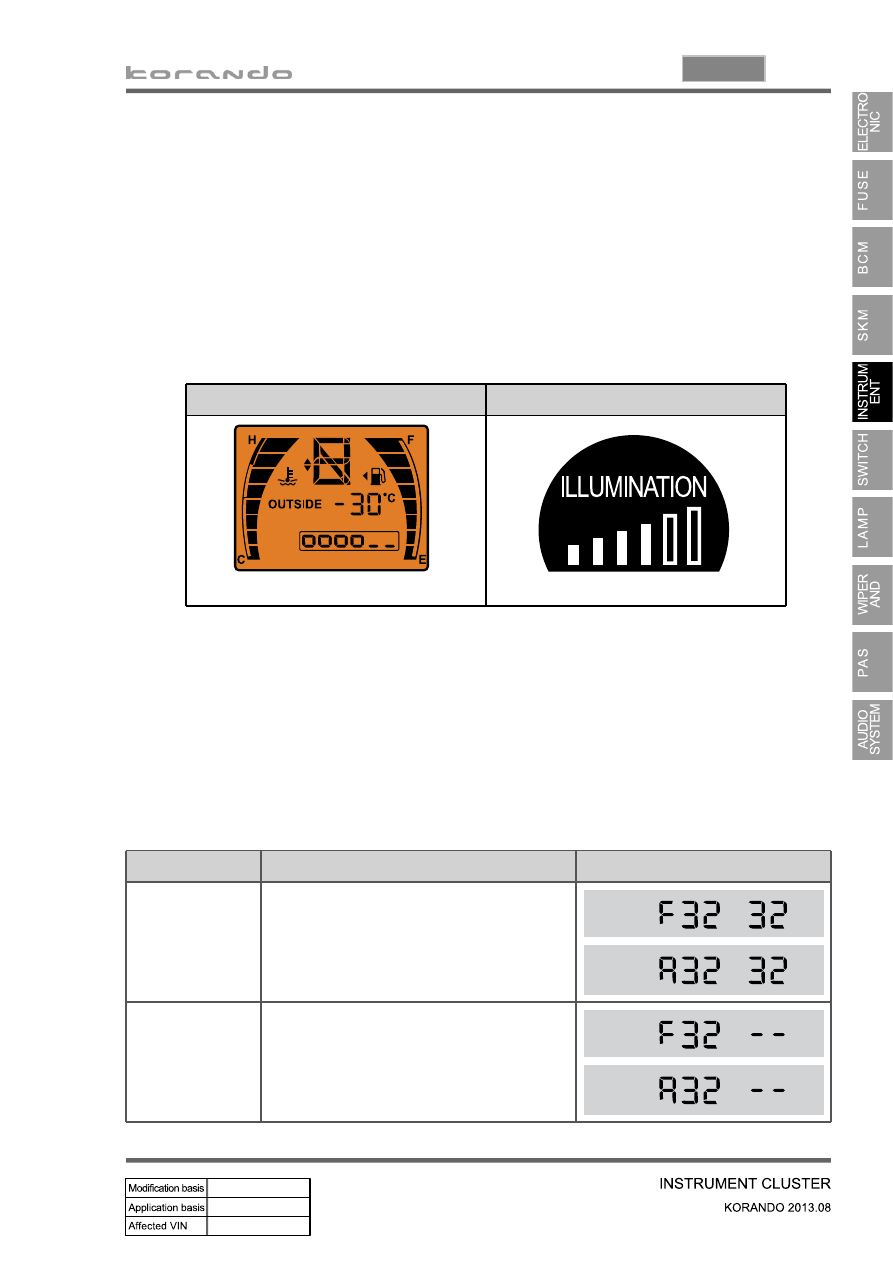

(4) Illumination Mode

TRIP/RESET switch

▶

Press for less than 1 second: change to next mode

Press for more than 1 second:

: Enter into illumination level mode
→ Level changes by 1 step up and down when pressing the switch for more than

    1 second on consecutively illumination mode
    (e.g. Level 4 → 5 → 6 → 5 → 4 → 3 → 2 → 1)

If the Trip/Reset switch is not pressed within 3 seconds after getting into the illumination mode, the

LCD changes to next mode.

-

-

-

<STD>

<SVC>

(5) TPMS mode

The TPMS (Tire Pressure Monitoring System) monitors each tire's status and warns a driver for

dangerous situations.

At initial start (more than 20 minutes have elapsed after ignition off), the tire pressure is not

determined. It can be displayed after 10 minutes of driving at speed of 20 km/h or higher.

-

-

Standard type

▶

Pressing the TRIP switch at the illumination brightness mode shows the items in the following order:

TPMS (front)->TPMS (rear).

Status

Operating conditions

Display

Tire pressure
display

At initial start (more than 20 minutes have
elapsed after ignition off), the tire pressure is
not determined. It can be displayed after 10
minutes of driving at speed of 20 km/h or
higher.

FR - display
RR - display

If the tire pressure is abnormal when it is not
detected, ‘--’ is displayed.
The standard type instrument cluster shows
only tire pressure and ‘--’.
