05-28

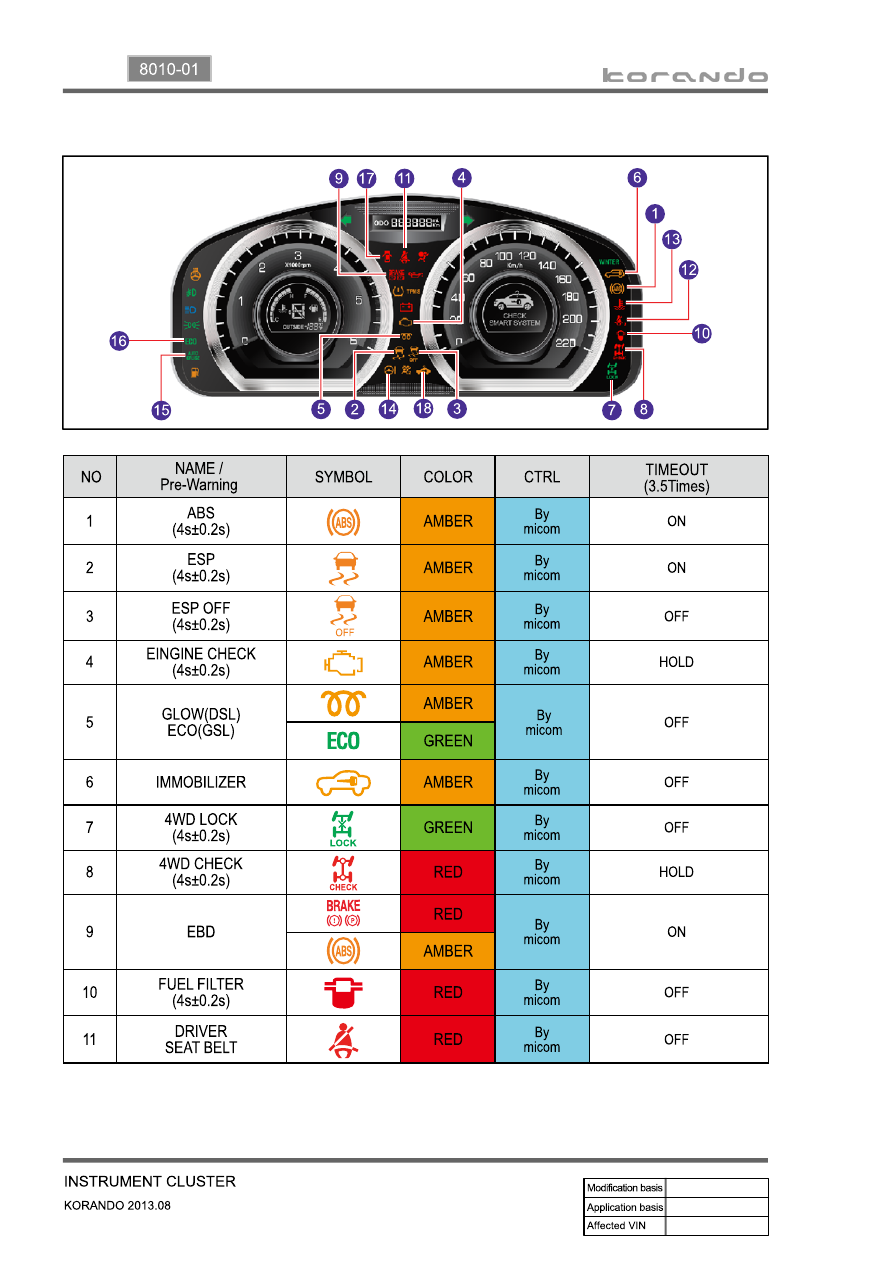

Symbols in SVC (via CAN)

▶

05-29

8010-01

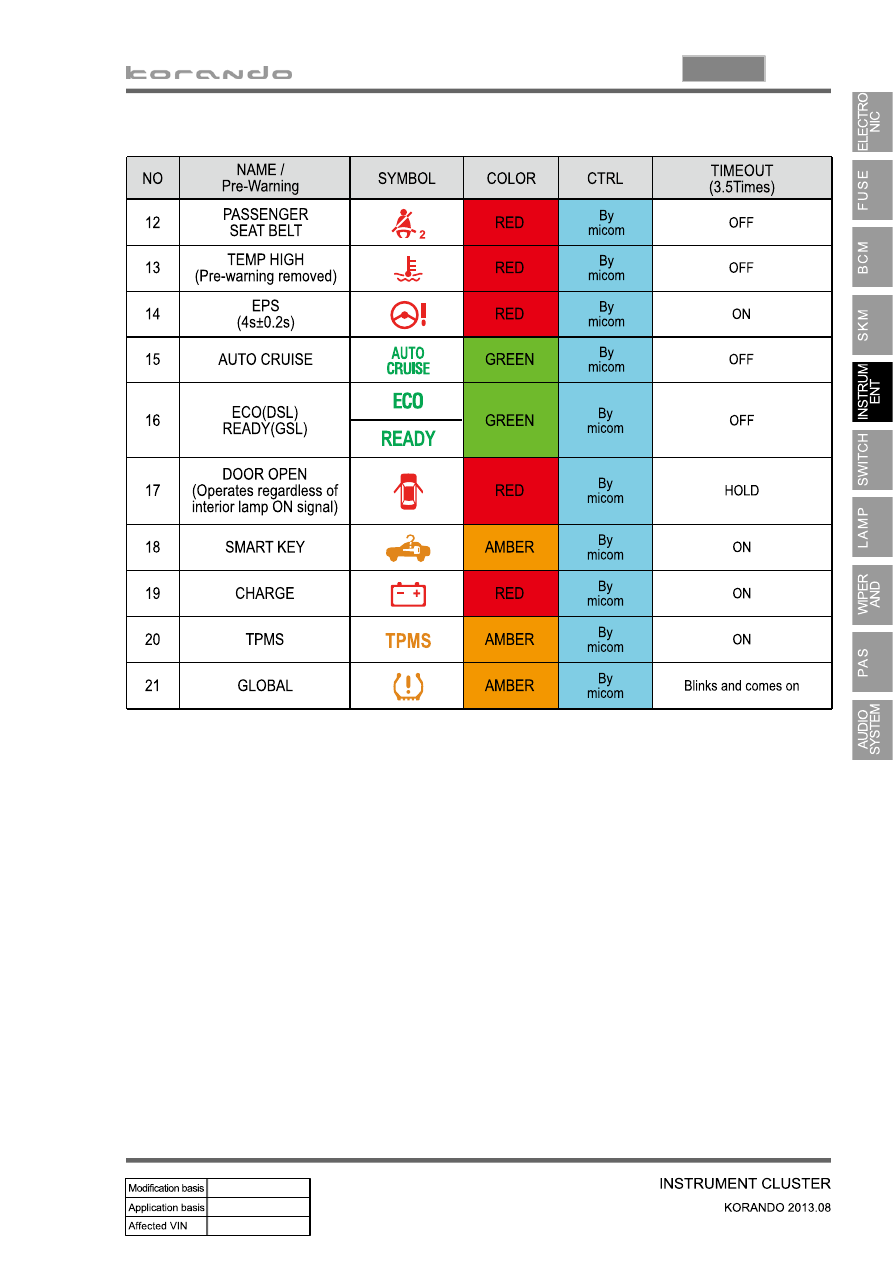

The pre-warning of the MICOM control warning is performed 400 ms after turning the ignition switch to

ON position.

IGN ON detecting time: 40~80 ms after turning ignition switch to ON position

-

-

The pre-warning is performed for 4 seconds after turning the ignition switch to ON position. BCM checks

that the warning lamps (ABS, ESP, ESP OFF, 4WD CHECK, 4WD LOCK) are matched with CAN

signals.

The pre-warning is performed by the variant code.

05-30

(2) STD

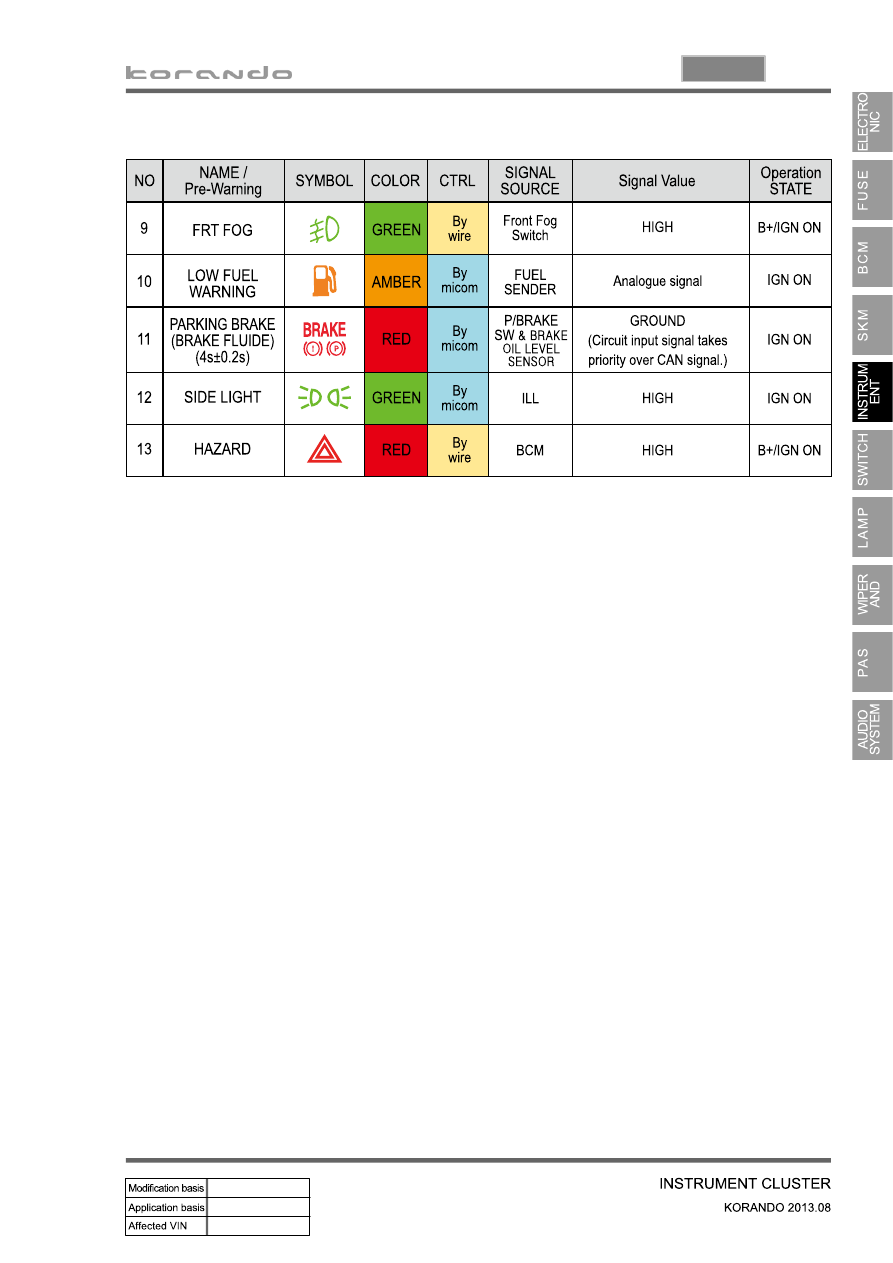

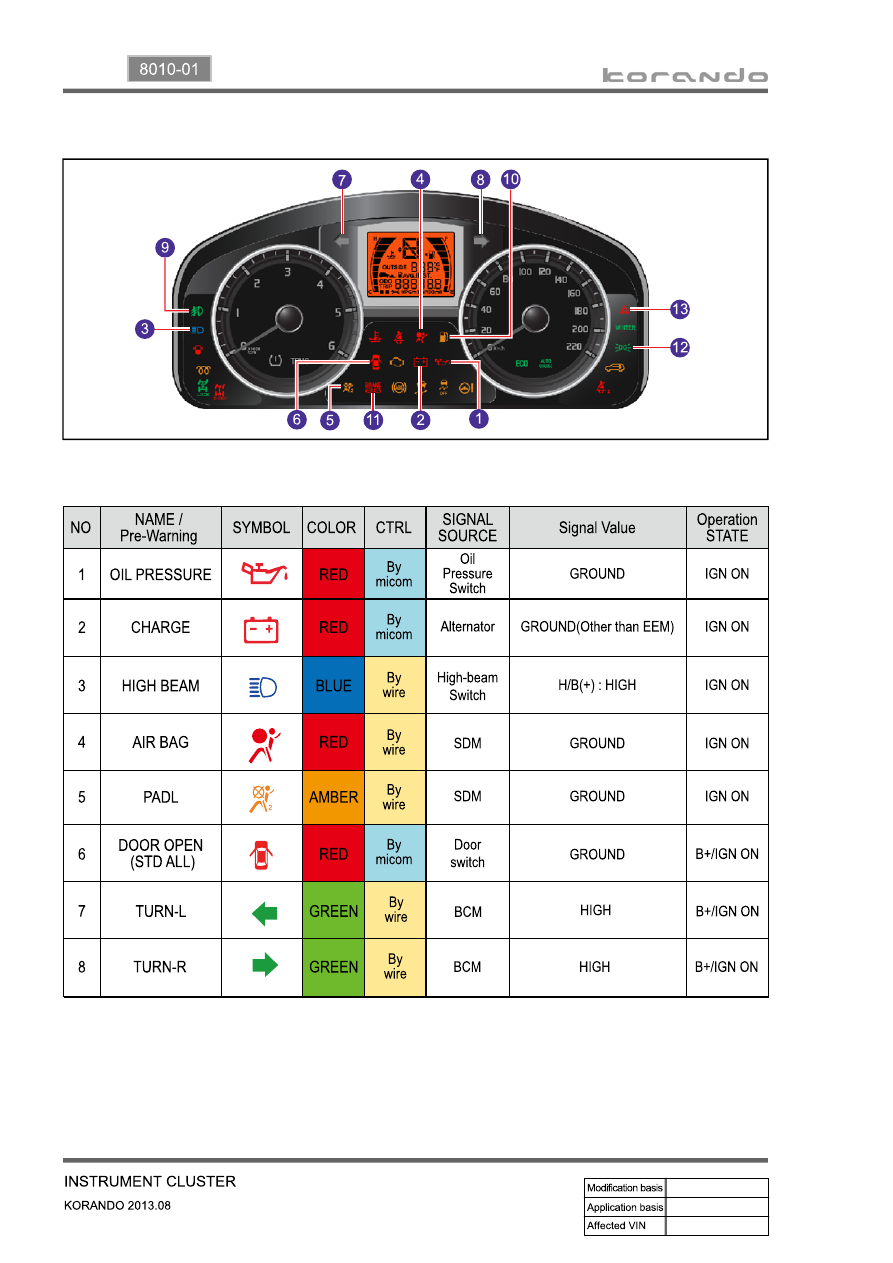

Symbols in STD

▶

05-31

8010-01

The pre-warning of the MICOM control warning is performed 400 ms after turning the ignition switch

to ON position.

IGN ON detecting time: 40~80 ms after turning ignition switch to ON position

-

-

The pre-warning is performed for 4 seconds after turning the ignition switch to ON position. BCM checks

that the warning lamps (ABS, ESP, ESP OFF, 4WD CHECK, 4WD LOCK) are matched with CAN

signals.

The pre-warning is performed by the variant code.
