05-24

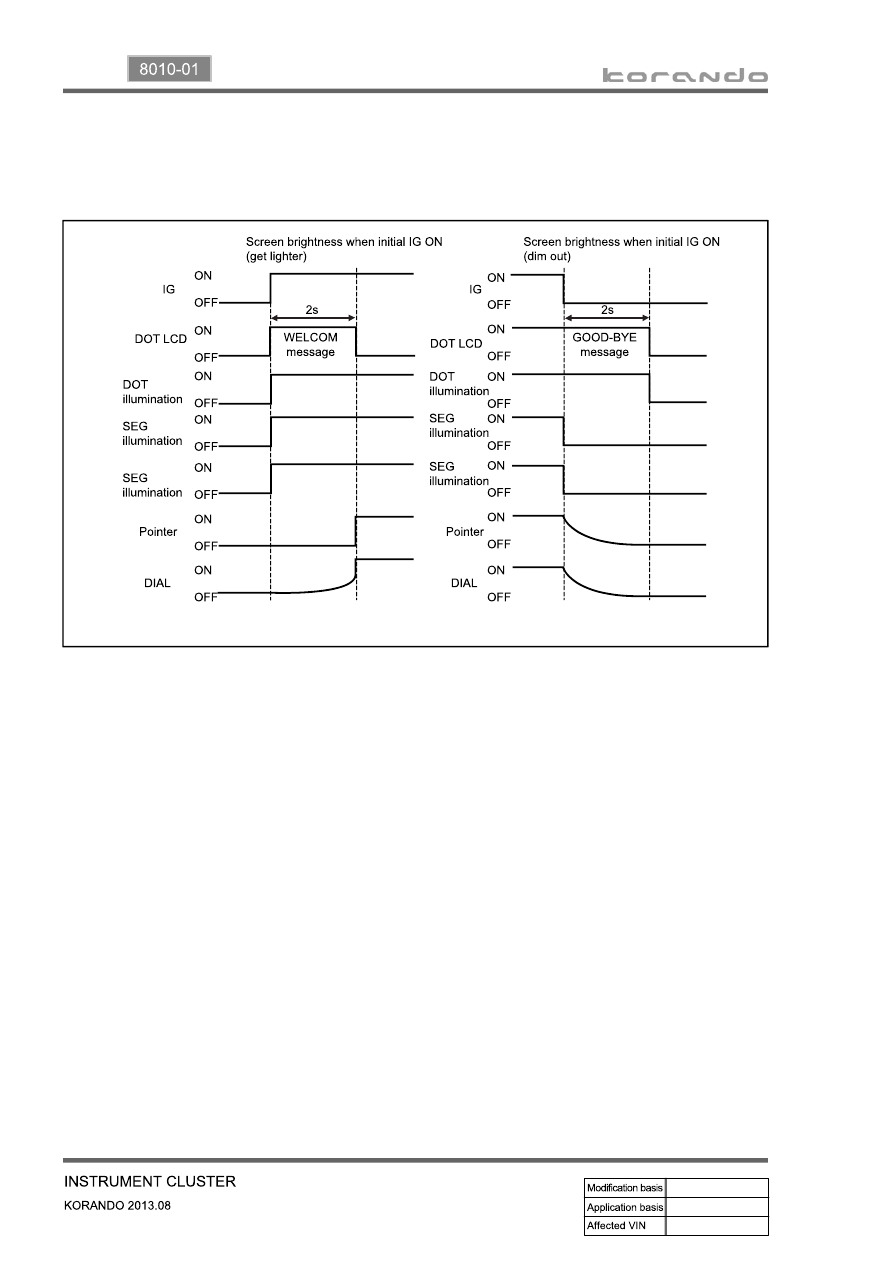

When the ignition is switched off, the message "GOOD-BYE" is displayed for 2 seconds and disappears.

The other LCDs go off as soon as the ignition is switched off.

The dial and pointer dim down for 2 seconds and go off at the same time when the DOT LCD goes off.

7.

05-25

8010-01

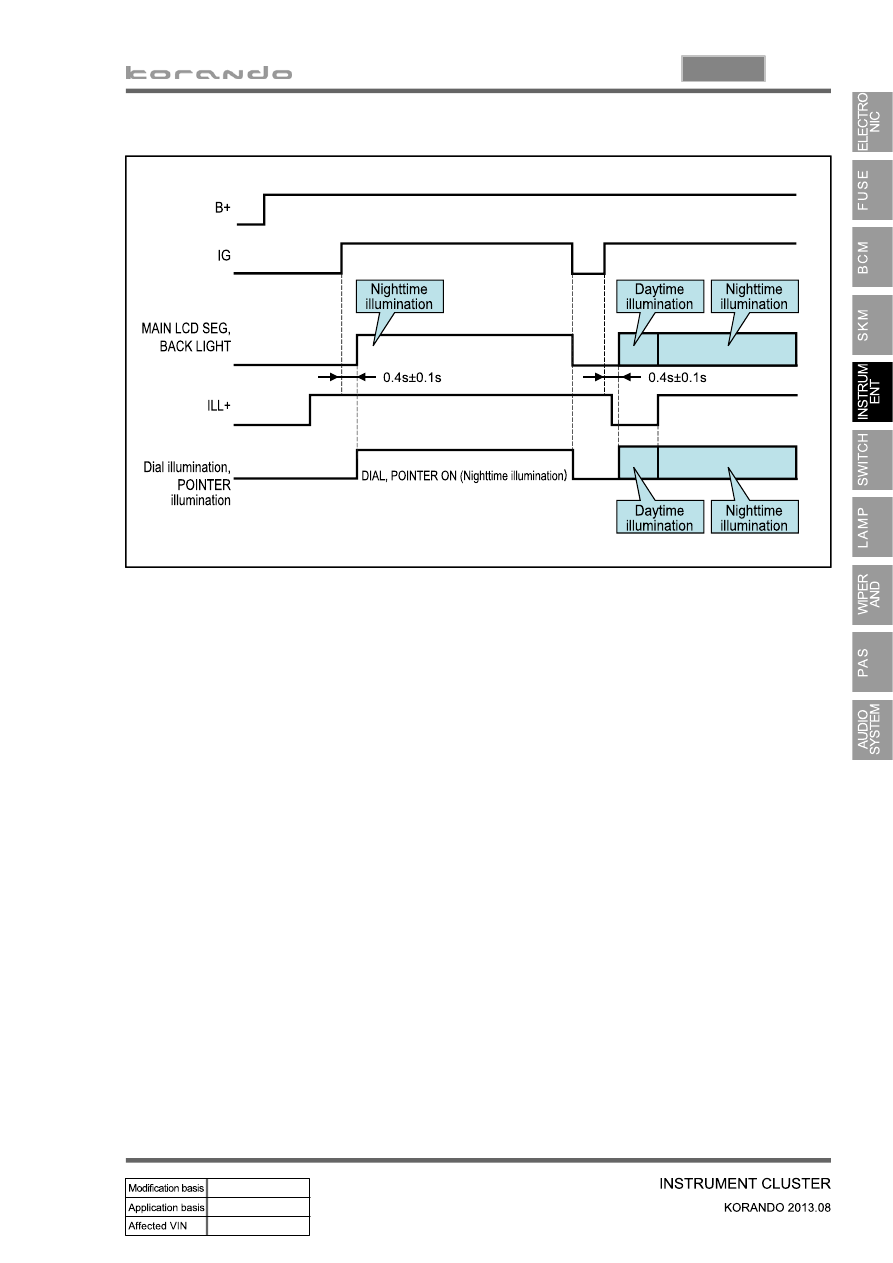

Operations for power supply in STD

▶

The operation input before the LCD backlight is illuminated, right after the ignition is turned OFF or ON,

is ignored.
The LCD backlight and other lamps are illuminated 0.4 ±0.1 second after the ignition ON is

detected.

The LCD display, LCD backlight, dial lamp and indicator lamp are turned on or off by the ignition

switch ON/OFF operation.

-

-

-

05-26

Brightness in SVC

▶

(2) Illumination Level

Brightness in STD

▶

Operating power

Illumination level

Main LCD, dial point

Day

Night

B+

(B-CAN Wake UP)

- OFF

OFF

IGN 1

Level 1

100%

20%

Level 2

100%

30%

Level 3

100%

40%

Level 4

100%

50%

Level 5

100%

60%

Level 6

100%

70%

작동전원

Illumination

level

DOT LCD

ODO, gauge LCD, dial pointer

Day

Night

Day

Night

B+(B-CAN

Wake UP)

Initial

time

-

Level 6

Level 6

OFF (however, level 6 for initial
operation with B+ & IGN1 ON)

After

initial

time

Maintain
previous

level

Maintain
previous

level

OFF (however, maintains
previous level for initial operation
with B+ & IGN1 ON)

IGN 1

Level 1

25%

5%

25%

5%

Level 2

40%

12%

40%

12%

Level 3

55%

19%

55%

19%

Level 4

70%

26%

70%

26%

Level 5

85%

33%

85%

33%

Level 6

100%

40%

100%

40%

Operating power

IGN 1

05-27

8010-01

(1) SVC

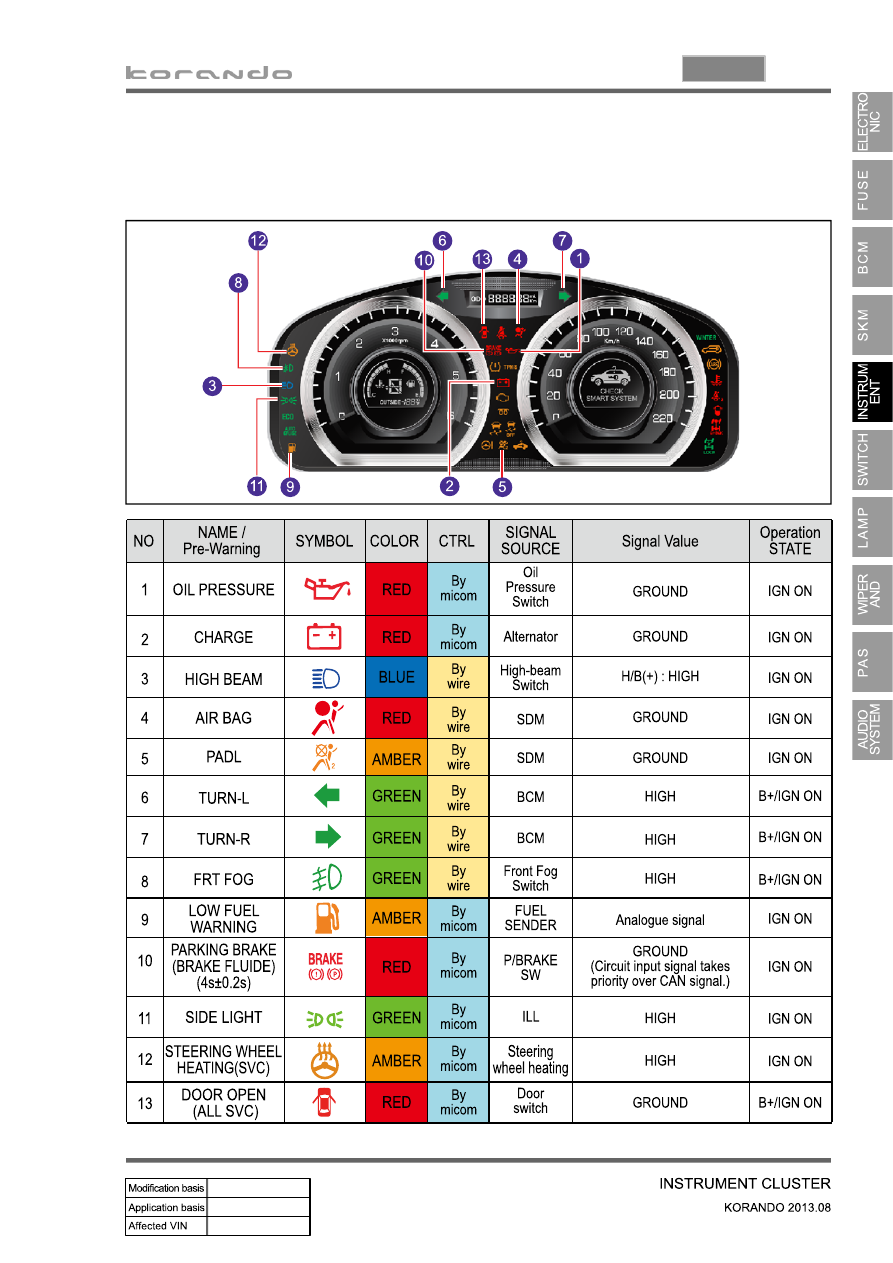

Symbols in SVC

▶

5) System Analysis
