SsangYong Korando III (2010 year). Manual - part 471

05-16

Indicator

(amber)

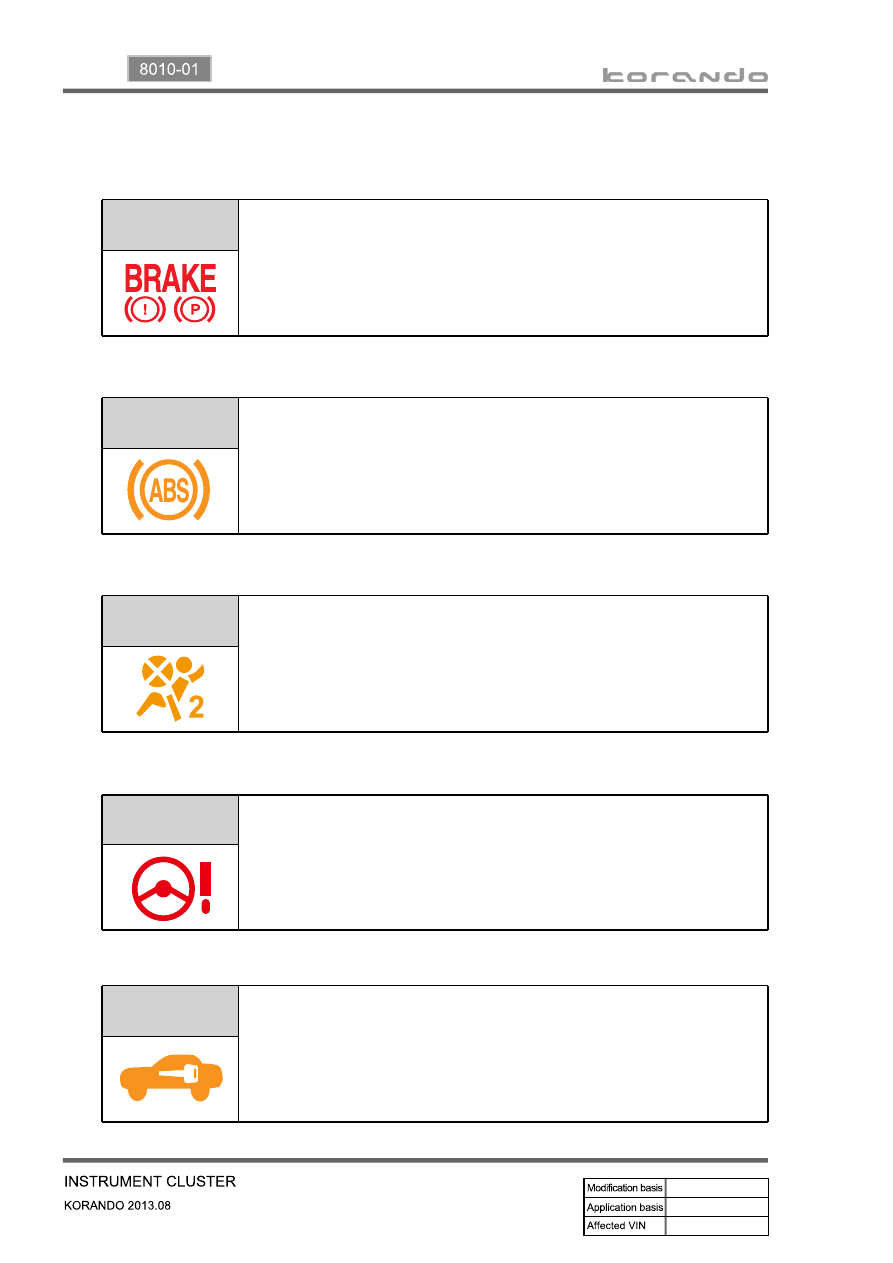

Brake warning lamp (brake fluid)

▶

ABS warning lamp

▶

Passenger air bag disable indicator

▶

Indicator

(red)

Indicator

(amber)

Indicator

(red)

EPS

▶

Indicator

(amber)

Immobilizer indicator

▶

This indicator comes on when the passenger air bag OFF switch is operated.

This indicator comes on the immobilizer (transponder) is not certified.

This lamp comes on when the parking brake is applied or the brake fluid

is insufficient.

If this lamp doesn't go off after the parking brake is released, check the

brake fluid level first and then fluid leakage.

-

-

This warning light comes on when the ignition switch is turned to ON

and should go out if the system is normal

-

This indicator comes on when the EPS system is faulty.

05-17

8010-01

Indicator

(green)

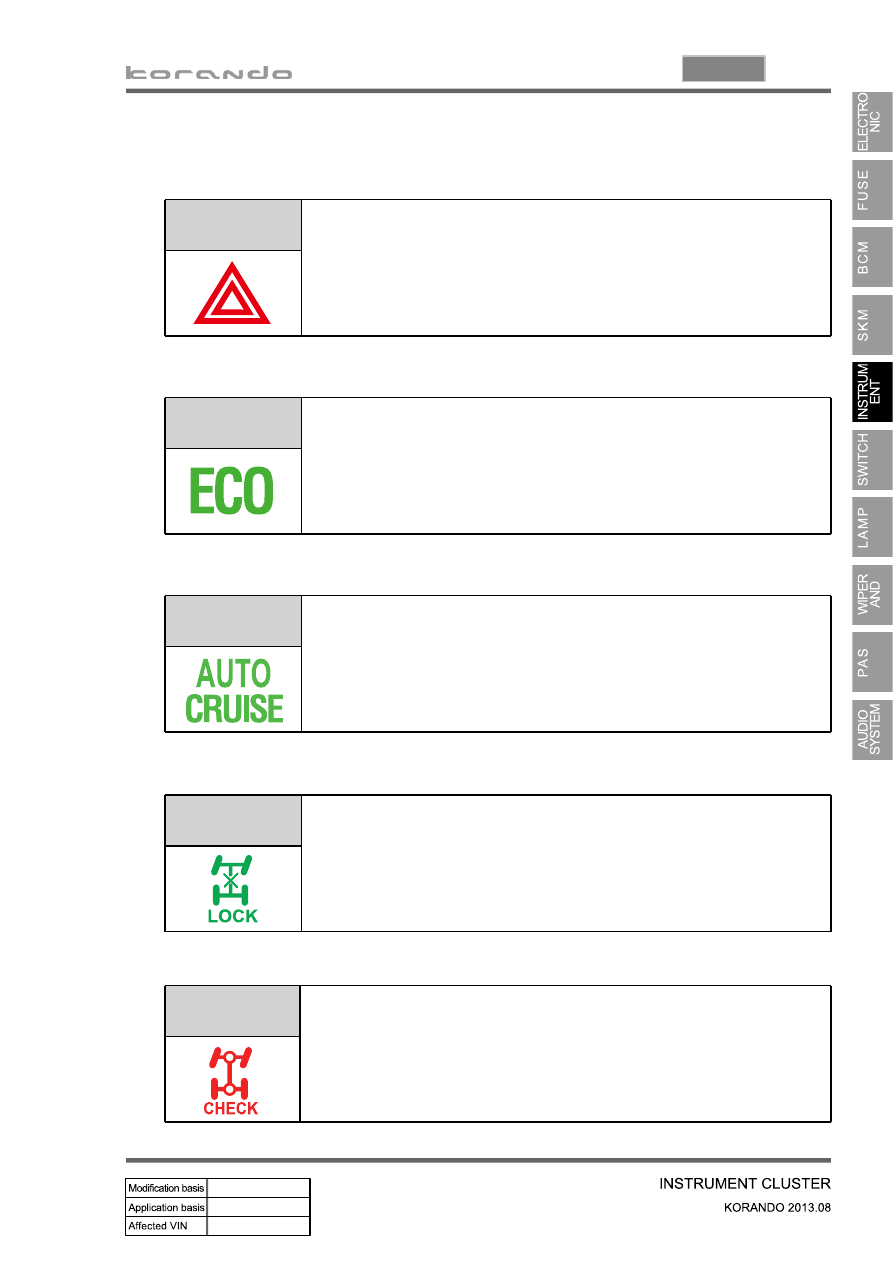

Hazard indicator

▶

ECO indicator

▶

Cruise control indicator

▶

Indicator

(red)

Indicator

(green)

Indicator

(green)

4WD LOCK indicator

▶

Indicator

(red)

4WD check warning lamp

▶

This indicator comes on when the cruise control system is activated.

This indicator goes off when the brake pedal is depressed. (auto cruise

deactivated)

This warning lamp comes on when the 4WD LOCK switch is pressed.

This indicator goes off when pressing the switch again.

This warning lamp comes on when the 4WD system is defective.

This indicator comes on when the hazard warning flashers are switched on.

(applies to STD class)

This indicator comes on when the ECO cruise system is activated.

This indicator goes off when the brake pedal is depressed. (ECO

deactivated)

05-18

Indicator

(green)

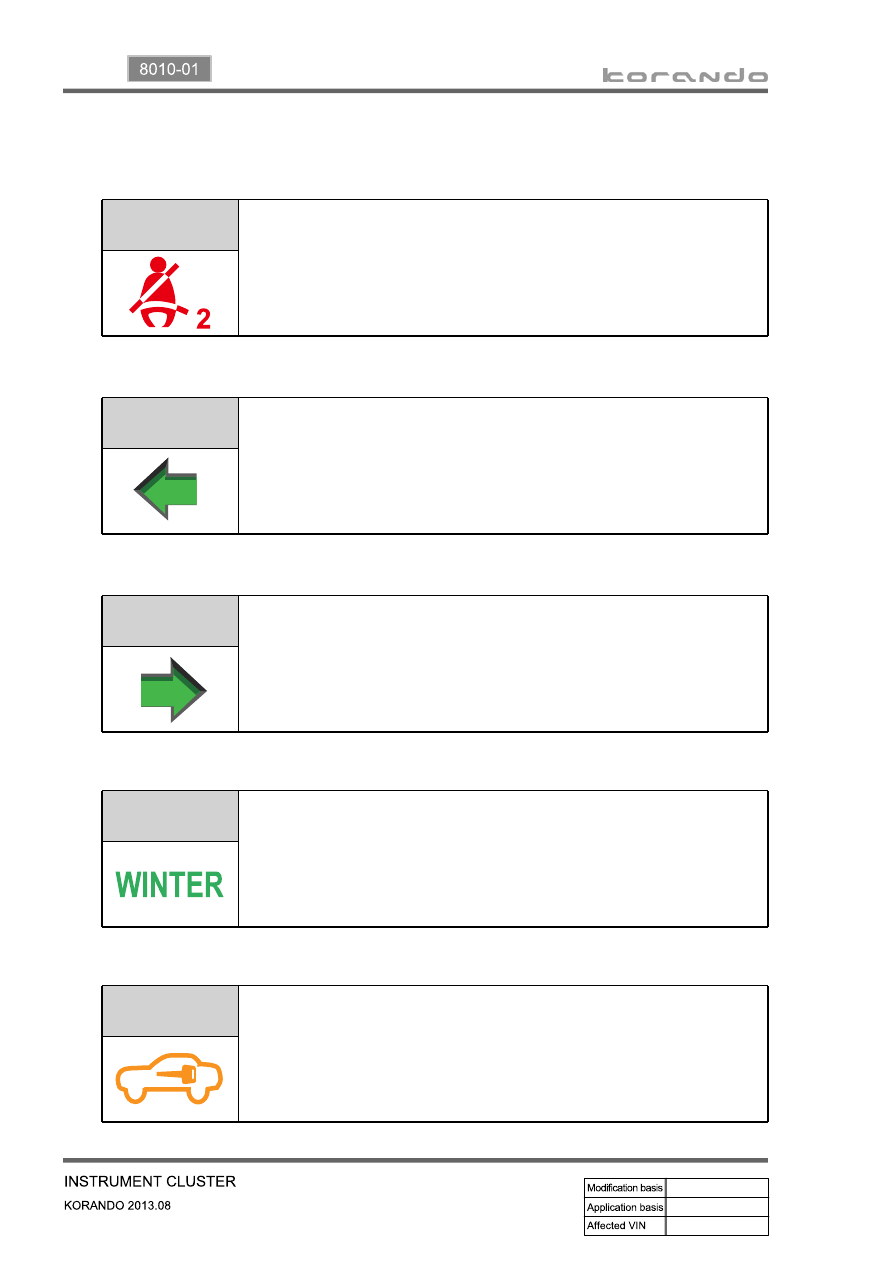

Passenger seat belt reminder

▶

Left turn signal indicator

▶

Right turn signal indicator

▶

Indicator

(red)

Indicator

(green)

Indicator

(green)

Winter mode indicator(DSL only)

▶

The right turn signal indicator blinks if the light switch is pushed up to

the right, and both turn signal indicators blink if the hazard warning flasher

switch is pressed.

When the mode switch is pressed, the winter mode is selected and the

winter mode indicator comes on on the instrument cluster. The winter

mode is used to start off on a slippery road with the 2nd gear. If the switch

is pressed again, the winter mode is deactivated and system returns to

standard mode.

This indicator comes on when the ignition switch is turned to the "ON"

position and goes off when the passenger's seat belt is fastened.

The left turn signal indicator blinks if the light switch is pushed down to the

left, and both turn signal indicators blink if the hazard warning flasher switch

is pressed.

Smart key warning lamp

▶

Indicator

(amber)

This lamp comes on when the uncertified transponder or smart key is

detected,

SKM system is defective or there is no smart key in the vehicle.

05-19

8010-01

Indicator

(amber)

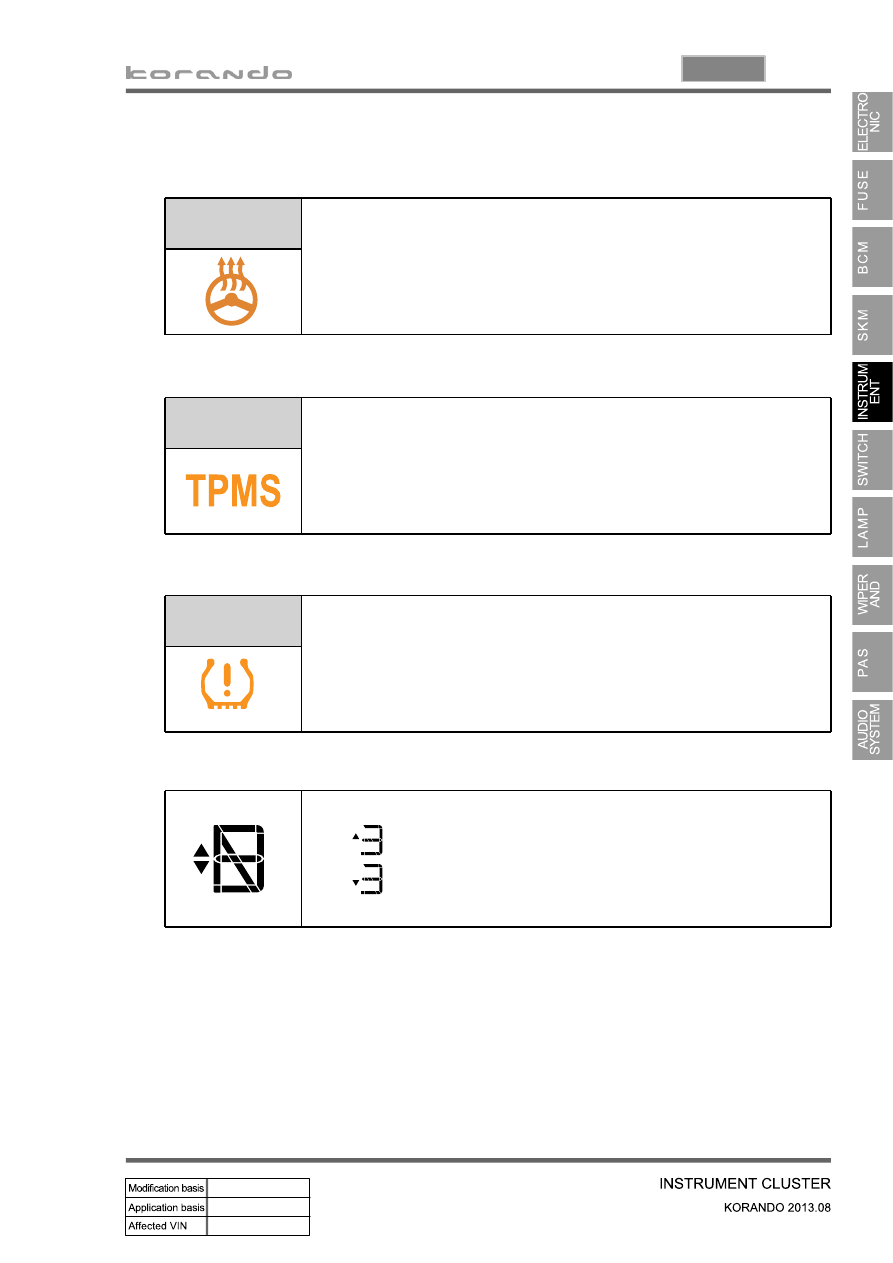

Steering wheel heating indicator

▶

This indicator comes on when the steering wheel heating switch

is operated with the ignition switch turned on and the engine running.

(applies to SVC class)

TPMS WARNING LIGHT

▶

Indicator

(amber)

GLOBAL WARNING LIGHT

▶

Indicator

(amber)

GSI (GEAR SHIFT INDICATOR)

▶

This warning light comes on when the ignition switch is turned to
“ON” and should go off in a few seconds. If the TPMS is defective,

this warning light comes on.

This warning light comes on when the ignition switch is turned to
“ON” and should go off in a few seconds.

If the tire pressure is too low, this warning light blinks for 70 seconds and

then ON.

This indicator indicates the proper gear shifting time.

Shift-up to 3rd gear (currently 2nd gear or lower)

Shift-down to 3rd gear (currently 4th gear or higher)

If the system is properly working, this indicator is invisible.

Ex)
