SsangYong Korando III (2010 year). Manual - part 470

05-12

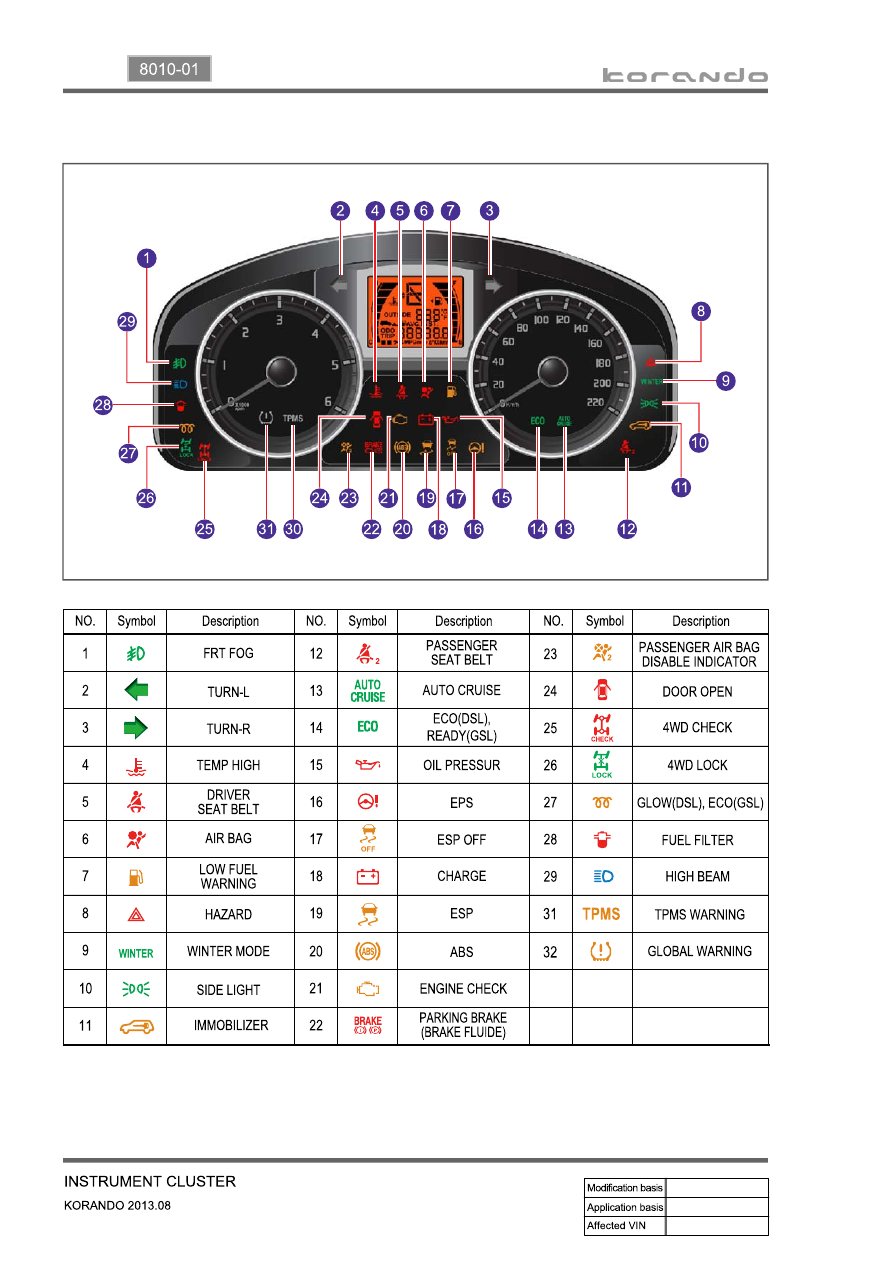

2) STD

05-13

8010-01

Indicator

(green)

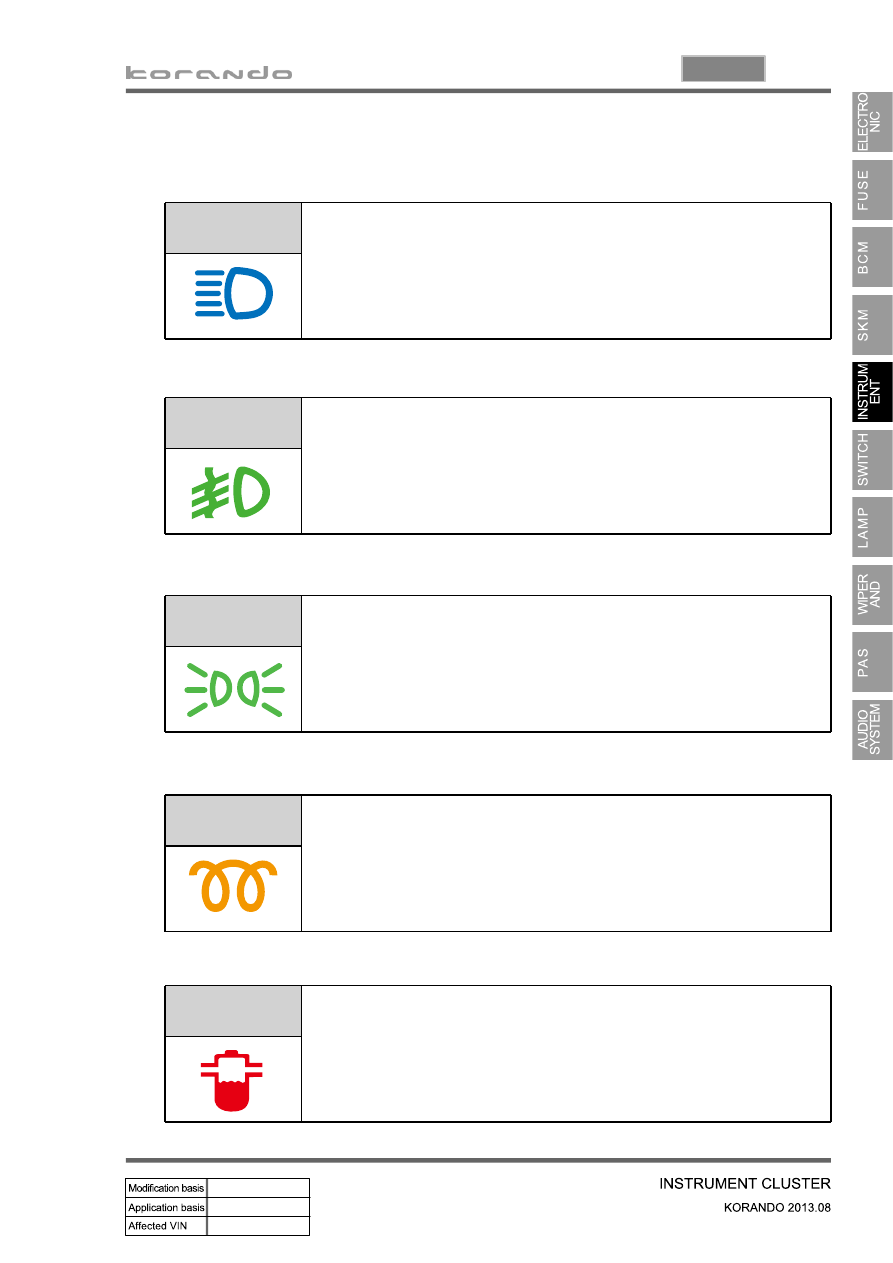

Headlamp high beam indicator

▶

Front fog lamp indicator

▶

Side light indicator

▶

Indicator

(blue)

Indicator

(green)

Indicator

(amber)

Glow indicator(DSL only)

▶

Indicator

(red)

Fuel filter indicator(DSL only)

▶

This indicator comes on when the tail lamp is switched on.

This indicator comes on when the ignition switch is turned to the "ON"

position and will go off when the glow plugs are sufficiently heated.

This indicator comes on when the water level in the fuel filter exceeds a

certain level.

This lamp comes on when the headlamp high beam is operated.

This indicator comes on when the fog lamp switch is operated after the tail

lamps comes on.

3) Details of Warning Lamps and Indicators

05-14

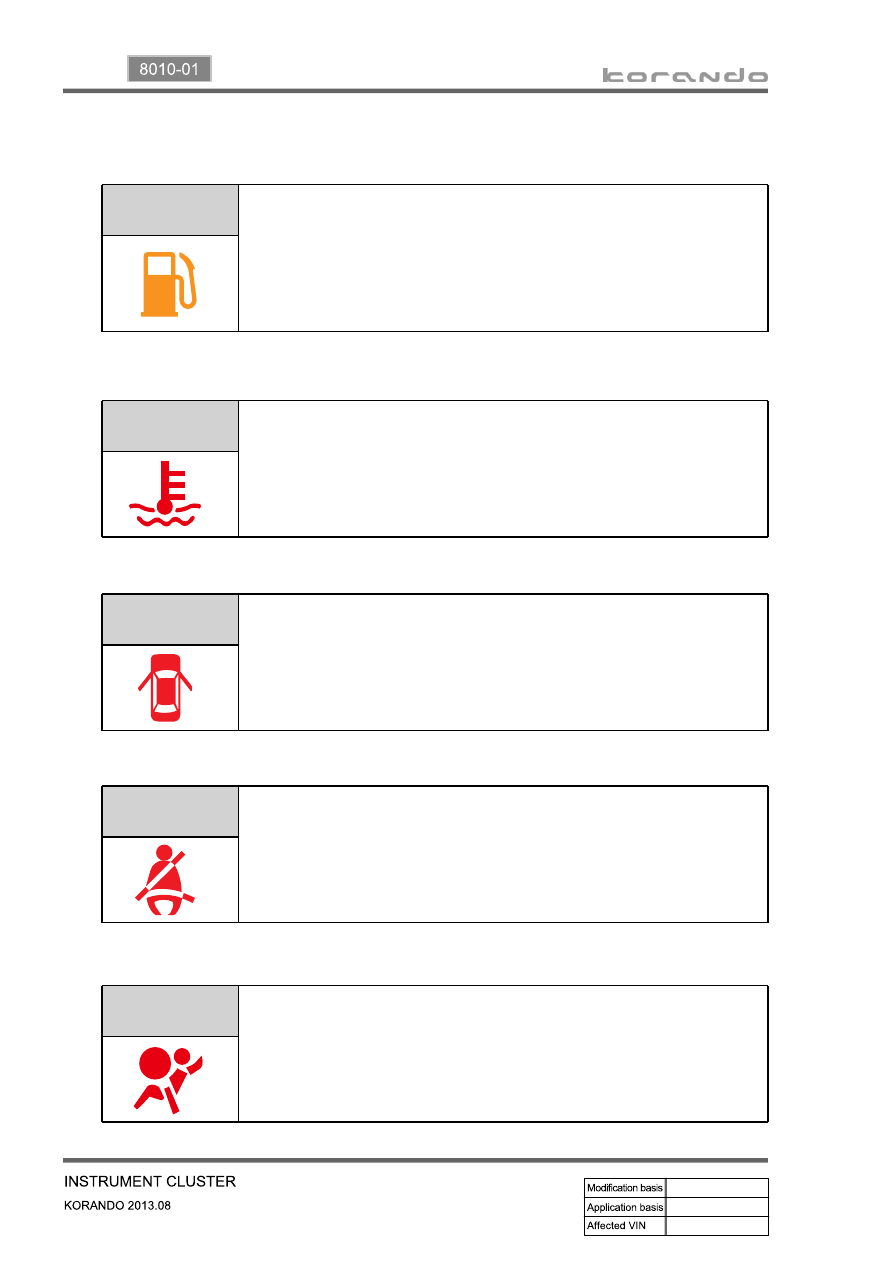

Low fuel level warning lamp

▶

Warning lamp

(amber)

Engine overheat warning lamp

▶

Warning lamp

(red)

Door ajar

▶

Warning lamp

(red)

Seat belt reminder

▶

Warning lamp

(red)

Air bag

▶

Warning lamp

(red)

This lamp comes on if the fuel level is approx. 10 ℓ or below.

However, the fuel level may change slight depending on vehicle

condition, inclination of the road, etc. Also, it blinks if there is a short or

open circuit between the fuel level sensor and cluster.

When the coolant temperature is 120˚C or higher, this lamp blinks at an

interval of 1 second, a message is displayed, the warning sounds once

through the speaker and the buzzer sounds at an interval of 0.5 seconds.

This lamp comes on when any door is open or not closed completely.

(both STD and SVC class)

This lamp comes on when the ignition switch is pressed ON.

It keeps coming on if the driver's seat belt is not fastened.

This lamp comes on when the ignition switch is pressed to the ON mode.

Then, it goes off if the system is normal.

If this lamp stays on while driving, it means that the air bag system is faulty.

05-15

8010-01

Indicator

(amber)

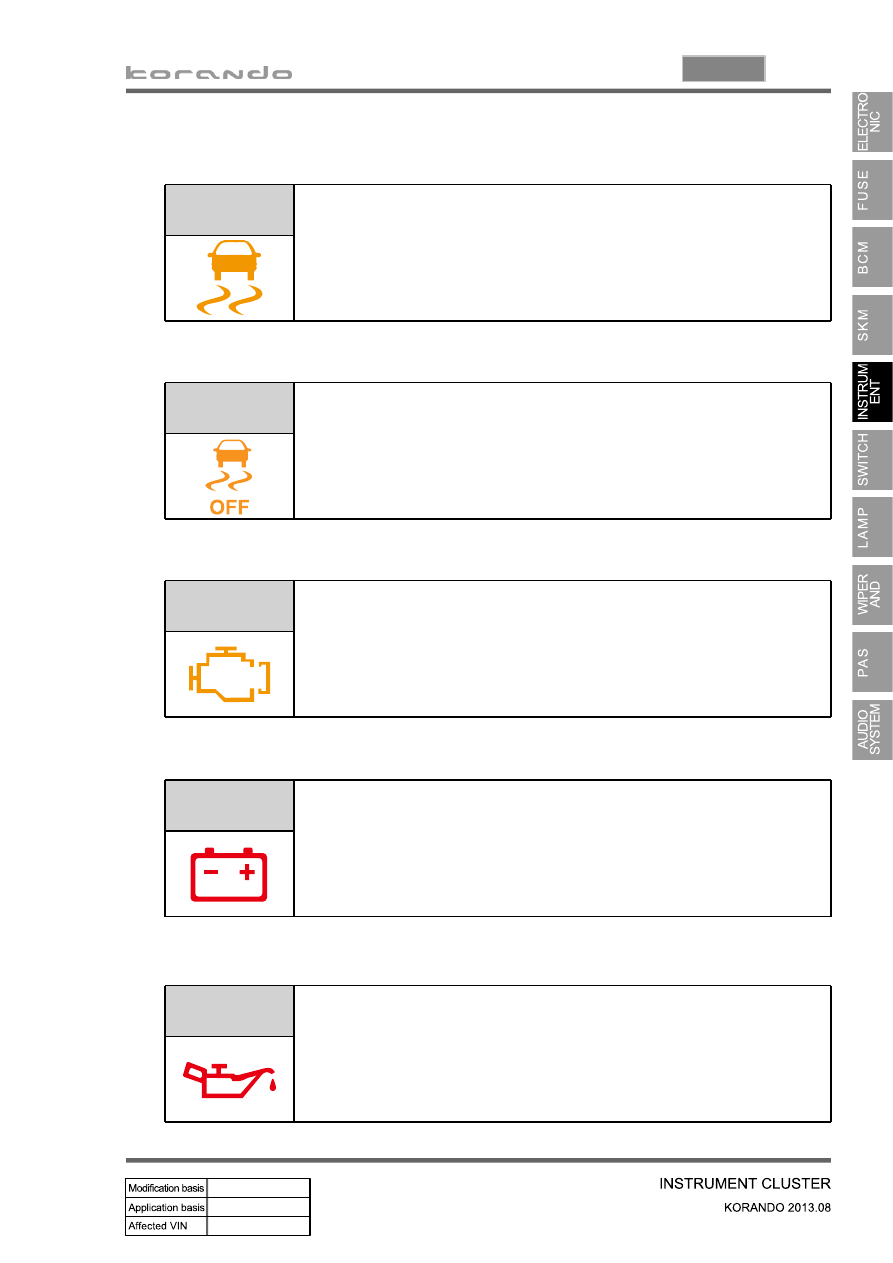

ESP

▶

ESP OFF indicator

▶

Engine check warning lamp

▶

Indicator

(amber)

Indicator

(amber)

Indicator (red)

Battery charge warning lamp

▶

Indicator (red)

Engine oil level warning lamp

▶

This lamp comes on if any sensor or device related to the engine control is

defective.

This lamp comes on when the start switch is ON or when the battery level is

low.

(For EEM, warning lamp is controlled according to CAN signal)

This lamp comes on when the ignition switch is turned to "ON" position,

and then goes off if the engine oil level is normal.

If the engine oil level warning lamp comes on while driving, check the

engine oil level and oil leakage.

-

-

This indicator comes on when the ESP system is faulty.

This indicator comes on when pressing the ESP OFF switch.
