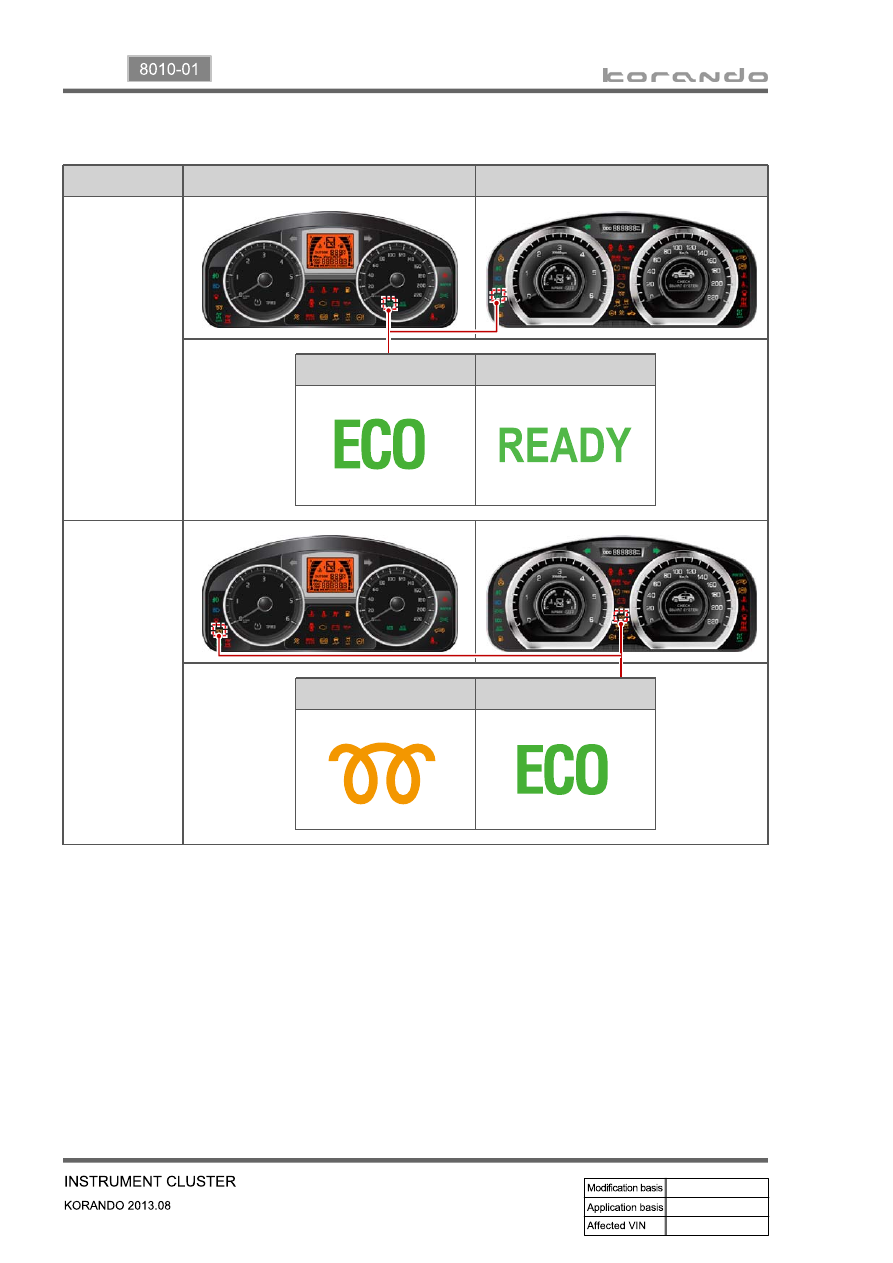

6) TPMS/Global Warning Lamp Added

Status

Standard type

Supervision type

ECO indicator

Warming up
indicator

Diesel

Gasoline

Diesel

Gasoline

05-9

8010-01

1. OVERVIEW

There are two types in the instrument cluster used for KORANDO C: SVC (super vision) and STD

(standard). While the SVC type has three LCD screens - <DOT LCD>, <GAGE SEG LCD> and <ODO

SEG LCD>, the STD type has one LCD screen.

2. LAYOUT

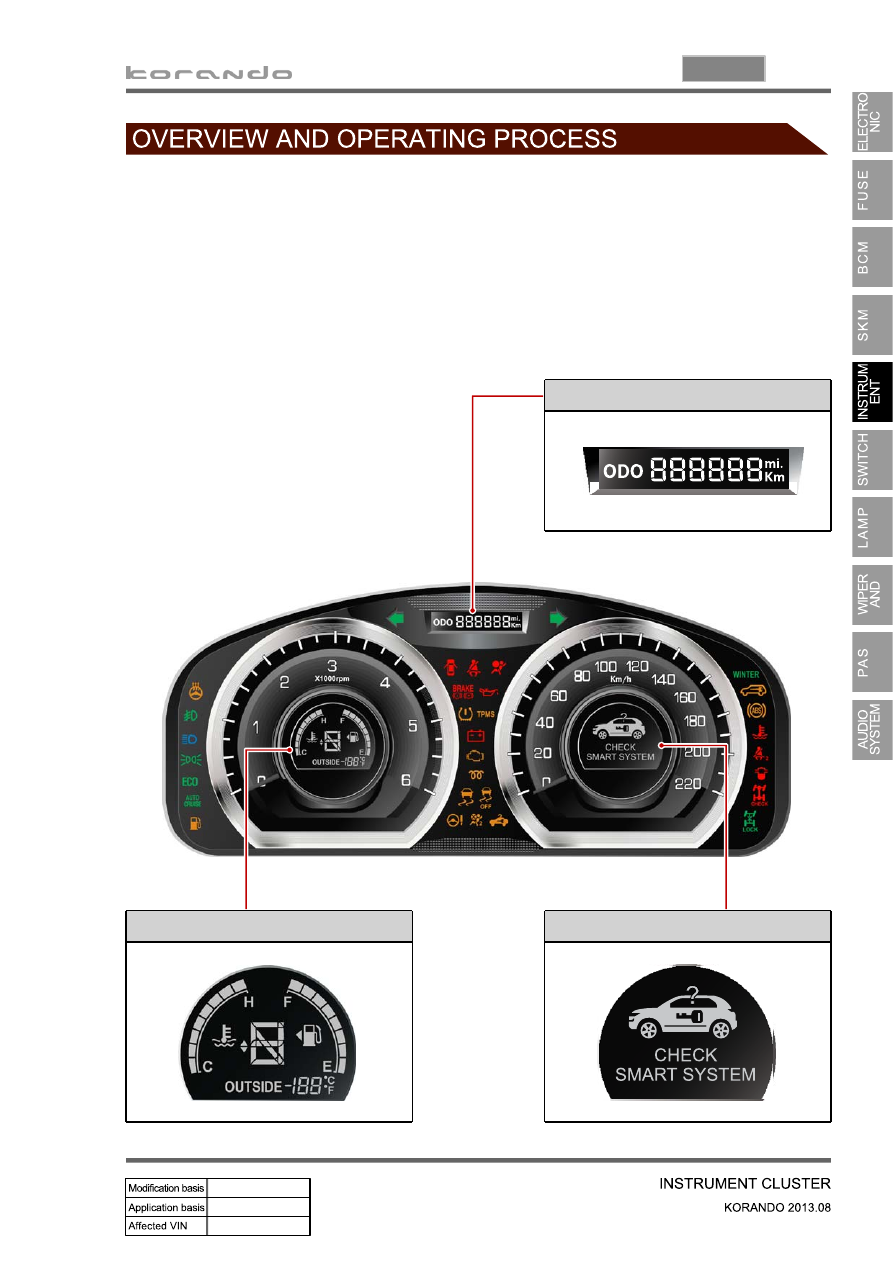

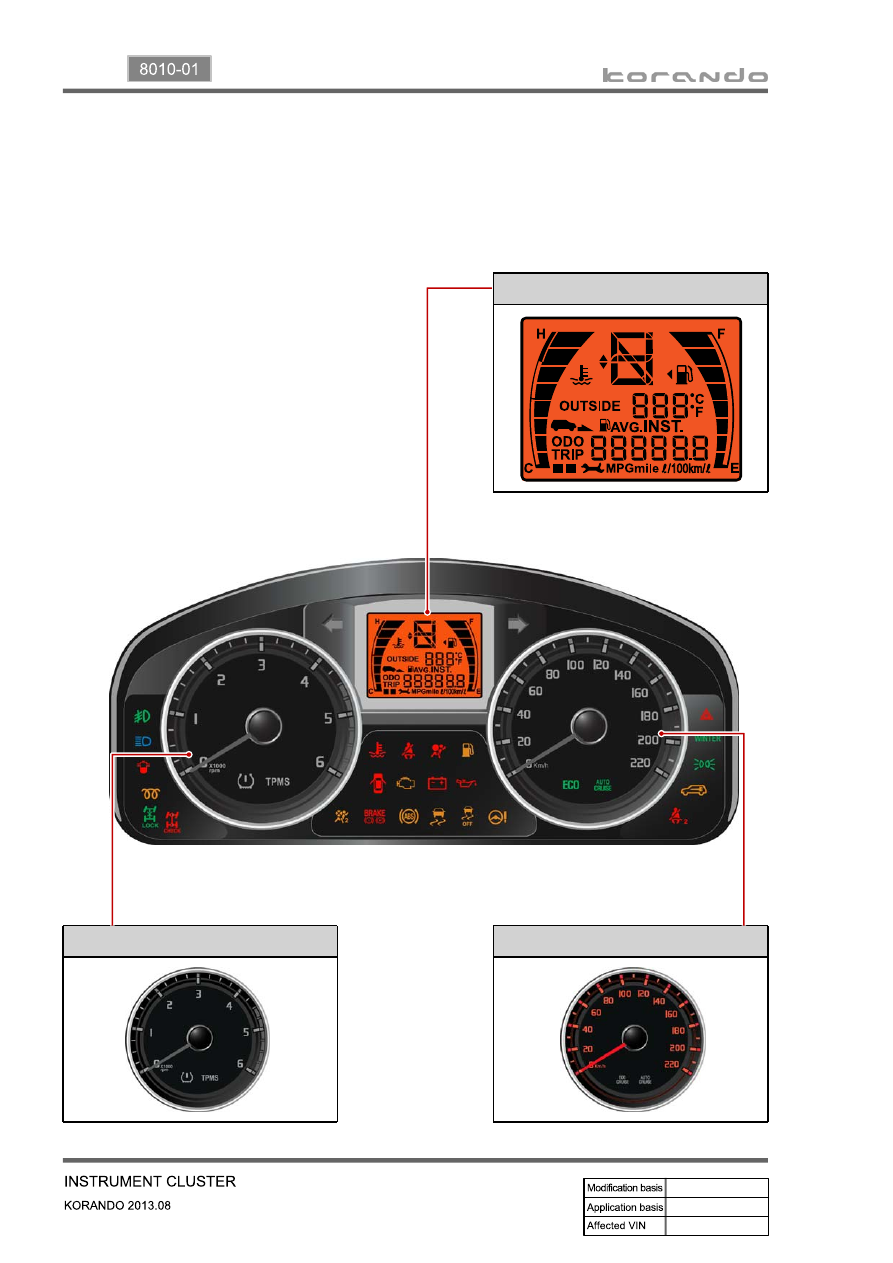

SVC

▶

ODO SEG LCD

GAGE SEG LCD

GAGE DOT

05-10

Engine RPM gauge

Speedometer

STD

▶

LCD

05-11

8010-01

1) SVC

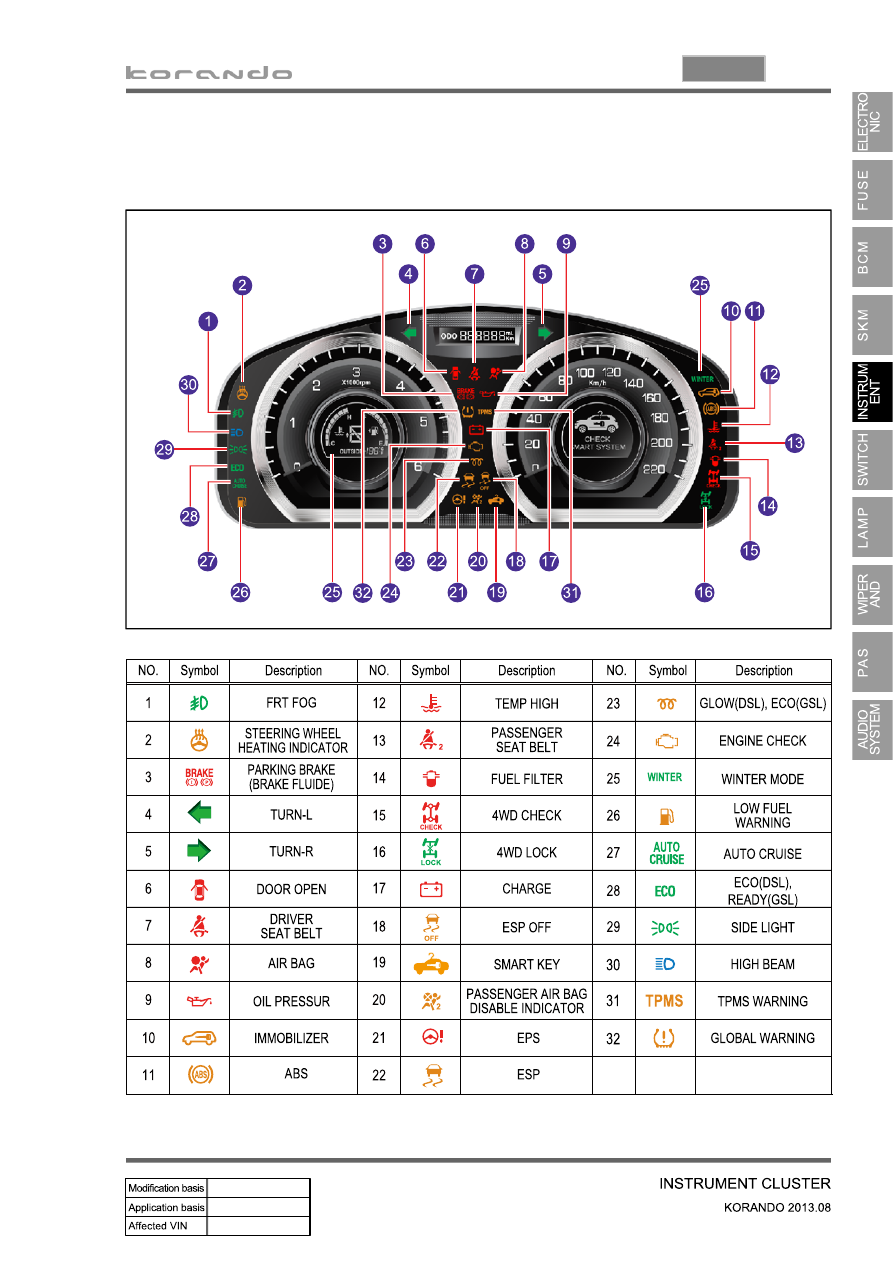

3. DESCRIPTION OF WARNING LAMPS & INDICATORS
