05-4

Status

Standard type

Supervision type

TPMS/global

warning lamp

added

TPMS/Global warning lamp added

TPMS/Global warning lamp added

Warning

message added

to LCD display

related to

TPMS

If the driver press the TRIP switch to
change to the tire pressure display mode,
the tire pressure is displayed in following
order: front wheels and rear wheels. If
there is any fault, “--” is displayed
without other messages.

If the driver press the TRIP switch to
change to the tire pressure display mode,
the tire pressure is displayed. If the tire
pressure is normal, “Tire Pressure OK”
is displayed. If the tire pressure is
abnormal, the tire in question blinks then
comes on depending on how the
abnormality is severe on the display
screen.

2. MAJOR CHANGES

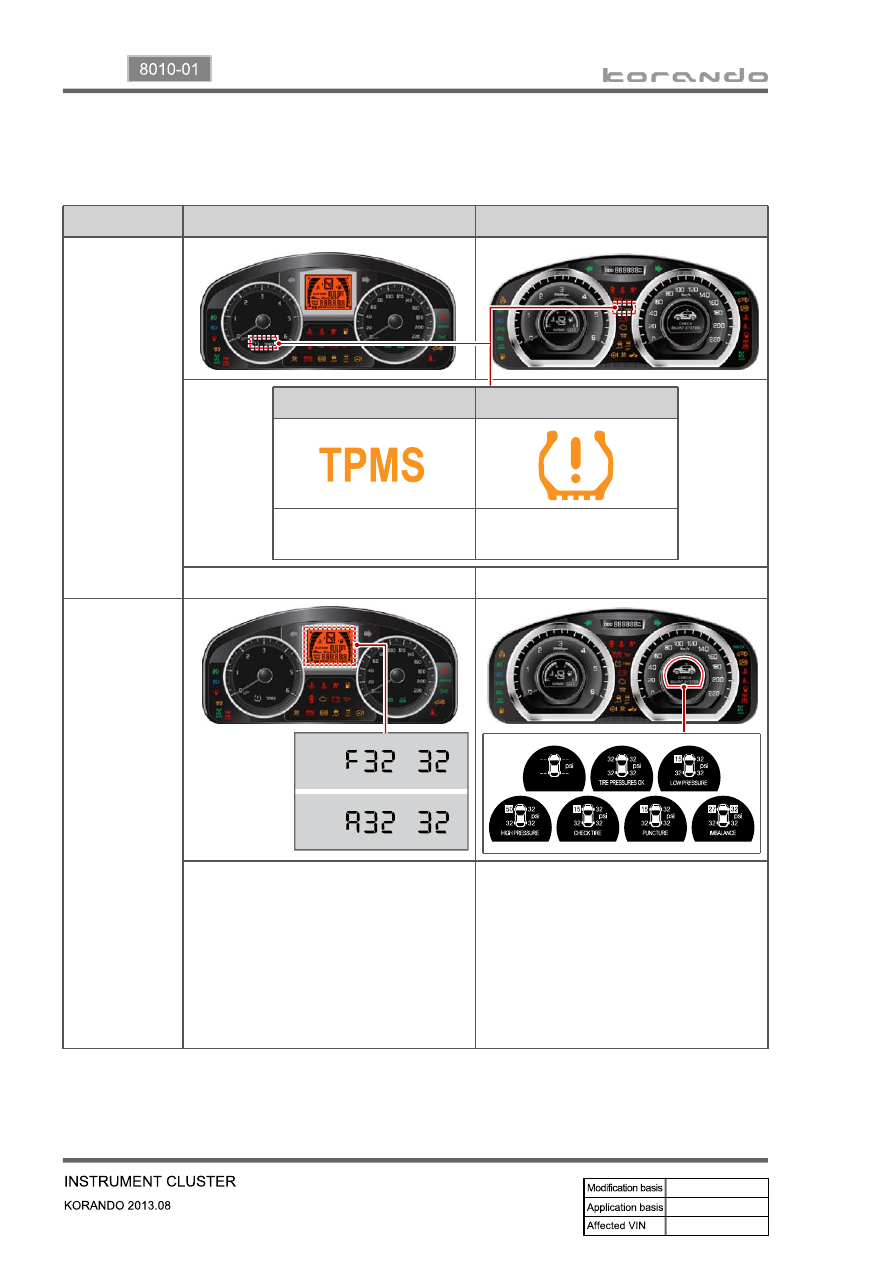

1) TPMS/Global Warning Lamp Added

TPMS warning lamp

Comes on when there is a
malfunction in TPMS.

Global warning

Comes on when the tire
pressure is not normal.

05-5

8010-01

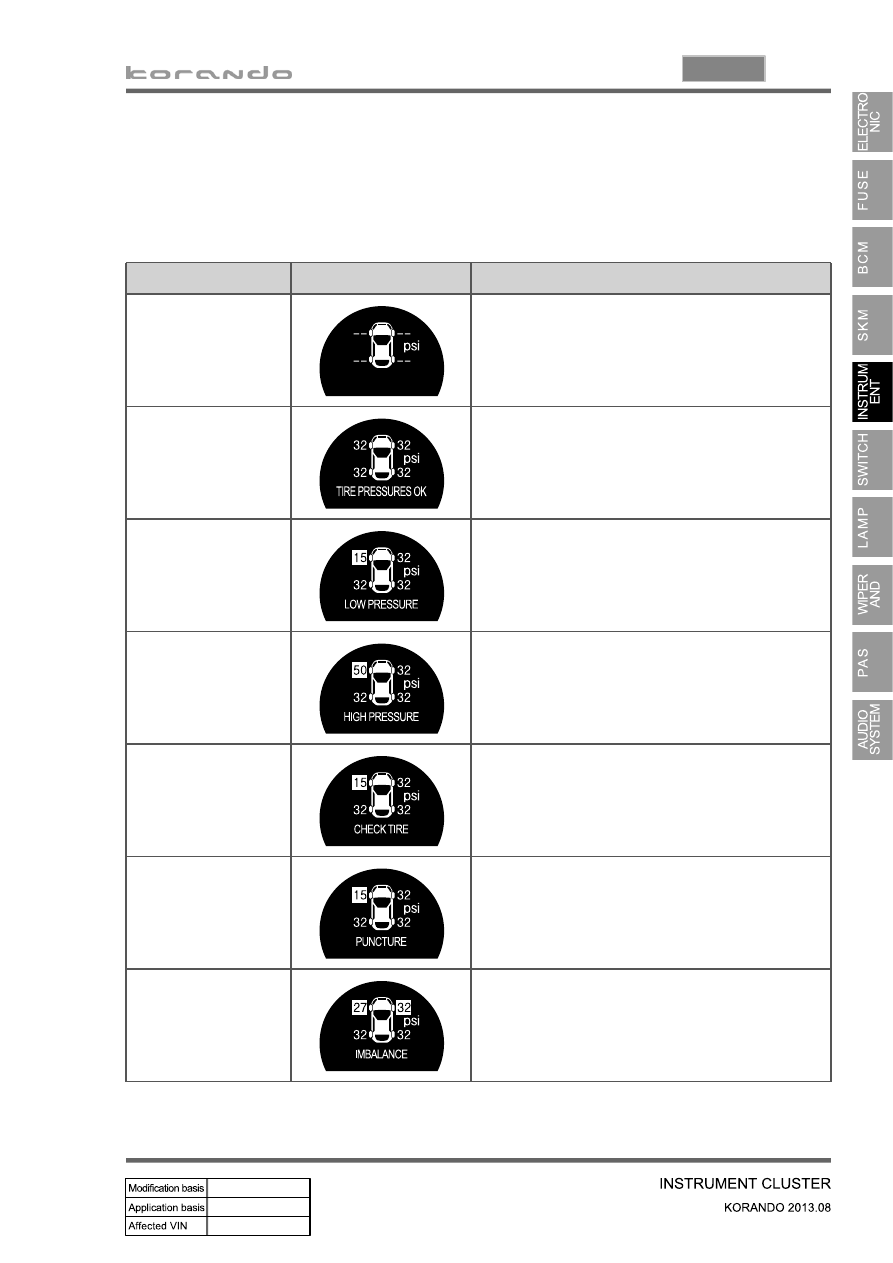

2) TPMS Mode

(1) Supervision type LCD instrument cluster display

It monitors the tire and warns the driver if there is any abnormality.

The driver can see the current tire pressure by pressing the TRIP switch.

-

-

Status

Message

Operating condition

Impossible to
determine tire
pressure

Pressure of the tire displayed as “--” when not
possible to determine tire pressure correctly
* At initial start, the tire pressure can be displayed
after 10 minutes of driving at speed of 20 km/h or
higher

Correct tire pressure

The specified tire pressure is based on a cold tire
with the vehicle unloaded (no occupant); 32 psi at
20℃.

Lower than minimum
tire pressure

Corresponding status lamp comes on if tire
pressure is 24 psi or less

Excessive tire
pressure

Corresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure is
50 psi or higher

Low tire pressure

Corresponding status lamp comes on if tire
pressure is 24 psi or less

Sudden tire pressure
loss

Corresponding status lamp blinks with shading
reverse at interval of 0.4 seconds if tire pressure
changes more than 3 psi per 1 minute at speed of 0
km/h or above.

Imbalance between
left and right tire
pressure

Corresponding status lamps blink alternately at
interval of 1.0 second if tire pressure differs by more
than 4 psi in the left and right tires while driving for
more than 10 minutes

05-6

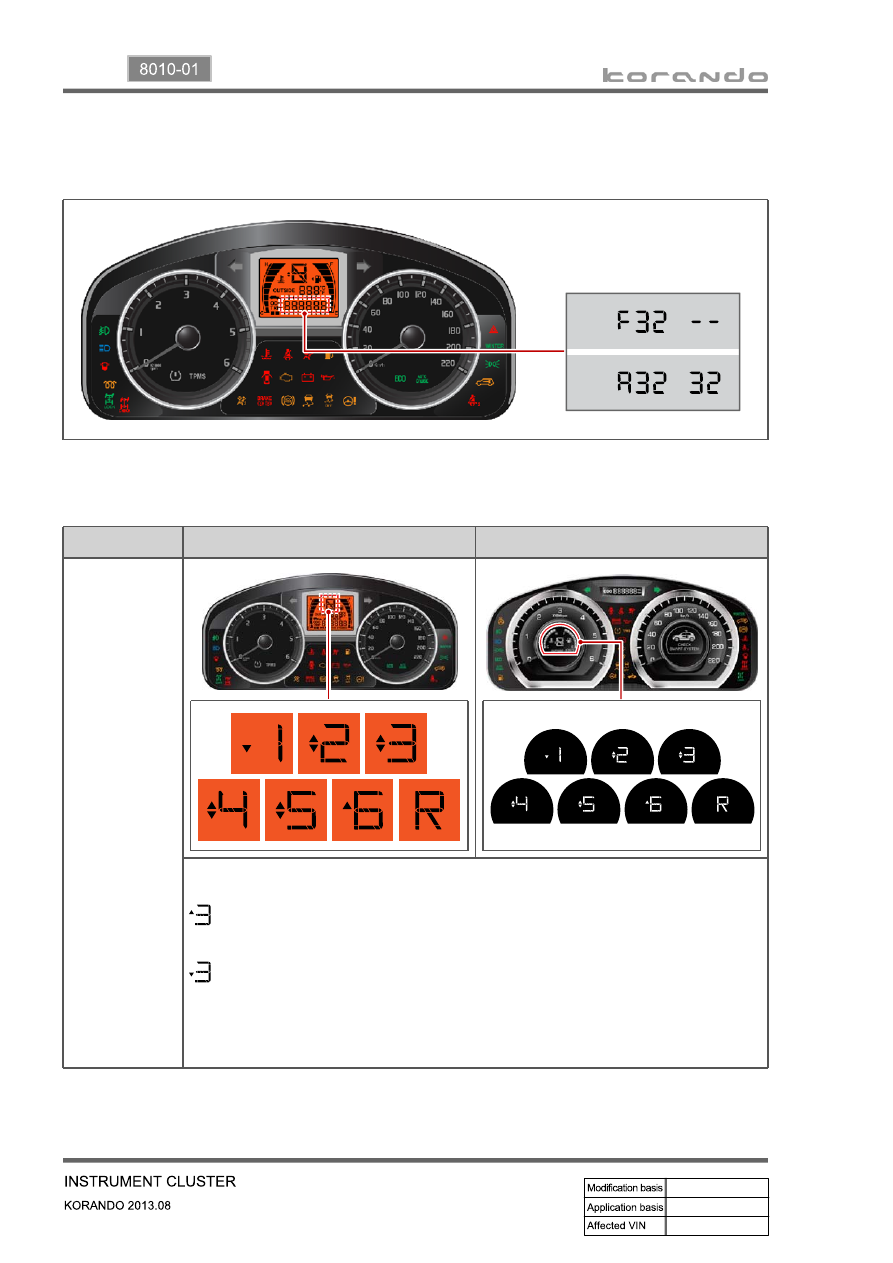

(2) Standard type LCD instrument cluster display

The standard type instrument cluster shows only tire pressure and “--”.

-

3) GSI(Gear Shift Indication)

Status

Standard type

Supervision type

Display gear
stage for
manual
transmission

Informs appropriate shift time for manual transmission

       : This means that you should shift up to 3rd gear.
         (2nd gear or lower currently)

       : This means that you should shift down to 3rd gear.
         (4th gear or higher currently)

The system operates normally when the indicator lamp looks not being gone out
completely.

05-7

8010-01

Status

Supervision type

LCD display

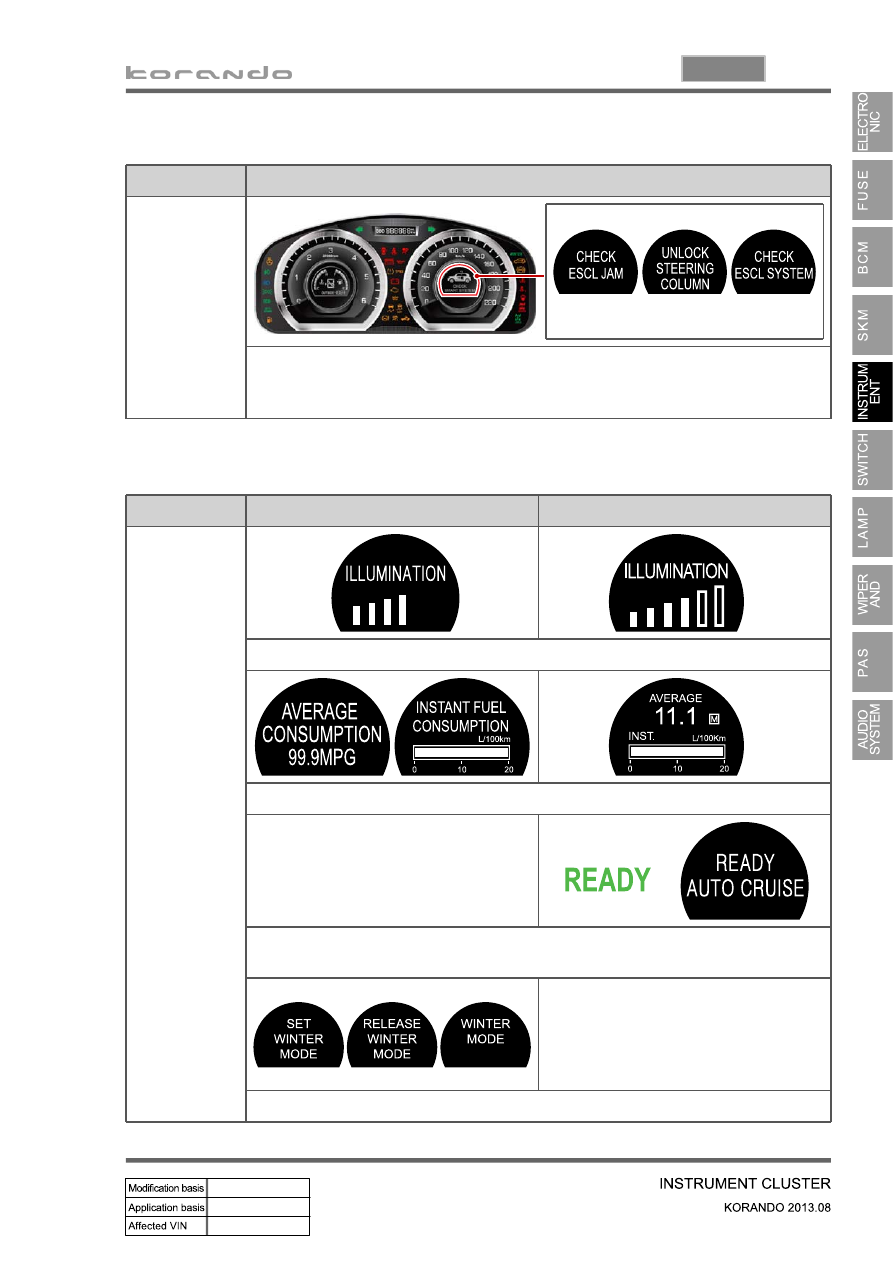

The ESCL (Electric Steering Column Lock) is a device to lock the steering handle
using an electric signal, not a mechanical type and shows the messages above if the
relevant systems are faulty.

4) ESCL

5) LCD display

Status

Old

New

LCD display

Bar graph border maintained when adjusting illumination brightness

Average fuel economy and instant fuel economy displayed simultaneously

-

Auto cruise indicator and supervision cluster DOT LCD graphic added for gasoline
engine ? newly adopted ?

-

DOT LCD winter mode deleted
