SsangYong Korando III (2010 year). Manual - part 464

04-20

Component

Pre-verification timer

Immobilizer verification timer

Deactivation

conditions

If any condition for pre-verification timer and immobilizer verification timer is met, no verification process
is required for 30 seconds after the each verification process has been completed.

Operation before pre-verification timer

Passive LOCK/UNLOCK

REKES LOCK/UNLOCK

-

-

Ignition status after immobilizer verification

The immobilizer verification has been completed when the engine starts.

The immobilizer verification is not deactivated until the ignition is turned to ON, OFF or ACC

ON.

The immobilizer is not deactivated when the key out warning condition is met while the engine

is running.

-

-

-

8. START & POWER MODE CONTROL

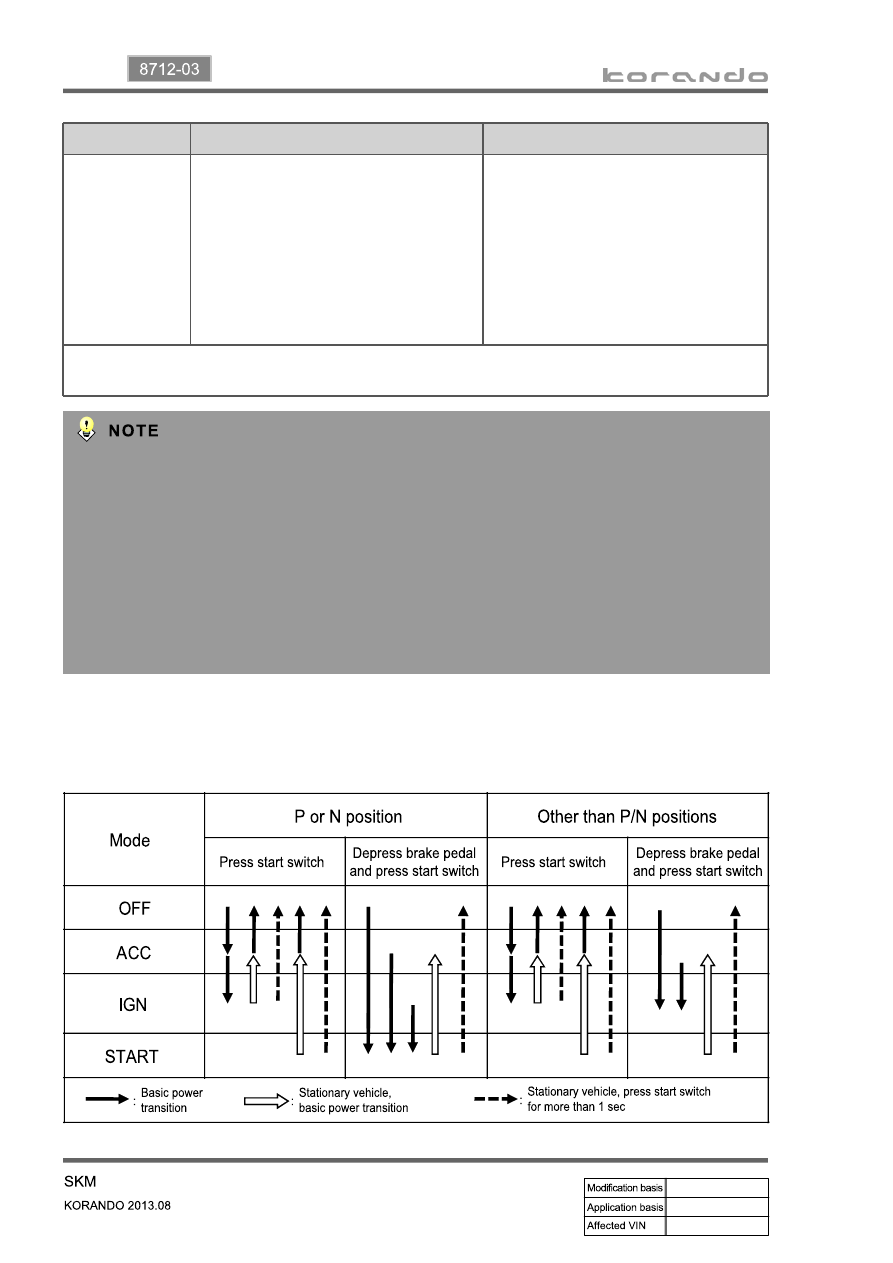

The ignition status is changed to OFF, ACC ON, IGN ON and engine cranking by one START/STOP

switch.

30 seconds has been passed after

the immobilizer verification timer

IGN1 OFF

No smart key is found inside the

vehicle with all doors closed after any

door has been opened and then

closed.

1.

2.

3.

30 seconds has been passed after

the pre-verification timer

Door handle switch ON

IGN ON

Theft deterrent mode

activation/deactivation

Door status changed (open/closed)

1.

2.

3.

4.

5.

04-21

8712-03

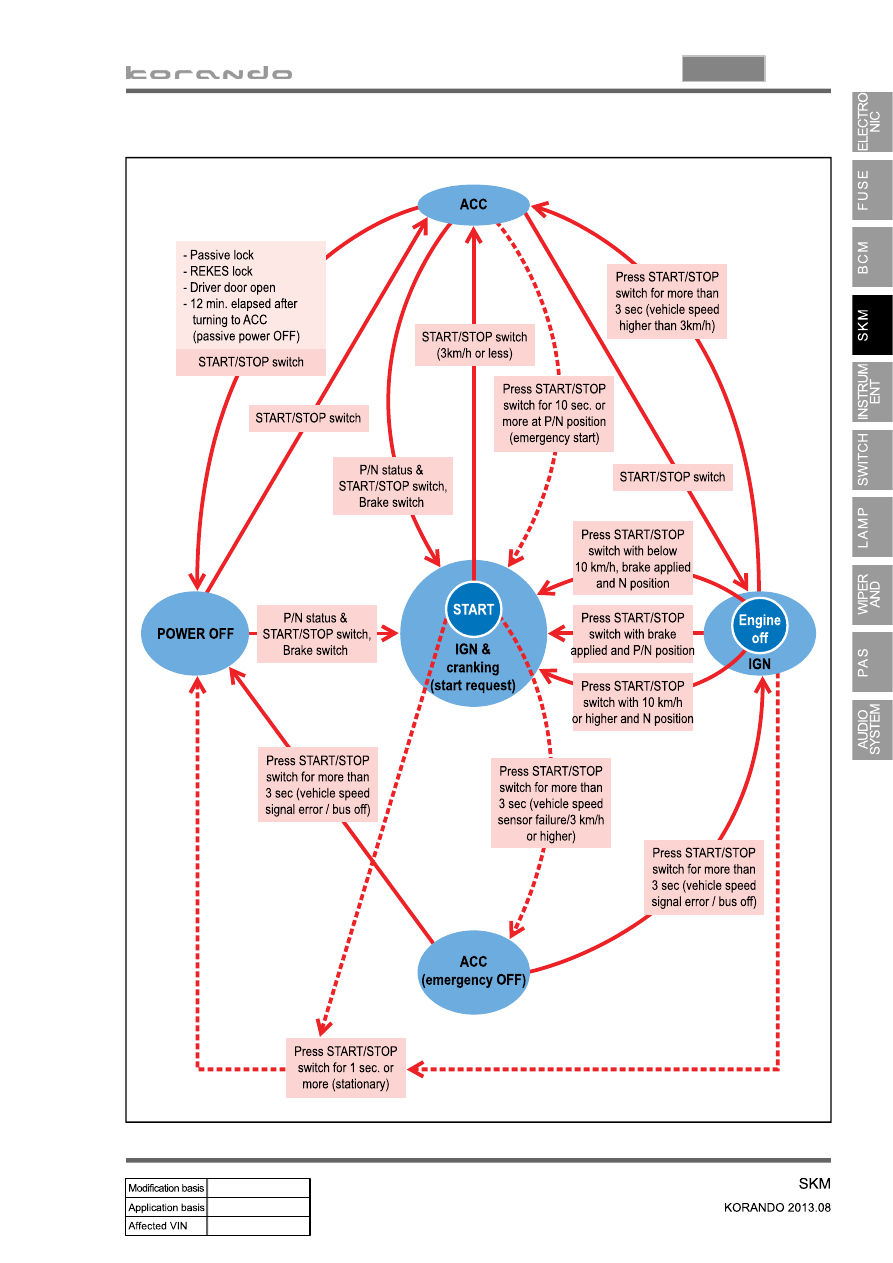

Power control and engine start diagram

▶

04-22

Engine starting

▶

When the START/STOP button is pressed with the brake pedal applied and gear selector lever in P or

N position, the SKM performs the immobilizer verification and sends the engine START request signal

to the EMS if a normal coded smart key is found.

When the .engine start request signal from the START/STOP switch is received, the SKM sends the

start request signal through the P-CAN and the vehicle power status signal to the BCM through the B-

CAN.

The SKM cuts the power for IGN2 and ACC relays while the engine is cranking as cutting the electric

load is necessary.

The SKM receives the engine start status signal from the EMS (ECU) through the P-CAN.

1.

2.

3.

4.

EMS (ECU)

Engine rpm, engine cranking/stop/running/loaded

TCU

Gear selector lever position: P, N

ABS/ESP

Vehicle speed signal (wheel speed sensor on each wheel)

The SKM turns on the ACC/IGN2 relays after the engine cranking and sends the signal for IGN after

starting to the BCM through the B-CAN.

When the START/STOP button is pressed and engine cranking request1 signal is sent, the EMS

(ECU) cranks the engine after checking the engine warming up. If the engine cranking request2

signal is sent, the EMS cranks the engine without checking the engine warming up.

5.

6.

Engine cranking request1

(engine start after

warming up)

When the START/STOP button is pressed briefly under the start
conditions, the vehicle starts to warming up and then the engine is started
after a certain amount of time (warming up indicator ON to OFF).

Engine cranking request2

(engine start without

warming up)

When the START/STOP switch is pressed once again while the engine
cranking request1 signal is sent, the engine is started (regardless of
warming up indicator)

It can be delayed by several seconds according to the engine

coolant temperature.

Starting engine while driving

7.

The engine start request signal is sent when the START/STOP switch is pressed, provided that the

vehicle speed is less than 10 Km/h or no vehicle speed signal is input, the gear selector lever is in

N position and the brake switch is ON with IGN ON (30 sec. verification is not required).

The engine start request signal is sent regardless of the brake signal when the START/STOP

switch is pressed, provided that the vehicle speed is 10 Km/h or more and the gear selector lever is

in N position with IGN ON (30 sec. verification is not required).

-

-

04-23

8712-03

No engine operation

▶

When the START/STOP button is pressed at the vehicle speed of 3 km/h or less, the SKM turns off

the IGN relay to stop the engine.

When the vehicle speed is 3 km/h or more or no speed signal is input, the SKM performs the

following functions:

1.

2.

Vehicle status

Conditions

3 km/h or faster

- When the START/STOP switch is pressed for 3 seconds
  or more, the ignition status is changed from IGN to ACC.
- If the engine START/STOP switch is pressed again, the
  ignition status is changed from ACC to IGN.

Abnormal vehicle speed
(No or abnormal CAN signal)

- When the START/STOP switch is pressed for 3 seconds
  or more, the ignition status is changed from IGN to ACC.
- If the engine START/STOP switch is pressed again, the
  ignition status is changed from ACC to Power OFF.
  (DTC set)

When the START/STOP button is pressed and held with IGN ON, the ignition status is changed to

OFF. When the START/STOP button is pressed briefly, the ignition status is changed to ACC ON.

3.

ACC ON to Power OFF

▶

The SKM changes the ignition status to OFF from ACC ON when:

the engine START/STOP button is pressed with the brake pedal released after the ignition status is

changed from IGN ON to ACC ON.

the REKES LOCK or passive LOCK signal is input with ACC ON.

the driver door is opened with ACC ON.

(Driver door open signal input through B-CAN)

12 minutes have passed with ACC ON.

1.

2.

3.

4.

Condition for starting request transmission

8.

ACC ON: Gear selector lever (P/N), Brake switch ON, START/STOP switch signal

IGN ON: Vehicle in stationary, Gear selector lever (P/N), Brake switch ON, START/STOP

switch ON

-

-

Condition for canceling starting request

9.

At engine starting completed

-
