04-24

9. ESCL CONTROL

ESCL lock/unlock is not performed at ESCL virgin mode.

The SKM does not carry out the ESCL LOCK control if the engine is running with IGN ON or the

vehicle speed is 3 km/h or higher.

All the ESCL functions including START/STOP switch is disabled during anti-scanning flag bit set.

-

-

-

If the smart key is pressed with power off, the electric steering motor performs the steering column

unlock. In some cases, power transition is carried out to ACC or IGN ON.

If the power transition and start is not possible after retry to LOCK or UNLOCK operation, the power

transition and start is not still possible after automatic retry and the warning lamp comes on.

-

-

1) ESCL LOCK Control

When the ESCL is unlocked and the followings are met at normal condition:

If the driver door is open or closed with ignition key OFF, the electric steering motor performs the

steering column lock.

If the theft deterrent mode is activated by the LOCK signal from the passive or REKES key when
turning the ignition key from “ON” position to “OFF” position, the ESCL LOCK is performed.

The ESCL LOCK is performed after 60 seconds since the ignition key is turned to B+ from
“ON” or “ACC” position.

-

-

-

2) ESCL UNLOCL Control

When the ESCL is locked and the followings are met at normal condition:

04-25

8712-03

3) ESCL Retry Control

ESCL operation is not possible if Bolt is “Failure”.

When the UNLOCK retry occurs after ESCL LOCK command, the ESCL LOCK is performed.

1.

2.

The UNLOCK retry is possible up to 2 times automatically. If the UNLOCK retry occurs 3 times in

succession, the ESCL NOT LOCKED warning is triggered.

Reactivates when the ESCL LOCK conditions are met.

-

-

When the LOCK retry occurs after ESCL UNLOCK command, the ESCL UNLOCK is performed.

4.

The LOCK retry is possible up to 2 times automatically. If the LOCK retry occurs 3 times in succession,

the ESCL JAM warning is triggered.

Reactivates when the ESCL UNLOCK conditions are met by pressing the START/STOP switch.

-

-

When the UNLOCK retry occurs after ESCL UNLOCK command, the command will be overridden

without retry.

5.

After the command is overridden, the ESCL JAM warning is triggered.

Reactivates when the UNLOCK conditions are met by pressing the START/STOP switch after

ESCL LOCK.

-

-

When the LOCK retry occurs after ESCL LOCK command, the command will be overridden without

retry.

3.

ESCL NOT LOCKED warning is triggered.

Reactivates when the UNLOCK conditions are met by pressing the START/STOP switch.

-

-

04-26

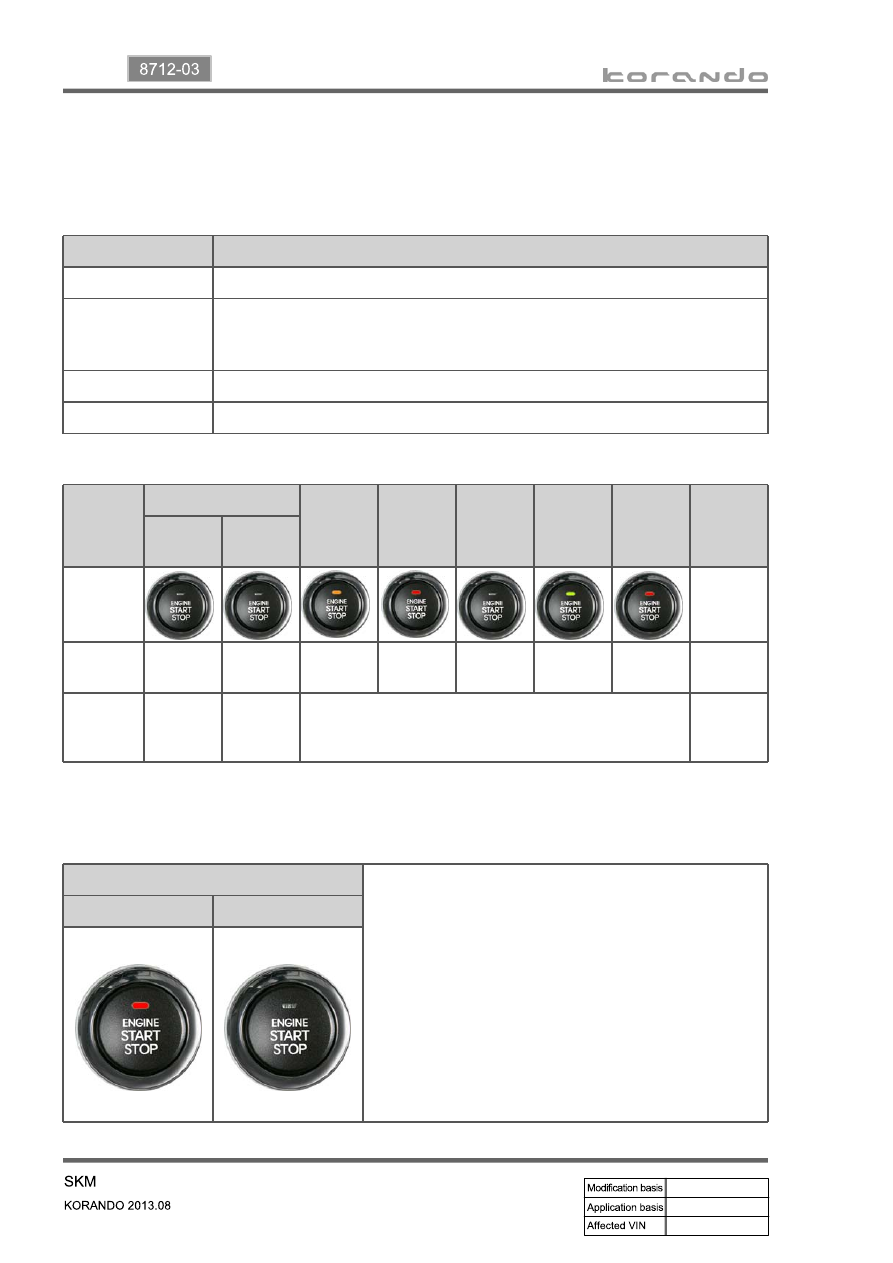

10. START/STOP SWITCH CONTROL

1) Power Status

Ignition status indicator on START switch

▶

Status

Turning-ON conditions

OFF

IGN OFF, IGN ON & engine ON

Green

Engine can be started by START/STOP switch operation/Engine is cranking

(IGN OFF & brake switch ON, ACC ON & brake switch ON, IGN ON & brake

switch ON)

Amber

ACC ON

Red

IGN ON & engine OFF, error

START switch indicator output

▶

Powersta

tus

Power OFF

ACC ON

IGN

ON

Engine

start

status

Engine

can be

started

Error

Remarks

Door

closed

Door

open

Figure

Indicator

status

OFF

OFF

Amber

Red

OFF

Green

Red

Flash

Illuminatio

n

control

OFF

TIME

Controlled by SKM

LED

The indicator flashes 5 times at intervals of 0.5 sec. ON/0.5 sec. OFF when an error occurs.

When all the doors are closed with B+, the indicator does not flash.

-

-

START/STOP switch indicator control

▶

START/STOP switch indicator

ON

OFF

Door coupled function

When the driver door is opened, the indicator comes

on (the indicator remains on while the door is open).

When the room lamp is turned off, the indicator goes

out immediately.

The indicator goes out 10 seconds after the driver door

is closed.

The indicator is reset when the driver door is opened.

Tail lamp coupled function

-

1)

2)

3)

 4)

-

04-27

8712-03

11. SKM WARNING CONTROL

(1) Smart Key Not Detected Warning

With ACC ON

▶

Smart key not detected warning deactivation conditions

 - ACC OFF, IGN1 ON, Smart key detected

IGN ON and engine running

▶

Smart key not detected warning deactivation conditions

- IGN1 OFF, Smart key detected, Door open

Any door except the driver door is opened and then closed.

The SKM starts to identify a smart key by using the interior antenna after confirming that all the doors

are closed through CAN communication with the BCM.

When no smart key is found, the SKM sends the smart key not detected warning signal to the BCM

and instrument cluster through B-CAN.

The BCM activates the buzzer for up to 10 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF and

turns on the smart key warning indicator on the instrument cluster.

If a smart key is found, no operation is performed.

1.

2.

3.

4.

5.

Any door except the driver door is opened and then closed.

The smart key not detected warning is not activated.
- Smart key searching using the interior antenna → No smart key found → The SKM sends

   the smart key not detected warning signal to the BCM and instrument cluster through B-CAN.

The smart key not detected warning is activated.

- Smart key searching at intervals of 3 seconds using the interior antenna.

1.

2.

3.
