SsangYong Korando III (2010 year). Manual - part 463

04-16

REKES panic

▶

The ignition is turned OFF, ON, or ACC is turned ON.

The panic signal is sent when the panic button on the smart key is pressed 1 second or more.

The SKM receives the panic signal and sends the panic request signal to the BCM through B-CAN.

The BCM controls the panic alarm and hazard warning lamp.

1.

2.

3.

4.

When the panic button on the smart key is pressed again during the panic alarm operation, the SKM

sends the panic operation command to the BCM to stop the panic alarm.

When the theft deterrent activation command is received from the BCM, the panic alarm is stopped

and the theft deterrent siren is activated.

-

-

04-17

8712-03

6. SMART KEY FUNCTION LIMITATION (SILENT)

Silent smart key

▶

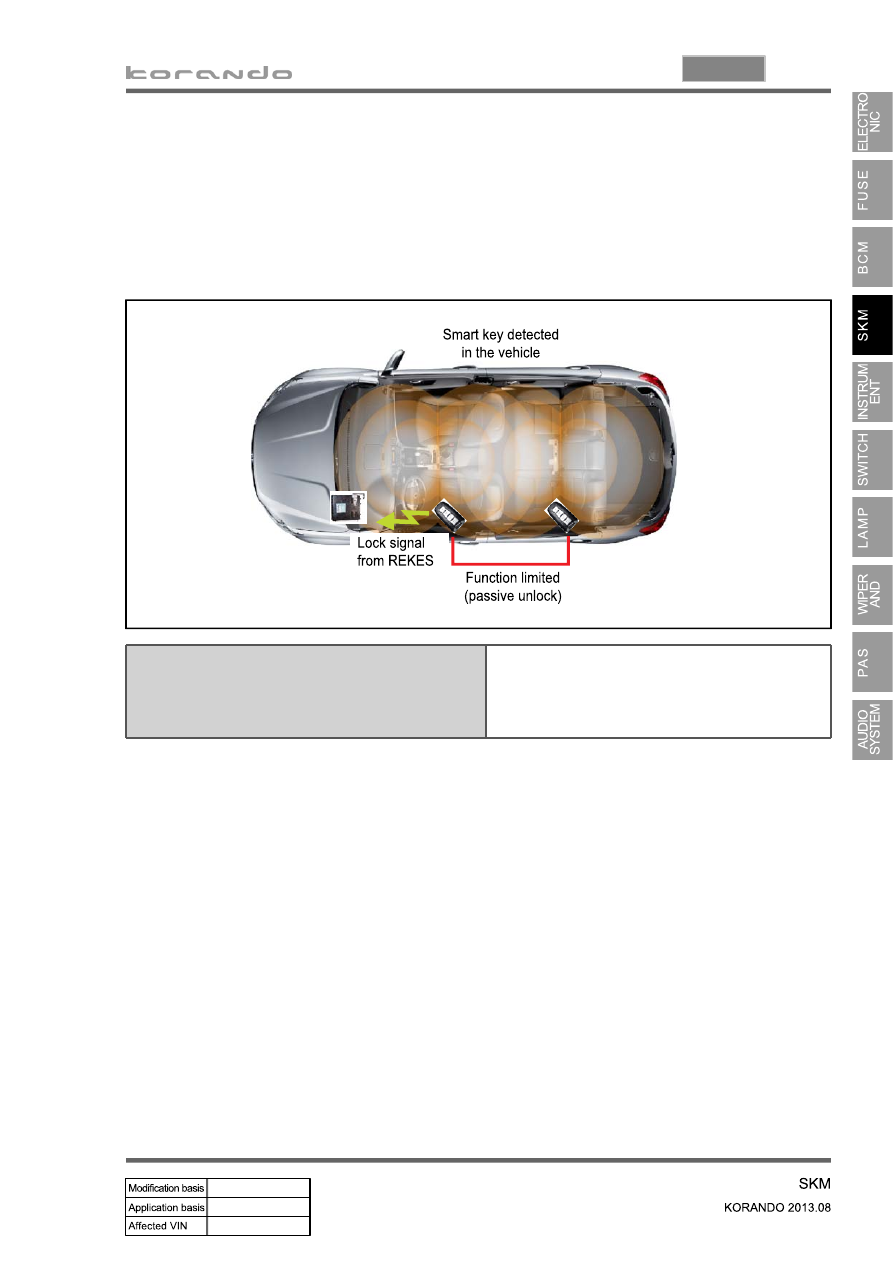

Limits the passive UNLOCK function when searching for the smart key which activated the REKES

LOCK inside the vehicle (including external/internal antenna overlapping area), to prevent the break-in.

Silent smart key activation

-

The REKES LOCK (theft deterrent mode activation) request signal is sent by a smart key inside the

vehicle.

The smart key activated REKES LOCK is found in the vehicle.

All smart keys in the vehicle including the one that output the REKES LOCK are memorized as

silent smart keys, and the passive UNLOCK is not available with these keys.

1.

2.

3.

Silent smart key function

-

Passive UNLOCK not available

Passive start & power control available

REKES function available

1.

2.

3.

Cancellation of silent smart key

-

When the theft deterrent mode is deactivated, the silent smart key functions are available.

1.

Silent activation conditions
- All doors closed (B-CAN)
- Theft deterrent mode activated (B-CAN)
- Smart key search

Silent: The passive UNLOCK is unavailable when
REKES LOCK is carried out with a smart key
inside the vehicle.

/DEACTIVATION

04-18

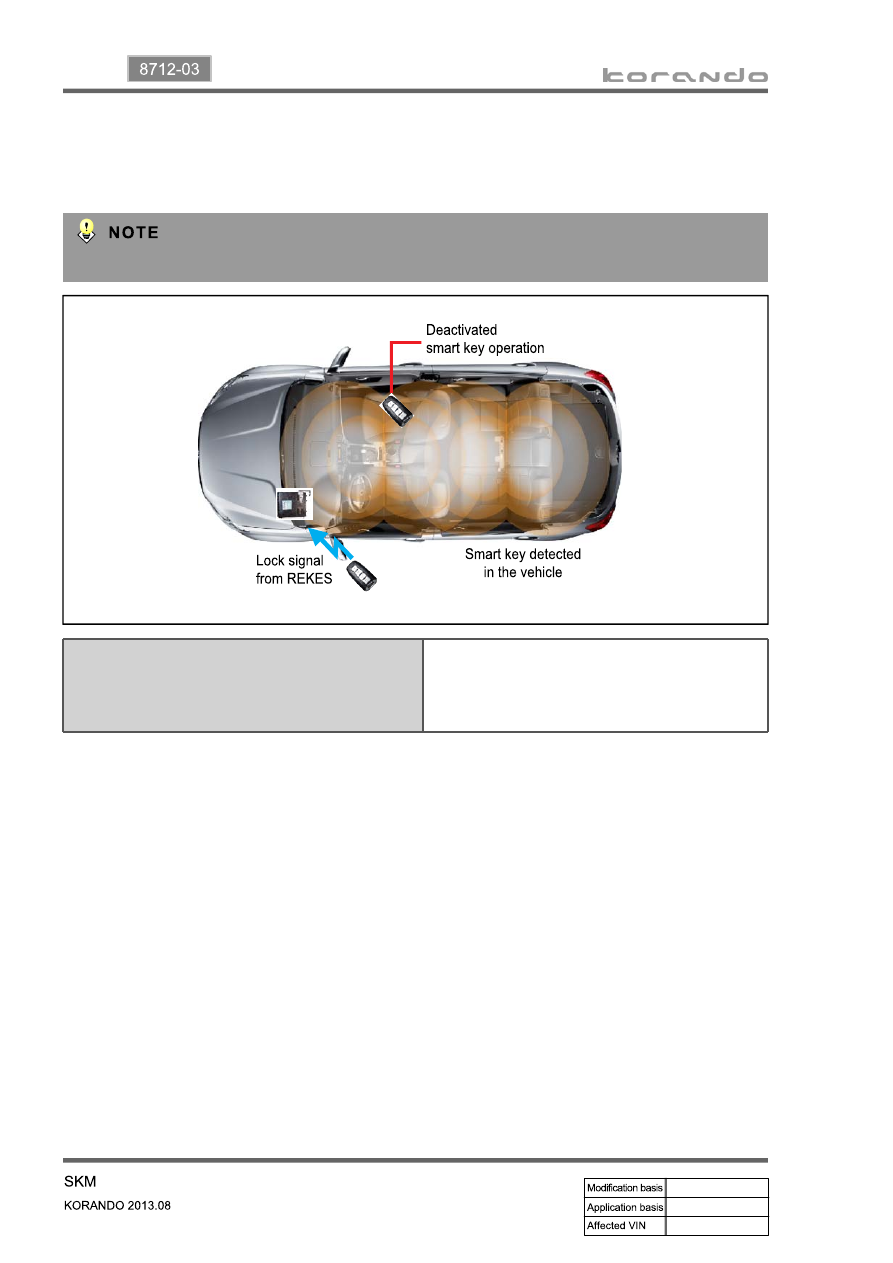

Smart key deactivation

▶

This function prevents the operation by the smart key inside the vehicle even if the driver breaks in the

vehicle in the theft deterrent mode.

Deactivation conditions
- All doors closed (B-CAN)
- Theft deterrent mode activated (B-CAN)
- Smart key search

FOB deactivation: The smart key inside the
vehicle is deactivated when the passive
LOCK/REKES LOCK signal is input by a smart
key from the outside.

Smart key deactivation

-

The REKES LOCK/passive LOCK (theft deterrent mode activation) request signal is sent by a

smart key outside the vehicle.

The smart key activated door LOCK is not found in the vehicle.

The system memorizes all smart keys found inside the vehicle as deactivated ones.

1.

2.

3.

Smart key deactivation actuation area

-

Passive entry not available

Passive starting & power control not available

REKES function not available

1.

2.

3.

Cancellation of smart key deactivation

-

When the theft deterrent mode is deactivated using a smart key outside the vehicle, the

deactivated smart key functions returns to be available.

1.

In theft deterrent mode, the smart key(s) inside the vehicle is deactivated to prevent theft.

04-19

8712-03

7. SMART KEY VERIFICATION TIME CONTROL

The smart key verification time control consists of pre-verification timer and immobilizer verification timer,

and no verification process is required for 30 seconds after the each verification process has been

completed.

Pre-verification timer: Time for performing start & power mode function that controls the vehicle

power.

Immobilizer verification timer: Time for which the start with a smart key is possible after the SKM and

EMS (ECU) verify the immobilizer.

-

-

Item

Pre-verification timer

Immobilizer verification timer

Operating power

Power OFF, ACC, IGN ON

IGN ON after pre-verification (ACC)

Function

Time for which the power control can be
carried out under the verified conditions
(30 seconds after the verification)

Time for which the start request can be
carried out without a smart key under the
verified conditions
(30 seconds after the verification)

Input conditions

Verification

conditions

Smart key searching completed after the
following conditions are met:

Close signal input after any door

opened

Brake switch signal input

START/STOP switch signal input

After emergency slot inserted

After IGN OFF

1.

2.

3.

4.

5.

Power changed to IGN ON after

valid pre-verification

Power changed to IGN ON by

smart key verification after pre-

verification timer completed

Smart key verification succeeded

by brake switch input after

immobilizer verification timer

completed with IGN ON

Smart key verification succeeded

after immobilizer verification timer

completed with IGN ON,

immobilizer verification and brake

switch input

1.

2.

3.

4.

All doors closed

(including tailgate)

START/STOP switch input

Brake switch signal input

Smart key inserted into emergency

slot

Smart key searching completed

Engine start ON to OFF

1.

2.

3.

4.

5.

6.

Brake switch signal input

START/STOP switch input

1.

2.
