04-12

(4) Passive UNLOCK

The passive UNLOCK (door UNLOCK) is activated by the door handle switch with a valid smart key

present within the passive entry actuation area.

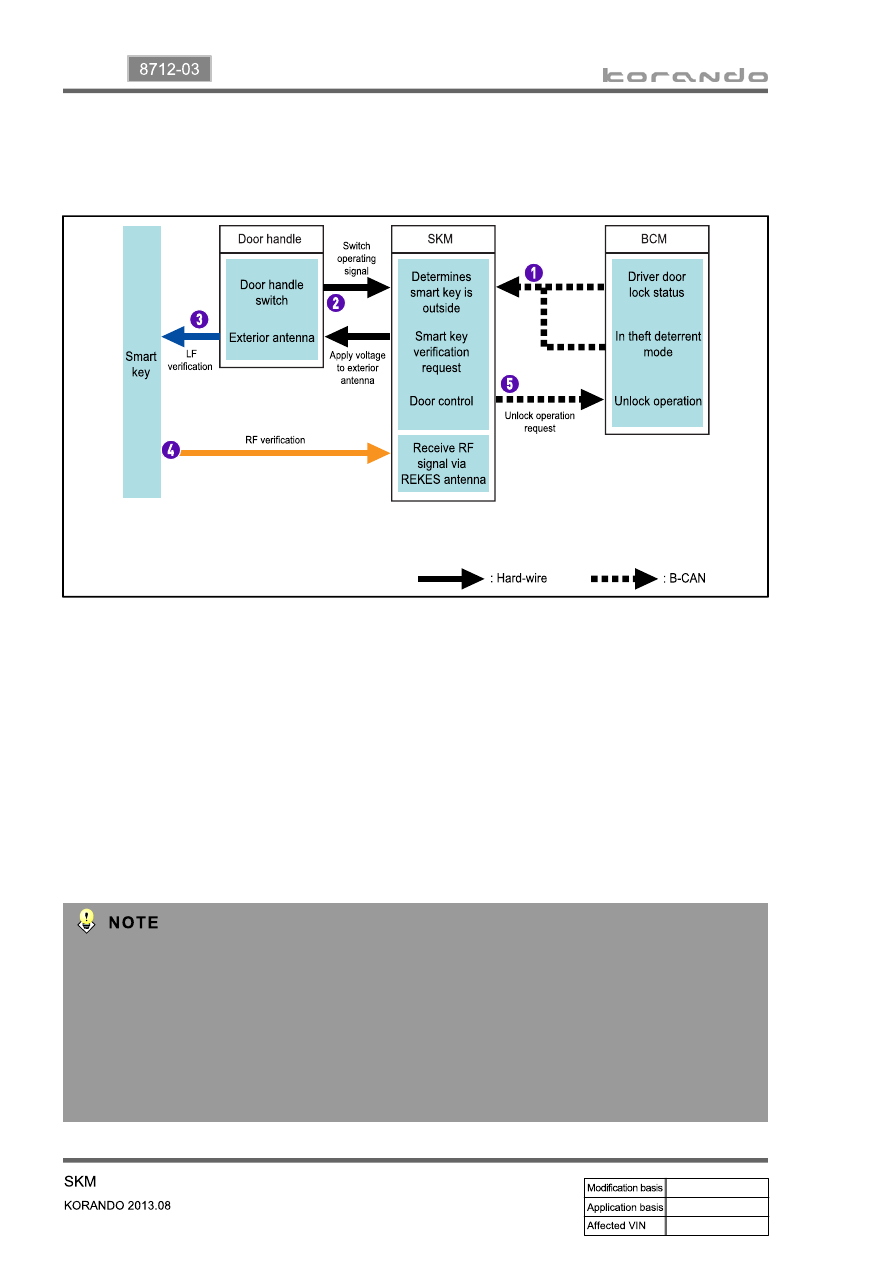

Passive UNLOCK and verification by door handle switch

▶

The driver door is locked and the system in the theft deterrent mode.

The door handle switch on the driver or passenger door is pressed briefly.

The SKM verifies if a smart key is outside the vehicle using the door handle antenna (LF verification)

(The SKM searches the last smart key used first).

The verification signal (RF verification) from the smart key is sent to the REKES antenna of the SKM.

The SKM sends the Passive UNLOCK signal to the BCM through the B-CAN if the verified smart key

is found outside the vehicle.

The BCM receives the signal from the SKM and controls the door UNLOCK actuator and turn signal

lamp. (The buzzer sounds twice and hazard warning lamp flashes once when the theft deterrent

mode is deactivated)

1.

2.

3.

4.

5.

6.

If no smart key is identified as being outside the vehicle, the passive UNLOCK process is stopped

and restarted when the next signal is received from the door handle switch.

When the driver door is locked with ACC ON, the SKM sends the Passive UNLOCK signal to the

BCM through the B-CAN to unlock the door without changing the ignition status to OFF. (The vehicle

power is turned OFF when the door is opened.)

Smart key searching

* Theft deterrent mode: deactivated after searching the outside vehicle

* Theft deterrent mode deactivated: outside searching after inside searching

-

-

-

04-13

8712-03

(5) Passive tailgate open

The tailgate open control is activated by the tailgate open switch with a valid smart key present within the

passive entry actuation area.

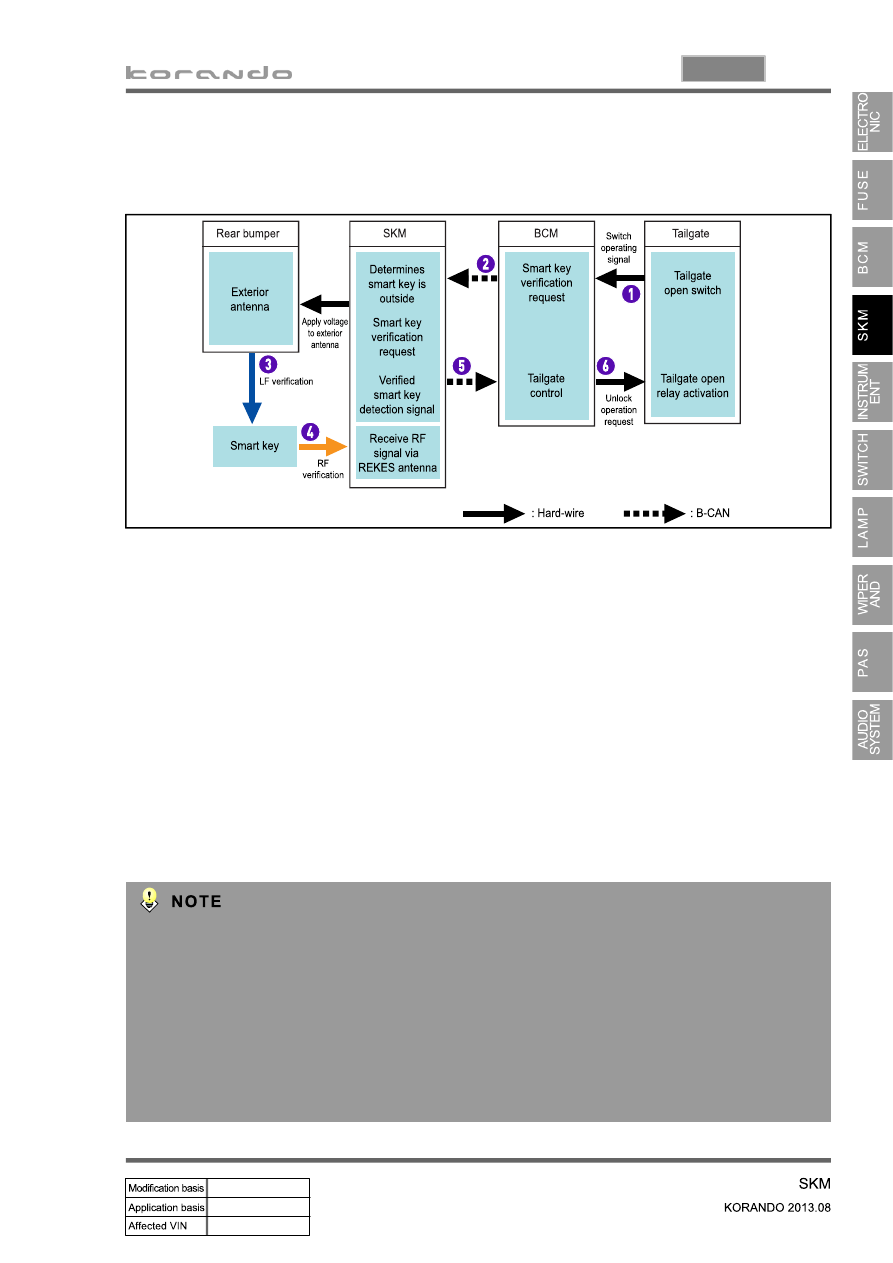

Passive tailgate open by tailgate open switch

▶

When the tailgate is closed with all doors closed, the system enters the theft deterrent mode after

checking a valid smart key inside the vehicle. When a valid smart key is found inside the vehicle, the

external buzzer and smart key detected warning indicator is operated for 10 seconds.

If no smart key is identified as being outside the vehicle, the passive gate open process is stopped

and restarted when the next signal is received from the tailgate open switch.

Smart key searching

* Theft deterrent mode: deactivated after searching the outside vehicle

* Theft deterrent mode deactivated: outside searching after inside searching

-

-

-

The driver door is locked and the system in the theft deterrent mode.

The tailgate open switch signal is received.

The BCM sends the valid smart key verification request signal to the SKM.

The SKM verifies if a smart key is outside the vehicle using the corresponding rear bumper antenna

(LF verification) (The SKM searches the last smart key used first. If a valid smart key searching is

completed, searching for a key in the luggage compartment and inside the vehicle is started).

The verification signal (RF verification) from the smart key is sent to the REKES antenna of the SKM.

The SKM sends the Passive tailgate open signal to the BCM through the B-CAN if the verified smart

key is found outside the vehicle.

The BCM activates the tailgate open relay according to the signal received from the SKM.

(Only the theft deterrent mode for tailgate is deactivated.)

-

1.

2.

3.

4.

5.

6.

04-14

(6) Puddle (approach) lamp control

Operating conditions

▶

 The SKM starts to search a smart key 30 seconds after the vehicle has entered the theft deterrent

mode.

 When the driver approaches the vehicle in theft deterrent mode (within 1 m), the SKM sends the

puddle lamp operation signal through the B-CAN if a smart key is identified.

-

-

Continuous operation

▶

Reset conditions

▶

Standby mode operation

▶

When a smart key is identified within 1 m from the vehicle in theft deterrent mode, the SKM sends the

puddle lamp operation signal (10 minutes timer activated) through the B-CAN. If a smart key is

continuously found within 10 minutes the SKM sends the puddle lamp signal again for continuous

operation (up to 2 times within 10 minutes)

The SKM starts to search a smart key 30 seconds after sending the 1st puddle lamp operation signal.

If a smart key is found, the SKM sends the 2nd operation signal.

-

-

10 minutes timer terminated

Re-entering theft deterrent mode after deactivation

-

-

Duration

Function

Time (sec)

1st

within 5 days

Normal monitoring time

1.25

2nd

within 5 to 14 days

Increasing monitoring time

1.5

3rd

14 days or more

Stop

The SKM sends the AUTO approach (puddle) lamp ON signal and UNLOCK signal to the BCM

through the B-CAN with AUTO approach (puddle) lamp ON, smart key UNLOCK and Passive entry

UNLOCK.

Door LOCK/UNLOCK by a smart key or passive

Stop/Standby operation reset condition

▶

The SKM sends the smart key UNLOCK and passive UNLOCK signals to the BCM through the B-CAN

in the theft deterrent mode to control the approach (puddle) lamp ON.

Approach (puddle) lamp ON by smart key UNLOCK and passive entry UNLOCK.

▶

04-15

8712-03

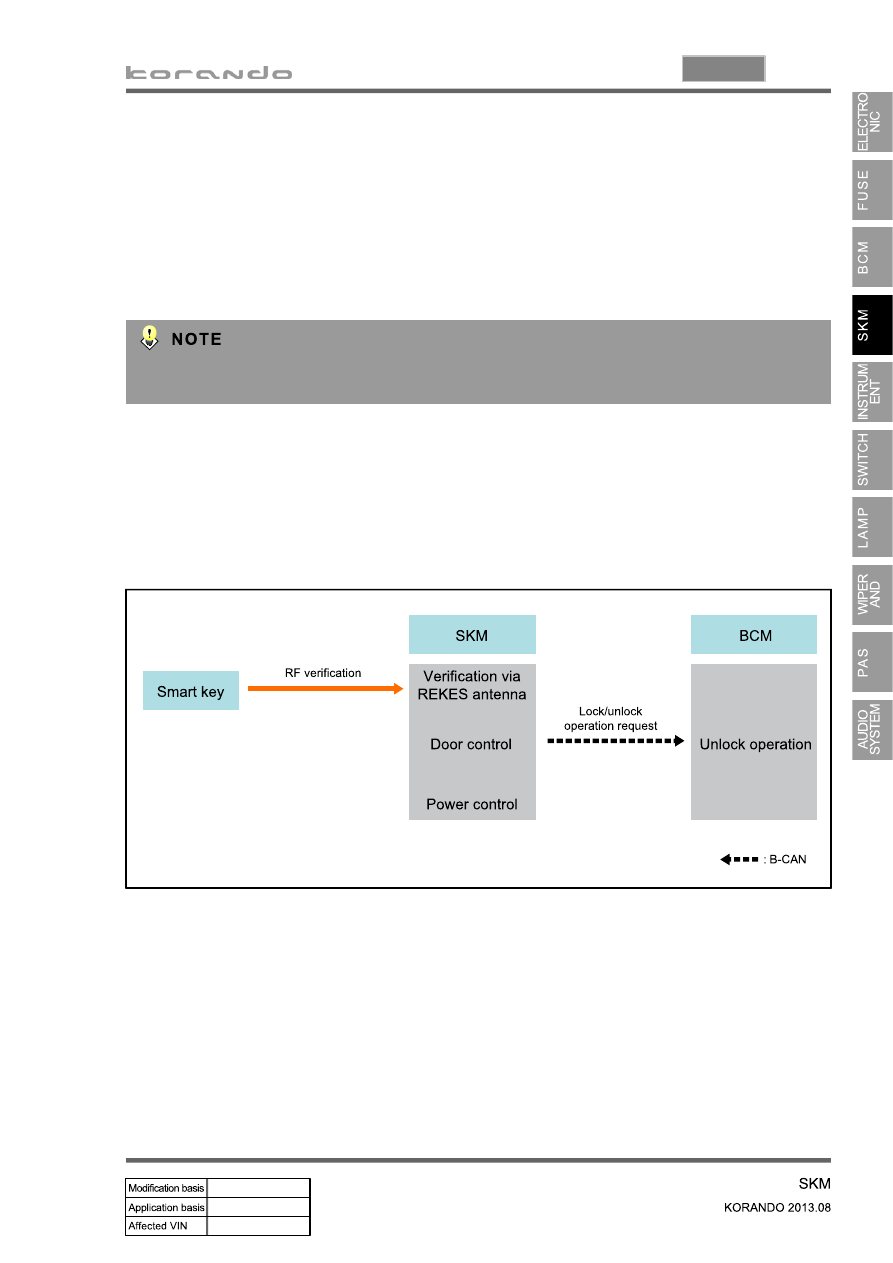

5. REKES CONTROL FUNCTION

REKES LOCK operation

▶

The REKES LOCK signal is sent when the LOCK button on the smart key is pressed briefly (0.1 sec.

to 1.5 sec.).

The SKM receives the REKES LOCK signal and sends the REKES LOCK request signal to the

BCM through B-CAN.

The BCM outputs the door LOCK signal according to the signal received from the SKM.

1.

2.

3.

When the REKES LOCK signal is received with the ACC ON, the ACC is turned OFF and the

REKES LOCK signal is sent.

REKES UNLOCK operation

▶

The REKES UNLOCK signal is sent when the UNLOCK button on the smart key is pressed briefly

(0.1 sec. or more).

The SKM receives the REKES UNLOCK signal and sends the REKES UNLOCK request signal to

the BCM through B-CAN.

The BCM outputs the door UNLOCK signal according to the signal received from the SKM.

1.

2.

3.

Tailgate open operation

▶

The ignition is turned OFF, ON, or ACC is turned ON.

The tailgate open signal is sent when the tailgate open button on the smart key is pressed 1 second

or more.

The SKM receives the tailgate open signal and sends the tailgate open request signal to the BCM

through B-CAN.

The BCM activates the tailgate open relay when the tailgate open switch is pressed.

1.

2.

3.

4.
