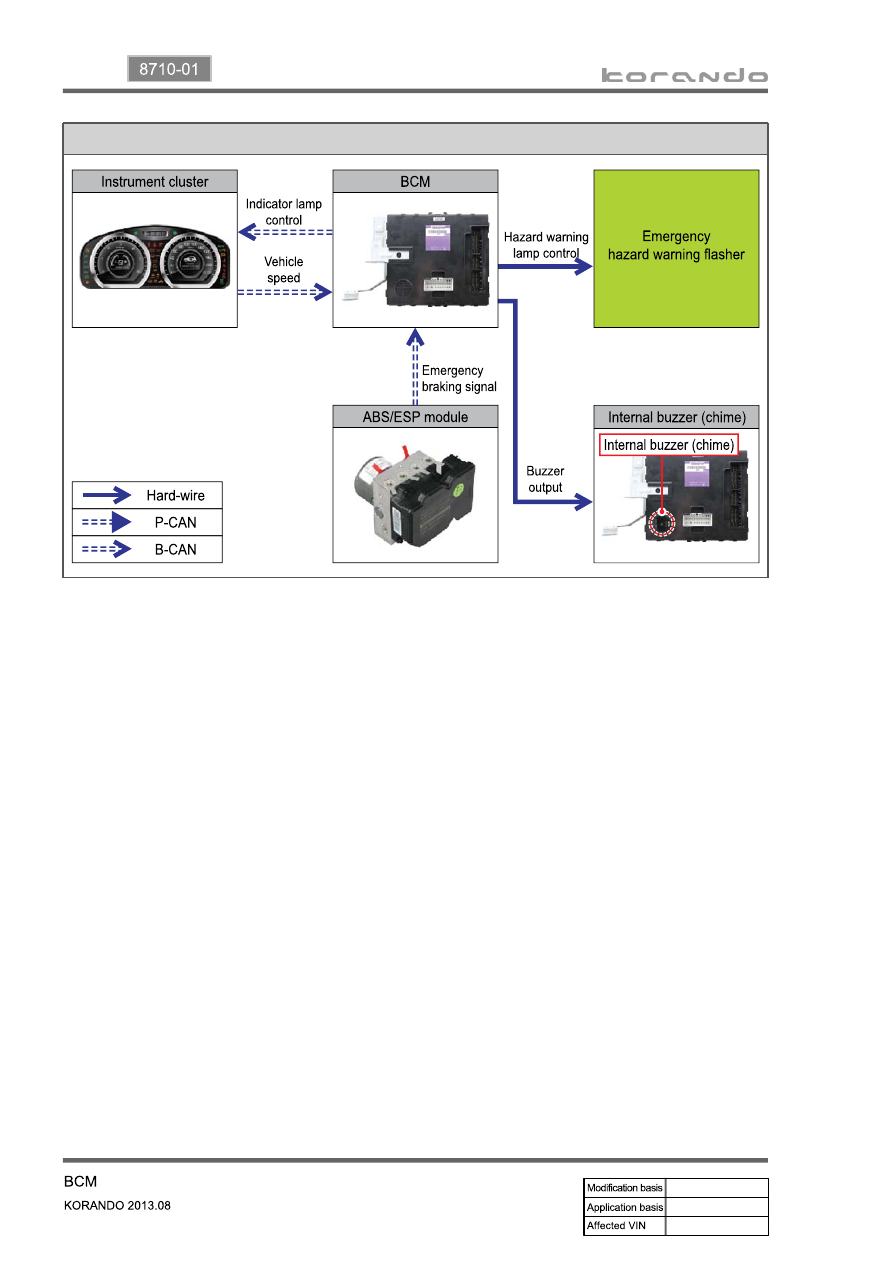

Emergency hazard warning lamp control (coupled with ABS)

▶

 The emergency stop signal is input from the ABS/ESP module with the vehicle driven at 50 km/h or

more.

The hazard warning lamp flashes at 4 Hz (T1) and internal buzzer (chime) sounds at 1.25 Hz.

A.

B.

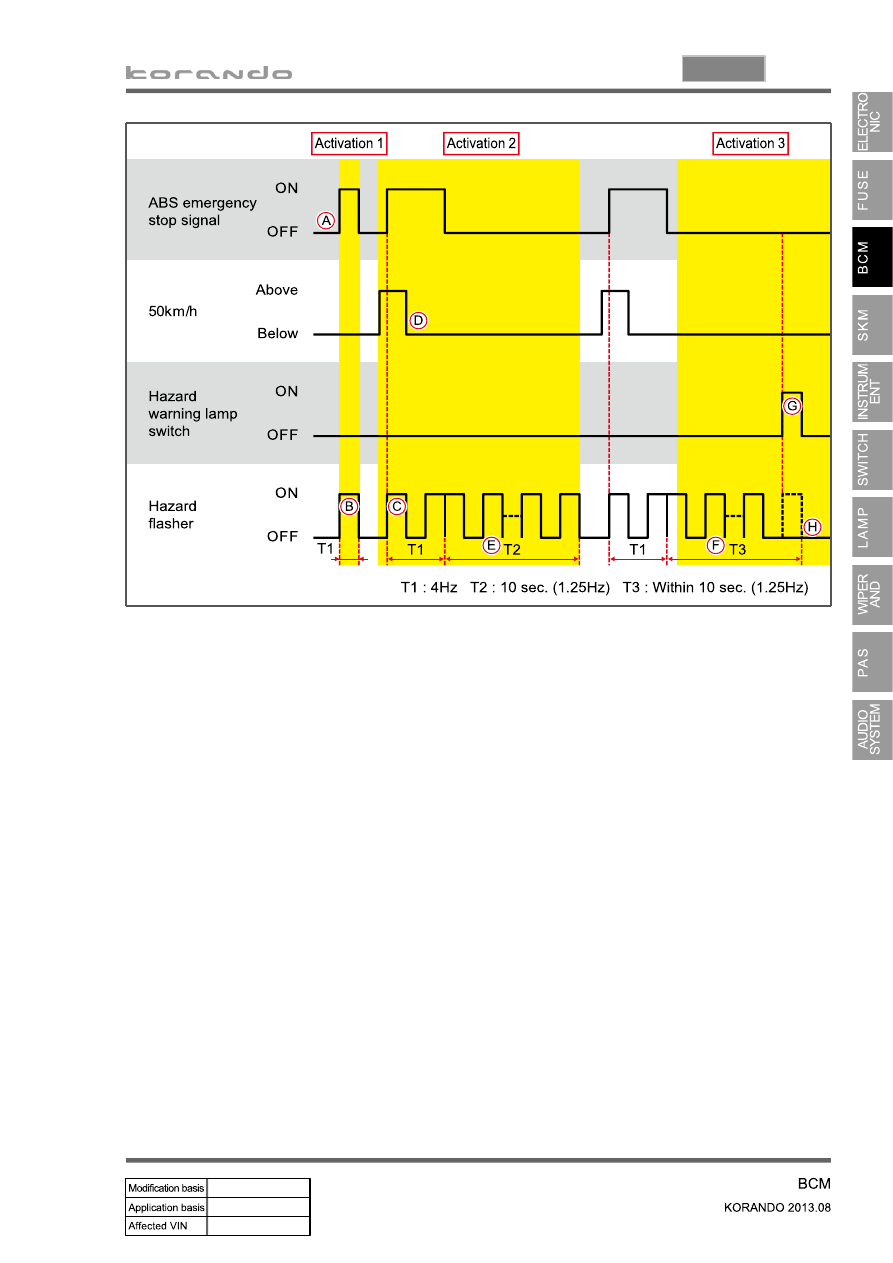

Operation 1. (emergency stop signal)

During operation 1 (emergency stop signal activated)

The vehicle speed decreased to 50 km/h or less

The hazard warning lamp flashes for 10 seconds (T2) at 1.25 Hz and then goes out.

C.

D.

E.

Operation 2. (Emergency stop signal → Emergency AUTO hazard warning lamp)

The BCM activates emergency hazard warning lamp operation when receiving emergency braking

signal from the ESP/ABS.

Priority of operation

(Manual operation of hazard warning lamp > Emergency stop signal > Emergency AUTO hazard

warning lamp > AUTO hazard warning lamp)

-

Operation 3. (Emergency AUTO hazard warning lamp → Manual operation of hazard warning

lamp)

During operation 2 (emergency AUTO hazard warning lamp)

The hazard warning lamp switch is turned OFF.

The hazard warning lamp is turned OFF because the manual operation overrides the emergency

AUTO operation.

F.

G.

H.

The emergency stop signal and emergency AUTO hazard warning lamp signal are switched off

when the vehicle speed exceeds 10 km/h (if emergency stop signal is input).

03-113

8710-01

03-114

Operating process

The BCM activates emergency hazard warning lamp operation when receiving emergency braking

flasher ON signal from the ESP/ABS.

When the emergency stop signal is input through the P-CAN, the hazard warning lamp flashes with the

frequency of 4 Hz and the internal buzzer sounds at 1.25 Hz.

P-CAN signal during operation: Emergency Stop=EBL_INFO=0*0=Hazard Warning Lamp unrequested

03-115

8710-01

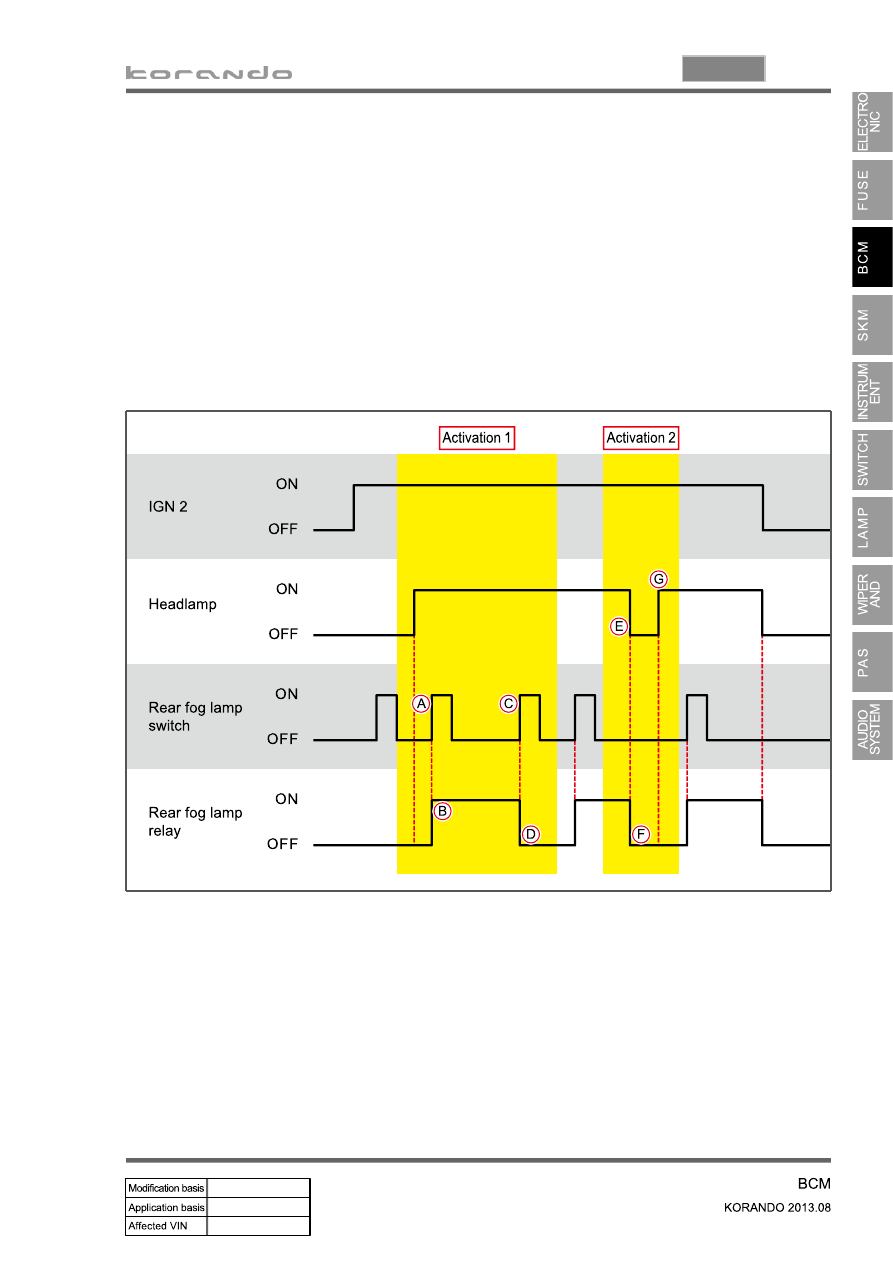

Rear fog lamp control (only EU)

▶

When pressing the rear fog lamp switch with IGN2 ON (headlamp ON condition),

The rear fog lamps are turned on.

When pressing the rear fog lamp switch again during the operation,

The rear fog lamps are turned off.

A.

B.

C.

D.

Operation 1.

If the headlamp is turned off or IGN2 switch is turned to “OFF” position,

The rear fog lamps are turned off.

The rear fog lamps are not turned on automatically without operating the rear fog lamp switch.

E.

F.

G.

Operation 2.
