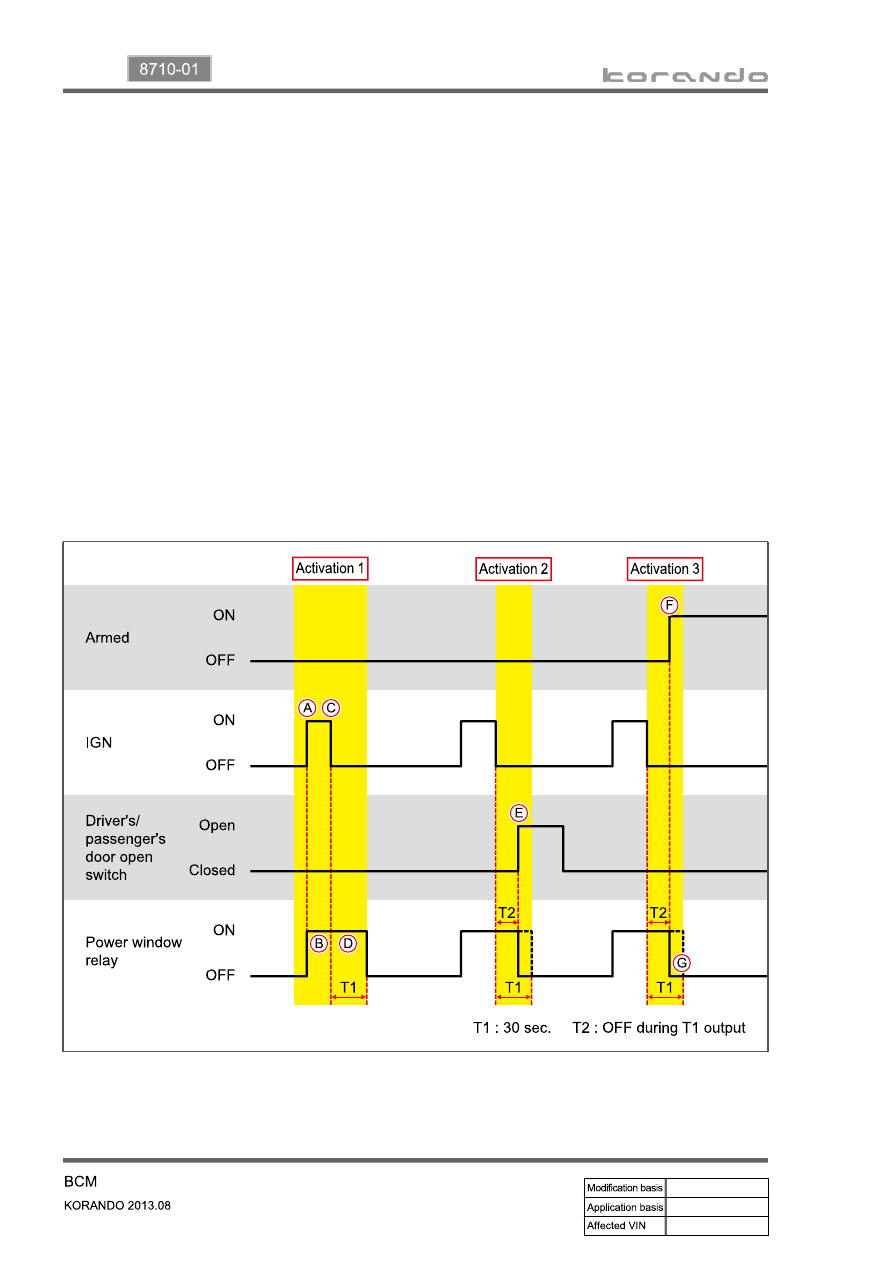

Time lag power window control

▶

The ignition is turned ON.

The power window relay is activated.

The ignition is turned OFF.

The power window relay is turned ON for 30 seconds (T1).

A.

B.

C.

D.

Operation 1.

The power window relay is turned OFF immediately when the driver/passenger door is opened.

E.

Operation 2.

(during 30 seconds (T1) of power window relay ON).

The system enters theft deterrent mode.

The power window relay is turned OFF immediately.

F.

G.

Operation 3.

18. POWER WINDOW RELAY CONTROL

03-105

8710-01

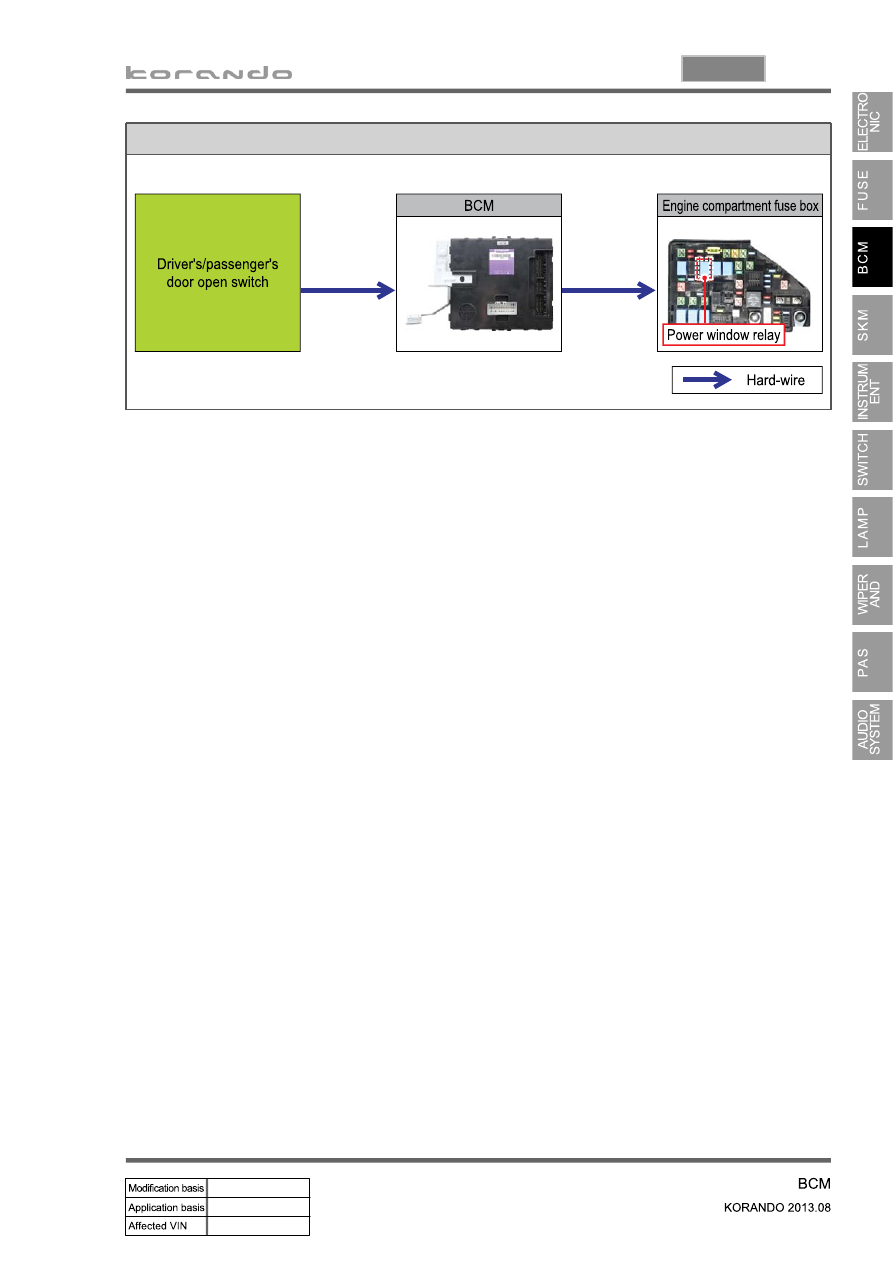

Operating process

- The ignition is turned OFF.

19. SLEEP MODE

If the state of the LOCK switches of driver/passenger/rear doors and tailgate is not changed for 6

seconds with the all doors including tailgate closed and IGN OFF (ignition key removed), even if the

state is not LOCK, the system enters the sleep mode to power down.

1.

If any condition of the (1) is not met, the system enters the wake up mode immediately.

2.

When the room lamp, key hole lamp, tail lamp, or power window is already activated, or all doors are

closed for continuous 30 seconds after the door UNLOCK under the conditions stated in (1), the

system waits in normal mode. If the lamps or power window is deactivated and no change is

detected for 6 seconds after all doors are closed, the system enters the sleep mode.

3.

When the front room lamp is ON, the system turns of the room lamp in 10 minutes and enters the

sleep mode after 6 seconds.

4.

If the coming home light is ON, the system enters the sleep mode when the coming home light

switching off conditions are met.

5.

The sleep mode is deactivated when a door is opened or key is inserted.

6.

03-106

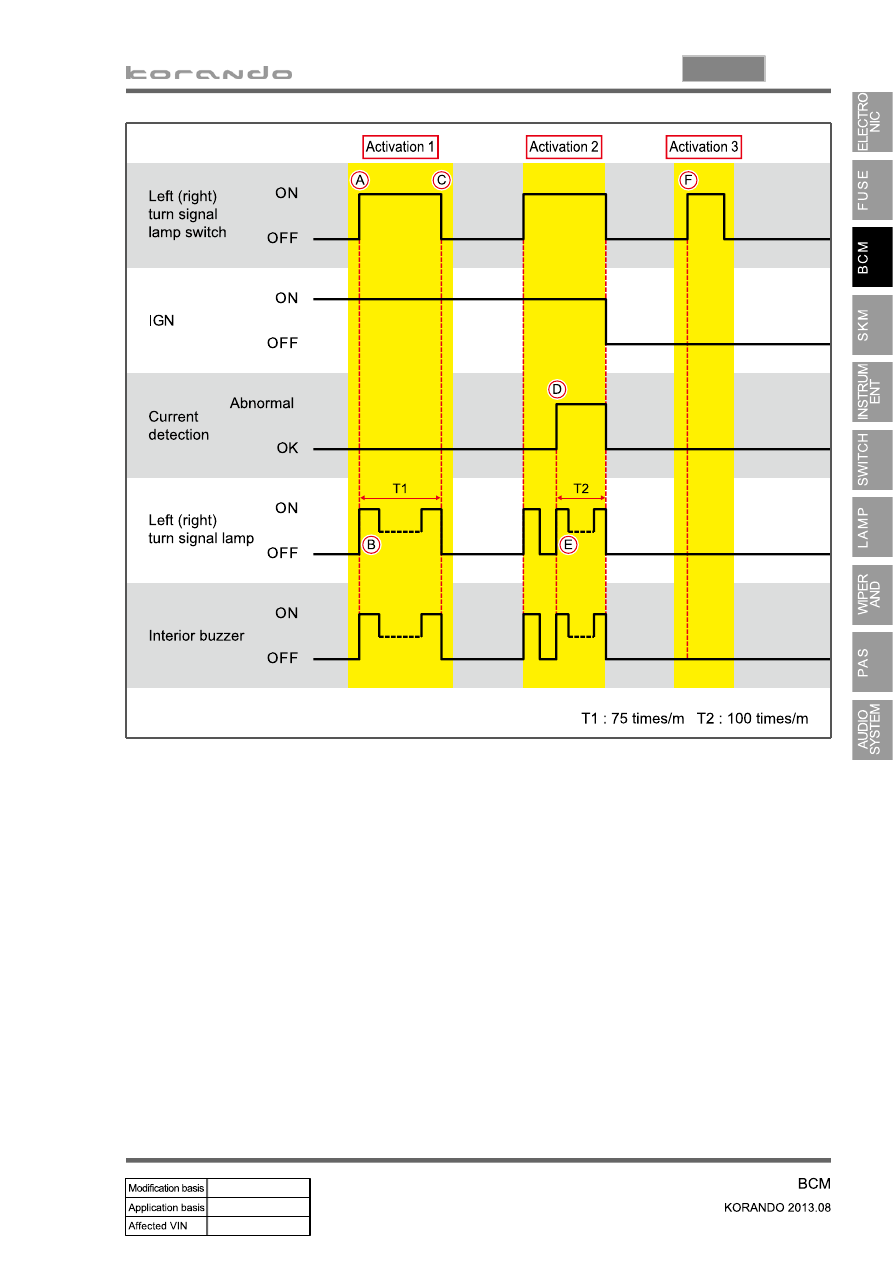

LH/RH turn signal lamp control

▶

The LH/RH turn signal lamp switch is turned ON with IGN ON.

The LH/RH turn signal lamp flashes 75 times per minute (T1), and the internal buzzer sounds at

intervals of 0.4 sec. ON/0.4 sec. OFF.

The LH/RH turn signal lamp and internal buzzer are deactivated when the LH/RH turn signal lamp

switch is turned OFF.

A.

B.

C.

Operation 1.

Abnormal current (less than 3 A or more than 7 A) detection signal is input while the lamp is ON.

The LH/RH turn signal lamp flashes 100 times per minute (T2), and the internal buzzer sounds at

intervals of 0.3 sec. ON/0.3 sec. OFF.

D.

E.

Operation 2.

The LH/RH turn signal lamp is activated only with IGN ON.

F.

Operation 3.

20. FLASHER FUNCTION

The LH/RH turn signal lamp flashes 3 times once the corresponding lamp switch is turned ON.

When the LH turn signal lamp switch is turned OFF during the 3 times flashing, the turn signal

lamp goes out after the flashing operation.

When the LH turn signal lamp switch is turned ON during the 3 times flashing, the turn signal lamp

flashes 3 more times.

When the RH turn signal lamp switch is turned ON during the 3 times flashing, the LH turn signal

lamp goes out immediately and the RH turn signal lamp flashes 3 times before switching off.

-

 -

-
