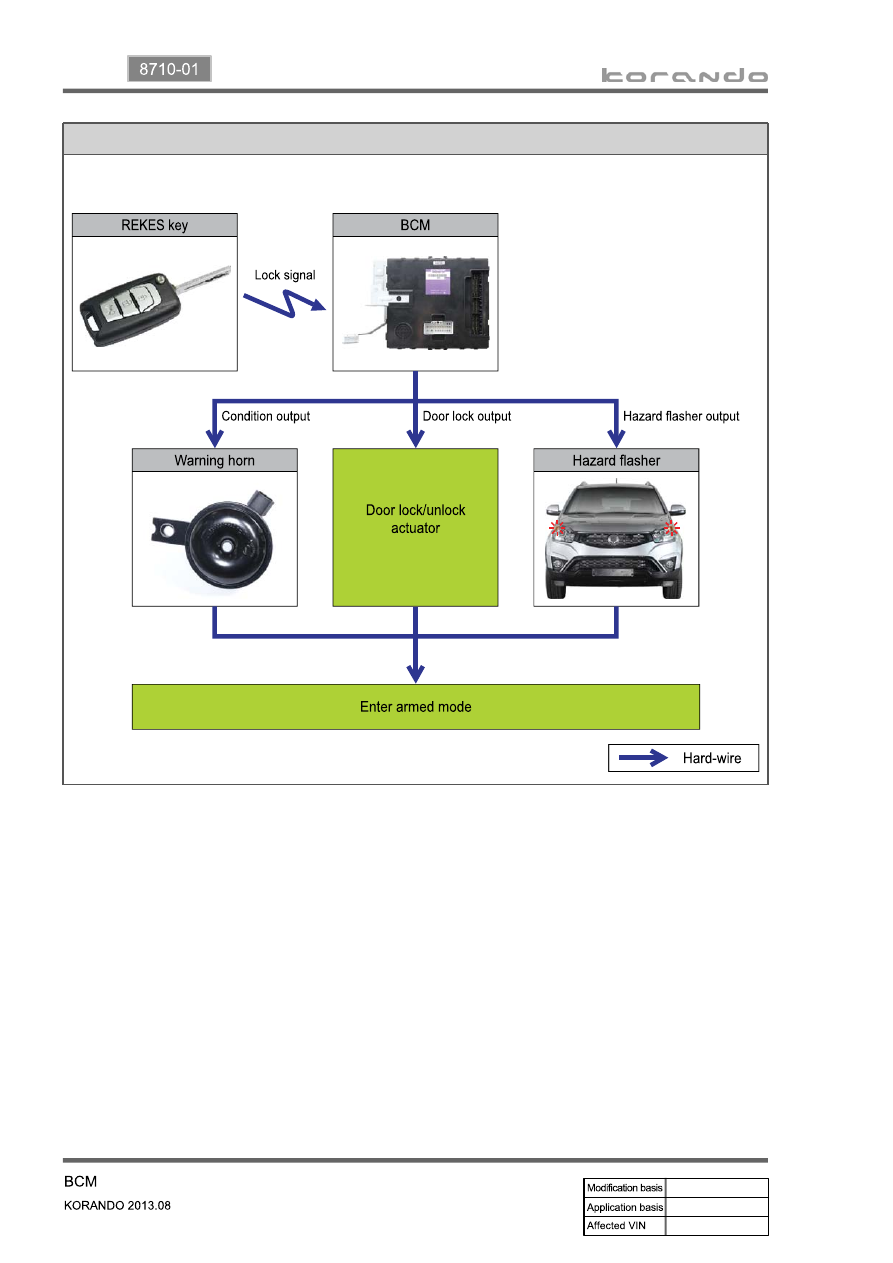

Operating process

- IGN OFF/ACC ON
- All doors (including hood and tailgate) closed

03-97

8710-01

Theft deterrent mode deactivation conditions (for vehicles without SKM)

▶

The REKES UNLOCK signal is input with IGN ON.

When the REKES UNLOCK signal is input in the theft deterrent mode or with the theft deterrent mode

deactivated, the hazard warning lamp is operated once and the theft deterrent mode is deactivated

(without warning horn output).

-

 -

Theft deterrent mode (for vehicles without SKM)

▶

Battery power

Front/rear door open

Tailgate open

4 doors LOCK/UNLOCK

Hood open

-

-

-

-

-

The BCM monitors the following conditions continuously in theft deterrent mode.

Theft deterrent alarm activation (for vehicles without SKM)

▶

Any door including hood and tailgate is opened in theft deterrent mode.

The LOCK switch of any door including tailgate is set to UNLOCK in theft deterrent mode.

Any door except tailgate and hood is closed and then opened after 30 seconds of alarming.

The hazard warning lamp and warning horn are activated for 30 seconds at intervals of 0.5 sec.

ON/0.5 sec. OFF.

-

-

-

-

Theft deterrent alarm deactivation conditions (for vehicles without SKM)

▶

Any signal from the REKES (LOCK, UNLOCK, Panic, Escort) deactivates the theft deterrent

alarm.

The theft deterrent alarm remain on for up to 30 seconds.

When the theft deterrent alarm is activated in theft deterrent mode, turning the ignition ON

immediately deactivates the mode. The alarm is deactivated 30 seconds (time remaining) after that.

(For vehicles with immobilizer system, the alarm is deactivated once the key is verified after the

ignition is turned ON)

-

-

-

03-98

Theft deterrent mode entering by smart key (for vehicles with SKM)

▶

The ignition is turned OFF or ACC is turned ON with all doors (including hood and tailgate)

closed.

The door LOCK signal is received through B-CAN.

The door LOCK relay is activated.

(If ACC ON, the relay is activated after the power is turned OFF.)

All doors (including hood and tailgate) are locked

The system enters the theft deterrent mode after operating the hazard warning lamp twice and

external buzzer (SKM buzzer) once.

A.

B.

C.

D.

E.

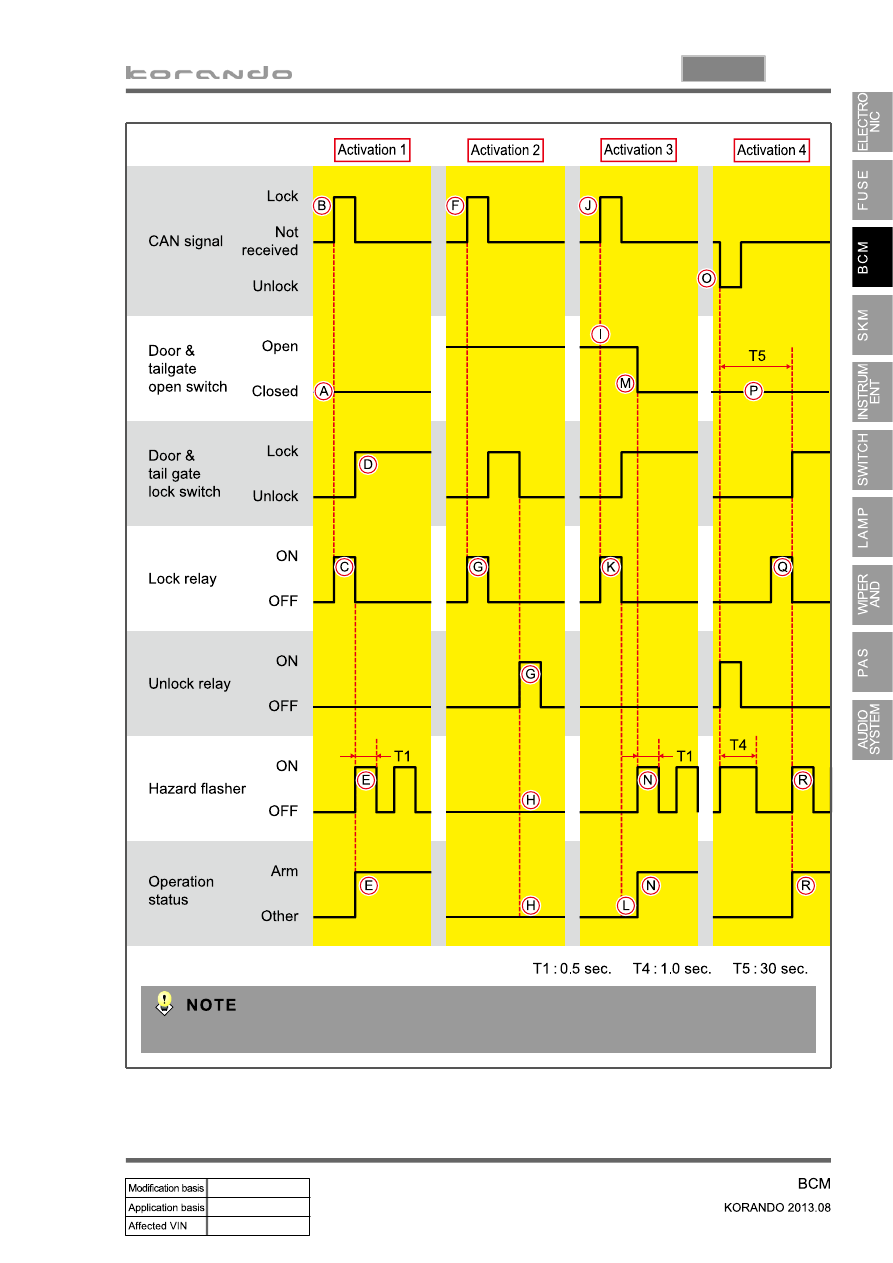

Operation 1.

The door LOCK signal is received through B-CAN when one or more doors are open with driver

door unlocked.

The LOCK relay is activated followed by activation of UNLOCK relay.

The hazard warning lamp and external buzzer (SKM buzzer) are not operated and the system does

not enter the theft deterrent mode.

F.

G.

H.

Operation 2.

The tailgate and hood are open.

The door LOCK signal is received through B-CAN.

If all doors (including hood and tailgate) are closed, door LOCK relay is activated.

The system does not enter theft deterrent mode.

If the open tailgate and hood are closed.

The system enters the theft deterrent mode after operating the hazard warning lamp twice and

external buzzer (SKM buzzer) once.

I.

J.

K.

L.

M.

N.

Operation 3.

The door UNLOCK signal is received through B-CAN.

All doors (including hood and tailgate) are not opened or the ignition is not turned ON within 30

seconds (T5).

The door LOCK relay is activated.

The system enters the theft deterrent mode again after operating the hazard warning lamp twice and

external buzzer (SKM buzzer) once.

O.

P.

Q.

R.

Operation 4.

The procedure of entering theft deterrent mode by door handle switch LOCK is the same with the

operation 3.

Ex) The theft deterrent mode will not be activated when the door is locked by the door key.

03-99

8710-01

The door LOCK/UNLOCK relay is installed inside the actuator.
