03-88

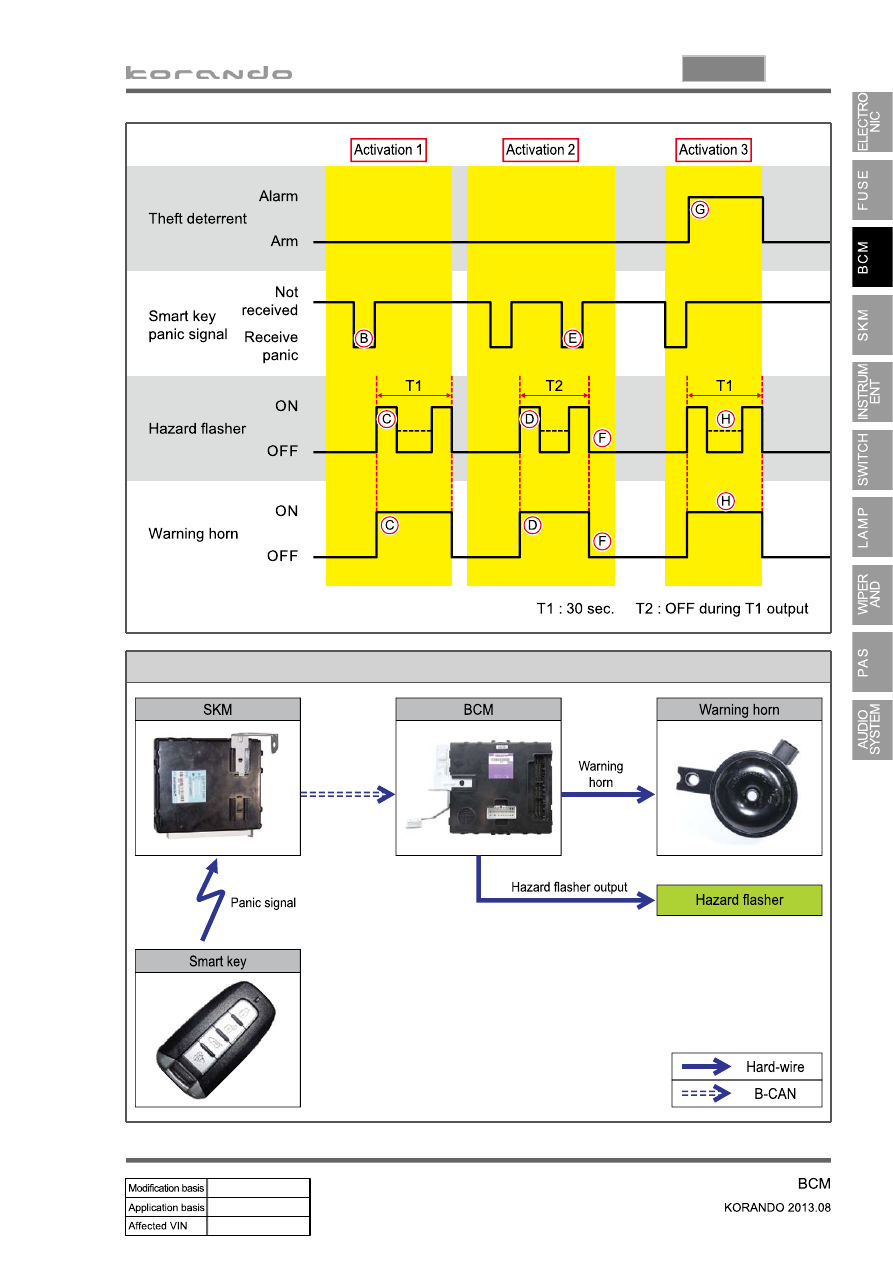

Smart key panic alarm (for vehicles with SKM)

▶

The ignition is turned ON or OFF, or the ACC is turned ON.

The smart key panic signal is received.

The hazard warning lamp and siren are activated for 30 seconds (T1) at intervals of 0.5 sec. ON/0.5

sec. OFF.

A.

B.

C.

Operation 1.

The theft deterrent alarm is activated.

The panic function is interrupted and theft deterrent alarm is set.

G.

H.

Operation 3. (during operation 1)

The panic function is activated by the signals from SKM.

-

The hazard warning lamp and warning horn are activated by smart key panic function (operation 1).

The followings occur:

D.

E.

Operation 2.

The panic button of the smart key is pressed.

When other function signal is received, the command is executed while the panic function is kept.

-

 -

The panic function is interrupted and other functions are activated by the corresponding command.

F.

03-89

8710-01

Operating process

03-90

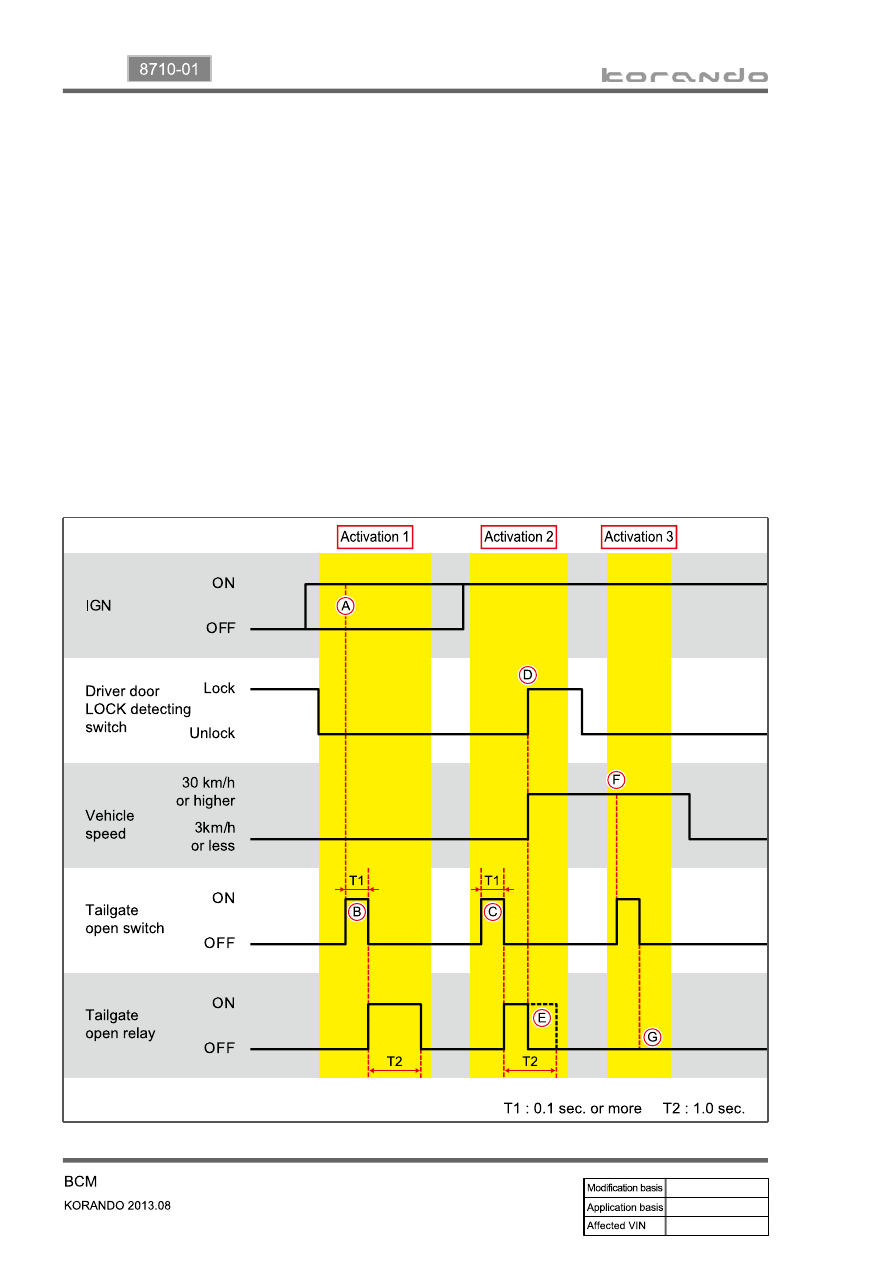

Tailgate open control (for vehicles without SKM)

▶

The ignition is turned OFF or ON, or ACC is turned ON with the driver door unlocked.

When the tailgate open switch is pressed for more than 0.1 seconds (T1), the tailgate open relay is

activated for 1 second.

A.

B.

Operation 1.

The tailgate open relay is activated.

The vehicle is driven at 3 km/h or more with the driver door locked or IGN ON.

The tailgate open relay is deactivated immediately.

C.

D.

E.

Operation 2.

The vehicle is driven at 3 km/h or more with IGN ON.

The tailgate open relay is not activated when the tailgate open switch is pressed.

F.

G.

Operation 3.

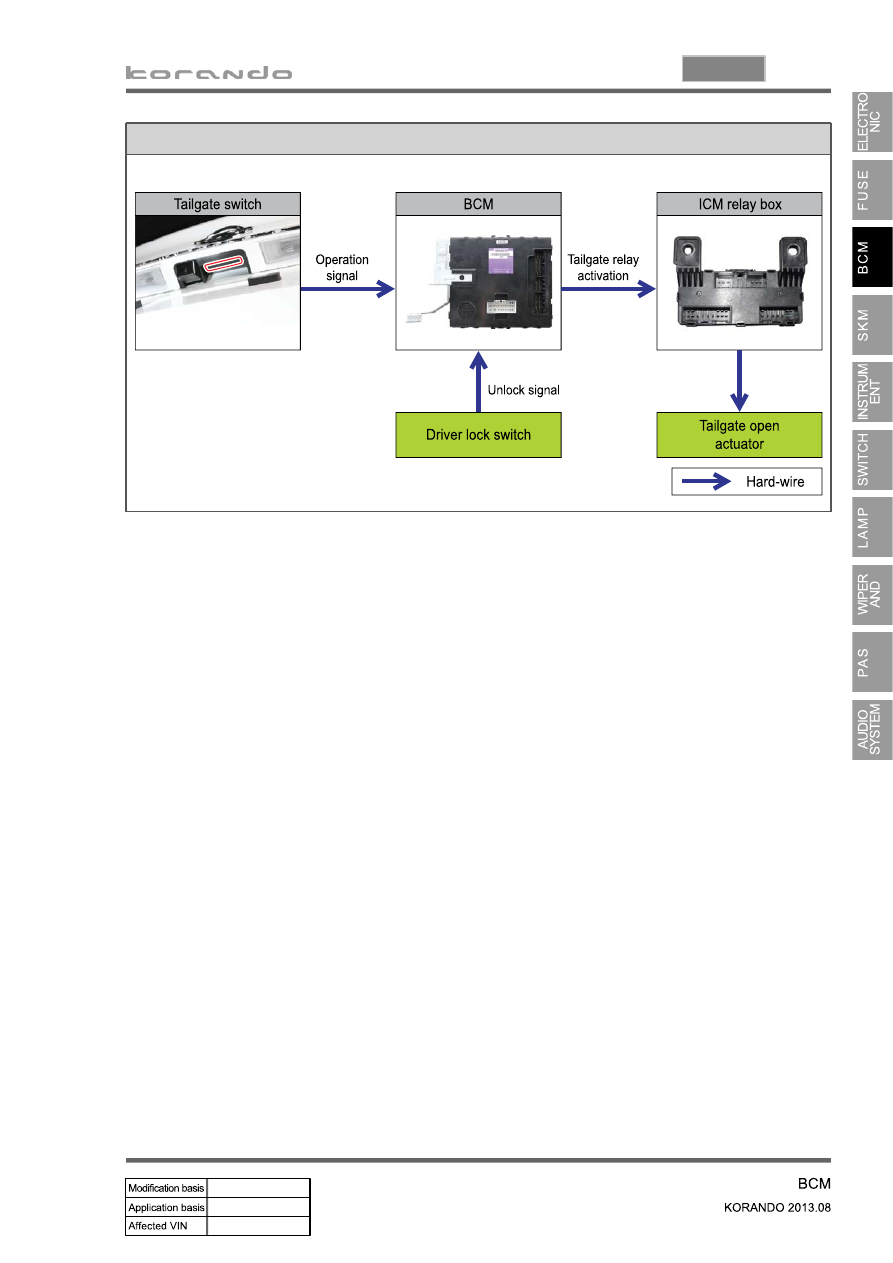

16. TAILGATE OPEN CONTROL

03-91

8710-01

Operating process

- When the driver door is unlocked with the power OFF, ACC ON, or IGN ON.
