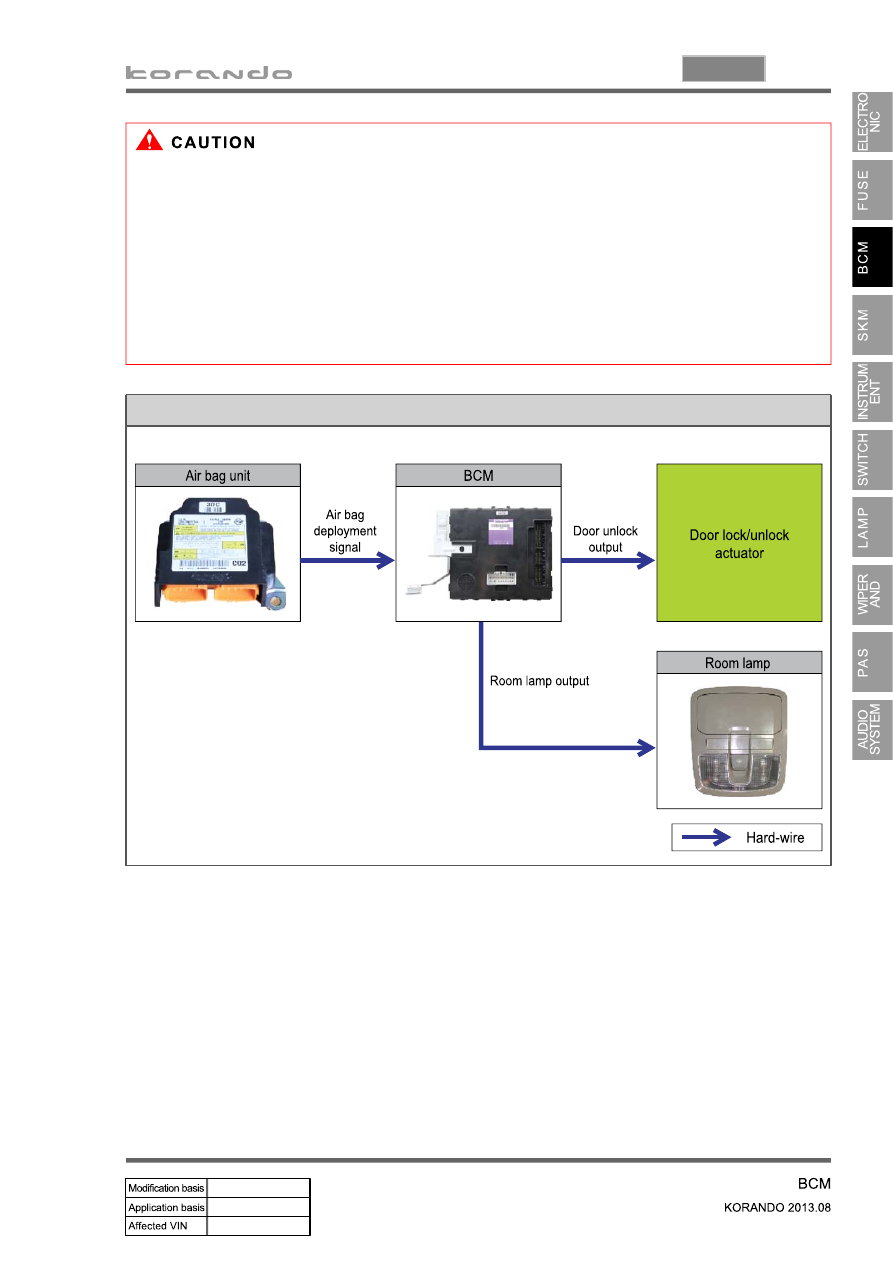

AUTO UNLOCK upon receiving air bag deployment signal

▶

Air bag deployment signal is not input for initial 7 seconds (T4) after IGN ON

A.

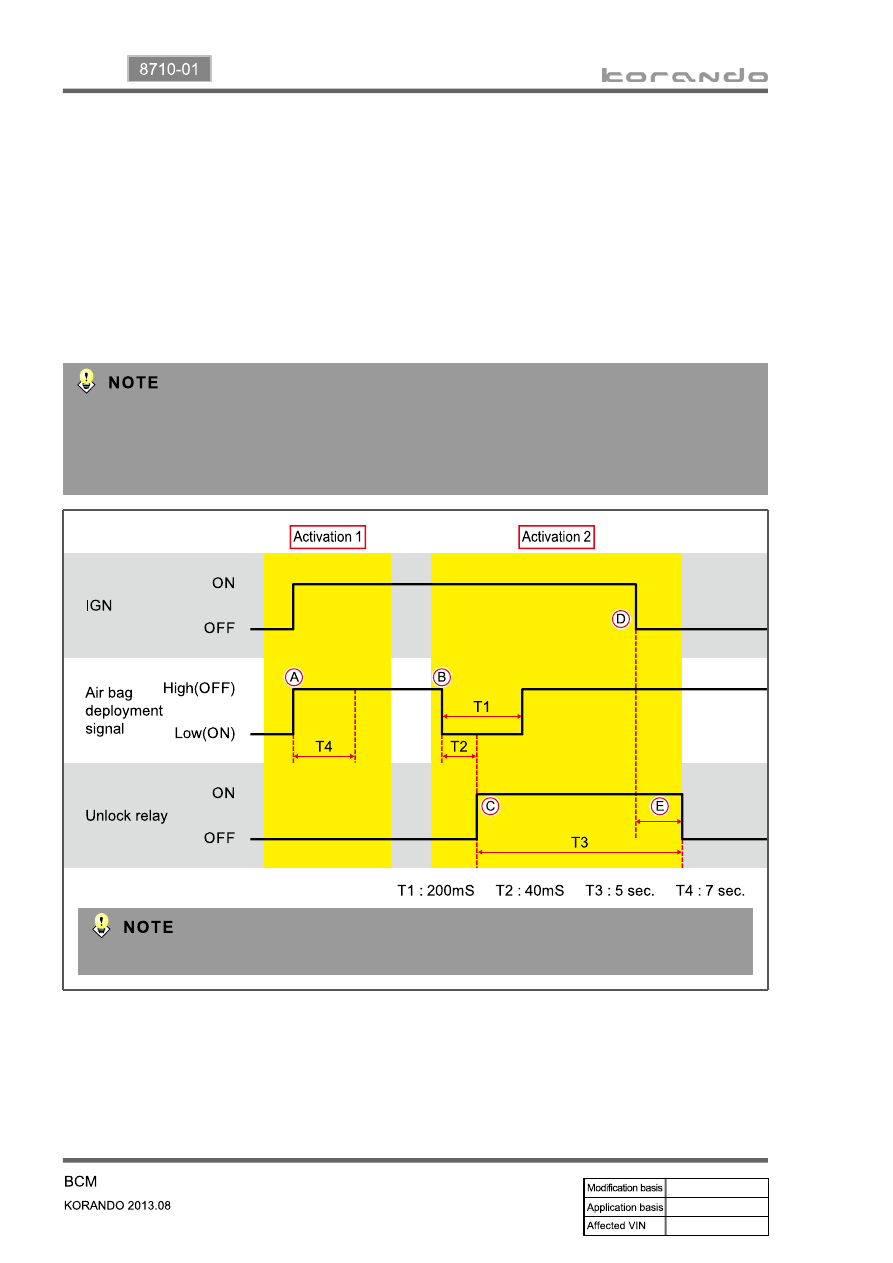

Operation 1.

When air bag deployment signal (OFF→ON) is input 7 seconds (T4) after IGN ON

Signal from unlock relay is output for 5 seconds (T3) after 40 ms (T2)

When turning IGN OFF during 5 seconds (T3) of unlock relay signal output

Signal from unlock relay is input for the rest of the time

B.

C.

D.

E.

Operation 2.

The room lamp comes on when the air bag deployment signal is input except when the room lamp

switch is turned off.

The hazard warning lamp flashes when the air bag deployment signal is input.

Resetting the auto door unlock function turns off the battery (cutting off BCM power).

-

 -

 -

The door LOCK/UNLOCK relay is installed inside the actuator.

03-85

8710-01

Operating process

- IGN ON/Room lamp switch in any position other than OFF

The UNLOCK by the air bag deployment signal takes priority over the LOCK/UNLOCK control from

other functions.

The LOCK/UNLOCK requests from other functions during or after the UNLOCK output by the air

bag signal are ignored. However, the LOCK control is carried out when the ignition switch is turned

to the "OFF" position.

The same request during the LOCK/UNLOCK output is ignored. However, the UNLOCK by the air

bag deployment signal or operation by the smart key is carried out.

When LOCK and UNLOCK outputs occur at the same time, the LOCK output is carried out and

UNLOCK is ignored.

1.

2.

3.

4.

03-86

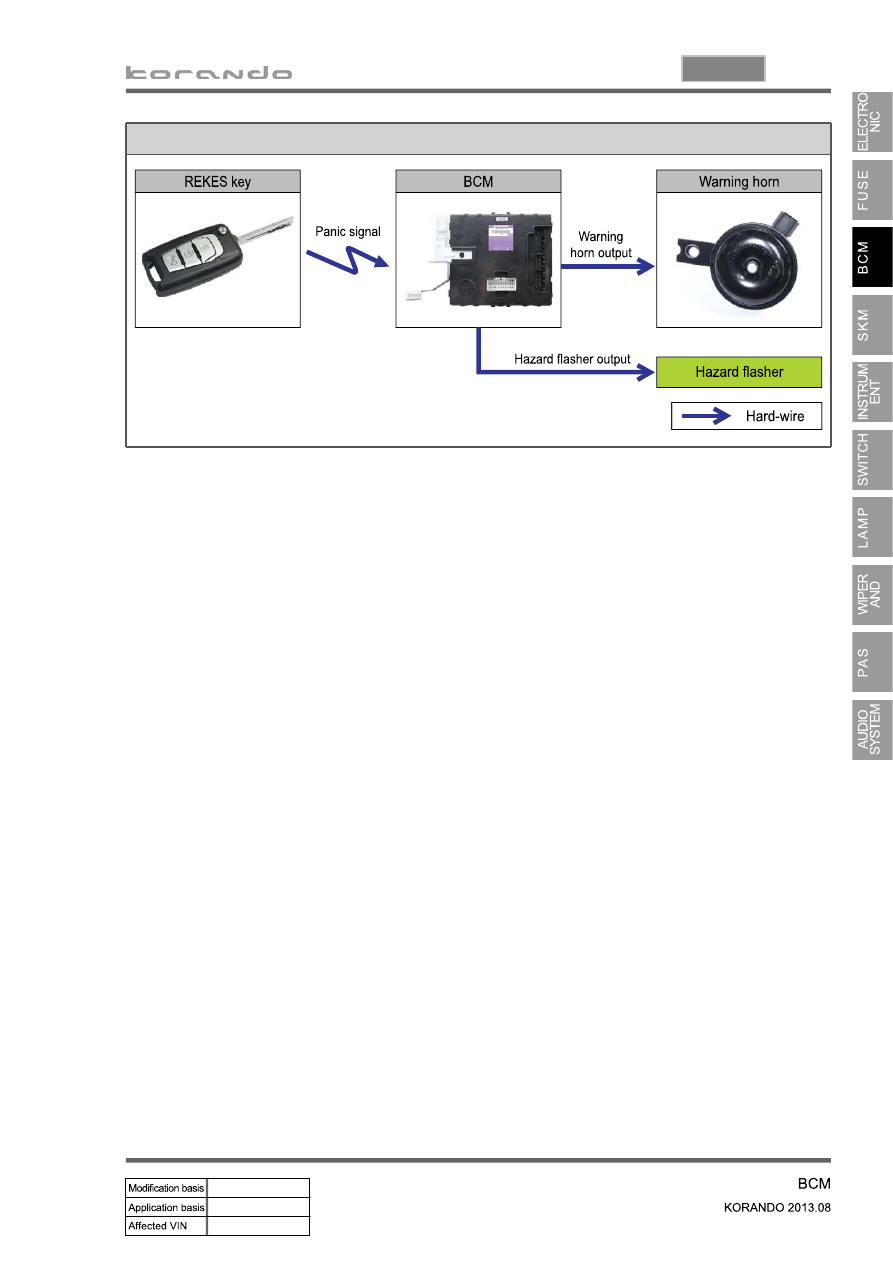

REKES key panic alarm (for vehicles without SKM)

▶

The REKES key panic signal is received.

The hazard warning lamp and warning horn are activated for 30 seconds (T1) at intervals of 0.5 sec.

ON/0.5 sec. OFF.

A.

B.

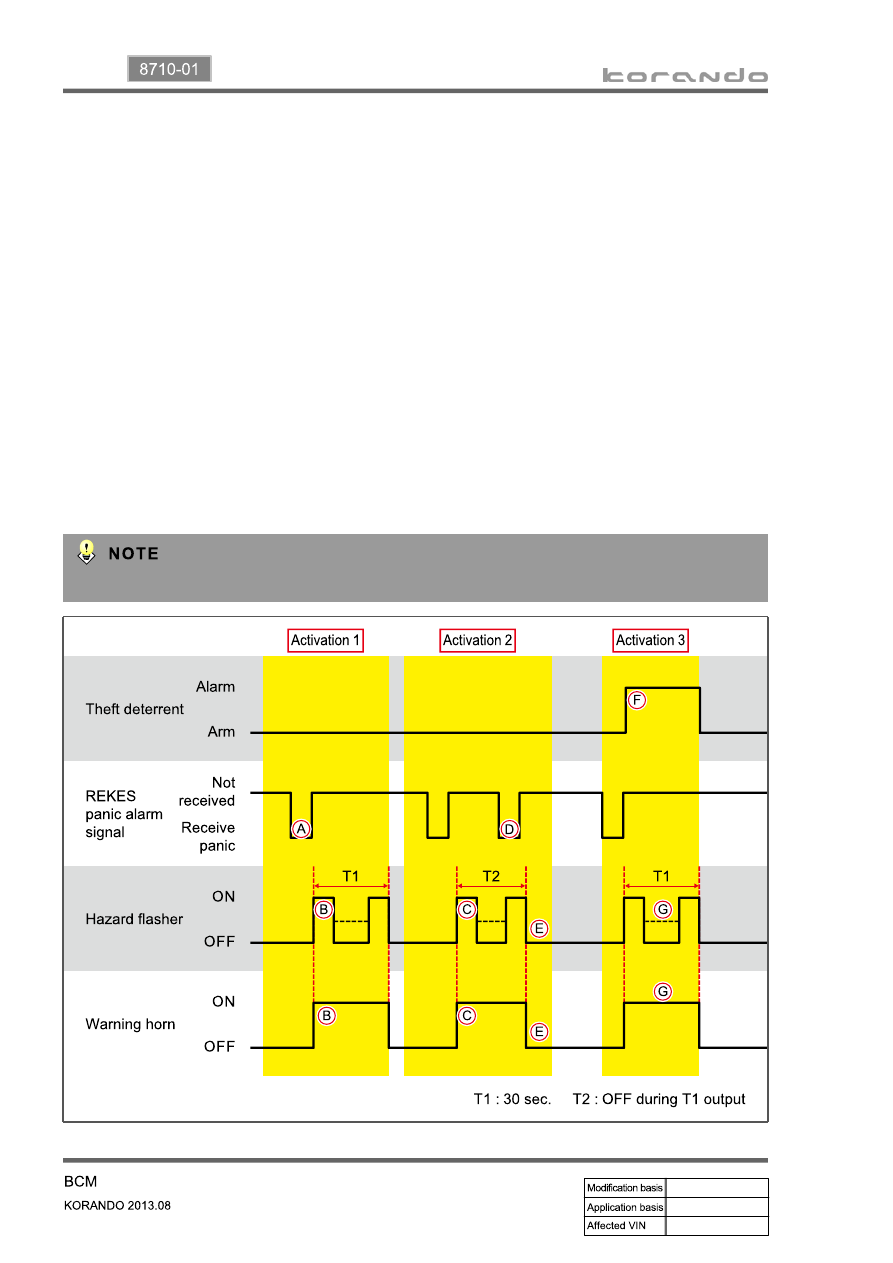

Operation 1.

The hazard warning lamp and warning horn are activated by REKES panic function.

The REKES panic LOCK and panic signals are received.

The panic function is interrupted and other functions are activated by the corresponding command.

C.

D.

E.

Operation 2.

The theft deterrent alarm is activated.

The panic function is interrupted and theft deterrent alarm is set.

F.

G.

Operation 3. (during operation 1)

15. PANIC ALARM CONTROL

The panic alarm functions regardless of the ignition status.

-

03-87

8710-01

Operating process
